Combined azimuth and inclination angle measurement

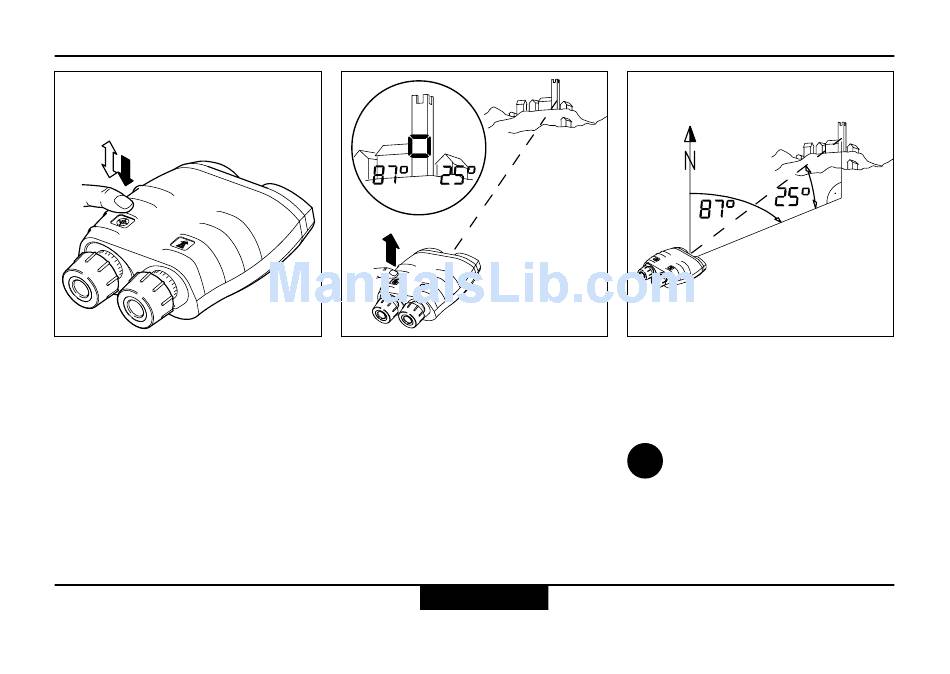

Click the azimuth key once, then
immediately press and hold it
down.
VECTOR ™- USMC VECTOR 21-V.0.3
The following items appear in
the field of view:
• the pointing circle
• the current azimuth at the left
• the current angle of inclination
at the right.
Sight the object with the pointing
circle, then release the azimuth
key while holding the VECTOR
steady.
www.
Shop for Vectronix products online at:
20
Azimuth and inclination measurement
SCOUTBASECAMP
.com 1.877.766.5412
The azimuth and angle of
inclination to the object are
displayed.
Setting measurement
i
units: see page 32.
