Matrix C7xe Owner's Manual

Climbmill
Hide thumbs Also See for C7xe:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual
C7xe
C7x
C5x
CLIMBMILL OWNER'S MANUAL
climber_om_r1.7.indd 1
9/30/11 12:01 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C7xe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix C7xe

Summary of Contents for Matrix C7xe

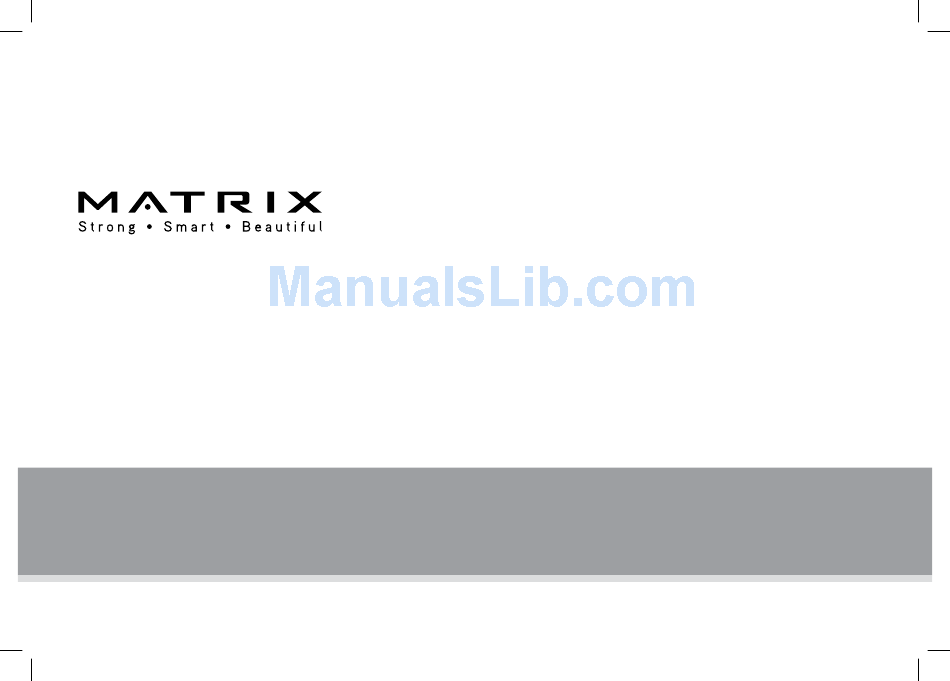

  • Page 1 C7xe CLIMBMILL OWNER’S MANUAL climber_om_r1.7.indd 1 9/30/11 12:01 PM...

  • Page 2: Important Precautions

    IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS Read this gUIdE before using the OWNER’S MANUAL. When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before using this product. It is the responsibility of the owner to ensure that all users of this product are adequately informed of all warnings and precautions.
  • Page 3 dANGER WARNING TO REdUCE THE RISk Of ElECTRICAl SHOCk: TO REdUCE THE RISk Of bURNS, fIRE, ElECTRICAl SHOCk OR INjURy TO pERSONS: Always unplug the unit from the electrical outlet immediately after using, before cleaning, performing maintenance and putting on or •...

  • Page 4: Electrical Requirements

    Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified All Matrix units require the use of a 15 amp or 20 amp “dedicated circuit, ” with a non-looped (isolated) neutral/ground, for the power electrician or serviceman if you are in doubt as to whether the product is properly grounded.

  • Page 5: Basic Operation

    BASIC OPERATION CONGRATUlATIONS ON CHOOSING yOUR MATRIX CARdIO MACHINE climber_om_r1.7.indd 8-9 9/30/11 12:01 PM...

  • Page 6: Location Of The Unit

    lOCATION Of THE UNIT WARNING USING THE HEART RATE fUNCTION 1 ft 31 cm Place the unit on a level surface. There should be 3 feet of clearance behind the unit and one foot in front for the power cord. do not place the unit in any area that will block any Our equipment is heavy, use care and additional help if The heart rate function on this product is not a medical vent or air openings.

  • Page 7: Troubleshooting And Maintenance

    WIRElESS HEART RATE RECEIVER TROUBLESHOOTINg When used in conjunction with a wireless chest transmitter, your heart rate can be transmitted wirelessly to the unit and displayed on the console. & MAINTENANCE Prior to wearing the wireless chest transmitter on your chest, moisten the two rubber electrodes with water. Center the chest strap just below the breast or pectoral muscles, directly over your sternum, with the logo facing out.

  • Page 8: Recommended Cleaning Tips

    Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Matrix Fitness Systems will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made.
  • Page 9 ENTER YOUR SERIAL NUMBER ANd MOdEL NAME IN THE BOXES BELOW: SERIAl NUMbER lOCATION CONSOLE SERIAL NUMBER: FRAME SERIAL NUMBER: SERIAL # PLACEMENT MATRIX MOdEL NAME: » Refer to the SERIAL NUMBER and MOdEL NAME when calling for service. climber_om_r1.7.indd 16-17 9/30/11 12:01 PM...

  • Page 10: Required Tools For Assembly

    REQUIREd fASTENERS FASTENERS SKETCH DESCRIPTION QUANTITY PACKAGE COLOR SOCKET HEAD BOLT(M8x25L) BLACK SOCKET HEAD BOLT(M8x20L) BLUE SOCKET HEAD BOLT(M8x35L) GREEN SOCKET HEAD BOLT(M8x30L) GREEN SOCKET HEAD BOLT(M8x23L) GREEN CURVED WASHER BLUE FLAT WASHER BLUE FLAT WASHER GREEN REQUIREd TOOlS fOR ASSEMbly SKETCH DESCRIPTION QUANTITY...

  • Page 11: Assembly Step

    ASSEMBLY STEp 1 ASSEMBLY STEp 2 blACk HARdWARE bAG CONTENTS : blUE HARdWARE bAG CONTENTS SOCKET HEAD BOLT(M8x25L) SOCKET HEAD BOLT(M8x20L) BLUE BLACK GREEN BAG SOCKET HEAD BOLT(M8x15L) GREEN SOCKET HEAD BOLT(M8x35L) GREEN CURVED WASHER BLUE Open BLACK HARDWARE BAG FLAT WASHER UPPER HANDLEBAR BLUE...
  • Page 12 ASSEMBLY STEp 3 ASSEMBLY STEp 4 CONTENTS ARE pRE-ATTACHEd: SOCKET HEAD BOLT(M8x8L) CASTER WHEELS Connect the wires from the frame to the Base Step. Lift the Base Step over the caster wheels. Push down firmly on both sides until it seats firmly. Remove the five pre-attached console screws from back of console.
  • Page 13 CLIMBMILL OPERATION climber_om_r1.7.indd 24-25 9/30/11 12:01 PM...

  • Page 14: Console Description

    “Home” key. Below is a list of the settings. The Matrix machine is inspected before it is packaged. It is shipped in three pieces: the base, the handlebars and the console. Carefully unpack the unit and dispose of the box material.
  • Page 15 C5X CONSOlE dESCRIpTION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) WORkOUT kEyS: Simple program view and selection buttons. b) GO: One Touch Start. C) ENTER: To confirm each program setting. d) Up/dOWN lEVEl: Easy information and level selection.
  • Page 16 C7X CONSOlE dESCRIpTION Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use. A) MUlTI-pURpOSE kEyS: Keys have different functions depending on each screen. b) GO: One touch Start. C) ENTER: To confirm each program setting.
  • Page 17 C7XE CONSOlE dESCRIpTION The C7xe has a fully integrated touch screen display. All information required for workouts is explained on screen. Exploration of the interface is highly encouraged. The information explaining how to program for various workouts will give an explanation about the contents of each screen on the C7xe.
  • Page 18 Press the gO button and the machine will enter into a manual 1) Enter the desired intensity level using the ARROW kEyS or Your Matrix machine offers a heart rate control workout mode. adjusts the resistance value to simulate walking or running up mode of operation.
  • Page 19 WORkOUT dESCRIpTIONS CONSTANT WATTS fAT bURN WORkOUT OpERATION A unique program that allows you to vary your cadence or RPM Fat burn is a level-based workout that is designed to help users and the machine’s resistance will adjust accordingly to your burn fat through various resistance changes.
  • Page 20 WORkOUT dESCRIpTIONS fIT TESTS SUbMAXIMAl The WFI (Wellness Fitness Initiative) protocol is a test used by firefighters to evaluate aerobic fitness capacity as part of This test measures cardiovascular fitness and provides an pre-employment testing and annual fitness testing. This assessment is a series of intervals lasting a maximum of 16 minutes, where fITNESS RATING NORMS (VO 2 MAX) estimated Sub-maximal VO2max result.
  • Page 21 NIkE + OpERATION AVAIlAblE ON All C7X ANd C7XE CONSOlES REQUIREMENTS Nike Plus – compatible iPod or iPhone (See www.apple.com/nikeplus for more information). Before syncing your Apple device to your computer, you must first create a free Nike Plus account at REAdy www.nikerunning.com and download the latest iTunes software (www.apple.com/itunes).

  • Page 22: Product Specifications

    PROdUCT SPECIFICATIONS ALL CLIMBMILL WATTS TABLE @ 60 Kg. USER (132 LBS) Console Model HURESAC-7xe-C HURESC-7x-C C-5x-C WEIgHT (Kg.) climber_om_r1.7.indd 42-43 9/30/11 12:01 PM...
  • Page 23 MOdEL NAME C-5x/7x MOdEL TYPE C7xe CLIMBMILL C7x CLIMBMILL C5x CLIMBMILL FRAME PART # C-5x/7x-F CONSOLE PART # HURESAC-7xe-C HURESC-7x-C C-5x-C FEATURES STEP HEIgHT 10" 10" 10" CONTACT & WIRELESS HR 8" 8" 8" ULTRA NON-SLIP PEdALS Q-FACTOR HANdLEBAR dESIgN...
  • Page 24 Matrix fitness 1-866-693-4863 1600 landmark drive, www.matrixfitness.com Cottage Grove, WI 53527 Matrix ClimbMill 1.7 | © 2011 Matrix Fitness climber_om_r1.7.indd 46 9/30/11 12:01 PM...

This manual is also suitable for:

C5xC7x
