1)
Voltage / MMA Arcforce/TIG down slope Display
•
The meter on the front panel can indicate the actual welding voltage or preset MIG voltage. The indicating
number has the precision of 0.1V .The meter indicates the preset during no welding.
•
Display MMA Arcforce
•
Display TIG down slope time
2)
Current / Wire speed indicating
The current indicating meter on the front panel indicates the actual welding current during the welding，
indicates the wire speed during no welding.
3)
Power indicator
Lights up when 240v power is connected to machine and on/off switch is in the on position
4)
TIG down slope time or post flow time
5)
Wire speed - When lit LED display will show wire feed speed
6)
Current - When lit LED display will show amperage

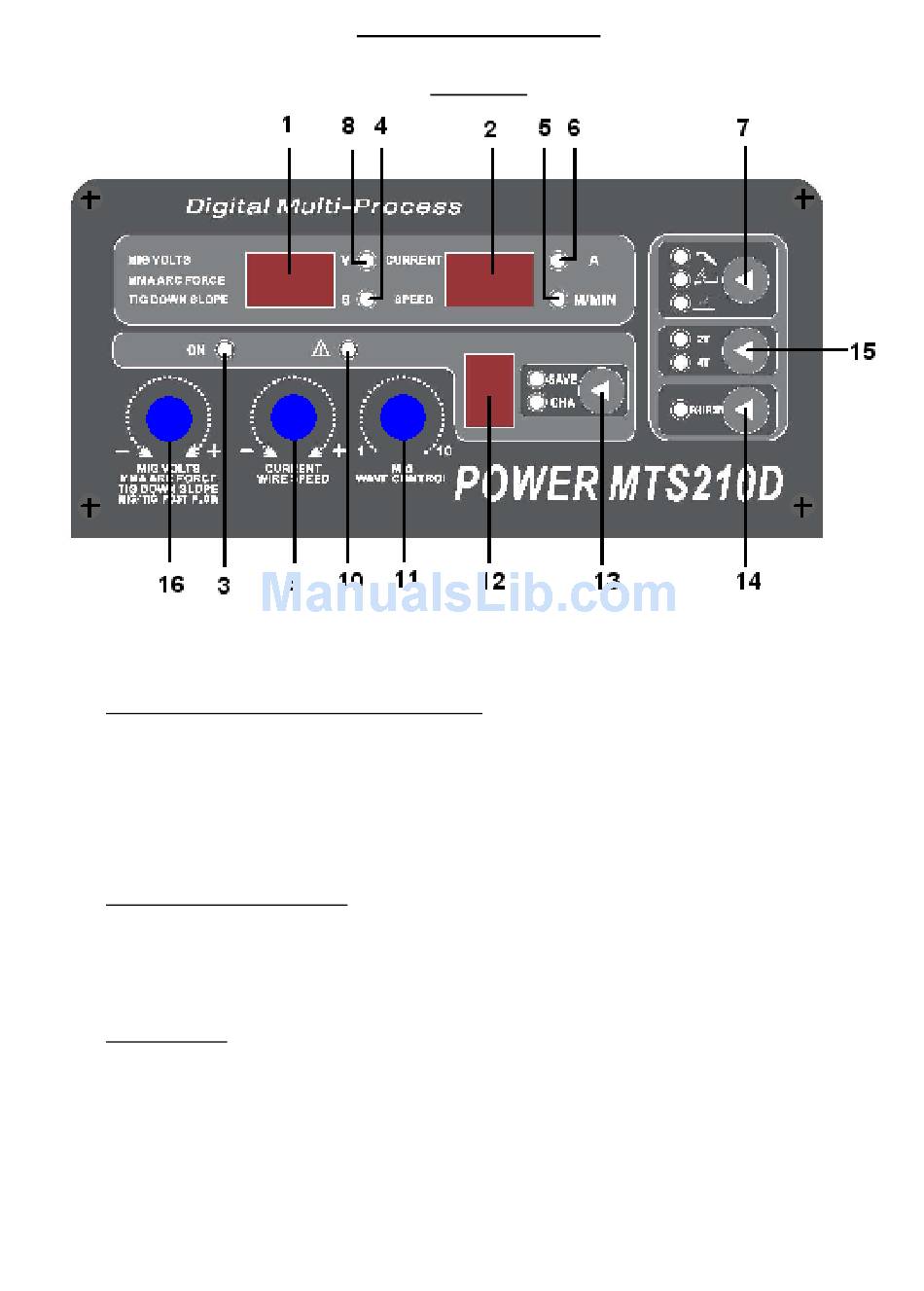

Controls and Settings
Front Panel
Fig 1
8
