1) Gas outlet
Connect the TIG torch gas hose quick release connector
2) MIG Torch Euro Connector (NOT used in TIG mode)
Positive power connector
3)
Connect the earth lead to by inserting and twisting until tight and the earth clamp to
work/bench
4) Torch control socket 7-Pin
Connect torch control plug or Remote Foot Pedal plug.
5) Negative power connector +
Connect TIG Torch Dinse to power connector by inserting and twisting until tight
Connect the gas input hose to gas regulator and use 'Pure Argon' Gas, available from local suppliers.
Set gas flow/pressure to 8-12 LPM. Make sure the gas bottle is secured to avoid injury.

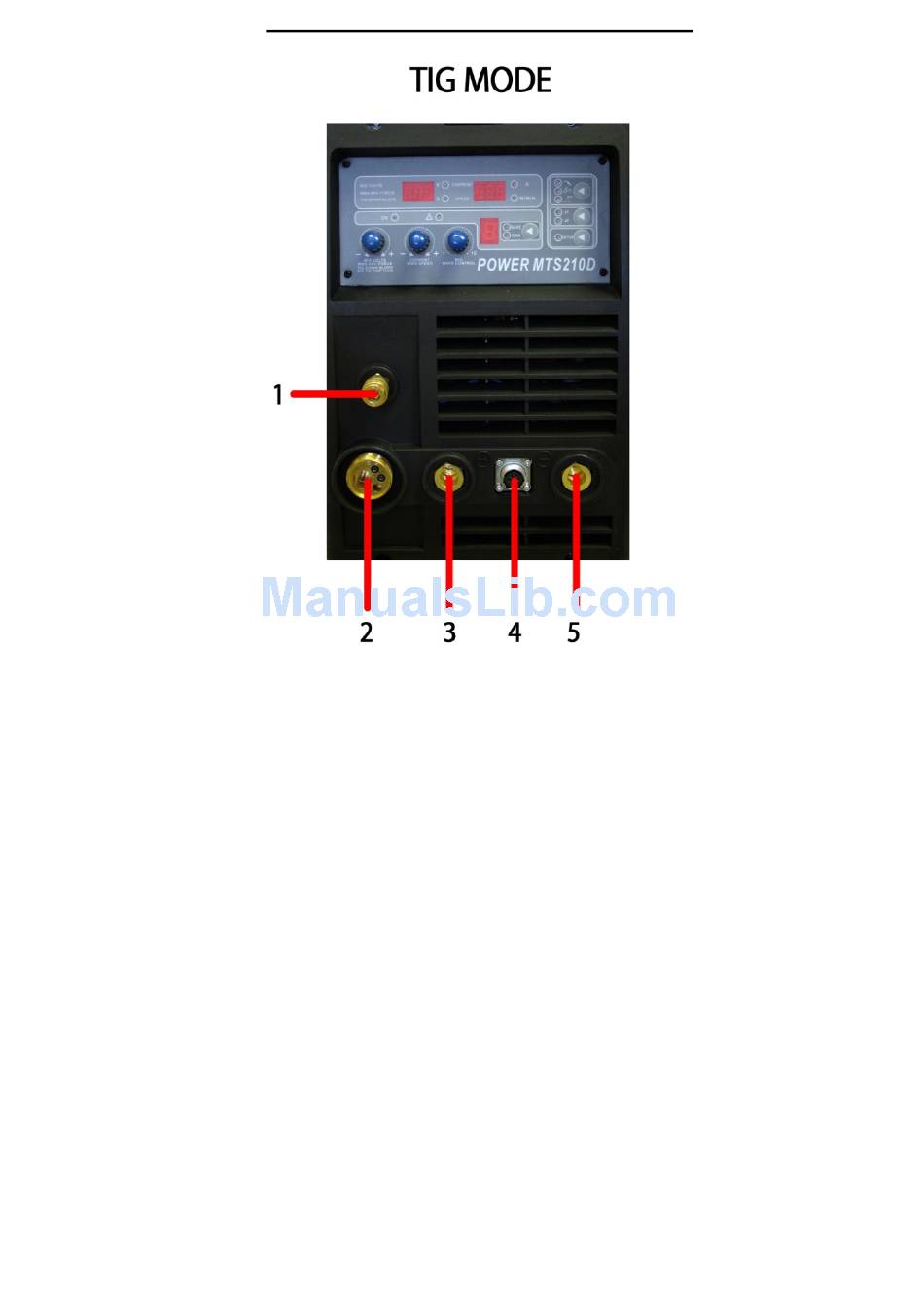

Connections for TIG (GTAW) Welding

Fig 3
