Icom IC-7400 Service Manual page 21
Hf/vhf all mode transceiver
Hide thumbs
Also See for IC-7400:
- Instruction manual (116 pages) ,
- Service manual (92 pages) ,
- Technical information (7 pages)
Table of Contents
Advertisement
C202

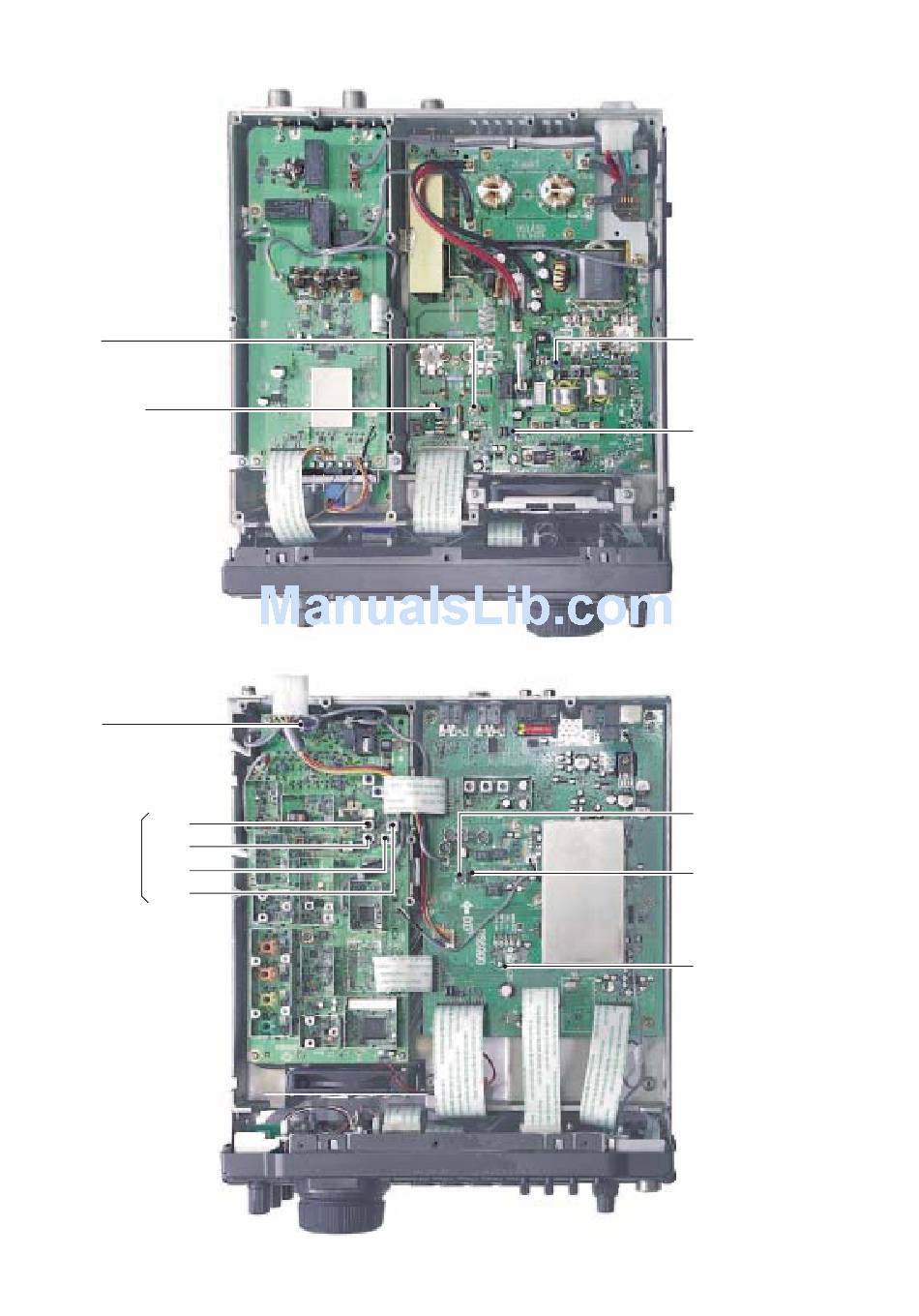

TX peak adjustment
R204, R215
Idling current adjustment
for 144 MHz band
final amplifier
J151
TX peak check point
L271
L251
TX peak
adjustment
L252
L253
5 - 5
L251
R18, R109
Idling current adjustment
for HF/50 MHz bands
final amplifier
R11
Idling current adjustment
for driver
L330
TX peak adjustment
R546
Transmitter total
gain adjustment
R555
Ic APC adjustment
