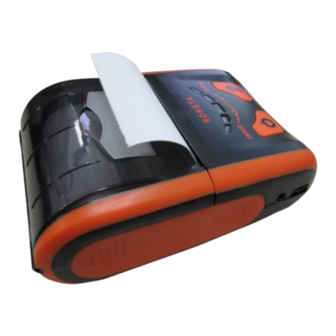

- Page 1 200 Series Printer User Manual...
-
Page 2: Table Of Contents
Xiamen Rongta Technology Co., Ltd. Catalog I NOTICE ..............................3 1.1 S ..........................3 AFETY OTICE 1.2 U ..........................3 SAGE OTICE 1.3 S ..........................4 TORAGE OTICE 1.4 B ......................... 4 ATTERY AFETY OTICE II PRODUCT INTRODUCTION ......................6 2.1 P... -
Page 3: I Notice
Xiamen Rongta Technology Co., Ltd. I NOTICE Please read the following information carefully before using the printer! 1.1 Safety Notice (1) This printer can only use battery and power adapter provided by our company, or it may cause damage to the printer, battery leakage, fire or explosion. -
Page 4: Storage Notice
Xiamen Rongta Technology Co., Ltd. (5) The printer could work stably from -10° C to 50° C, but the higher temperature (>/=45° C) or lower temperature (</=5° C) would debase the print quality. Higher humidity (>/=85%) or lower humidity (</=20%) also may debase the print quality. - Page 5 Xiamen Rongta Technology Co., Ltd. voltage and bring unusual chemistry reaction, then cause the overheating, burning and/ or explosion of it. (2) Do not use or place the battery near burner or high temperature environment. Overheating may cause the damage to the resin shell and/or heat insulation material, and bring the short circuit in the battery then lead the overheating, burning and/ or explosion of it.
-
Page 6: Product Introduction
Xiamen Rongta Technology Co., Ltd. (9) Do not throw the battery or make it damaged. If the safety device in it is burned out, any charging of it would bring abnormal current and/or voltage, bring unusual chemistry reaction, then may lead to overheating, burning and/or explosion of it. -
Page 7: Accessories
Xiamen Rongta Technology Co., Ltd. 3. Battery indicator 4. Error indicator 5. Power Key 6. Body 7. cover opening button 8. transparent cover 9. Printer Top Cover 10. Power supply interface 11. USB interface 12. Battery Cover 2.2 Accessories Standard Accessories... -
Page 8: Performance
Xiamen Rongta Technology Co., Ltd. III Performance 3.1 Print Performance Printing way: Direct thermal print Paper width: 58mm Printing width: 48mm Resolution: 8dots/mm (203dpi) Dot/line: 384dots Printing speed : 80mm/s (Max) Paper thickness: 60-80μm Printing Contents: Support all GB18030 Chinese character, PC437,Katakana,PC850，... -
Page 9: Introduction
Xiamen Rongta Technology Co., Ltd. Power: 1350mAH rechargeable li-ion battery Power alarm: battery indicator light will be out and Error indicator light (Red) will be on when printer will run out of power. Adapter to recharge: battery can be filled with in 3 hours. - Page 10 Xiamen Rongta Technology Co., Ltd. Cover button Transparency cover Pinch both sides Rubber roll Usage Method 1. Poke up the key of opening cover or use fingers to keep pressing the sides of cover then open it. 2. As shown in picture, please put the paper roll in and do not put it in wrong direction, otherwise it would lead the printer unable to work.
-
Page 11: Basic Function
Xiamen Rongta Technology Co., Ltd. 3. As shown in picture, pull out part of paper; please make sure to pull the paper out of the paper roll compartment. 4. Put the paper roll in the right way and then close the cover. -
Page 12: Printer Connecting And Printing
Xiamen Rongta Technology Co., Ltd. Charging method as follows: The printer is charging after plugging the charger into 220V 50Hz power socket, and the other end plug to the charger socket of the printer. During the charging process, under power on status, power indicator (blue light) will keep flashing from left to right repeatedly till the charging is finished and the charge indicator is keep lighting. -
Page 13: Bluetooth Matching And Printing
Xiamen Rongta Technology Co., Ltd. WPA2-PSK in Wifitool. The setting data of wifitool should keep the same to route. 4. If the encryption type for route is “WEP”, the setting of wifitool should fit to the route. 5. After connecting printer with computer by virtual serial connection via... -
Page 14: Indicator Light And Buzzer Signal Description
Xiamen Rongta Technology Co., Ltd. RP200 portable mini printer for printing. If the PC doesn’t have virtual bluetooth serial port, and you want to drive the RP200 portable mini printer, please consult your PC supplier. 4.4 Indicator Light and Buzzer Signal Description...
