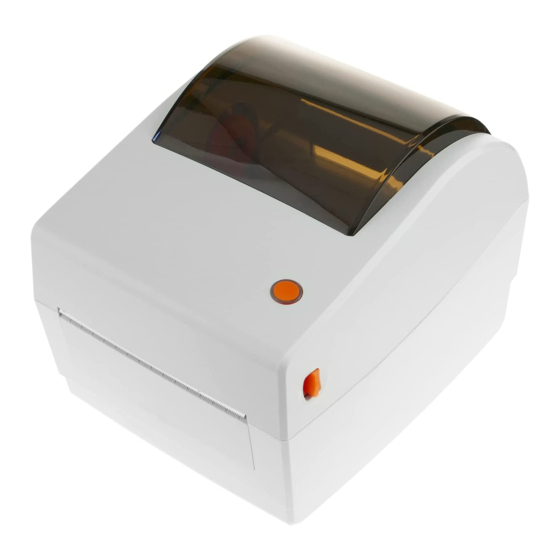

Rongta Technology RP410 User Manual
  1. Manuals
  2. Brands
  3. Rongta Technology Manuals
  4. Printer
  5. RP410
  6. User manual

Rongta Technology RP410 User Manual

Hide thumbs Also See for RP410:
Table of Contents

Advertisement

Quick Links

Download this manual

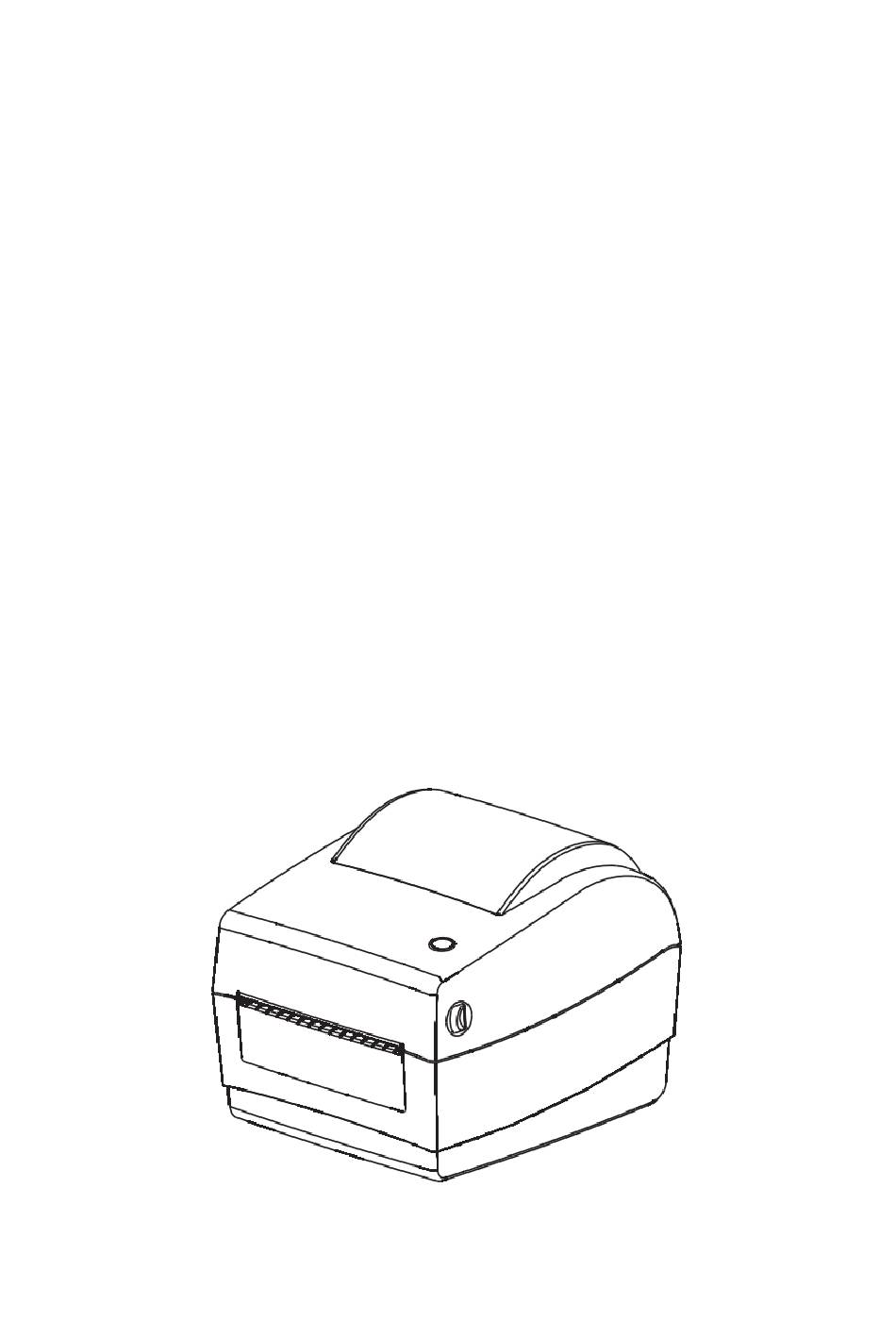

USER MANUAL
RP410

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP410 and is the answer not in the manual?

Questions and answers

Related Manuals for Rongta Technology RP410

Summary of Contents for Rongta Technology RP410

  • Page 1 USER MANUAL RP410...

  • Page 2: Table Of Contents

    Catalogue Manual information ........................1 Safety Instruction........................3 1. Product introduction ......................5 1.1 Box list ..........................5 1.2 Appearance and components ................... 6 2. Product Specification ......................7 2.1 Specification ........................7 3. Installation ..........................8 3.1 Power connection ......................8 3.2 How to connect printer and PC ................

  • Page 3: Manual Information

    Manual information This manual includes product user, installation, etc. Please refer to the below details for all kinds of technical issues and territory. 1. Manual for driver and program. This manual includes information such as windows instruction for driver and program and main function. 2.
  • Page 4 FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Safety Instruction

    Safety Instruction Please read the following precautions to avoid personal injury or equipment damage before installing and using the printer. 1. Safety warning Warning: The print head is heating component, during printing and immediately after printing; do not touch the print head and peripheral components.
  • Page 6 to use same power socket with large electrical machine or other can cause the power supply voltage fluctuation device. 14. Please disconnect the power of the printer power adapter, If a long time do not use the printer. 15. In order to keep good quality of printing and long life of the product, suggest to use recommended by the same quality of paper.

  • Page 7: Product Introduction

    1. Product introduction 1.1 Box list Caution： 1. open the printer packaging, keep the packaging materials, to facilitate the future of packaging and transportation 2. if there is any damage or loss of goods, please contact the dealer who sell the product ...

  • Page 8: Appearance And Components

    1.2 Appearance and components  Front view  Rear View  Inner View...

  • Page 9: Product Specification

    2. Product Specification 2.1 Specification Project Parameters Printing method Thermal Transfer/Direct Thermal Resolution 203dpi Max printing width 104mm Printing 5inch/s 127mm/s (hoisting speed 150mm Printing speed realizable 150mm) Interface USB 2.0 Storage Flash 4M（expand memory 8M realizable） Code 39、Code 93、ITF、EAN 128、Code 128、subsetsA、B、C、Codabar、EAN-8、...

  • Page 10: Installation

    Adaptor、USB cable、Power cable、CD、 Accessories user manual、Warranty Car、Certificate,、 paper tray(optional) Reliable TPH lifespan 50km data Software Operation System XP/Win7/Win8/Win10 3. Installation 3.1 Power connection 1. PLS take attention to make confirmation if the printer power button on “off” position. 2. Connect adaptor plug with printer outlet at second step. 3.

  • Page 11: How To Connect Printer And Pc

    Caution：  PLS make sure use our original compatible power adaptor to avoid damaging the printer.  If do not using printer for an extended period, PLS disconnect it from power. 3.2 How to connect printer and PC PLS follow up below step for connecting. 1.

  • Page 12: Install Paper Roll

    3.3 Install paper roll 3.3.1 Inside 1. Open fixing seat, put in paper roll with printed face above. 2. Make paper front through paper guide, pull paper exceed rubber roller, adjust paper guide to fix the paper according to the paper width.

  • Page 13: Outside

    3. Close printer cover, press down to hear “ka” to lock. 3.3.2 Outside 1. Make paper front through paper-feeding slot on the back of printer, confirm the printed face on above. 2. Open fixing seat, push up the L seat to lock.
  • Page 14 3. Make paper front through paper guide, pull paper exceed rubber roller, adjust paper guide to fix the paper according to the paper width. 4. Close printer cover, press down to hear “ka” to lock.

  • Page 15: The Operator Panel

    3.4 The operator panel 3.4.1 The operational method of FEED printer status Operation of FEED Function standby press Feed in a blank paper automatically Enter into the learn mode of cover standby Press(3 seconds) sheet Hold （release after Power off Print out self test page power on) Open the cover...

  • Page 16: Printing Test

    3.5 Printing Test 3.5.1 Print Self-test Page When initially install printer or any problems happen to printer, you can make a self-test page to check status of firmware version, printer parameter setting, printing quality and related setting information of external equipments etc. Once you confirm printer does not have any problems after self-testing, please check other devices or software.

  • Page 17: Clean The Printer

    Under the printer ready state, long press paper feed 3s, after the status lights (blue one) flash 2 times, release feed button. But if the printer is studying under continuous feed mode, this study will be invalid Users can also make the study from the printer tool software (see "printer setup tool instructions").

  • Page 18: Clean The Sensor, The Rubber Roller And Paper Path

    4.2 Clean the sensor, the rubber roller and paper path 1. Open the printer cover and remove the paper roll. 2. Use a dry cloth or cotton swab to wipe off dust or foreign matter. 3. Place cloth or cotton swab dipped in alcohol for medical. And use it to remove adhesive foreign substances or other contaminants.
  • Page 19 interface; c. Printer status error; b 3.42 reference manual printer various states of LED indicator, confirm whether the printer in the standby state (green light normally on); Incorrect a. No label locating a. Do label locating learning(take learning; reference of Point 3.6); positioning b.
  • Page 20 consistent with the paper loaded in the printer, it can be changed by setting tool; Poor print a. Incorrect paper a. Reloading paper(take reference quality loading; of Point 3.3 loading the media); b. Improper setting of b. Use setting tool or software to printing density and adjust the printer printing speed;...
  • Page 21 Bluetoothcommunication rinterscanprovidedualmodeBluetooth4.0（SPP+BLE），itcan communicatewithapple4S,ipad3,ipad4latermodels.Effectivecommunication distancelessorequal10m。 Bluetoothdefaultpairingpassword:0000, itcanbesettingupwithparametersettings. Formoredetails《Toolsettingmanul》。...
