Summary of Contents for Rongta Technology ACE H1

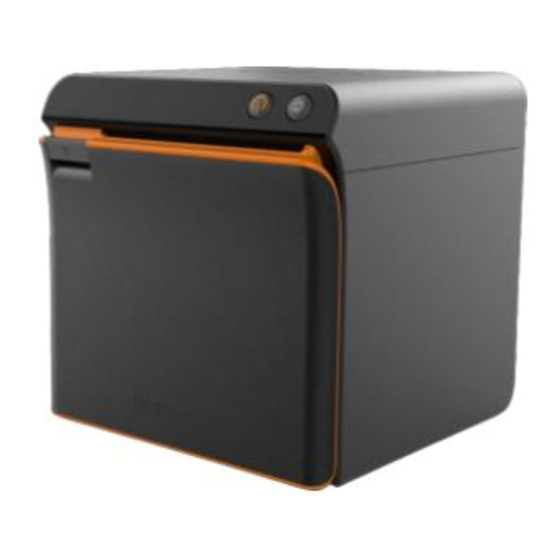

- Page 1 RONGTA User Manual ACE H1 Thermal Printer Xiamen Rongta Technology Co., Ltd.
- Page 2 RONGTA Contents I. Instructions..............................3 1.1 Safety warnings...........................3 1.2 Precautions............................3 II. Main Features............................... 4 III. Instructions on technical specifications...................... 4 IV. Installation and operation of the printer......................6 4.1 Unsealing of the printer........................6 4.2 Connection method of the printer....................... 6 4.3 Installation of paper rollers.........................
-
Page 3: I. Instructions
RONGTA I. Instructions ACE H1 is currently the smallest front paper exit direct thermal receipt printer in China, supports front and upper paper exits, easy to operate and high cost performance, and is widely used in many fields like shopping mall, supermarket, hospital, restaurant, bank, gasoline station, toll stations etc. -
Page 4: Ii. Main Features
RONGTA II. Main Features Front paper exit and upper paper exit Support NFC quick connect Support human voice remind Compact and portable, appearance attractive Compatible 80 and 58 paper rolls Paper saving Support interfaces of USB, Ethernet and cashbox Characters enlarge, bolded underlined, and the character line spacing, left... - Page 5 RONGTA Chinese character library 24x24dots, 300 (width）X 3.00 (height）mm international first and second level 10 kinds of international languages such as PC437, Katakana, International PC850, PC860, PC863PC865, WPC1252, PC866, PC852, code PC858 and so on Support 9 kinds of barcode printing like UPC-A, UPC-E, Barcode EAN(JAN)13, EAN(JAN)8, CODE39, CODABAR,...
-
Page 6: Iv. Installation And Operation Of The Printer
Environmental Operation temperature: Operation relative humidity:20~70% adaptation 0~40°C Storage temperature: Storage relative humidity: 5~95% -20~70°C IV. Installation and operation of the printer 4.1 Unsealing of the printer Printer-host Power adapter Power line Quick Guarantee card device Installation Guide Paper roll USB cable Optional component... -
Page 7: Installation Of Paper Rollers
Attention 1. Firstly, plug in the printer power supply connector DC24V, then turn on AC220V power and turn on the power switch, please do not in a opposite order for avoiding the damage of the machine. 2. Using inappropriate power adapter can cause bad print quality, or even damage the printer. 3. -
Page 8: V. Switches, Buttons And Indicator Lights Of The Printer
V. Switches, buttons and indicator lights of the printer 5.1 Power switch Power switch is used to switch power of the printer. Printer power switch is located on the left side of the printer. When you press the switch “-”, then power on the printer; when you press the switch” 0”, turn off the printer. -
Page 9: Vii. Printer Cleaning
VII. Printer cleaning 7.1 Clean the printer head When one of the following condition occurs, you have to cleaning the printing head Printing not clear Printing page longitudinal column is not clear Paper feeding noise Print head cleaning steps 1. Turn off the power of printer and open the upper cover. If there is paper, remove the paper; 2. -
Page 10: Viii. Paper Jam Elimination Method
Attention 1. Printer maintenance is must in the condition that the power supply is turned off. 2. Do not touch the print head surface with hand and metal goods. Do not use tweezers and other tools to scratch the print head, printing rubber rollers and sensor surface. 3. -
Page 11: X. Printer Driver
If the self-test is normal, check the following content 1. Check the interface on both ends between the printer and the computer. At the same time confirm the connection is to satisfy a printing machine and computer specifications. 2. Data transfer settings between printers and computers may differ. You can use the self checking to print interface setting of the printer. -
Page 12: Ⅻ.requirement
Ⅻ.Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 13 Service hotline 400-800-0596 Xiamen Rongta Technology Co., Ltd. Official website: www.rongtatech.com...
