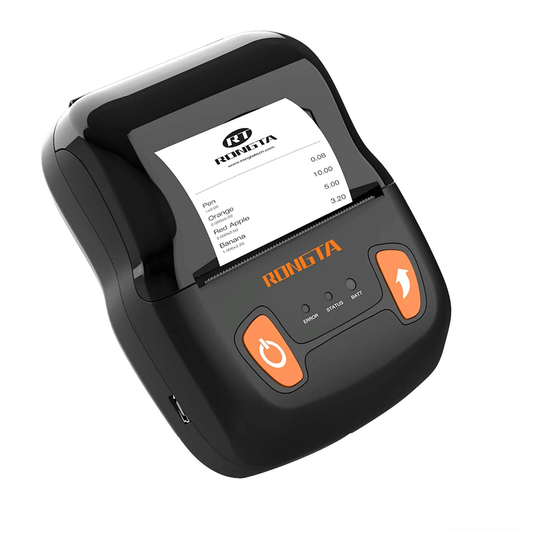

- Page 1 Mobile Printer RPP02A USER MANUAL...
-
Page 2: Table Of Contents
Contents I. Notice............................3 1.1 Safety Notice........................3 1.2 Usage Notice........................3 1.3 Storage Notice........................4 1.4 Battery Safety Notice......................4 II. Introduction......................... 6 2.1 Printer outer design......................6 2.2 Accessories........................7 III. Performance........................8 3.1 Print Performance......................8 3.2 Physics Parameter......................8 3.3 Environment Parameter....................8 3.4 Other Performance...................... - Page 3 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 4: Notice
I. Notice Please read the following information carefully before using the printer! 1.1 Safety Notice This printer can only use battery and power adapter provided by our company, or it may cause damage to the printer, battery leakage, fire or explosion. Do not put the battery into the fire, not make it short circuit, break up or heating, otherwise it may cause the battery leakage, fire or explosion. -
Page 5: Storage Notice
Higher humidity (>/=85%) or lower humidity (</=20%) also may debase the print quality. Use the bad print paper or long time storage paper would affect the print quality, even damage the printer. When the printer is working in black mark detection mode (when printing the pre-print receipt with black mark), it requires the black mark that on the pre-print paper is accord with black mark printing standard (as details in 4.2 Pre-print Black Mark Instruction), otherwise it may lead the printer disable to detect the black mark... - Page 6 2. Do not use or place the battery near burner or high temperature environment. Overheating may cause the damage to the resin shell and/or heat insulation material, and bring the short circuit in the battery then lead the overheating, burning and/ or explosion of it.
-
Page 7: Introduction
unusual chemistry reaction, then may lead to overheating, burning and/or explosion of 10.caution:Risk of explosion if battery is replaced by an incorrect type,Dispose of used batteries according to the instructions, II. Introduction 2.1 Printer outer design... -
Page 8: Accessories
2.2 Accessories Standard Accessories Power Charger Battery Paper Roll CD-ROM Leather Sheath USB Data Wire... -
Page 9: Performance
III. Performance 3.1 Print Performance Printing way: Direct thermal print Paper width: 58mm Printing width: 48mm Resolution: 8dots/mm (203dpi) Dot/line: 384dots Printing speed: 50-90mm/s Paper thickness: 60-80μm Printing Content: Chinese (Support all GB18030 Chinese character, character sets), ASCII character, some full width custom characters and some half width custom characters;... -
Page 10: Introduction
Adapter to recharge: battery can be filled with in 3 hours and fifty minutes. A charging time available: Normally, the battery could be used for printing 230meters or 6.5 hours. The parameter is only for reference; the capacity of the battery would be decreased after a long time using and could not ensure the actual print time. -
Page 11: Paper Roll Installation
4.1.2 Paper Roll Installation Usage Method: 1. Press your finger into the opening, press the button up, and open the paper bin with a little effort. 2. As shown in picture, please put the paper roll in and do not put it in wrong direction, otherwise it would lead the printer unable to work. -
Page 12: Basic Function
4.2 Basic Function 4.2.1 Power On Under power off status, keep pressing "POWER" key for two seconds, printer will be powered on and on working status, the power indicator light (tricolor) is bright. Note: If the printer power indicator is red, it means the printer is going to power off, please change the battery or charge it. -
Page 13: Printer Connecting And Printing
The charging method is as follows: insert the charging plug of the charger into the power socket of 220V and 50HZ, then insert the USB line into the printer's USB interface, and the printer starts charging. When the battery is full, the power indicator lights are green and a drip alarm is issued.Printer can work normally during charging process. -
Page 14: Indicator Light And Buzzer Signal Description
printer that earliest be matched with PC will be deleted automatically, at this time, if this printer need the PC to drive it, then it need to be re-matched with PC. Using Bluetooth Interface to Print For the PC with virtual Bluetooth serial port (such as cell phone using the SMARTPHONE, POCKET PC, PALM, laptops, etc.), after the success of the matching, you can send printing data through virtual Bluetooth serial port to the 02/BL portable mini printer for printing.
