User manual
CONTENTS ................................................................................................................................................ 1
1、INTRODUCTION .................................................................................................................................. 2
2、OBTAIN PRINTER IP ............................................................................................................................. 2
3、CONNECT THE PRINTER ...................................................................................................................... 2
1、C
ONNECT DIRECTLY THROUGH
2、C
ONNECT THROUGH
4、MODIFY THE PARAMETERS ................................................................................................................. 3
1、P
....................................................................................................................................... 3
AGE SET UP
2、C
HECKING THE INTERFACES
3、C
HECKING PRINTER STATUS
4、S
ETTING THE PARAMETER OF
Contents
E
........................................................................................ 2
THERNET CABLE
N
.................................................................................................... 2
ETWORK DEVICE
.................................................................................................................... 3
.................................................................................................................... 3
E
THERNET INTERFACE
.................................................................................... 4
Advertisement
Table of Contents
Related Manuals for Rongta Technology RP80
Summary of Contents for Rongta Technology RP80
-
Page 1: User Manual

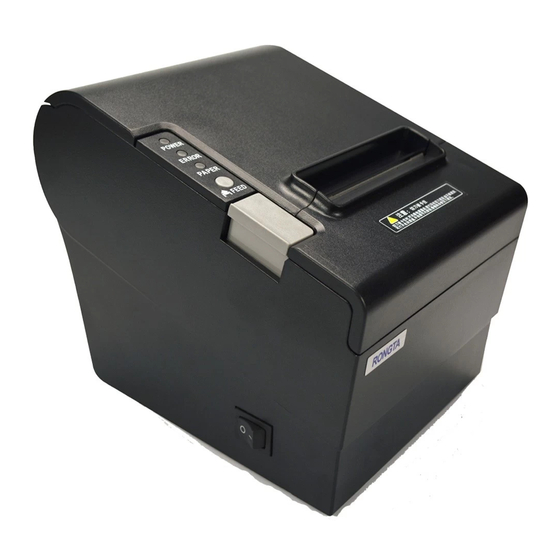

User manual Contents CONTENTS ..............................1 1、INTRODUCTION ..........................2 2、OBTAIN PRINTER IP ..........................2 3、CONNECT THE PRINTER ........................2 1、C ..................2 ONNECT DIRECTLY THROUGH THERNET CABLE 2、C ....................2 ONNECT THROUGH ETWORK DEVICE 4、MODIFY THE PARAMETERS ......................... 3 1、P ............................ - Page 2 XIAMEN RONGTA TECHNOLOGY CO., LTD. 1、Introduction Welcome to use RP80 thermal printers. The Ethernet parameters of the printers not only could be updated by the WINDOWS utility software that we offered, but also could be updated through the browser (i.e. IE/Firefox). (Note: only for RP80USE、RP80W printer currently)
- Page 3 XIAMEN RONGTA TECHNOLOGY CO., LTD. Set the IP of printer and computer to be of the same network segment. i.e.: 192.168.1.xx For example,printer：192.168.1.87，router：192.168.1.1，computer：192.168.1.123 4、Modify the parameters 1、Page set up Open the browser, such as Internet explorer, enter the printer IP address, as shown in figure 1, and then press enter.
- Page 4 XIAMEN RONGTA TECHNOLOGY CO., LTD. 3、 Paper end 4、 Paper near end 5、 Printer Off-Line As shown in figure 3. Figure 3 1、 Click Printer Test Page and the printer would print a test page 2、 Click Refresh to check the updated status of the printer.
- Page 5 XIAMEN RONGTA TECHNOLOGY CO., LTD. Figure 4 Enter new parameters, as showed in figure 5, New IP: 192.168.1.86, then click Save. Figure 5 A dialog box popup, as showed in figure 6, choose OK. Figure 6 www.rongtatech.com...
- Page 6 XIAMEN RONGTA TECHNOLOGY CO., LTD. Click Reboot on the left to restart the printer, a dialog box popup, choose OK. As showed in figure 7 Figure 7 Click YES, then showed as figure 8. Figure 8 Waiting for a few seconds, the printer gives out a hoot, which indicates that the printer has finished restarting and the modified program is over now.
