  • Page 1 RP58 USER MANUAL...

  • Page 2: Table Of Contents

    Xiamen Rongta Technology Co., Ltd. Catalog CATALOG ............................2 1、PRODUCT INTRODUCTION ....................3 2、SUMMARY ..........................4 ........................... 4 2.1、M EATURES 3、SPECIFICATION ........................4 4、INSTALLATION AND OPERATION ..................7 ......................7 4.1、C ONTENTS IN THE PACKAGE ......................... 8 4.2、P RINTER ONNECTION ........................

  • Page 3: Product Introduction

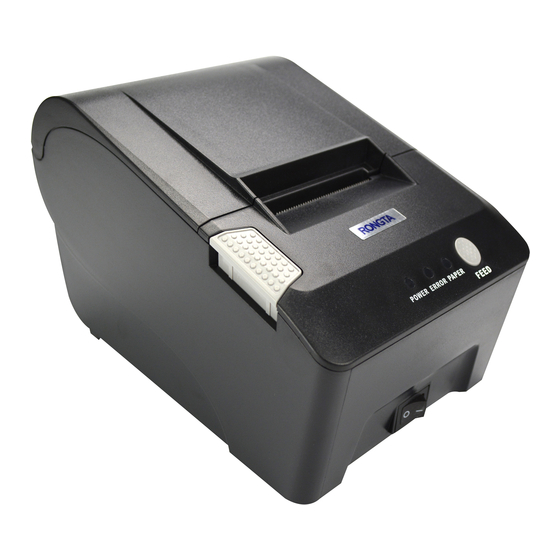

    Xiamen Rongta Technology Co., Ltd. 1、PRODUCT INTRODUCTION Model: RP58 is a POS direct thermal receipt printer with easy operation and high cost effective, which is widely used in supermarket, hospital, restaurant, bank, oil station, turnpike etc. Safety Notice Please read carefully and strict compliance with use of following instructions before operating the printer.

  • Page 4: Summary

    Xiamen Rongta Technology Co., Ltd. (8) Use only supplied power adapter. (9) In order to ensure the printing quality and extend the life of printer, please use the recommendatory thermal paper or the one which has the same quality. (10) Please make sure the power of printer is off when plugging the connecting line.
  • Page 5 Xiamen Rongta Technology Co., Ltd. ●Interface： USB：Universal USB interface (Standard B)。 Cash Drawer Power Serial： DB9 female head interface， baud rate is 9600bps， data structure is no parity，8 bits of data and 1 stop bit, supports RTS/CTS and XON/XOFF handshake protocol.

  • Page 6: Printing Paper

    Xiamen Rongta Technology Co., Ltd. Ethernet Cash Drawer Power Cash Drawer Control： out put: DC12V/1A 6 lines RJ-11 socket， ： Character ASCII code character set：12× 24 dots，1.25（W）× 3.00（H）mm Chinese character：24× 24 dots，3.00（W）× 3.00（H）mm International Codepage:PC437、 Katakana、 PC850、 PC860、 PC863、 PC865、...

  • Page 7: Installation And Operation

    Xiamen Rongta Technology Co., Ltd. ● MCBF：5× 10 lines ● Emulation：ESC/POS Print Font：Supports ANK: 12 x24,9x17, Chinese: 24 x 24 Print Dot/Map：Supports the printing of different dots and maps ● Power Adapter： Adapter Input：AC 110V/220V，50〜60Hz Adapter Output：DC 12V/2A Printer Input：DC 12V/2A ●...

  • Page 8: Printer Connection

    Xiamen Rongta Technology Co., Ltd. Printer Power Adapter Power Cord Paper Roll Communication Cable 4.2、Printer Connection (1) To ensure the printer and PC is powered off and then insert the matched data connection lines to the interfaces (USB/Parallel/Serial/Ethernet) of the printer, the other ends are to the PC.

  • Page 9: Load The Paper Roll

    4.3、Load the Paper Roll Model: RP58 printer use 58mm width thermal paper, which with easy paper loading. The loading instruction is listed at below: （1） Open the top cover of printer.

  • Page 10: Self-Checking

    Xiamen Rongta Technology Co., Ltd. Function Description of Keystroke and Indicator Light： FEED Key: In the standby status, the printer would be continuous feed when pressing the feed key. Of course, the key is inefficacy when the printer is working.

  • Page 11: Serial Interface

    ***** ** Completed ** 6、Serial Interface RP58 serial interface adopt RS-232 standard, baud rate is 9600bps, data structure is no parity，8 bits of data and 1 stop bit, supports RTS/CTS and XON/XOFF handshake protocol. Pin function of serial interface is listed as below:...

  • Page 12: Parallel Interface

    Serial interface of printer DB9 4 DTR Serial interface of POS PC DB9 7、Parallel Interface RP58 parallel interface is 25pin, 8 bit parallel transfers, supports BUSY/nAck handshake protocol. Pin function of parallel interface is listed as below: Pin number Model...

  • Page 13: Cash Drawer Interface

    Xiamen Rongta Technology Co., Ltd. Pin Number Signal Source Specification Transmit differential line + Transmit differential line- Receive differential line+ No function No function Receive differential line- No function No function 9、Cash Drawer Interface Cash drawer interface adopt RJ-11 standard, 6 lines socket and the output of it is DC 12V/1A.

  • Page 14: Sensor Maintenance

    Xiamen Rongta Technology Co., Ltd. Procedure of maintaining the print head is listed below: （1）Turn off the power supply and open the top cover. Remove the paper if necessary. （2）Please wait for the cooling of print head if it just finish printing.

  • Page 15: Fix The Paper Jam

    Xiamen Rongta Technology Co., Ltd. （2）Use the cotton cloth and dip it in the absolute ethyl alcohol to clean the surface of print roll. （3）When the absolute ethyl alcohol is completely volatilized, please close the top cover. Notice: （1）The power supply of printer should be turned off when the routine maintenance.
