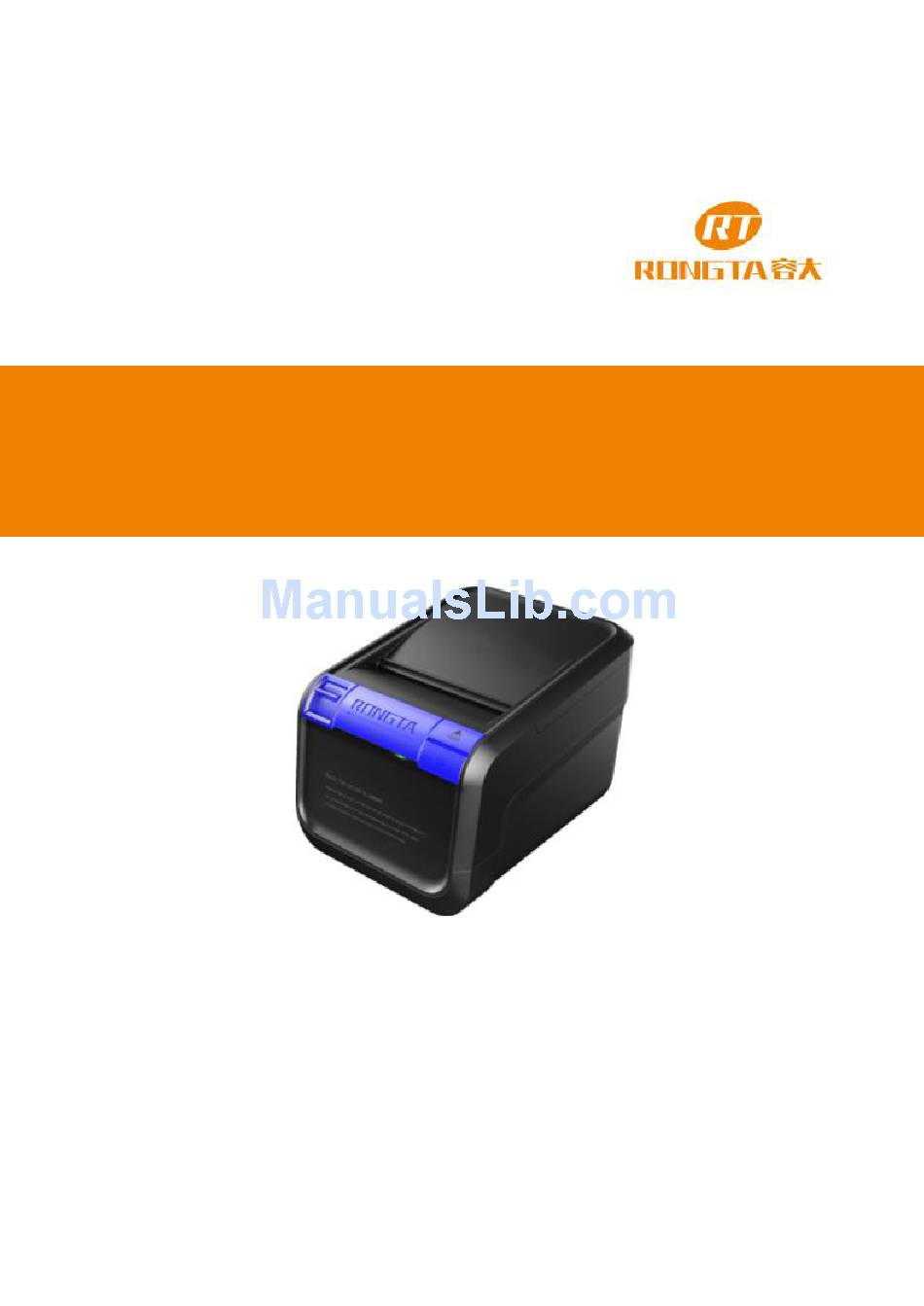

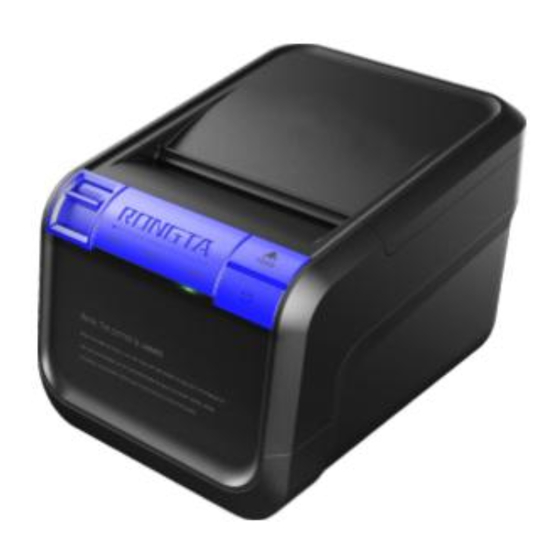

- Page 1 User Manual ACE V1 Thermal Printer Xiamen Rongta Technology Co., Ltd.
-
Page 2: Table Of Contents
Contents I. Instructions..........................3 1.1. Safety warnings......................3 1.2 Precautions........................3 II. Main features......................... 4 III. Instructions on technical specifications................4 IV. Installation and operation of the printer................6 4.1 Unsealing of the printer....................6 4.2 Connection method of the printer.................6 4. 3 Installation of paper roller................... 7 4.4 Installation of label paper.....................8 V. -
Page 3: Instructions
I. Instructions ACE V1 printer is POS directly thermal receipt printer, which is easy to operate and cost-effective. They are widely used in such various fields as shopping malls, supermarkets, hospitals, canteens, banks, gas stations, tollbooth of roads and bridges, etc. -
Page 4: Main Features
II. Main features 350mm/s high speed printing Support human error reporting function Support cashbox driving, NFC function; cloud Attractive appearance, fashionable and commercial printing is available. Installed with data buffers, printing data can be Reasonable structure, convenient in operation and received when printing maintenance Characters can be printed in amplified, bold and... - Page 5 Paper available Linerless paper, black-mark paper, label paper, continuous paper Cloud printing Options 24x24 points ， 300 (width) x 3.00 Chinese character library (height) mm international first and second level Support international languages such as PC437、Katakana、PC850、PC860、 International code page PC863PC865 、 WPC1252 、 PC866 、 PC852、PC858etc.
-
Page 6: Installation And Operation Of The Printer
Environmental Operating temperature: 0~40°C Operating relative humidity: 20~70% adaptation Storage temperature: -20~70°C Storage relative humidity: 5~95% IV. Installation and operation of the printer 4.1 Unsealing of the printer Main engine Power adapter Power cord Quick install guide Paper roll Disk Communication cable Warranty card Parts inspection: please check the whole set of parts before open... -
Page 7: Installation Of Paper Roller
Notes 1. First plug in the printer power plug DC24V, then connect AC220V power supply, after that open the power source switch. Pay attention to the order, otherwise the machine might be damaged. 2. Using inappropriate power adapter will affect the printing quality and even damage the printer. 3. -
Page 8: Installation Of Label Paper
Switch can only work when the printer is connected to power source Set the default value when the ACE V1 printer leaves factory Settings can be changed to meet the special needs of users.DIP switch on the bottom of the printer is to adjust... -
Page 9: Self-Check Test Of The Printer
Settings of each DIP switch Switches Functions Cutter No cutter Cutter Turn off the voice Voice prompt Turn on the voice buzzing buzzing Printing density High density Normal density 24 character mode No Chinese With Chinese printed characters of each line Select the cashbox Open the cashbox Close the cashbox... -
Page 10: Cashbox Port Of The Printer
VI. Cashbox port of the printer Cashbox port of the printer uses Rj-11, 6-line socket, output DC 24V/1A power signal to drive the cashbox. Plug the RJ-1 Crystal head of the cashbox into the cashbox port, then the cashbox can be opened through the printer. -
Page 11: Cleaning Sensor
7.2 Cleaning sensor When one of the situations occur, the PE Sensor shall be cleaned During printing, the printer will stop printing occasionally and give a warning of lack of paper. No warning when lack of paper Steps of cleaning the PE Sensor 1. -
Page 12: Paper Jam Elimination Method
VIII. Paper jam elimination method When paper jam occurs, shut down the power of the printer first, then open the upper cover of the printer. After the cooling down of the printer head, remove the paper stuck in the printer, and feed paper correctly and close the upper cover. -
Page 13: Printer Driver
X. Printer driver There are two kinds of driving mode running ACE V1, one is to install driver directly under Windows9x/ME/2000/XP, another is to drive the printer with internet access directly. 10.1 Driver installation under Windows Add printer to Windows and assign the driving document in the driving disk to Windows. You can start to print by executing printing order in the program. -
Page 14: Ⅻ.requirement
Ⅻ.Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 15 Service hotline 400-800-0596 Xiamen Rongta Technology Co., Ltd. Official website: www.rongtatech.com...
