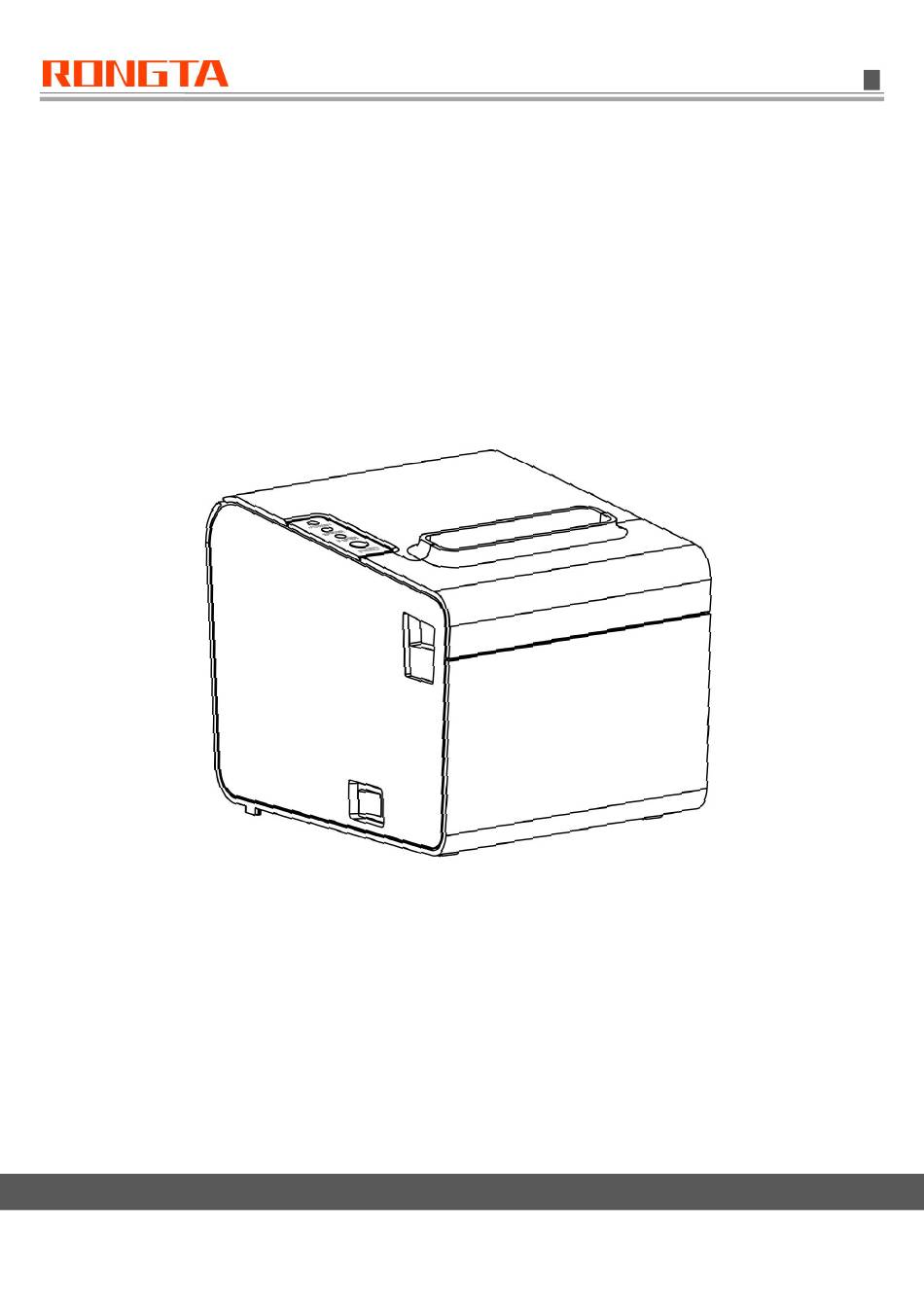

- Page 1 Thermal Receipt Printer RP325\RP326\RP327\RP328 Operation Manual for Changing Parameters via Browser Ro n g t a Te ch n o l o g y (X i a m e n ) Gr o u p Co . , Lt d.
-
Page 2: Connect The Printer
1. Overview Welcome to use 80 Series Thermal Printer. You can update the Ethernet port parameters with the Windows application software provided by us or a browser (such as IE/Firefox). 2. Obtain the printer IP address Connect the printer to the power adapter. Press Feed button and then turn on the printer;... -
Page 3: Change Parameters
4. Change parameters 4.1 Set pages Open a browser, for example Microsoft IE, enter the printer IP address, as shown in Figure 1, and then press Enter. Figure 4.2 View interface information After entering the web page, you will first see the printer interface information, as shown in Figure 2. - Page 4 Figure3 a、 Click "Print Test Page" to print a self-test page. b、 Click "Refresh" to refresh the page and view the latest status. 6. Set Ethernet port parameters Click "Configure Interface" to enter the Ethernet port parameters setting interface, as shown in Figure 4.
- Page 5 Fill in the new parameters, as shown in Fig. 5, new IP:192.168.1.86, then click "Save". Figure5 A dialog box appears, as shown in Figure. 6, select "OK". Figure Then click the Reboot button on the left to restart the printer. A dialog box will appear, select "OK", as shown in Figure.
- Page 6 After clicking "OK", the interface appears as shown in Figure 8. Figure Wait for a few seconds, and upon hearing a “beep” sound, the restart is completed. The Ethernet port parameters have been modified. To continue modification, enter the latest IP in the browser and repeat the above steps, as shown in Figure.
- Page 7 Warning: The contents of this Manual shall not be changed at will without consent. Rongta Technology (Xiamen) Group Co., Ltd reserves the right to change the product in terms of technologies, parts, software and hardware. Please contact the dealer for further information of the product. No part of this Manual shall be reproduced or spread in any form or by any means without permission.
