Matrix IC7 User Manual

Ic-mxic7b-01
Hide thumbs Also See for IC7:
Table of Contents

Advertisement

Quick Links

See also: Manual

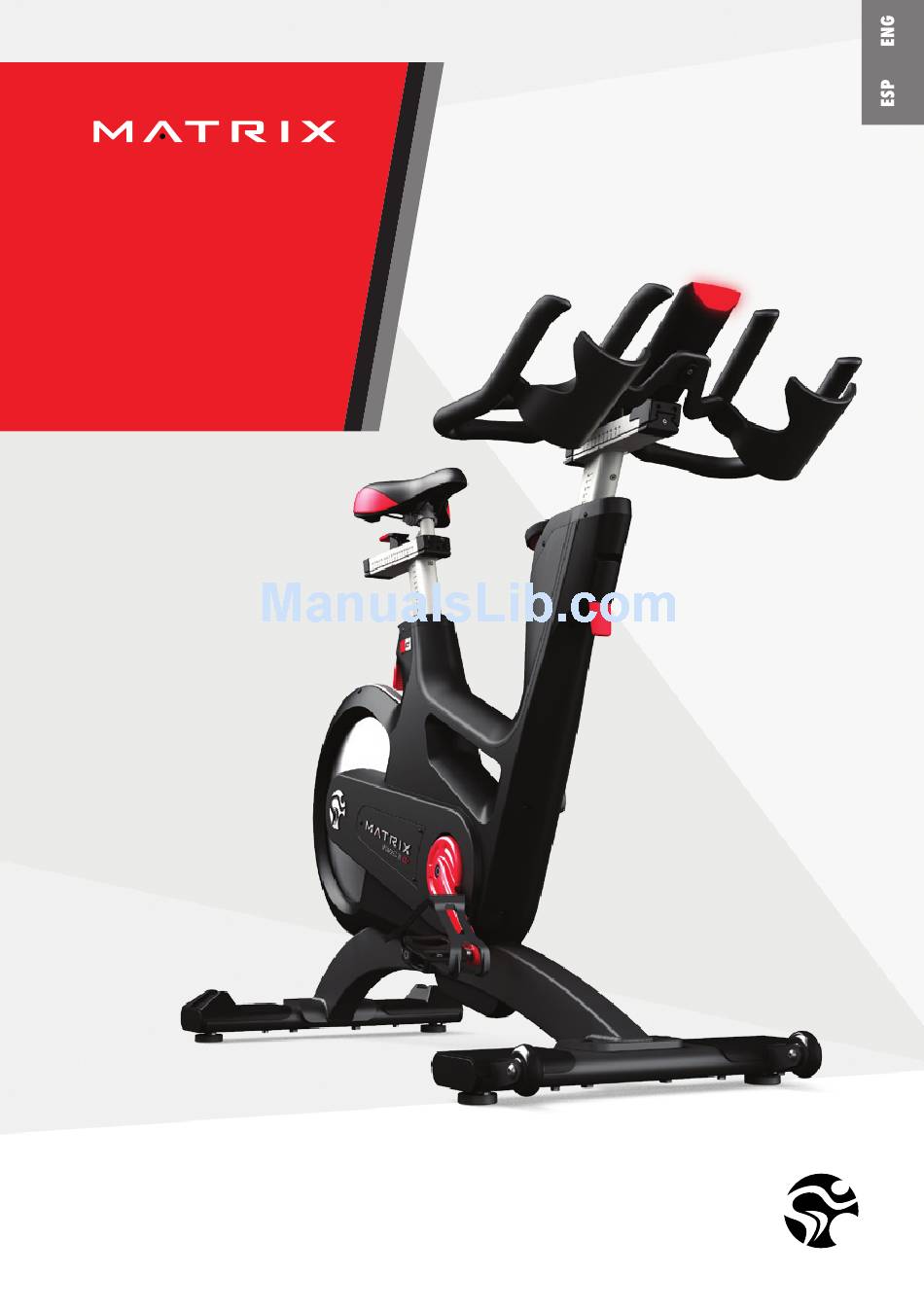

IC7
MODEL NO:IC-MXIC7B-01
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM
Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com
MANUFACTURED BY:
Indoorcycling Group GmbH
Happurger Str. 86
90482 Nuremberg | Germany
info@indoorcycling.com
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC7 and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix IC7

Summary of Contents for Matrix IC7

  • Page 1 MANUFACTURED BY: Indoorcycling Group GmbH Happurger Str. 86 90482 Nuremberg | Germany info@indoorcycling.com www.indoorcycling.com Phone: +49(0)911 / 54 44 50 MODEL NO:IC-MXIC7B-01 CAUTION! READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
  • Page 2 WARRANTY P.35 TECHNICAL SPECIFICATIONS: The Matrix IC7 indoor cycle is, according to EN ISO 20957 (1 & 10), a Class S product for use in a controlled environment such as sports or fitness facilities under the supervision of a trainer.
  • Page 3 IMPORTANT PRECAUTIONS 8. Children under the age of 14 shall only be allowed WARNING! to use the indoor cycle with parental approval and To reduce the risk of serious injury due to improper supervision of a qualified Trainer or Instructor. Use of use of the equipment, carefully read and adhere the bike by persons over the age of 14 only after they to the following important precautions and...

  • Page 4: Getting Started

    WARNING! You will find the production code for the Matrix IC7 indoor cycle on the tag plate which is located on the lower left side of the frame tube of the Indoor Bike. Please enter this production code into care and maintenance lists.
  • Page 5 HOW TO ASSEMBLE THE INDOOR CYCLE TORQUE WRENCH 17MM PEOPLE WARNING! Avoid high fluctuations in temperature whilst transporting the bike from the store to the installation site. If there are nevertheless large fluctuations in temperature, please allow the bike to acclimatise to the surrounding temperature before proceeding with assembly.
  • Page 6 HOW TO ASSEMBLE THE INDOOR CYCLE PEOPLE SET THE VERTICAL ADJUSTMENT OF THE HANDLEBAR MAKE SURE THAT THE CONNECTING BRIDGES OF STEM TO THE HIGHEST POSITION BEFORE BEGINNING THE HANDLEBARS ARE LOCATED UNDERNEATH THE WITH ASSEMBLY. MOUNTING BRACKET FOR THE COMPUTER. DO NOT REMOVE WARNING TAPE FROM THE SLIDERS PRIOR TO THE HANDLEBAR BEING ASSEMBLED.
  • Page 7 HOW TO ASSEMBLE THE INDOOR CYCLE TORQUE WRENCH PEOPLE 30 NM IN ORDER TO AVOID DAMAGING THE INTERIOR AFTER ASSEMBLY, REMOVE THE WARNING TAPE. CABLING, THE HANDLEBARS MUST NOT BE ADJUSTED DO NOT MOVE HORIZONTAL SLIDER BACKWARDS. HORIZONTALLY BEFORE THIS STEP. ENSURE THAT BOLTS ARE TIGHTENED WITH SUFFICIENT FORCE (30 NM) WHEN MOUNTING THE HANDLEBARS.
  • Page 8 HOW TO ASSEMBLE THE INDOOR CYCLE HAND TIGHT PEOPLE OPEN THE FLIP LEVER FOR THE HORIZONTAL ADJUSTMENT AND SLIDE THE HANDLEBARS TO ITS MOST FORWARD POSITION. ASSEMBLE THE BOTTOM END CAP. CHECK THE HORIZONTAL ADJUSTMENT OF THE HANDLEBARS, WITH THE FLIP LEVER OPENED, FOR EASE OF MOTION WHEN ADJUSTING.
  • Page 9 THE UNDERSIDE OF THE HANDLEBARS WITH THE BOLT AND PLASTIC SLEEVE PROVIDED. WARNING! The user manual for the IC7 Coach By Color® computer is enclosed separately and contains all the necessary information for setting up and operating the computer. WARNING!
  • Page 10 INSTALLATION AND DISPOSING OF BATTERIES Instructions stated in this manual must be performed during initial installation of the Matrix indoor cycle in order to ensure optimal performance and a long lifespan. Please read and follow the following instructions carefully. If the indoor cycles are not installed and configured as described, the components may be subjected to excessive wear and tear and the bike may become damaged.
  • Page 11 INSTALLATION AND DISPOSING OF BATTERIES CUSTOMER SERVICE 1. Provide the customer with basic maintenance instructions, and direct them to detailed maintenance instructions. 2. Have the sign-off sheet for the manual, explanation of maintenance procedures and verification of impeccable condition of the bikes confirmed by the customer when handing over the goods.
  • Page 12 HOW TO ADJUST THE INDOOR CYCLE The Matrix indoor cycle can be very easily adjusted, depending on the requirements of various user groups. This enables maximum riding comfort to be ensured whilst achieving optimal training results. The configurations described in the following paragraphs demonstrate just a few of the most often used adjustment variations of which the indoor cycle is capable.
  • Page 13 HOW TO ADJUST THE INDOOR CYCLE ADJUSTING THE SADDLE HORIZONTALLY: Properly positioning the saddle horizontally is very important in order to avoid injury to the knees. Sit on the saddle and move the pedals until the crank arms are in the horizontal position. The knee of your forward-facing leg should be positioned directly above the centre of the pedal.
  • Page 14 HOW TO ADJUST THE INDOOR CYCLE HANDLEBAR POSITIONING: Begin with the top of the handlebars at approximately the same height as the saddle (dotted horizontal line A in the drawing below) for inexperienced users set to the “0“ marking (see dotted vertical line B in the drawing below).
  • Page 15 HOW TO OPERATE THE INDOOR CYCLE RESISTANCE ADJUSTMENT: The resistance adjustment can be set precisely and regulated in fine increments according to the requirements of the cyclist using the resistance adjustment knob with a range of motion of 300°. The resistance in % (where 0% is no resistance and 100% is maximum resistance) is also displayed on the indoor cycle computer display.
  • Page 16 PREVENTIVE MAINTENANCE WARNING! Please carefully observe the following instructions. The maintenance and care procedures must be performed in the regularity set out, to ensure maximum operating safety and lifespan. Irregularly observed maintenance and care procedures will lead to increased wear to the product and will void the warranty.
  • Page 17 PREVENTIVE MAINTENANCE BI-WEEKLY MAINTENANCE: 1. Emergency brake: To ensure operating safety, the emergency brake must be regularly checked to make sure it is functioning properly. To do this, press down the red emergency brake handle whilst pedalling. When functioning optimally, it should produce an immediate braking effect and bring the flywheel to a complete standstill.
  • Page 18 PREVENTIVE MAINTENANCE 3. Handlebars: To maintain the easy adjustment of the handlebar posts, the vertical and horizontal handlebar posts must be regularly cleaned and lubricated. To do this, position the handlebars (A) in the uppermost position, spray the handlebar posts with maintenance spray and rub down the entire exterior surfaces including the horizontal post with a soft cloth.
  • Page 19 PREVENTIVE MAINTENANCE USER-DEFINED MAINTENANCE: 1. Vertically adjusting the handlebars and saddle: To ensure the easy adjustment of the vertical handlebar and saddle posts, it is recommended that you check the clamping mechanism and if necessary apply a small amount of lithium/silicone grease to the vertical clamping mechanism of the handlebar posts (1) and saddle posts (2/3).
  • Page 20 MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE ACTIVITY ROTATION DETAILS FEET LEVELLING, DISINFECTION & CLEANING OF THE BIKE DAILY P 16 SERVICING BRAKE PADS, DETAILED CLEANING OF THE ENTIRE BIKE WEEKLY P 16 CHECK EMERGENCY BRAKE FUNCTION BI-WEEKLY P 17 CLEAN AND LUBRICATE SADDLE &...
  • Page 21 MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE BI-WEEKLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE MONTHLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE...

  • Page 22: Spare Parts

    SPARE PARTS FRAME 100-01-00004-01 INLAY SLEEVE SET FOR HANDLEBAR TUBE 100-01-00006-01 INLAY SLEEVE SET FOR SEATPOST TUBE 100-01-00009-01 LEFT FLYWHEEL SUPPORT ARM KIT 100-01-00007-01 VERTICAL HANDLEBAR ADJUSTMENT ASSEMBLY 100-01-00008-01 VERTICAL SEATPOST ADJUSTMENT ASSEMBLY SEAT/SEAT POST 120-01-00005-01 LOWER SEATPOST ASSEMBLY Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com...
  • Page 23 SPARE PARTS 120-01-00006-01 UPPER SEATPOST SLIDER ASSEMBLY 120-01-00010-01 COMFORT SPORT SADDLE BLACK/RED INCL. SADDLE CLAMP 180-01-00018-01 SEATPOST GASDAMPER KIT 180-01-00021-01 FLIP LEVER ASSEMBLY FOR HORIZONTAL SEATPOST ADJUSTMENT 190-01-00007-01 END CAP SET SEATPOST 190-01-00011-01 BOWDEN CABLE SPARE PART KIT FOR VERTICAL SEATPOST ADJUSTMENT...
  • Page 24 SPARE PARTS HANDLEBAR/HANDLEBAR STEM 110-01-00009-01 HANDLEBAR WITH SOFT PVC COATING & MOUNTING BOLTS 110-01-00012-01 UPPER HANDLEBAR SLIDER ASSEMBLY 180-01-00005-01 FLIP LEVER ASSEMBLY FOR HORIZONTAL HANDLEBAR ADJUSTMENT 170-01-00004-01 CONSOLE BRACKET ASSEMBLY 110-01-00011-01 CABLE COVER KIT FOR UPPER HORIZONTAL HANDLEBAR SLIDER 110-01-00003-01 LOWER HANDLEBAR STEM ASSEMBLY Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com...
  • Page 25 SPARE PARTS 180-01-00017-01 HANDLEBAR GASDAMPER KIT 190-01-00010-01 BOWDEN CABLE SPARE PART KIT FOR VERTICAL HANDLEBAR ADJUSTMENT 190-01-00006-01 END CAP SET FOR HANDLEBAR BRAKE SYSTEM 130-01-00011-01 UPPER BRAKE ASSEMBLY 130-01-00014-01 BRAKE DIAL KIT...
  • Page 26 SPARE PARTS 190-01-00008-01 EMERGENCY BRAKE SPARE PART KIT 190-01-00009-01 LOWER EDDY CURRENT BRAKE SPARE PART KIT 190-01-00012-01 BOWDEN CABLE SPARE PART KIT FOR EMERGENCY BRAKE 190-01-00013-01 BOWDEN CABLE SPARE PART KIT FOR LOWER EDDY CURRENT BRAKE DRIVE GEAR 150-01-00022-01 CAM PULLEY 72 TEETH KIT 150-01-00023-01 CRANK PULLEY...
  • Page 27 SPARE PARTS 150-01-00024-01 FLYWHEEL AXLE KIT 900-00-90008-20 CRANK MOUNTING BOLT, M8X20X1,25P 190-01-00014-01 FLYWHEEL SPARE PART ASSEMBLY 150-03-00044-01 POLY V BELT, 4PK 895 FOR SECONDARY DRIVE 150-03-00045-01 POLY V BELT, 2PJ 330 FOR GENERATOR DRIVE 150-03-00059-01 TIMING BELT, 784 8MHL 12 FOR PRIMARY DRIVE...
  • Page 28 SPARE PARTS 150-01-00016-01 PRIMARY DRIVE IDLER PULLEY ASSEMBLY 150-01-00018-01 SECONDARY DRIVE IDLER PULLEY ASSEMBLY 150-03-00054-01 LEFT CRANK ARM, RED 150-03-00053-01 RIGHT CRANK ARM, RED ELECTRONICS 170-01-00004-01 CONSOLE BRACKET ASSEMBLY 150-01-00017-01 GENERATOR ASSEMBLY Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com...
  • Page 29 SPARE PARTS 170-01-00009-01 POWER MODULE PCB ASSEMBLY 170-01-00005-01 GEAR MODULE PCB ASSEMBLY 170-01-00006-01 PHOTO INTERRUPTER PCB KIT 170-01-00007-01 GAMMA SENSOR PCB ASSEMBLY 170-01-00016-01 MAIN CABLE HARNESS SET WITH IDENTIFICATION STICKER 170-01-00015-01 USB CABLE SET...
  • Page 30 SPARE PARTS 170-03-00012-01 LIPO RECHARGEABLE BATTERY 5000MAH/3.7V 320-00-00009-01 CONSOLE KIT SHROUD 160-01-00004-01 RIGHT SIDE MAIN SHROUD KIT 160-01-00006-01 LEFT SIDE MAIN SHROUD KIT 160-01-00007-01 MAIN COVER KIT Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com...
  • Page 31 SPARE PARTS 160-01-00008-01 HANDLEBAR TOP COVER KIT 160-01-00009-01 SEATPOST TOP COVER KIT 160-01-00014-01 GAS DAMPER BRACKET COVER KIT 160-09-00006-01 IC7 LEFT MAIN COVER ALUMINUM BADGE 160-09-00007-01 IC7 RIGHT MAIN COVER ALUMINUM BADGE...
  • Page 32 SPARE PARTS 160-01-00011-01 MATRIX LOGO PLATE INSERT KIT, RIGHT 160-01-00010-01 MATRIX LOGO PLATE INSERT KIT, LEFT FRONT AND REAR STABILIZER 140-01-00004-01 FRONT STABILIZER PROTECTION PLATE KIT, LEFT 140-01-00005-01 FRONT STABILIZER PROTECTION PLATE KIT, RIGHT 140-01-00003-01 TRANSPORTATION WHEEL KIT 140-03-00001-01 STABILIZER END CAP...
  • Page 33 SPARE PARTS 900-10-00003-01 LEVELING FEET, RUBBER 75° SHORE 190-01-00004-01 STABILIZER MOUNTING KIT 140-02-00006-01 FRONT STABILIZER TUBE 140-01-00006-01 REAR STABILIZER STRETCH PLATE KIT 140-02-00002-01 REAR STABILIZER TUBE...
  • Page 34 SPARE PARTS PEDALS 150-01-00005-01 COMBI PEDAL SET, SPD COMPATIBLE 150-03-00048-01 TOE STRAP SET Version 1.0 2014 IC-MXIC7B-01 Copyright by Indoorcycling Group GmbH 2014 | www.indoorcycling.com...
  • Page 35 WARRANTY ICG warrants that all new equipment will be free of manufacturing defects in workmanship and materials, effective on the date of original assembly at its production facility. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period only. ICG is obligated to uphold its manufacturer warranty obligation so long as the product is used in the closed environment it was designed for, temperature range between 15ºC~40°C Celsius (59ºF~104°F) and max.
  • Page 36 CAUTION. READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU BEGIN USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY. EMAIL: INFO@INDOORCYCLING.COM WEBSITE: WWW.INDOORCYCLING.COM © 2014 Indoorcycling Group Manufactured by: Indoorcycling Group®...
