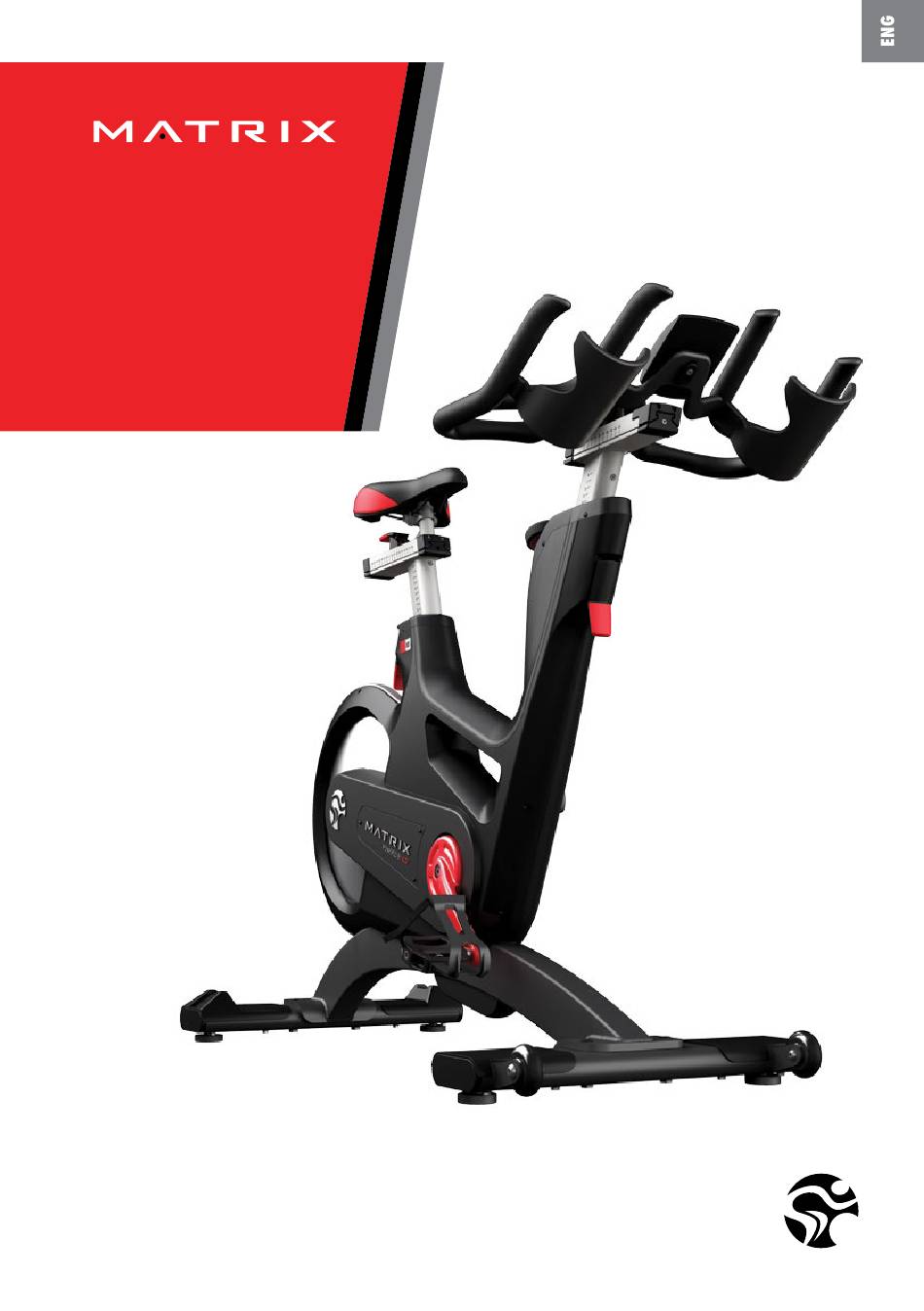

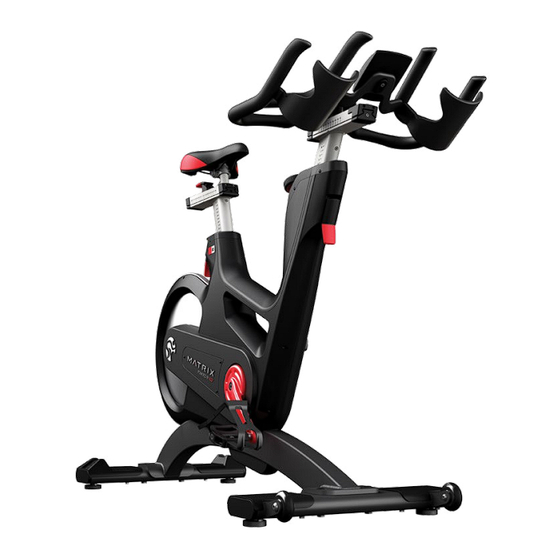

IC5
MODEL NO:IC-MXIC5B-02
MATRIX Fitness Systems Corp.
1610 Landmark Drive
Cottage Grove, WI 53527
Toll-free: 866.693.4863
Local: 608.839.8686
www.matrixfitness.com
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM
Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com
MANUFACTURED BY:
Indoor Cycling Group GmbH
Happurger Str. 86
90482 NUERNBERG | Germany
info@indoorcycling.com
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IC-MXIC5B-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Matrix IC-MXIC5B-02

  • Page 1 USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS. ADDITIONAL LANGUAGES AVAILABLE FOR DOWNLOAD AT WWW.INDOORCYCLING.COM Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 2 ATTENTION Warning labels on the bikes must be replaced by warning labels in your language during the assembly process. Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 3 ATTENTION To download the owners manual in Lataa omistajan käsikirja omalla your language, visit the IC7 support kielelläsi IC7-ohjeosiosta sivustolta: section at: www.teamicg.com www.teamicg.com Um das Handbuch in Ihrer Sprache Du kan laste ned bruksanvisningen herunterzuladen, besuchen Sie bitte på ditt eget språk ved å gå til IC7 den IC7 Support Bereich auf unserer støttesiden på: www.teamicg.com Webseite unter www.teamicg.com...
  • Page 4: Table Of Contents

    WARRANTY P.31 TECHNICAL SPECIFICATIONS: The Matrix IC5 indoor cycle is, according to EN ISO 20957 (1 & 10), a Class S product for use in a controlled environment such as sports or fitness facilities under the supervision of a trainer.
  • Page 5: Important Precautions

    IMPORTANT PRECAUTIONS 8. Children under the age of 14 shall only be allowed WARNING! to use the indoor cycle with parental approval and To reduce the risk of serious injury due to improper supervision of a qualified Trainer or Instructor. Use of use of the equipment, carefully read and adhere the bike by persons over the age of 14 only after they to the following important precautions and...
  • Page 6: Getting Started

    WARNING! You will find the production code for the Matrix IC5 Indoor Cycle on the tag plate which is located on the lower left side of the frame tube of the Indoor Cycle. Please enter this production code into care and maintenance lists.
  • Page 7: How To Assemble The Indoor Cycle

    HOW TO ASSEMBLE THE INDOOR CYCLE TORQUE WRENCH 17MM PEOPLE WARNING! Avoid high fluctuations in temperature whilst transporting the bike from the store to the installation site. If there are nevertheless large fluctuations in temperature, please allow the bike to acclimatise to the surrounding temperature before proceeding with assembly.
  • Page 8 STEM TO THE HIGHEST POSITION BEFORE BEGINNING THE UPPER HORIZONTAL SLIDER. WITH ASSEMBLY. DO NOT REMOVE WARNING TAPE FROM THE SLIDERS PRIOR TO THE HANDLEBAR BEING ASSEMBLED. Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 9 HOW TO ASSEMBLE THE INDOOR CYCLE TORQUE WRENCH PEOPLE 30 NM ENSURE THAT SCREWS ARE TIGHTENED WITH AFTER ASSEMBLY, REMOVE THE WARNING TAPE. SUFFICIENT FORCE (30 NM) WHEN MOUNTING DO NOT MOVE HORIZONTAL SLIDER BACKWARDS. THE HANDLEBARS. THE FASTENING COUNTER SUNK BOLTS ARE COATED WITH TUFLOK®...
  • Page 10 CHECK THE CLAMPING FORCE OF THE VERTICAL ADJUSTMENT WITH THE FLIP LEVER CLOSED. MAKE SURE THE VERTICAL ADJUSTMENT PERFORMS SUFFICIENTLY. ADJUST IF REQUIRED REFERING TO SERVICE GUIDELINES ON AVAILABLE ON MANUFACTURER‘S SERVICE WEBSITE OR CONTACT YOUR LOCAL DISTRIBUTOR. Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 11 HOW TO ASSEMBLE THE INDOOR CYCLE 15 MM HAND TIGHT PEDAL WRENCH PEOPLE POSITION THE SMARTPHONE TRAY FASTEN THE SMARTPHONE TRAY FROM ON THE HANDLEBAR BRACKET. THE UNDERSIDE OF THE HANDLEBARS WITH THE BOLT PROVIDED. WARNING! Attach the pedal marked R on the right crank and tighten by turning clockwise (standard right- hand thread).
  • Page 12: Initial Installation Checks

    INITIAL INSTALLATION CHECKS Instructions stated in this manual must be performed during initial installation of the Matrix indoor cycle in order to ensure optimal performance and a long lifespan. Please read and follow the following instructions carefully. If the indoor cycles are not installed and configured as described, the components may be subjected to excessive wear and tear and the bike may become damaged.
  • Page 13 INITIAL INSTALLATION CHECKS CUSTOMER SERVICE 1. Provide the customer with basic maintenance instructions, and direct them to detailed maintenance instructions. 2. Have the sign-off sheet for the manual, explanation of maintenance procedures and verification of impeccable condition of the bikes confirmed by the customer when handing over the goods.
  • Page 14: How To Adjust The Indoor Cycle

    HOW TO ADJUST THE INDOOR CYCLE The Matrix indoor cycle can be very easily adjusted, depending on the requirements of various user groups. This enables maximum riding comfort to be ensured whilst achieving optimal training results. The configurations described in the following paragraphs demonstrate just a few of the most often used adjustment variations of which the indoor cycle is capable.
  • Page 15 HOW TO ADJUST THE INDOOR CYCLE ADJUSTING THE SADDLE HORIZONTALLY: Properly positioning the saddle horizontally is very important in order to avoid injury to the knees. Sit on the saddle and move the pedals until the crank arms are in the horizontal position. The knee of your forward-facing leg should be positioned directly above the centre of the pedal.
  • Page 16 It is recommended to change hand positions frequently during extended workouts in order to minimise one-sided and monotonous exertions on your muscles, ligaments and joints. Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 17: How To Operate The Indoor Cycle

    HOW TO OPERATE THE INDOOR CYCLE RESISTANCE ADJUSTMENT: The resistance adjustment can be set precisely and regulated in fine increments according to the requirements of the cyclist using the resistance adjustment knob with a range of motion of 300°. The resistance in % (where 0% is no resistance and 100% is maximum resistance) is also displayed on the Indoor Cycle computer display.
  • Page 18 Allow a minimum safety distance away from the nearest equipment, objects or walls as illustrated below. 3.9“ (10cm) 23.6“ 23.6“ (60cm) (60cm) 3.9“ (10cm) 23.6“ (60cm) 23.6“ (60cm) Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 19 HOW TO OPERATE THE INDOOR CYCLE Check the stability of the Indoor Cycle where it is to be operated and if necessary adjust the levelling feet underneath the front or rear stabilizers to ensure the desired stability. IMPORTANT! Please do not unscrew the levelling feet more than 1 cm! The free standing Indoor cycle shall only be installed and operated on a stable and leveled floor.
  • Page 20: Preventive Maintenance

    Never spray the maintenance spray directly onto the flywheel, as this could cause the drive belt to slip through (belt slip) and could have negative impact on E-brake functionality. Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 21 PREVENTIVE MAINTENANCE BI-WEEKLY MAINTENANCE: 1. Emergency brake: To ensure operating safety, the emergency brake must be regularly checked to make sure it is functioning properly. To do this, press down the red emergency brake handle whilst pedalling. When functioning optimally, it should produce an immediate braking effect and bring the flywheel to a complete standstill.
  • Page 22 (saddle, pedal teeth, pedals, SPD system) replaced. Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 23 PREVENTIVE MAINTENANCE USER-DEFINED MAINTENANCE: 1. Vertically adjusting the handlebars and saddle: To ensure the easy adjustment of the vertical handlebar and saddle posts, it is recommended that you check the clamping mechanism and if necessary apply a small amount of lithium/silicone grease to the vertical clamping mechanism of the handlebar posts (1) and saddle posts (2/3).
  • Page 24: Maintenance Activity And Required Schedule

    THE HANDLEBARS AND SADDLE MONTHLY P 23 EXAMPLES OF MAINTENANCE PLAN CHARTS FOR IN-HOUSE SERVICE TECHNICIANS: WEEKLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 25 MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE BI-WEEKLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE MONTHLY MAINTENANCE CHECKLIST BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE...
  • Page 26: Spare Parts

    HORIZONTAL SEATPOST ADJUSTMENT 190-01-00036-01 END CAP SET NARROW HORIZONTAL SEATPOST SLIDER HANDLEBAR/HANDLEBAR STEM 110-01-00009-02 HANDLEBAR WITH SOFT PVC COATING & MOUNTING BOLTS 110-01-00003-01 UPPER HANDLEBAR SLIDER ASSEMBLY Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 27 SPARE PARTS 180-01-00030-01 FLIP LEVER ASSEMBLY FOR HORIZONTAL HANDLEBAR ADJUSTMENT 170-01-00013 SMARTPHONE TRAY KIT 190-01-00005-01 END CAP SET FOR HANDLEBAR BRAKE SYSTEM 130-01-00016-01 BRAKE DIAL KIT 55MM...
  • Page 28 LEFT CRANK ARM, RED 150-03-00053-01 RIGHT CRANK ARM, RED SHROUD 160-01-00014-01 GAS DAMPER BRACKET COVER KIT 160-09-00004-01 IC5 LEFT MAIN COVER ALUMINUM BADGE 160-09-00005-01 IC5 RIGHT MAIN COVER ALUMINUM BADGE Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 29 SPARE PARTS 160-01-00013-01 MATRIX LOGO PLATE INSERT KIT, RIGHT 160-01-00012-01 MATRIX LOGO PLATE INSERT KIT, LEFT FRONT AND REAR STABILIZER 140-01-00004-01 FRONT STABILIZER PROTECTION PLATE KIT, LEFT 140-01-00005-01 FRONT STABILIZER PROTECTION PLATE KIT, RIGHT 140-01-00003-01 TRANSPORTATION WHEEL KIT 140-03-00001-01 STABILIZER END CAP...
  • Page 30 STABILIZER MOUNTING KIT 140-02-00006-01 FRONT STABILIZER TUBE 140-01-00006-01 REAR STABILIZER STRETCH PLATE KIT 140-02-00002-01 REAR STABILIZER TUBE PEDALS 150-01-00005-02 COMBI PEDAL SET, SPD COMPATIBLE 150-03-00048-01 TOE STRAP SET Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
  • Page 31: Warranty

    WARRANTY ICG warrants that all new equipment will be free of manufacturing defects in workmanship and materials, effective on the date of original assembly at its production facility. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period only. ICG is obligated to uphold its manufacturer warranty obligation so long as the product is used in the closed environment it was designed for, temperature range between 15ºC~40°C Celsius (59ºF~104°F) and max.
  • Page 32 SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY. EMAIL: INFO@INDOORCYCLING.COM WEBSITE: WWW.INDOORCYCLING.COM © 2015 Indoor Cycling Group Manufactured by: Indoor Cycling Group® GmbH Happurger Str. 86 90482 Nuernberg Germany Version 2.0 2015 IC-MXIC5B-02 Copyright by Indoor Cycling Group GmbH 2015 | www.indoorcycling.com...
