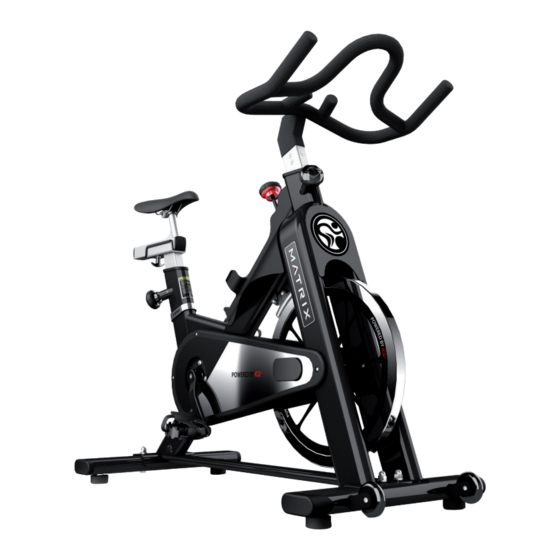

Matrix IC-MXEB-01 Manual

E-series
Hide thumbs

Advertisement

Available languages

Available languages

Quick Links

Download this manual

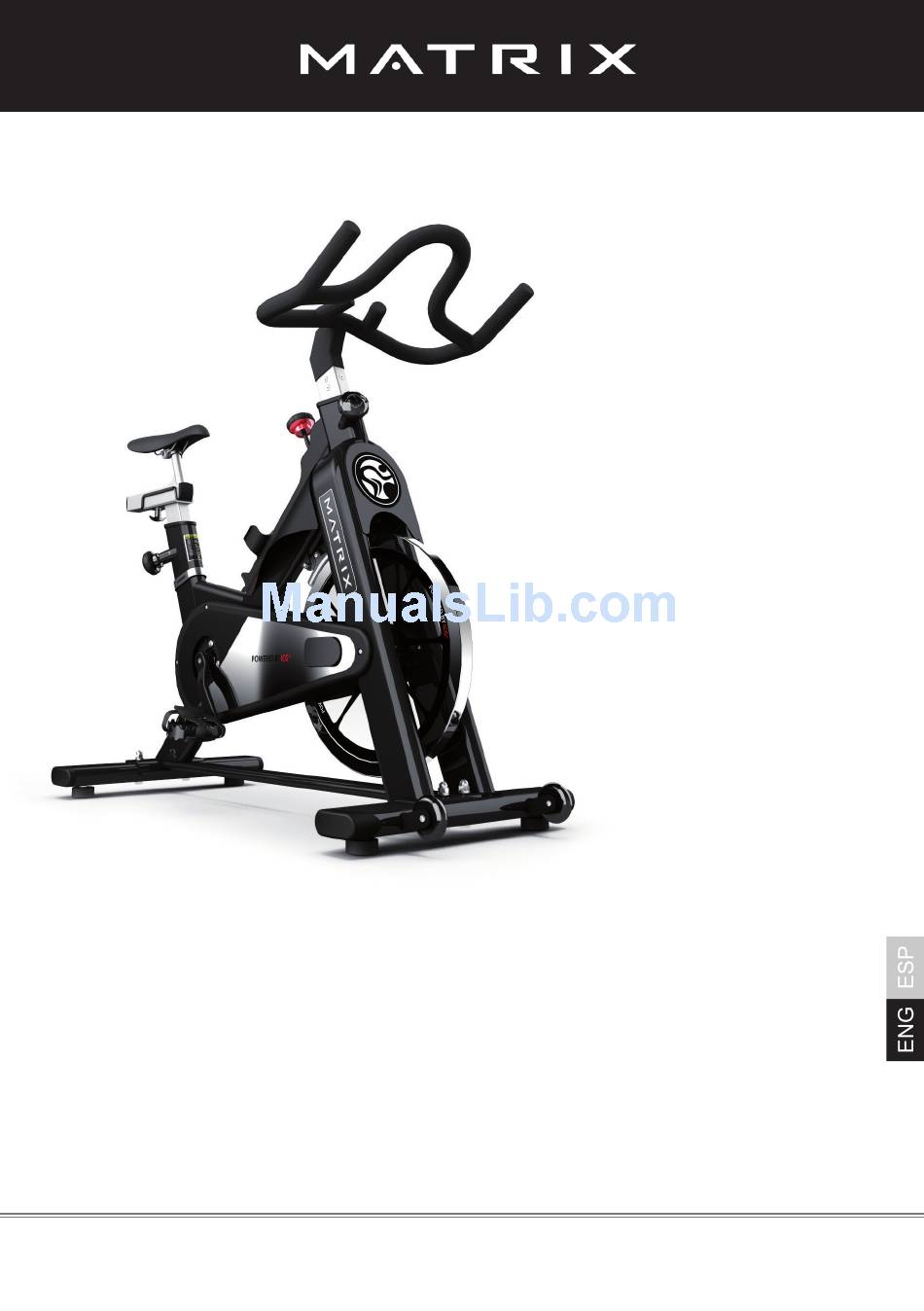

CAUTION !
Read all precautions and instructions in this manual before using this equipment. Keep this manual
for future reference.
Improper assembly, maintenance or use can void the warranty terms.
Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com
Matrix E-Series
model no.:
IC-MXEB-01
Manufactured by:
Indoorcycling Group GmbH
Happurger Str. 86
90482 Nuremberg | Germany
www.indoorcycling.com
info@indoorcycling.com
MATRIX Fitness Systems Corp.
1610 Landmark Drive
Cottage Grove, WI 53527
Libre: 866.693.4863
Local: 608.839.8686
www.matrixfi tness.com
ENG 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IC-MXEB-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Matrix IC-MXEB-01

Summary of Contents for Matrix IC-MXEB-01

  • Page 1 Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference. Improper assembly, maintenance or use can void the warranty terms. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 1...
  • Page 2 27 Technical specifications: The Matrix E-Series Bike is according to EN 957 a Class S product for professional and / or commercial use. Such training equipment is intended for the use in training areas of organizations such as fitness clubs or sport associations, where access and control is specially regulated by the person who has the legal responsibility.

  • Page 3: Important Precautions

    To reduce the risk of serious injury, read the following important precautions and information before operating the Matrix E-Series Indoor Cycle. It is the responsibility of the owner to ensure that all users of the Matrix E-Series Indoor Cycle are informed of all warnings and precautions.
  • Page 4 Levelling Feet You will find the production code on the left side of the Matrix E-Seriess within the lower range of the frame. Please register to these in servicing and maintenance lists. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com...
  • Page 5 Assure that black rubber washer is placed stabilizer and frame. between upper frame and bolt/washer. Please assure that nuts are tightened with signifi cant strength to minimize loosening during use. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 5...
  • Page 6 SW 14mm 15mm Pedal Wrench STOP mark Make sure the seat is fixed properly in a LEVEL HORIZONTAL position and securely tigthend from both sides! Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 6...
  • Page 7 Pedal marked R installed on right crank (clockwise). Pedal marked L installed on left crank (counter-clockwise) Pedals must be fastened with signifi cant strength to avoid loosening with use of the Matrix E-Series. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 7...
  • Page 8 The cycle tune-up must be performed at initial installation of the Matrix E-Series for optimal performance and longevity. Please read and follow all instructions below. If the Matrix E-Series is not installed and tuned as described, components may wear excessively and the Matrix E-Series may become damaged. If you have questions about the installation, please contact service@indoorcycling.com.
  • Page 9 The Matrix E-Series can be adjusted for maximum comfort and exercise effectiveness. The instructions below describe one approach to adjusting the Matrix E-Series to ensure opti- mal user comfort and ideal body positioning; you may choose to adjust the Matrix E-Serie cycle differently.
  • Page 10 (see the dotted line in image below). To adjust the horizontal position of the saddle, first dismount the Matrix E-Series. Next, loosen the rear adjustment knob, slide the saddle forward or backward as required, and then retighten the knob.
  • Page 11 If your Matrix E-Series is equipped with a regular 2 way handlebar. If the handlebar is too clo- se to the saddle, your breathing may feel restricted;if the handlebar is too far from the saddle, you may experience back discomfort.
  • Page 12 Emergency brake (push) How to move the Matrix E-Series: Due to the weight of the Matrix E-Series, it is recommended that two persons move it. While one person lifts the back of the Matrix E-Series, the second person firmly holds the hand- lebarand tips the Matrix E-Series forward until it rolls on the wheels.
  • Page 13 Brunox or a similar solvent- and acid free lubricant. Daily maintenance: 1. Make sure that the Matrix E-Series is level. If the Matrix E-Series rocks on your fl oor, turn the levelling feet underneath the front or rear stabilizer until the rocking motion is eliminated (see HOW TO MOVE THE Matrix E-Series on page 12).
  • Page 14 (B). Then, slide the saddle carriage as far forward as possible and clean the top of the saddle slide. Finally, adjust the saddle to the desired position. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 14...
  • Page 15 1. To maintain the smooth function of the adjust- ment knobs controlling the handlebar and saddle, the metal threads on the adjustment knobs (A) must be lubricated. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 15...

  • Page 16: Preventative Maintenance

    If the brake pad does show signs of excessive wear, thoroughly soak the brake pad with lubricant spray using the 2 lubrication holes (C), and then wipe the excess off. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 16...
  • Page 17 103 Hz ± 3 Hz. Ball bearing damage due to incorrect belt tension is excluded from Graphics are the right side warranty. of the Bike (riding position) Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 17...
  • Page 18 Check belt drive train monthly page 17 Examples maintenance Plan charts house service technicians: Weekly maintenance Checklist Bike No. Production code Observations Action taken Result Name / date Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 18...
  • Page 19 Bi-Weekly maintenance Checklist Bike No. Production code Observations Action Taken Result Name / date Monthly maintenance Checklist Bike No. Production code Observations Action Taken Result Name / date Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 19...

  • Page 20: Spare Parts

    02 40 C 2RS 02 40 C S 08 02 50 A Brake Parts 02 50 03 A 02 50 05 02 50 06 02 50 04 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 20...
  • Page 21 SPARE PARTS Flywheel 02 40 02 02 40 08 E 12 02 40 H 02 40 BPK 02 40 H L Handlebar 02 30 01 AL Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 21...
  • Page 22 02 10 A 02 10 A 02 99 10 (optional) 02 99 11 (optional) 2004 RA E sticker set complete 02 99 50 E MX 12 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 22...
  • Page 23 SPARE PARTS 02 99 02 10 HB (optional item) Pop pin adjustment knobs 02 10 B 08 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 23...
  • Page 24 02 21 AK 02 20 02 02 21 01 AL (complete asembly) 02 10 G Pedals 01 40 A 2 (pair) 01 40 A 3 (pair) Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 24...
  • Page 25 02 11 02 E 08 02 11 E 02 11 06 02 11 05 B Front Stabilizer 02 11 01 E 08 02 11 B 02 11 A Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 25...
  • Page 26 Stabilizer mounting kit 02 11 05 B Rubber foot stand 02 99 10 Front protection plates 02 99 11 Rear protection plates (optional) 02 11 A Transport wheel Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ENG 26...
  • Page 27 WARRANTY TERMS Matrix Fitness System Corp. warrants that all new equipment will be free of manufacturing defects in workmanship and materials, becoming effective on the date of original installation. Parts repaired or replaced under the terms of this warranty will be warranted for the remainder of the original warranty period only.
  • Page 29 ¡El uso y manejo inapropiado, montaje incorrecto y la falta de mantenimiento pueden derivar en la cancelación de la garantía! Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 1...
  • Page 30 Garantía Datos técnicos: La bicicleta Indoor Matrix E-Series corresponde, conforme a EN 957, a la clase de usuario E y está clasificada para el uso en un entorno controlado, como por ejemplo en centros deportivos y gimnasios bajo la dirección de un entrenador o instructor.
  • Page 31 Matrix E-Series hayan sido informados sobre cada una de las precauciones y advertencias de seguridad para un uso adecuado y responsable de la bicicleta. El montaje y la comprobación de la bicicleta Indoor Matrix E-Series sólo ha de ser llevado a cabo como se describe en este manual.
  • Page 32 El cumplimiento de las instrucciones contenidas en este manual le asegurará un nivel de rendimiento máximo y una larga vida útil de la bicicleta Matrix E- Series con bajo mantenimiento y una continuidad de funcionamiento sin problemas durante muchos años.
  • Page 33 Importante: Asegurarse de que todos los elementos de unión y conexión estén apretados fuertemente. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 5...
  • Page 34 Marca STOP Importante: ¡Coloque el sillín A NIVEL en posici- ón horizontal y apriete fuertemente las tuercas de 13 mm de la abrazade- ra del sillín! Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 6...
  • Page 35 (R). El pedal izquierdo, marcado con la letra (L), ha de montarse en sentido anti-horario en la biela izquierda (L). Los paedales han de ser apretados sufi cientemente para evitar que se suelten durante el uso de la bicicleta Indoor Matrix E-Series. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 7...
  • Page 36 ácidos (p. ej. Brunox) y grasa de litio blanca. Por favor asegúrese de que la bicicleta Matrix E-Series esté nivelada. Si se balancea sobre el piso, corrija la ni- velación e inclinación ajustando los pies de nivelación situados debajo del estabilizador delantero y trasero hasta...
  • Page 37 AJUSTE CORRECTO DE LA BICICLETA La bicicleta Matrix E-Series puede ser ajustada de forma muy variable y adaptadarla a los re- querimientos de los distintos grupos de usuarios para garantizar un óptimo confort y un má- ximo nivel de entrenamiento del ciclista. Las instrucciones de ajuste que se describen a conti- nuación garantizan una postura ideal del cuerpo adaptándose totalmente a la fi sionomía del...
  • Page 38 Para ajustar la posición horizontal del sillín, desmón- tese primero de la bicicleta Matrix E-Series. Luego afloje la empuñadora de fijación en T, deslice la guía corredera del sillín hasta la posición deseada. Apretar firmemente la empuñadora de fijación en T.
  • Page 39 La bicicleta Matrix E-Series esta equipada con un manillar regulable en 2 posiciones. Si el manillar está demasiado cerca del sillín puede ser que Ud. se sienta restringido al respirar, y si el manillar está...
  • Page 40 La bicicleta Matrix E-Series no dispone de sistema de volante de inercia libre. Los pedales continuarán moviéndose junto con el volante de inercia hasta que la rueda se pare por completo.
  • Page 41 Limpieza: Por razones higiénicas, debe realizarse una limpieza y desinfección perió- dica de la bicicleta Matrix E-Series, después de cada sesión de ejercicio. Cuide de que estén a disposición sufi cientes paños y trapos suaves o papel para uso doméstico, productos de limpieza y desinfectantes.
  • Page 42 (B) para garantizar un fácil y suave ajuste vertical. Deslice la tija del sillín en el cuadro y ajustelo a su altura deseada. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 14...
  • Page 43 1. Pomos de ajuste y de fi jación: Para garantizar un funcionamiento suave de los pomos de ajuste del sillín y manillar, sus corre- spondientes roscas han de ser engrasadas (A). Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 15...
  • Page 44 En este caso, aplique abundante spray lubricante a través de los orificios (B) y directamente sobre el forro de fieltro. (ver pág. 13). Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 16...
  • Page 45 Las ilustraciones muestran el lado de- seguro y asegúrese de que las tuercas de eje recho de la bicicleta en dirección de estén bien apretadas. marcha. Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 17...
  • Page 46 Ejemplo de un plan de mantenimiento para la realización de trabajos por terceros: Lista de chequeo para cada semana Bici n° Bici n° Código producción Código producción Notas Notas Acción Acción Resultado Resultado Nombre/Fecha Nombre/Fecha Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 18...
  • Page 47 Lista de chequeo para cada 2 semanas Bici n° Código producción Notas Acción Resultado Nombre/Fecha Lista de chequeo para cada mes Bici n° Código producción Notas Acción Resultado Nombre/Fecha Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 19...
  • Page 48 02 40 C 2RS 02 40 C S 08 02 50 A Sistema de freno 02 50 03 A 02 50 05 02 50 06 02 50 04 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 20...
  • Page 49 Volante de inercia 02 40 02 02 40 08 E 12 02 40 H 02 40 BPK 02 40 H L Manillar 02 30 01 AL Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 21...
  • Page 50 02 10 A 02 10 A 02 99 10 (opcional) 02 99 11 (opcional) 2004 RA E Set completo de pegatinas 02 99 50 E MX 12 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 22...
  • Page 51 PIEZAS DE RECAMBIO 02 99 02 10 HB (opcional) Pomos de ajuste y fi jación 02 10 B 08 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 23...
  • Page 52 Tija del sillín 02 21 AK 02 20 02 02 21 01 AL (Módulo completo) 02 10 G Pedales 01 40 A 2 01 40 A 3 Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 24...
  • Page 53 02 11 02 E 08 02 11 E 02 11 06 02 11 05 B Estabilizador delantero 02 11 01 E 08 02 11 B 02 11 A Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 25...
  • Page 54 01 40 A 2 Pedales Combi (par) 02 99 50 E MX 12 Set de pegatinas completo 01 40 A 3 Correa (cincha ) de pedal par) Version 1.0 2013 IC-MXEB-01 Copyright by Indoorcycling Group GmbH 2013 | www.indoorcycling.com ESP 26...
  • Page 55 DISPOSICIONES DE GARANTÍA Matrix Fitness System Corp. garantiza que todos los productos nuevos en el día de entrega al cliente no tienen defectos de fabricación y material. A continuación se especifi can los diferentes plazos de garantía para los componentes y módulos montados en las bicicletas E-Serie.
