2. Connecting Form C Dry Contacts

TransTrack units come standard with Form "C" dry contacts. The relay contacts are rated 110V DC/125V AC with maximum
switching power of 30W DC/62.5VA AC. Use butt splices within the panelboard to connect the Form "C" leads to the user's
monitoring circuits. Alternatively, install a junction box between the TransTrack and the panelboard to connect Form "C"
leads to user's monitoring circuits. If the Form "C" contacts are not used, user has the option of either cutting off the leads
or coiling up the leads and saving them for potential future use. Consult applicable local codes to ensure proper installation.

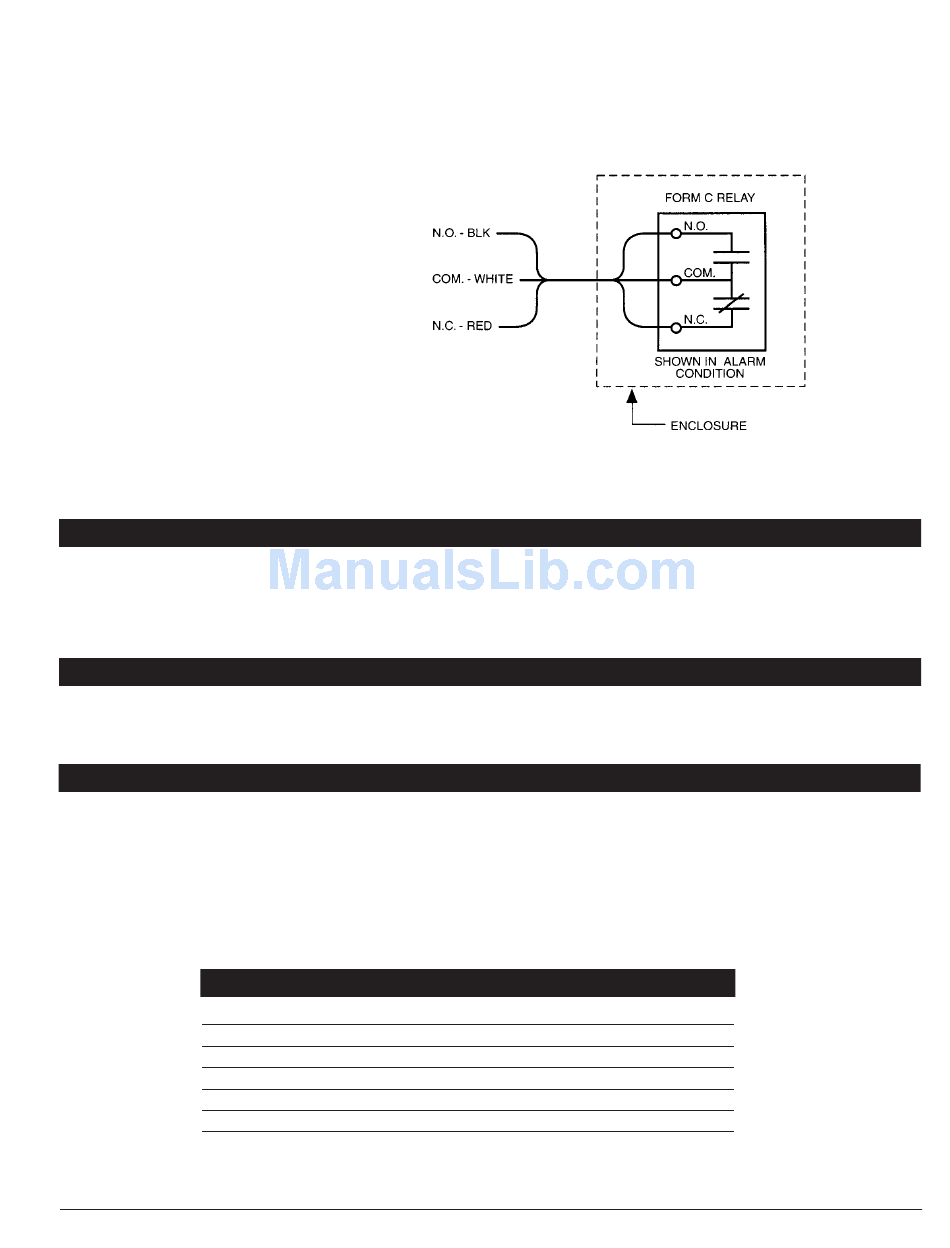

FIG. 7
Detail of Form "C" contacts

3. Verification and Power Up

Apply power to TransTrack by closing the circuit breaker or molded-case switch feeding the suppressor. Verify that all "Phase
Protection Status" indicating lights are illuminated.

TROUBLESHOOTING

Call Joslyn Technical Support if you experience either of these conditions:
• Circuit breaker trips and cannot be reset
• One or more lights on TransTrack are not illuminated
* No user-serviceable parts inside.

TECHNICAL ASSISTANCE

Our staff is ready to support you and answer any questions.
Monday through Friday, 8:00 a.m. to 5:00 p.m. (EST) 800-647-1911.

RETURNS AND WARRANTY PROCEDURES

TransTrack products are warranted for a period of 25 years from date of purchase. In the event that any module or subassem-
bly within the suppressor fails to perform as specified during the warranty period, call our Technical Support at 800-647-
1911 to obtain a Return Material Authorization number. We will immediately ship a replacement for the defective parts free
of charge (installation labor and site preparations excluded). Return the defective parts to Joslyn within 30 days of receiving
the replacement. Failure to return the defective parts will result in billing for the replacement parts. To help
expedite the return procedures, please have the following information at hand when you contact Joslyn:
INFORMATION
Model Number
Serial Number
Date of Purchase
Sales Order Number
Description of Failure
Desired Action from Joslyn
TRANSTRACK
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
TRANSTRACK
EXAMPLE
TK-TT200-3Y208-F
23115-4103-001
October 17, 2003 (41st week)
23115
Phase A light is off
Replace
7
