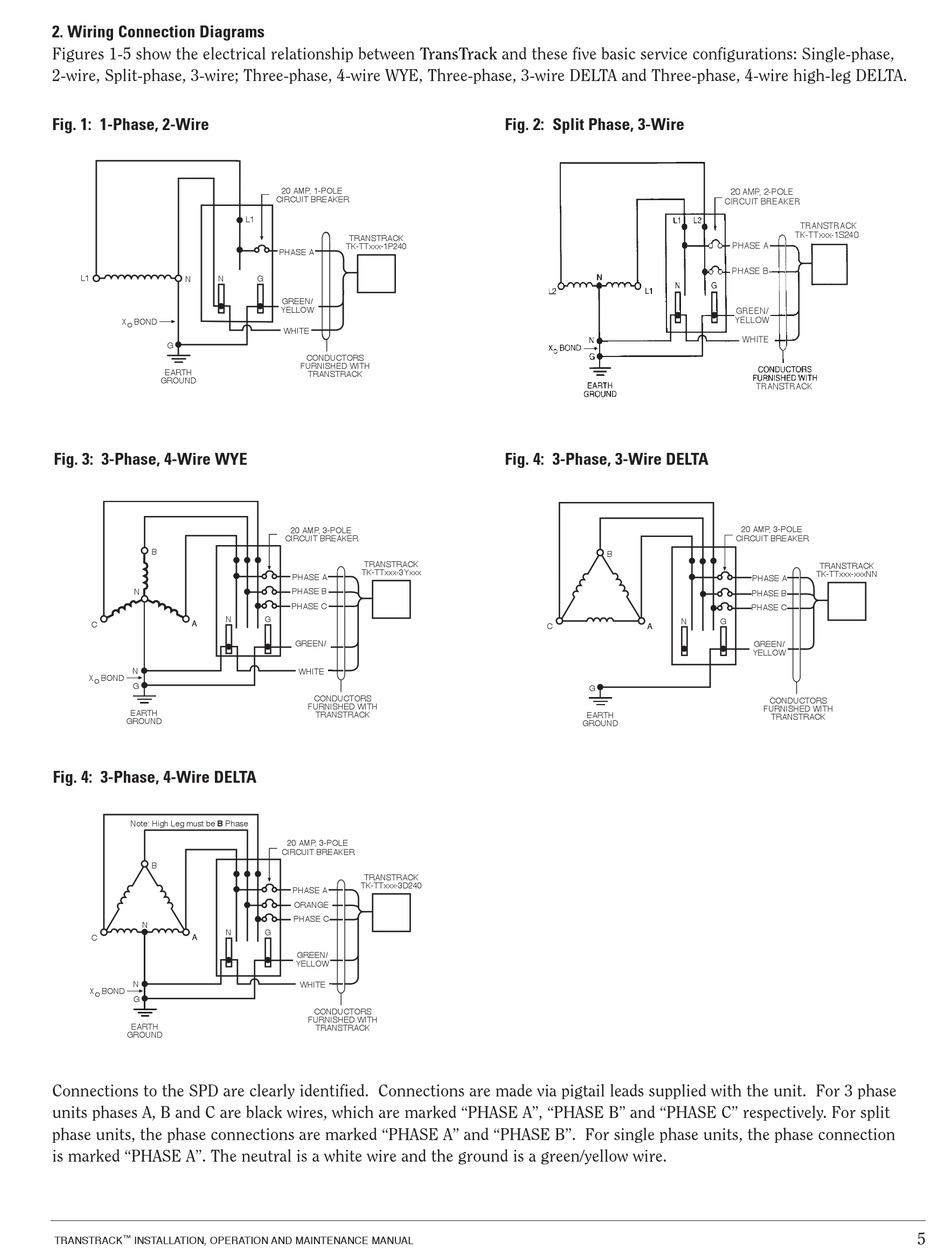

2. Wiring Connection Diagrams

Figures 1-5 show the electrical relationship between TransTrack and these five basic service configurations: Single-phase,
2-wire, Split-phase, 3-wire; Three-phase, 4-wire WYE, Three-phase, 3-wire DELTA and Three-phase, 4-wire high-leg DELTA.
Fig. 1: 1-Phase, 2-Wire
L1
N
N
X
BOND
O
G
EARTH
GROUND
Fig. 3: 3-Phase, 4-Wire WYE
B
N
N
A
C
N
X
BOND
O
G
EARTH
GROUND
Fig. 4: 3-Phase, 4-Wire DELTA
Note: High Leg must be B Phase
B
N
N
C
A
N
X
BOND
O
G
EARTH
GROUND
Connections to the SPD are clearly identified. Connections are made via pigtail leads supplied with the unit. For 3 phase
units phases A, B and C are black wires, which are marked "PHASE A", "PHASE B" and "PHASE C" respectively. For split
phase units, the phase connections are marked "PHASE A" and "PHASE B". For single phase units, the phase connection
is marked "PHASE A". The neutral is a white wire and the ground is a green/yellow wire.
TRANSTRACK
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
20 AMP, 1-POLE
CIRCUIT BREAKER
L1
TRANSTRACK
TK-TTxxx-1P240
PHASE A
G
GREEN/
YELLOW
WHITE
CONDUCTORS
FURNISHED WITH
TRANSTRACK
20 AMP, 3-POLE
CIRCUIT BREAKER
TRANSTRACK
TK-TTxxx-3Yxxx
PHASE A
PHASE B
PHASE C
ORN
G
GREEN/
WHITE
CONDUCTORS
FURNISHED WITH
TRANSTRACK
20 AMP, 3-POLE
CIRCUIT BREAKER
TRANSTRACK
TK-TTxxx-3D240
PHASE A
ORANGE
PHASE C
G
GREEN/
YELLOW
WHITE
CONDUCTORS
FURNISHED WITH
TRANSTRACK
Fig. 2: Split Phase, 3-Wire
Fig. 4: 3-Phase, 3-Wire DELTA
B
N
C
A
G
EARTH
GROUND
20 AMP, 2-POLE
CIRCUIT BREAKER
TRANSTRACK
TK-TTxxx-1S240
PHASE A
PHASE B
GREEN/
YELLOW
WHITE
TRANSTRACK
20 AMP, 3-POLE
CIRCUIT BREAKER
TRANSTRACK
TK-TTxxx-xxxNN
PHASE A
PHASE B
BRED
PHASE C
ORN
G
GREEN/
YELLOW
CONDUCTORS
FURNISHED WITH
TRANSTRACK
