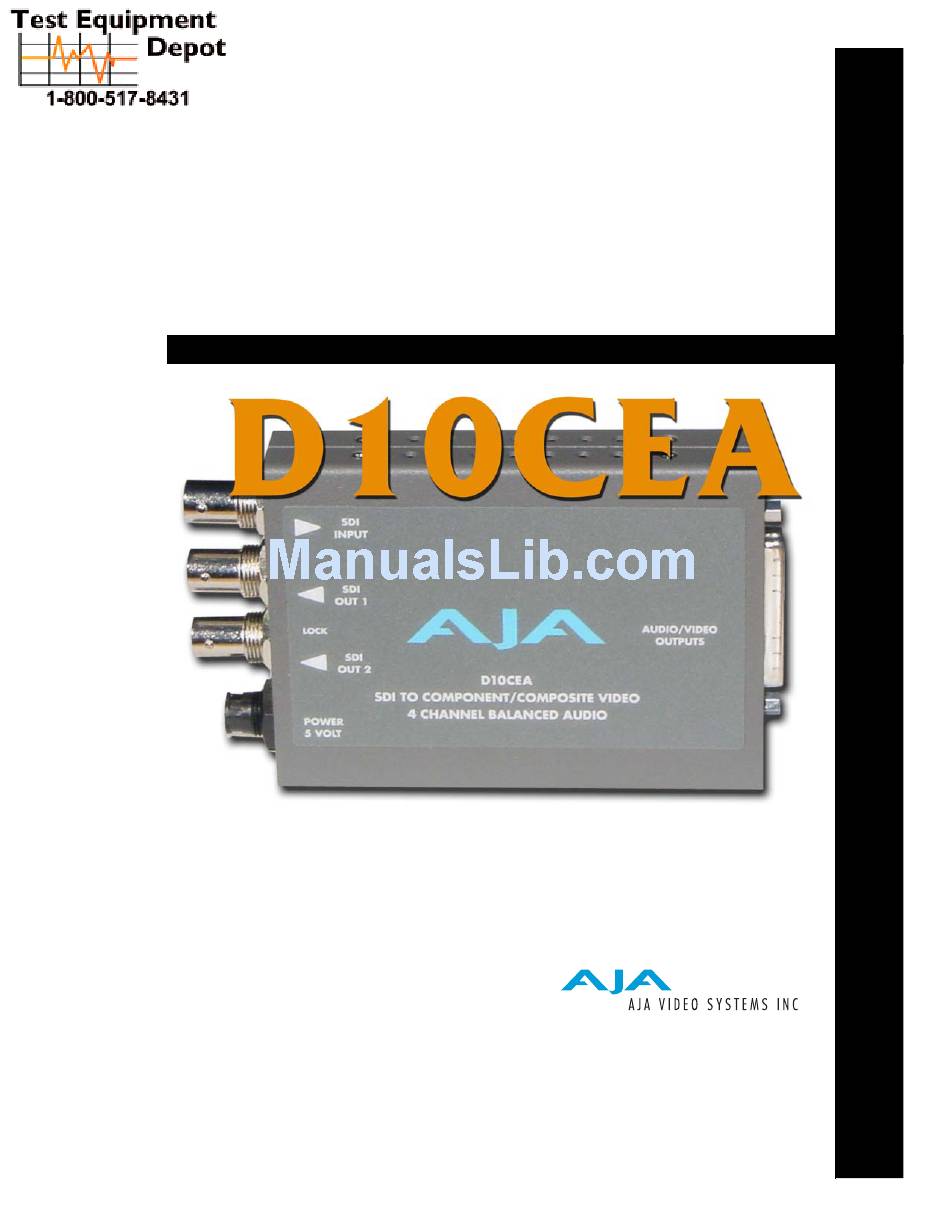

Page 1: User Manual
D10CEA SDI to Component/ Composite Video with 4 Channel Audio Converter User Manual June 28, 2005 P/N 101637-00 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com... -
Page 2: Block Diagram

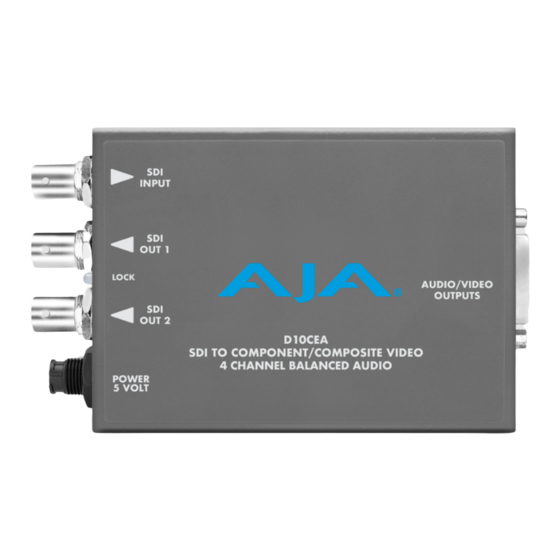

AJA D10CEA SDI to Component/Composite Converter User Manual — Introduction Introduction The D1OCEA converts SDI video with embedded audio to 10-bit component or composite analog video and 4 channel balanced analog audio. The video outputs can be configured as YPbPr (Betacam or SMPTE/EBU N10), RGB, composite or Y/C (S-Video). - Page 3 DIP switch on back of SDI Loop Converter Output 2 DB25 Connector + 5VDC Attaches to Break-out Power Cable (shown below) Input providing Audio and Video Outputs Break-out Cable (DB25 to 4 XLRs and 3 BNCs) D10CEA and Break-Out Cable...
-
Page 4: User Controls
AJA D10CEA SDI to Component/Composite Converter User Manual — User Controls User Controls The user interface for the D10CEA is an 8-switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure video outputs, pedestal, blanking, select audio channel groups, and set audio level. - Page 5 Switch 4—Configure Blanking RIGHT LEFT WIDE Blanking: NARROW (NAR) Blanking: Vertical— Vertical— Line numbers indicate where video starts) Line numbers indicate where video starts line 20, field 1; line 20, field 2 (525 line) line 13, field 1; line 12, field 2 (525 line) line 23, field 1;...
- Page 6 AJA D10CEA SDI to Component/Composite Converter User Manual — User Controls Output Selection The following table shows the combinations of DIP switch settings required to configure the three BNCs on the break-out cable. Matrix For Video Output 2 (3 BNCs)
-
Page 7: Specifications
1. disconnect +5VDC from the convertor 2. configure the DIP switch for the desired equipment configuration and video formats 3. connect video equipment to the convertor BNCs 4. apply +5VDC power to the converter (AJA power supply model DWP) Specifications Item Specification...
