AJA Hi5-3G User Manual
3g/dual-link/hd/sd-sdi to hdmi 1.3a video and audio converter
Hide thumbs
Also See for Hi5-3G:
- Installation and operation manual (19 pages) ,
- Installation & operation manual (27 pages)
Subscribe to Our Youtube Channel
Related Manuals for AJA Hi5-3G
Summary of Contents for AJA Hi5-3G
-
Page 1: User Manual

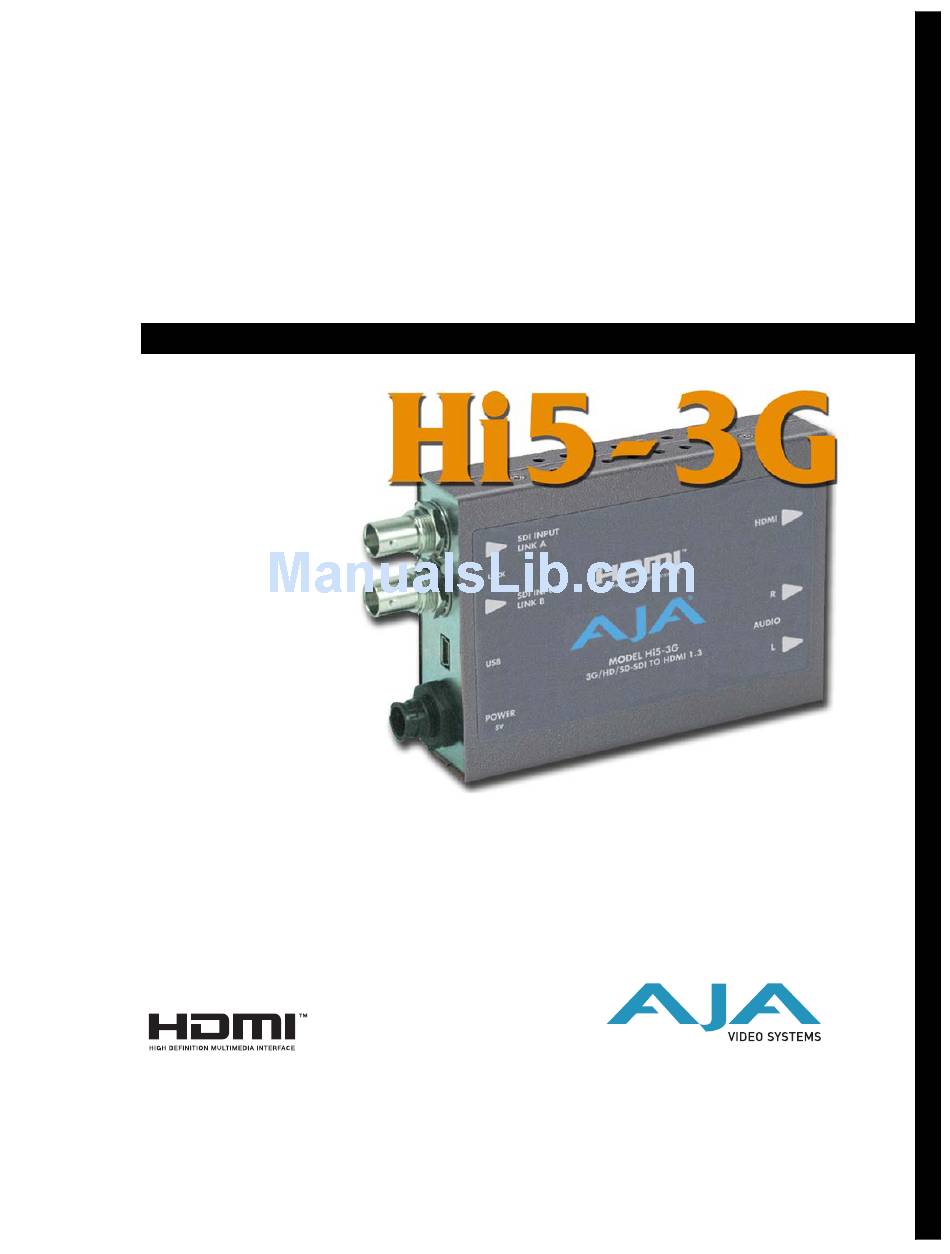

Hi5-3G 3G/Dual-link/HD/SD-SDI To HDMI 1.3a Video and Audio Converter User Manual ® May 14, 2009... -
Page 2: Fcc Emission Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 3: Block Diagram

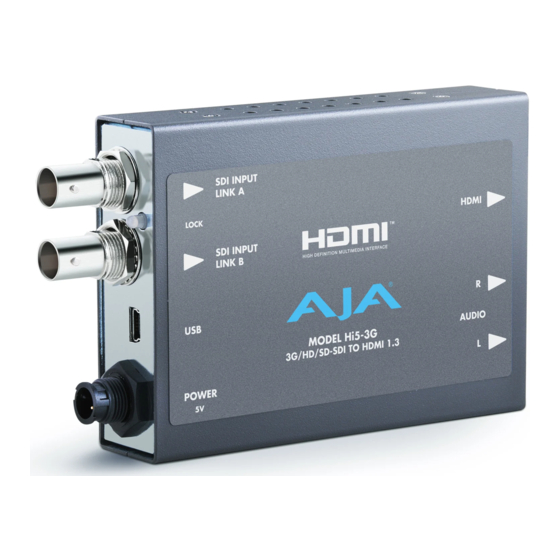

AJA Hi5-3G 3G/Dual-link/HD/SD-SDI to HDMI and Audio Converter User Manual — Introduction Introduction The Hi5-3G converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving HDMI monitors. HDMI v1.3a capability at 30 bits per pixel allows full support of the latest 10 bit monitors. -
Page 4: Installation
4. Apply +5VDC power to the converter (AJA power supply model DWP or DWP-U). 5. The Hi5-3G will now run using the default factory settings. If you wish to alter the factory settings, you’ll need to install the AJA Mini Config software (supplied on CD) on a computer, attach the Hi5-3G via USB to the computer, and then make your changes. -
Page 5: Usb Control And Setup-Using Aja Mini Config
AJA Hi5-3G 3G/Dual-link/HD/SD-SDI to HDMI and Audio Converter User Manual — USB Control and USB Control and Setup—Using AJA Mini Config The Hi5-3G can usually be used right out of the box for most applications since it is designed to recognize inputs and perform standard actions automatically by default. However you can also manually configure the Hi5-3G using a supplied software application “Mini Config.”... - Page 6 Select “No” and then click the “Next” button. Click “Next” again. Windows will display a certification warning: click “Continue Anyway” to procede.
- Page 7 Lastly, the Found New Hardware Wizard will tell you when it’s finished updating the USB driver. Click Finish and the Hi5-3G is ready to be used with the software. Running Mini To run Mini Config, find the AJA directory in the program list and locate the AJA Mini Config application. Config When the application starts, you’ll see a simple graphical interface for viewing settings and...
- Page 8 Module Name from the Update tab to whatever you’d like. When you connect a Hi5-3G (or any other AJA MiniConverter with USB support), you must click the Discover button in Mini Config, to ensure it will be seen by the application.
-
Page 9: Input Video Selections
AJA Hi5-3G 3G/Dual-link/HD/SD-SDI to HDMI and Audio Converter User Manual — USB Control and The Done button at the bottom of the interface closes the Mini Config application. Clicking on the AJA logo with the left mouse button opens the AJA website home page in your web browser. -
Page 10: Output Selections
Video Bit Depth—Choose from Auto, 24-bit, 20/30-bit, or 36-bit. Choosing “Auto” lets the Hi5-3G automatically select the bit depth based on the input video and the attached device's capabilities. Color Range—Choose Auto, Limited or Full. Choosing “Auto” causes the Hi5-3G to follow the input color range setting. -
Page 11: Update Tab Screen
AJA Hi5-3G 3G/Dual-link/HD/SD-SDI to HDMI and Audio Converter User Manual — USB Control and Update Tab Screen If a new software release is issued by AJA, you may wish to update your MiniConverter with the newer release. The Update tab screen is how new software is found and loaded into the MiniConverter. -
Page 12: Specifications
24-bit, with 2 or 8 embedded channels RCA-style analog outputs at -10dBV (User Selectable channels) HDCP The Hi5-3G does not encode the HDMI output with HDCP encryption. By definition, SDI/HD-SDI inputs to the Hi5-3G are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs.
