Page 1: User Manual
D4E Serial Digital Encoder User Manual December 5, 2003 P/N 101634-00... -
Page 2: Contacting Support
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located. -
Page 3: Block Diagram

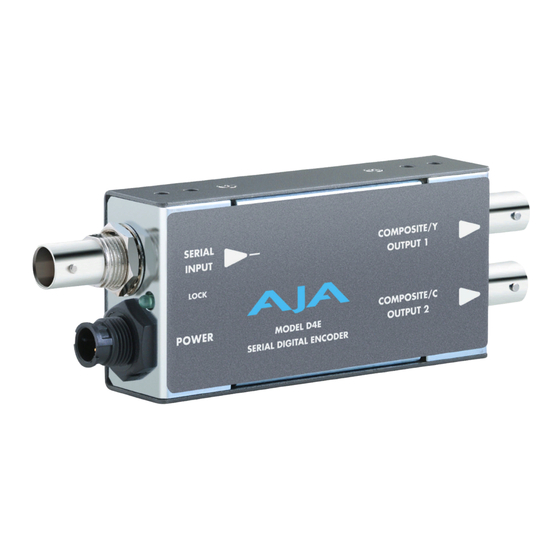

Introduction The D4E SDI Encoder provides the lowest cost all-digital conversion of Component Serial Digital (SDI) to analog NTSC or PAL Composite or Y/C (S Video). The D4E is useful for monitoring, level and phase checking, dubbing, or desktop video applications. - Page 4 User Controls The user interface for the D10CE is a 4-switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure output, pedestal, blanking, and enable or disable the test signal output. Switches 1 through 3 control the format of the output BNC.
-
Page 5: Specifications
This option is available from AJA Video as a special order. 2. The encoder D-to-A chip used in the D4E has an 8-bit input for component digital video and 10-bit D-to0-A converters for the analog outputs. This configuration is often described as an 8-bit “signal path”... - Page 6 Item Specification Output level matching 1 .5% or 10mv (All outputs are separately buffered) Power 5v DC regulated, 2 watt (AJA power supply model DWP) Size 5.1" x 1.8" x 1" (131 x 44 x 25 mm)
