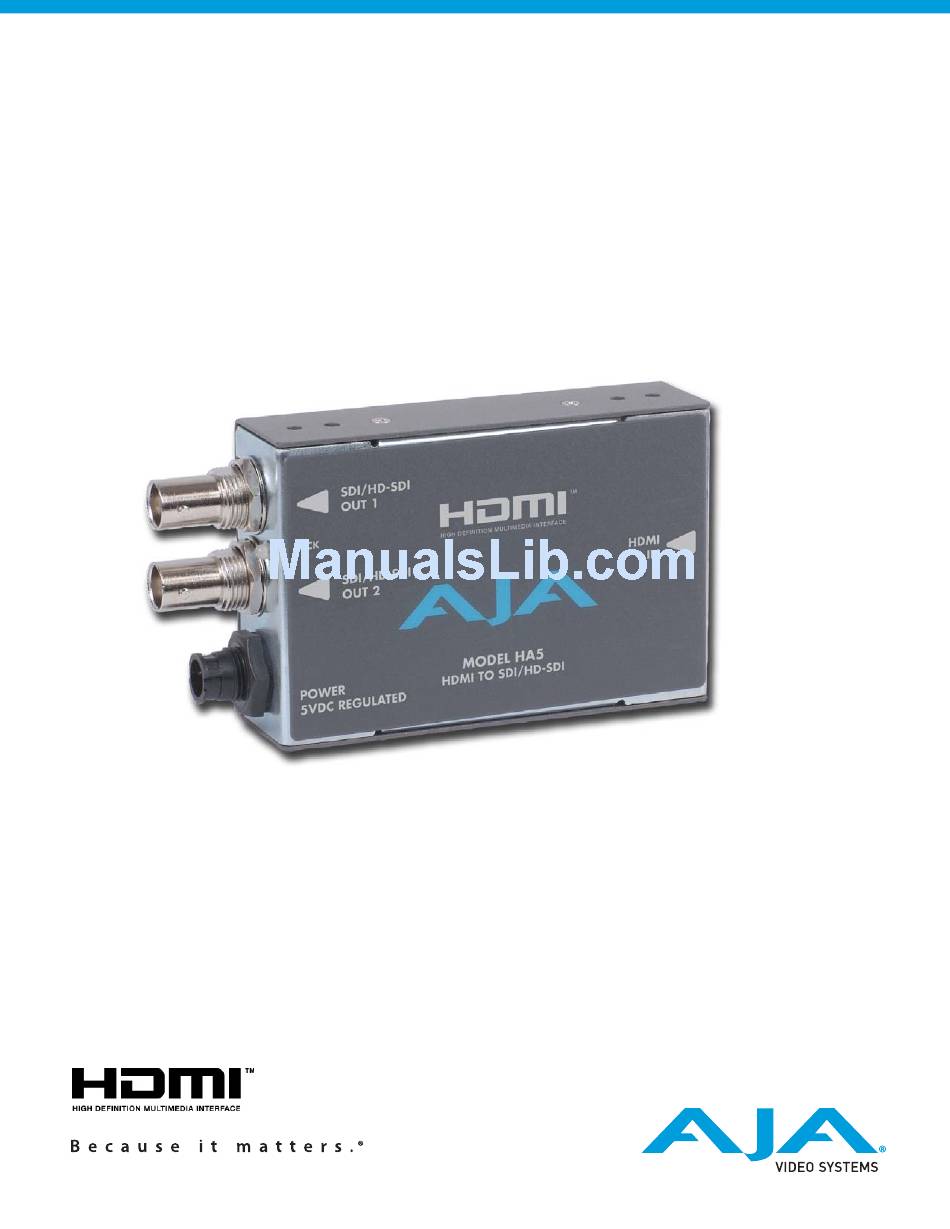

- Page 1 HA5 Mini-Converter HDMI to SD/HD-SDI Video and Audio Installation & Operation Guide Version 1.0r2 Published: July 3, 2014...
-
Page 2: Table Of Contents
Contacting Support ............. . . 3 Chapter 1: HA5 Mini-Converter ....... . . 4 Overview. -
Page 3: Notices
AJA®, lo®, Ki Pro®, KONA®, KUMO®,T-TAP®, Because it matters.® and ROI® are registered trademarks of AJA Video Systems, Inc. in the United States. AJA and Ki Pro are trademarks of AJA Video Systems, Inc. registered in other countries. AJA Control Room™, CION™, Corvid Ultra™, FiDO™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™... -
Page 4: Chapter 1: Ha5 Mini-Converter
Chapter 1: HA5 Mini-Converter Overview The HA5 Mini-Converter converts HDMI to SD or HD-SDI. Up to eight channels of HDMI audio are embedded into the SDI/HD-SDI output allowing a convenient single cable audio/video connection. The HA5 provides two SDI/HD-SDI outputs and supports long HDMI cables on the input. -
Page 5: Ha5 Simplified Block Diagram
(not installed) Audio HA5 Mini-Converter supports 8 audio channels (4 stereo pairs) at 24-bit/48 KHz which it dis-embeds from HDMI and embeds into SDI. For proper embedding, audio must be synchronous to video. However, if audio is not synchronous with video or the sample rate is not 48 KHz, then jumper #1 must be installed. -
Page 6: User Controls
To access these jumpers, remove the four Phillips screws securing the back side of the HA5 case. Once the case cover is removed, locate the jumper block. Jumper positions 1 through 3 are clearly marked on the circuit board. -
Page 7: Appendix A: Specifications
Content not supported Size 4.6" x 2.4" x 1" (117 x 61 x 25 mm.) Power • Uses AJA Power Supply model DWP-U-R1 (included) • 100-240V, 50/60Hz Universal Input • +5V DC regulated, 7.5 watt capacity HA5 Mini-Converter v1.0r2 www.aja.com... -
Page 8: Appendix B: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe A prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe A est conforme à la norme NMB-003 du Canada. HA5 Mini-Converter v1.0r2 www.aja.com... -
Page 9: European Union And European Free Trade Association (Efta)
EN61000-3-2:2006, EN61000-3-3:1995 +A1:2001 +A2:2005 Immunity: EN 55103-2: 1996 EN61000-4-2:1995 + A1:1999 + A2:2001, EN61000-4-3:2006, EN61000-4-4:2004, EN 61000-4-5: 2005, EN 610004-6:2007, EN61000-4-11:2004 The product is also licensed for additional country specific standards as required for the International Marketplace. HA5 Mini-Converter v1.0r2 www.aja.com... -
Page 10: Korean Kcc Compliance Statement
This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2008.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions. HA5 Mini-Converter v1.0r2 www.aja.com... -
Page 11: Recycling Notice
Aviso! Leia e siga todos os avisos e instruções assinalados no produto ou incluídos na documentação. Avviso! Leggere e seguire tutti gli avvisi e le istruzioni presenti sul prodotto o inclusi nella documentazione. HA5 Mini-Converter v1.0r2 www.aja.com... - Page 12 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. HA5 Mini-Converter v1.0r2 www.aja.com...
- Page 13 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. HA5 Mini-Converter v1.0r2 www.aja.com...
- Page 14 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. HA5 Mini-Converter v1.0r2 www.aja.com...
- Page 15 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HA5 Mini-Converter v1.0r2 www.aja.com...
- Page 16 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 17 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. HA5 Mini-Converter v1.0r2 www.aja.com...
-
Page 18: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.
