Summary of Contents for AJA D5D

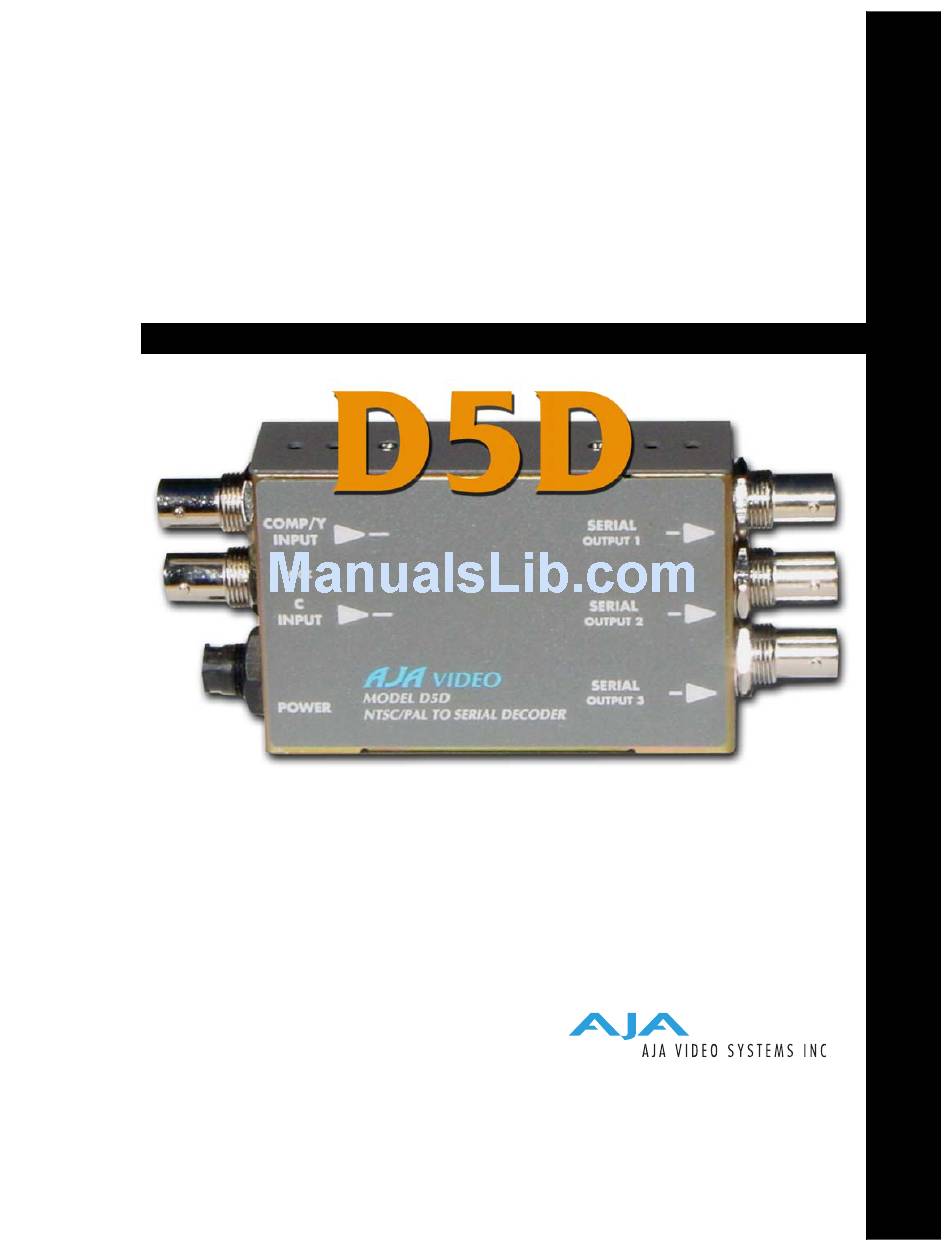

- Page 1 D5D NTSC/PAL to Serial Decoder User Manual December 5, 2003 P/N 101632-04...
- Page 2 AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.

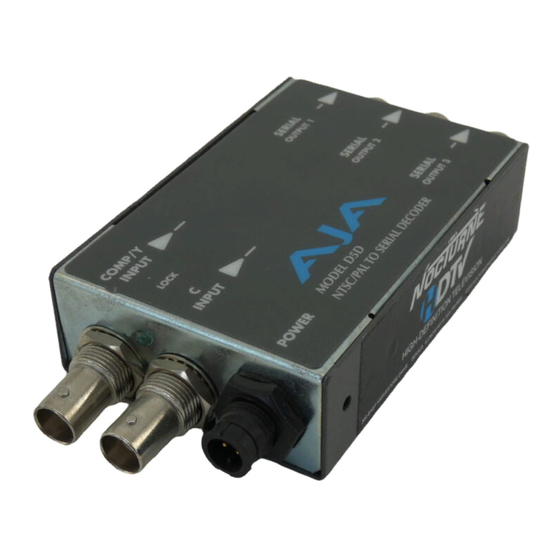

- Page 3 The D5D Serial Digital Decoder provides low-cost all-digital decoding of analog NTSC, PAL or Y/C (S-Video) to 4:2:2 component serial digital. When working in a serial digital environment, the D5D is useful for bringing in video from time-base corrected analog composite equipment.
- Page 4 Output 3 Input D5D, Side View User Controls The user interface for the D5D is a 4-position DIP switch accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure inputs for Y/C or Composite, set blanking and pedestal, and configure the comb...
- Page 5 Typically, D5D installation consists of the following: 1. disconnect +5VDC from the convertor 2. configure the DIP switch for the desired equipment configuration and video formats 3. connect video equipment to the convertor BNCs 4. apply +5VDC power to the converter (AJA power supply model DWP)
- Page 6 Differential Phase < 1 .5 degree Input level adjustment (internal) +/-10% User Controls Externally accessed DIP switch Power 5v DC regulated, 3.5 watt (AJA power supply model DWP) Size 5.1" x 2.4" x 1" (131 x 61 x 25 mm)
