Summary of Contents for AJA D10AD
-

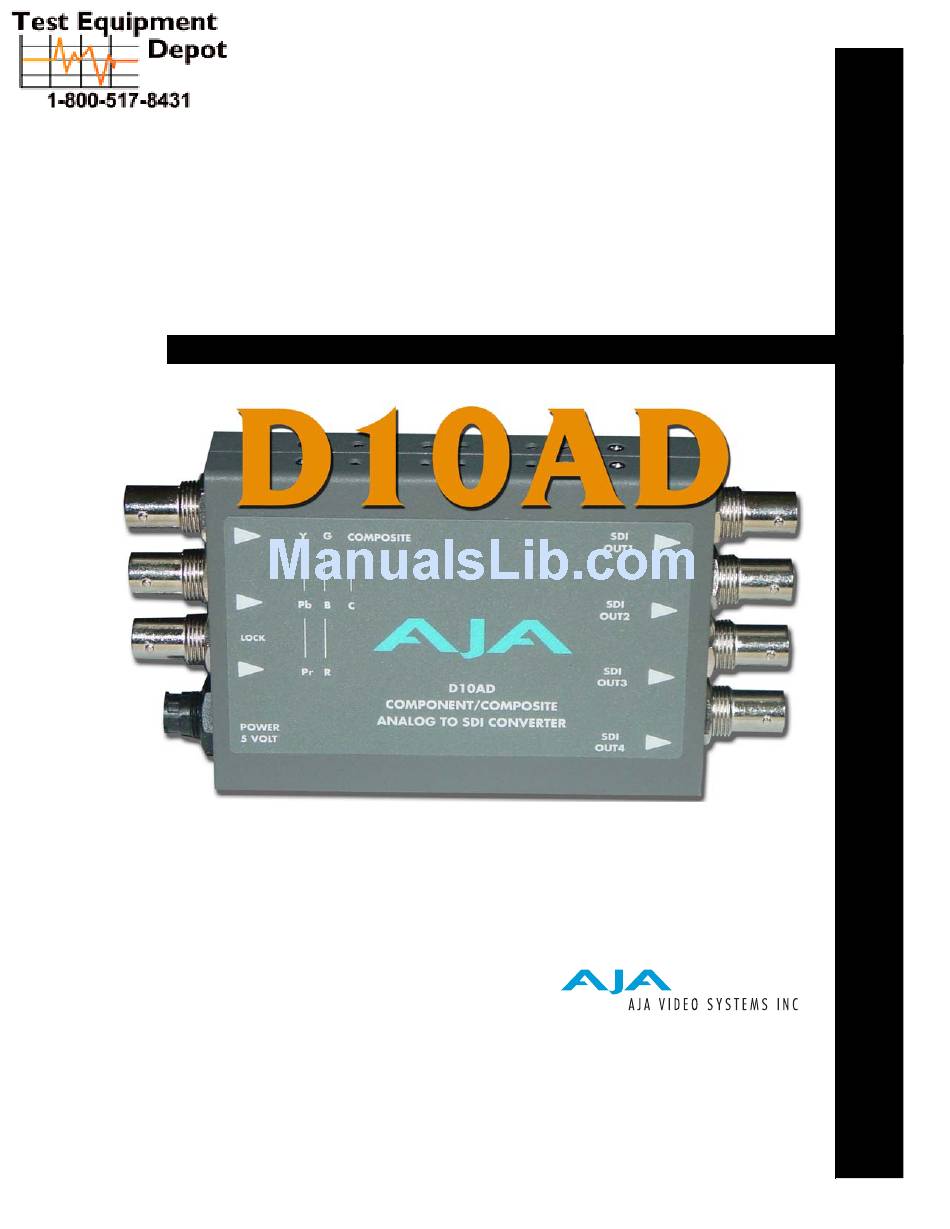

Page 1: User Manual
D10AD 10-bit Analog to SDI Converter User Manual September 2, 2005 P/N 101639-00 Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - FAX 781.665.0780 - TestEquipmentDepot.com... -
Page 2: Block Diagram

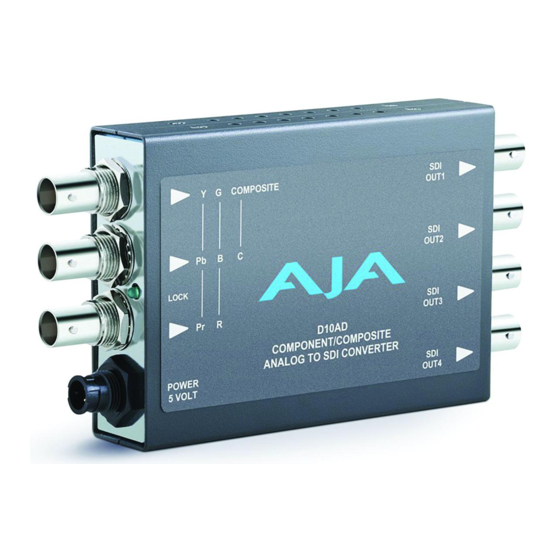

AJA D10AD 10-bit Component/Composite to SDI Converter User Manual — Introduction Introduction The D10AD provides excellent quality 10-bit conversion of component or composite analog video to SDI—with EDH. The D10AD accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs and NTSC/PAL or YC (S-Video) composite inputs. -
Page 3: User Controls
Power Input D10AD, Side View User Controls The user interface for the D10AD is an 8- switch DIP accessible through a cut-out in the bottom of the unit. Use the DIP switches to configure outputs, pedestal, blanking, and enable or disable comb filter, EDH, AGC, and test pattern. - Page 4 AJA D10AD 10-bit Component/Composite to SDI Converter User Manual — User Controls Switch 1—Selects Component or Composite input from the Compos- ite/Component BNCs Selects Composite input. Selects Component input. Switch 2—Configure Type of Component input from the Composite/ Component BNCs...
-
Page 5: Specifications
1. disconnect +5VDC from the convertor 2. configure the DIP switch for the desired equipment configuration and video formats 3. connect video equipment to the convertor BNCs 4. apply +5VDC power to the converter (AJA power supply model DWP) Specifications Item Specification...
