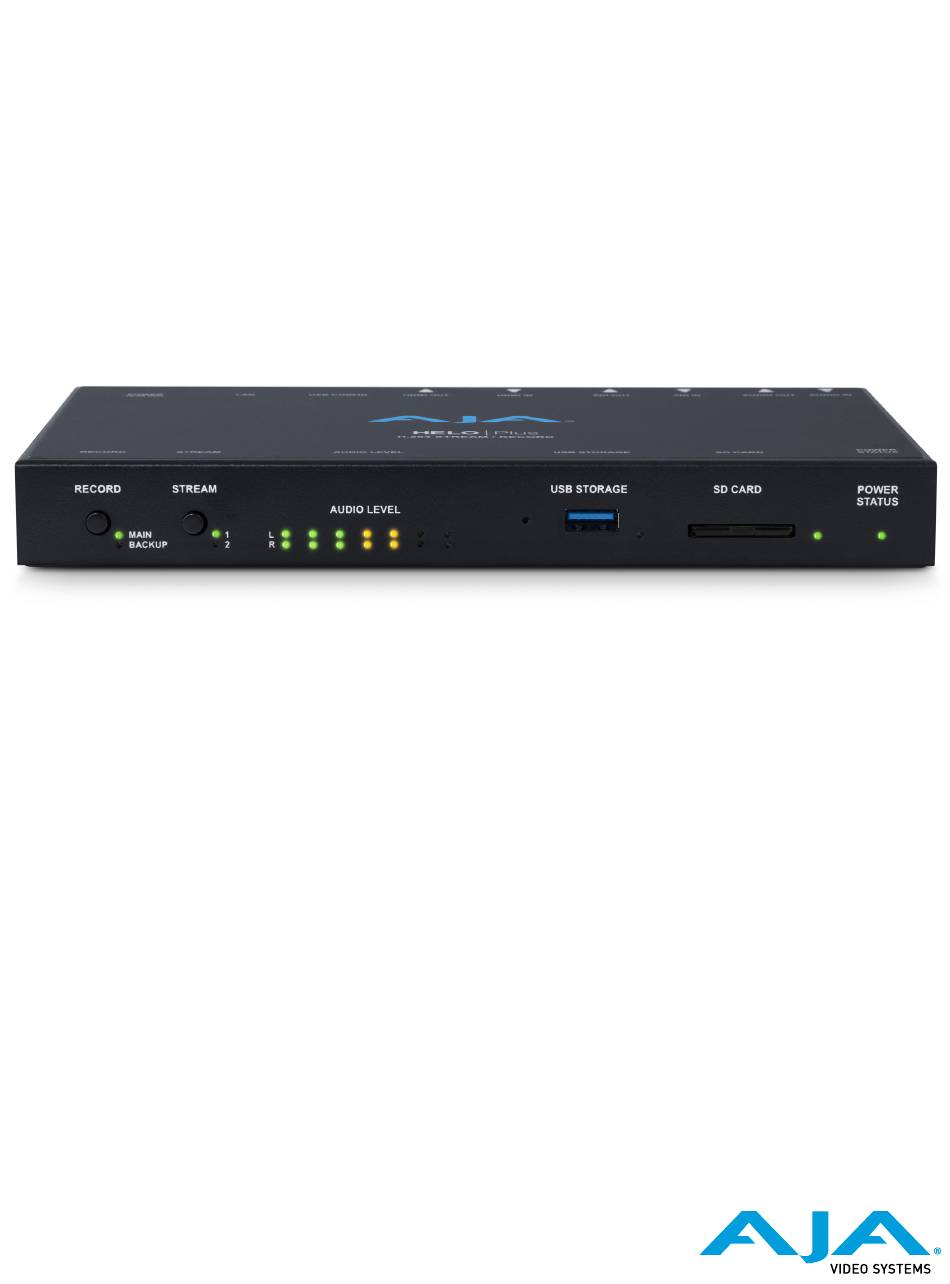

HELO Plus
H.264 Advanced Streaming and Recording Encoder
Installation and Operation Guide
Version 2.1
Published March 5, 2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HELO Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AJA HELO Plus

Summary of Contents for AJA HELO Plus

  • Page 1 HELO Plus H.264 Advanced Streaming and Recording Encoder Installation and Operation Guide Version 2.1 Published March 5, 2025...

  • Page 2: Notices

    AJA® and Because it matters.® are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA™ is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters.™ is a trademark of AJA Video Systems, Inc.

  • Page 3: Table Of Contents

    HELO Plus Safeboot ........
  • Page 4 Network Tab Screen ........93 HELO Plus H.264 Streaming and Recording Encoder v2.1...
  • Page 5 HELO Plus Tech Specs ........

  • Page 6: Chapter 1 - Introduction

    It can be duplicated across both encoders for added resilience. Either of these encoder outputs can serve as the source for the HELO Plus recording system as well.

  • Page 7: Layouts For Picture-In-Picture

    Ethernet connection, and using a desktop or laptop computer. Every function of HELO Plus is accessible in the web UI, with multiple HELO Plus devices being easily controllable via a tabbed browser window. HELO Plus can also be controlled via the stream and record buttons on the front of the device.

  • Page 8: Presets

    • Audio Signal Generator • None • Select Audio source 1 or Audio Source 2 for the HELO Plus front panel VU meters, as well as (at the same time) the analog audio output and the audio being embedded into the HDMI output.

  • Page 9: Enhanced Rtmp Logging

    • Hardware H.264 encoding, streaming and recording User Interface Software • Built-in web server for full remote control and configuration • eMini-Setup can be used with a USB connection for initial HELO Plus configuration Simplified Block Diagram Figure 1. HELO Plus Simplified Block Diagram...

  • Page 10: About Video Reference (Genlock)

    About Video Reference (Genlock) HELO Plus has internal framesync circuitry for the SDI and HDMI signal paths. HELO Plus uses its SDI input signal for its video reference, which means changes to that input signal (for example, disconnecting and reconnecting that BNC cable) can affect downstream video synchronization.

  • Page 11: System Requirements

    A USB port is also required for eMini-Setup configuration. NOTE: Safari is the preferred web browser for control on the Mac, and additionally Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

  • Page 12: Chapter 2 - Product At A Glance

    Pressing the Stream button initiates the enabled streaming outputs, or stops any streams in progress. NOTE: The Record and Stream buttons can be linked using the HELO Plus web server screen. When linked, pressing either button will start and stop both recording and streaming.

  • Page 13: Ports/Slots

    Time zone Subnet mask Daylight savings Default gateway NOTE: The Soft Reset function above can also be performed using the HELO Plus's web browser UI (Presets Screen). See "Default Preset (Web UI)" on page 59 for more information.
  • Page 14 Solid on - Media mounted and ready Slow flashing - Recording in progress Medium flashing - Media being scanned for recordings Fast flashing - Other file access in progress (file download or delete) HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 15: Power Led

    Input Output Input Output Con g Port Connector Connector Connections Audio • Audio Input (2 channel stereo pair, 3.5mm TRS connector) • Audio Output (2 channel stereo pair, 3.5mm TRS connector) HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 16: Rear Panel Status Leds

    NOTE: Embedded audio from SDI or HDMI is also supported. SDI Video • 3G SDI Video Input (BNC connector) NOTE: The SDI Video input connector is used as the HELO Plus's external video reference (see "About Video Reference (Genlock)" on page 10).

  • Page 17: Chapter 3 - Helo Plus Installation

    CAUTION: Please use caution and take security into account when configuring your HELO Plus unit on your network. It is recommended that you place your HELO Plus behind a firewall so that it is not accessible on the open Internet by unauthorized users.

  • Page 18: Static Ip Address Configuration Using Emini-Setup

    Figure 5. HELO Plus Network tab 6. Configure the HELO Plus network settings. DHCP will be enabled by default, and if the HELO Plus is connected to a DHCP server the IP address field will populate. (You may also select a Static IP Address Type on this tab.

  • Page 19: Helo Plus Recording Quick Start

    HELO Plus’s SDI IN port to a valid video/audio source, insert formatted SD media into HELO Plus’s SD slot, and then press the Record button on HELO Plus’s front panel. The Record button and SD LEDs will blink green while recording. Pressing the Record button again stops the recording.

  • Page 20: Helo Plus Firmware Update

    "Firmware Screen" on page 72. HELO Plus Safeboot HELO Plus has a safety feature where an internal “safeboot” copy of minimal system software is retained in the event the update process fails or the loaded software becomes corrupted. The safeboot software provides minimal system...

  • Page 21: Chapter 4 - Helo Plus Web Interface

    Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions. To connect to HELO Plus, simply attach HELO Plus to your network and enter HELO Plus’s IP address into the web browser. If authentication has been configured, you may need to enter a password.

  • Page 22: Web Browser Via Ethernet

    Button Button General Screen Description All HELO Plus web screens have certain areas and controls in common. Vertical and horizontal scroll bars appear when information extends past the border of a panel. The round blue Up/Down arrow button on each pane and many parameter groups opens and closes that pane or set of parameters.

  • Page 23: Alarms Pane

    Figure 9. HELO Plus Connection Pane Network Panel On the right of the WebUI is a Network pane that lists any and all other AJA devices on the network. In this example, an AJA KiPro Ultra 12G device is also on the network.

  • Page 24: Top Menu Line

    Menu Pane. Top Menu Line Near the top of the screen is a top menu line, labeled with the assigned HELO Plus system name. This top menu line has duplicate Record, Link, and Stream function buttons on the left, so they can still be accessed if the Video Confidence Monitor pane is closed.
  • Page 25 These controls can be linked together with the Link button. Error conditions may deactivate these buttons (e.g. No Video Input). The Record, Stream, and Link buttons are also disabled when the HELO Plus is in Data Transfer mode.

  • Page 26: Status Screen

    Video Source selection will bring up a list of available inputs, allowing you to change it. Parameters cannot be changed when currently streaming or recording. All available parameters are accessible by clicking on the Menu screens listed on the left. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 27: Config Screen

    Layout - Use the currently active Layout. The HELO Plus's SDI and HDMI video outputs will be synced to the SDI Video signal input when the HELO Plus has SDI selected as its Video Source parameter, or when the Video Source parameter is Layout and SDI Enable is On, and when...
  • Page 28 This parameter provides an overlay of system parameters including system name, streaming and recording state, timecode, main and backup recording capacity remaining, video and audio source information and audio VU meters on the SDI output. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 29 Select when you do not want to include closed captioning in the stream or when closed captioning is not present in the SDI signal (factory default). Auto - Select when you want HELO Plus to auto-detect the closed captioning source. Ancillary data - Select when the closed captioning data has been encoded into the ancillary data of the signal.
  • Page 30 When AV Mute is On, HELO Plus mutes the audio and video from the input signal and instead shows the selected Video Test Pattern Type along with silent audio.

  • Page 31: Group Mode

    Stream and Record - The HELO Plus will stream and record when triggered. Power Up State Selects what HELO Plus will do when powered on. Select "Idle" for normal use and when the scheduler is enabled. Idle - Upon powering up, the unit will be in an idle state (factory default).

  • Page 32: Audio Bit Rate

    • Custom - Opens a browser from which you can choose a custom test pattern JPEG or PNG file. NOTE: HELO Plus can be configured to display this custom image if input video is lost. "Loss of Video Behavior" on page 31 "Layout LOV"...

  • Page 33: Encoder 1, 2 Screens

    Both Encoders are available for simultaneous use, with one exception. Only one HELO Plus Encoder is operational when the unit is encoding at higher than 720p resolution at more than 30fps (50, 59.94, 60) and is using Full frame rate.

  • Page 34: Import Encoder Settings

    The Width and Height sliders operate independently (factory default). On - The Width and Height sliders are locked together. You can increase or decrease the size of the recorded image, maintaining its pixel aspect ratio. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 35: Additional Advanced Settings

    Higher values mean more efficient encoding and potentially better video quality, but will require more compute power to decode. NOTE: Some decoders may not be able to decode video with any, or too many, B frames. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 36: Display Aspect Ratio

    Constrained or Baseline H.264 Encoding Profiles are selected. Display Aspect Ratio Selects whether the input video should be coded for playback on a display device with a specific aspect ratio. Auto - (factory default) 16:9 17:9 HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 37: Stream 1, 2 Output Screens

    Stream 1, 2 Output Screens Figure 17. HELO Plus Stream 1,2 Output Screen HELO Plus supports two simultaneous streaming outputs. Each streaming output (1 and 2) can be independently configured with different streaming settings. In addition, each stream output can receive its input from either Encoder 1, Encoder 2 or PlayToStream–...

  • Page 38: Stream Type

    NOTE: When PlayToStream is used. It's entirely possible that a recording was made using Audio 2 as the source. When launching PlayToStream, the audio is normally selected as Audio 1. What happens then? The HELO Plus will recognize the mis-configuration, and to the extent possible, will automatically re-route audio to make it "all work".
  • Page 39 RTSP is a pull protocol and is usually used when a viewer on a computer is using a client application like VLC to watch a stream. In this case HELO Plus always has the content ready and available (if it is actively streaming), but the client initiates and ends the viewing session.
  • Page 40 When HTTP is in use, this is over incoming TCP port 80. When HTTPS is enabled, incoming TCP port 443 is also used. Clients connect to the HELO Plus using the Stream URL shown on the HELO Plus's Streaming Output status pane.
  • Page 41 Figure 19. Stream 1 Output Page: SRT Listener Stream Type HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 42: Playtostream Screen

    PlayToStream option, if that option has been purchased, or is currently in an active Trial period. If the HELO Plus is not licensed for the PlayToStream option, or is not in the trial period for that option, the following additional text will be displayed in the header section: Figure 21.

  • Page 43: Changing The Playtostream Source

    (for a total of one hour of video) and one m3u playlist file. m3u files are text files that contain a list of all the segmented clips that go together. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 44: Selecting A Clip

    Any Stream Output which has PlayToStream selected as its input source will then start to output the selected clip when Streaming is started. NOTE: PlayToStream only works with clips that were recorded on a HELO Plus or HELO Classic. Sorting Columns You can sort the files by clicking any of the column headings.

  • Page 45: Record Output Screen

    Record to the media connected to the standard size USB Storage port (factory default). SMB Network Share - Record to Windows shares. When SMB Network Share is selected, additional controls display so you can enter your network credentials. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 46 NOTE: To tell if the SMB server is writable, HELO Plus writes a test file to the remote server, then deletes it. If the process works, HELO Plus knows that the server is writable. However, it is possible to configure the server to allow HELO Plus to be able to write files, but not delete them.
  • Page 47 CIFS) is no longer supported by HELO Plus. Auto (default) is recommended for most applications. When Auto is selected, HELO Plus will start with the most secure setting (SMB 3.0), and work its way sequentially through the list until a compatible setting is found. Generally, the higher the number, the higher the security.
  • Page 48 "Full" may mean different things depending on whether storage is local or on a network. "Full" may also mean different things depending on whether the HELO Plus is recording or is in idle. Some media may degrade in performance shortly before they are full, which can cause a recording to fail.

  • Page 49: Formatting Media

    Formatting with HELO Plus Inserted USB and SD media can be formatted as exFAT by HELO Plus. This is the recommended method for formatting media. Format USB Media Allows formating the inserted USB media as exFAT.

  • Page 50: Scheduler Screen

    You can use local and remote calendars. You can also import and export calendar files, and export scheduler history logs. Enabling the scheduler sets up HELO Plus for unattended operation. If the scheduler is enabled, HELO Plus will automatically start and stop streaming and/ or recording for each event on the calendar.

  • Page 51: General Calendar Description

    When disabled (factory default), you can configure scheduler parameters such as Scheduler Activity, Schedule Source, and Import/Export Local Calendar file. When the scheduler is disabled, HELO Plus will ignore events, although it will still display them on the calendar. Enabled - When enabled, you cannot modify the Scheduler Activity, Schedule Source, and Import/Export Local Calendar File.

  • Page 52: Local Calendar Operation

    "aja-HELO Plus-1HE000277-local.ics." You can download the calendar file to your computer by clicking on its filename. It will contain any events you have created on HELO Plus. This is true even if you have not first uploaded a calendar.

  • Page 53: Remote Calendar Operation

    Remote Calendar Operation A Remote Calendar is an external calendar that can be linked to the HELO Plus. This calendar is not editable, except for refreshing it with a newer calendar. Remote Calendar synchronization occurs automatically every 15 minutes.

  • Page 54: History Events Log

    .ics file with just the history events in it. History events are scheduled events from a local or remote calendar that HELO Plus attempted to process automatically. If the Scheduler has never been enabled, it will be an empty calendar.

  • Page 55: Group Screen

    If a HELO Plus is a Follower, it only accepts the record start and stop commands, not the clip name data. If a HELO Plus is the Leader of a Group, it can only send record start and stop commands to the Follower devices, so in this case automatic matched clip naming is not possible.
  • Page 56 LEADER text will appear on the web page above the columns. NOTE: AJA devices can initiate recordings among units quickly, but not all units will begin or end recordings precisely at the same time or the same frame.

  • Page 57: Presets Screen

    Presets Screen Figure 30. HELO Plus Presets Screen The Presets screen allows you to save HELO Plus Preset Configurations into 20 separate files and recall the presets into HELO Plus memory registers whenever needed. The Presets screen also includes Export and Import functions that allow exporting one or all presets to your computer as files and importing exported preset files from your computer.

  • Page 58: Presets Screen Controls

    Only editable parameters are saved in the presets. Non-editable parameters are not saved. CAUTION: HELO Plus Presets can contain streaming credentials. If that Preset is exported and shared with someone, that person can extract the credentials. Be aware of that possibility before you share presets with anyone.
  • Page 59 The Default Preset button does a soft reset, which resets most functional (audio and video) parameters, but leaves basic system configuration, like the network setup, intact. This allows the user to get HELO Plus into a known good state without losing its network connection settings.

  • Page 60: Layouts Screen

    Layout is not selected as the Video Source. About Layouts Using its internal Layering Engine, HELO Plus can combine the SDI and HDMI inputs into a single streaming and/or recording output. The sizes of the input...

  • Page 61: Layout View

    HELO Plus supports 20 Presets, rapid access to up to 200 layouts is possible. HELO Plus can store a maximum of 20 graphic file layout images at a time. These saved images are shared by the HELO Plus's 20 presets, so a maximum of 20 different images can be instantly recalled via layout and preset recall.
  • Page 62 Test Pattern. NOTE: The HELO Plus Test Pattern can be a custom imported graphic, such as with a "Stand By" message (see "Video Test Pattern Type" on page 32).

  • Page 63: Layout Images Screen

    These controls are not available for adjustment during streaming or recording, or if Layout is not selected as the Video Source HELO Plus can store 20 imaged into its framestore. PNG files are supported. NOTE: A Test Pattern Image cannot be used as a Layout Image.

  • Page 64: Layout Images Page

    All images are recalled back to the slot positions from which they were stored. HELO Plus posts a warning if existing images files will be overwritten, and gives you the option to Confirm or Cancel.

  • Page 65: Shotbox Screen

    IMPORTANT: The Shotbox screen is listed as an On-Air feature, intended for use during actual streaming and recording. You can use most any model of Elgato Stream Deck*, coupled with the HELO Plus Stream Deck Plugin**, as a hardware shotbox.

  • Page 66: System Screen

    Figure 35. HELO Plus System Screen NOTE: Several System Screen settings (for example Date and Time values) are not affected by a soft reset performed using the HELO Plus's front panel Reset button or with the Default Preset. See "Reset Button (Hardware)" on page 12 for more information.

  • Page 67: System Name

    System Name This field defines a name for the HELO Plus unit and gives it a unique identifier. The name appears at the top of the screen, and also in the Network panes of the web screens of other HELO Plus units on the LAN.

  • Page 68: Daylight Savings

    Factory default. On - When On is selected, the power LED on the connected HELO Plus’s front panel will blink. This can help you identify a particular HELO Plus unit if more than one is connected. UPnP Host Enable -...
  • Page 69 NOTE: When accessing a secure internal HELO Plus web server from a web browser, always use its domain name rather than its IP address. Accessing it through its IP address will result in a web browser certificate error. Acquiring a Digital Certificate You can acquire a digital certificate, such as an SSL (secure socket layer) certificate, from a trusted Certificate Authority.

  • Page 70: Network Screen

    DHCP (default) - Selects automatic IP address assignment from the LAN DHCP server. If a DHCP server cannot be found, HELO Plus will fall back to the previously entered Static IP address. If no Static IP address had been entered, the system fails over to a link local static IP address (169.254.x.x).
  • Page 71 HELO Plus will be unable to see other HELO Pluses on the network, although you may still be able to control this HELO Plus via a web browser. Also, without a proper gateway defined, the discovery feature on the Network web page will not list other units on the network.

  • Page 72: Firmware Screen

    The Firmware screen allows you to download and install a firmware update from AJA. Visit the AJA website (aja.com) to locate and download the latest firmware. The following page provides support information and will include links to locations where you can download updates: https://www.aja.com/products/helo-plus#support...

  • Page 73: Log Screen

    You can view the log directly from the newly opened browser tab, or export it as a .TXT file or .CSV file. NOTE: The technical event log in HELO Plus is a tool intended to help you troubleshoot basic configuration issues. Exporting this file as a .TXT or .CSV file may be helpful when contacting AJA support.

  • Page 74: Licensing Screen

    A pop-up dialog will appear. Trial Licenses HELO Plus will allow the user to use any purchasable option – free of charge – for a period of 15 operational hours within 15 days of starting that trial, in order to allow them to determine if a specific option meets their operational needs.

  • Page 75: Purchasing A Permanent License

    Host Computer (or to a location which can be accessed by the Host Computer) and import the license file into the HELO plus system by pressing the “UPLOAD” button at the bottom of the Licensing Screen.

  • Page 76: Recordings Panel

    Main or Backup menu in the left column under the Recordings panel, then select one of the options from the pop-up menu. The Main destination can be SD, USB, SMB Network Share, or NFS Network Share. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 77: Viewing Recorded Files

    If the recording only contains a single segment, the .m3u file is automatically deleted. If HELO Plus detects an issue with a file, it will be listed in orange italic text. Hovering over the file with the mouse will show a popup that gives more details about the issue.

  • Page 78: Data Transfer Mode

    Any of the files shown in the directory can be downloaded. Click on the Data Transfer Mode button to turn on Data Transfer Mode. The Download button appears. HELO Plus cannot record or stream when transferring data. When on, the Data Transfer button turns yellow, and the Record, Stream, and Link buttons turn gray.
  • Page 79 LED for network shares—will flash rapidly, indicating the storage is in use and should not be removed. In the case of small numbers of small files, the operation may complete before the flashing becomes apparent. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 80: Cdns And Clients

    Entrypoint must match the information entered on your HELO Plus unit for the RTMP Server URL. 4. On your HELO Plus unit, enter the RTMP Stream Name. This is a combination of the stream name, camera angle, stream number. See Akamai documentation for details.

  • Page 81: Elemental Encoder Appliances And Elemental Cloud

    Since Facebook Live is a popular choice, and because it is easy to do with the HELO Plus, we have provided detailed screenshots in the procedure below.
  • Page 82 6. Press continue. 7. If you are returning to Stream on Facebook Live after the first time with this HELO Plus device, then you'll see the below dialog. Click "Continue." Otherwise, continue on to Step #8 below. HELO Plus H.264 Streaming and Recording Encoder v2.1...
  • Page 83 8. When streaming this HELO Plus device to Facebook Live for the first time, you'll see the below dialog. Press the "Continue as (Facebook name)" button. 9. You will next see a "Success - You are now connected..." announcement: 10. Close the Facebook for Devices window or browser tab (optional) and return to the HELO Plus web interface.
  • Page 84 UAT (user authentication token). You have to start streaming before that token expires, or you’ll have to re-authorize. 11. Press the Stream button on HELO Plus’s front panel or in the web interface. 12. You may now view the Facebook Live stream simply by going to your Facebook page in a browser.

  • Page 85: Instagram Via Third Party Application Yellow Duck

    You may disconnect at any time to prevent the HELO Plus from being able to stream to your Facebook page, by using the (Start/Stop) Stream toggle at the top of the HELO Plus web interface, or using the HELO Plus front panel stream button.

  • Page 86: Streamshark.io

    4. Enter a name for it, then click OK. 5. Uncheck Local File. An Input window becomes available. 6. From your HELO Plus unit, copy the Stream URL and paste it into the Input Window of OBS Studio, then click OK.

  • Page 87: Ustream

    US East: Chicago rtmp://live-ord.twitch.tv/app/ Link to Twitch Recommended Settings https://help.twitch.tv/s/article/broadcast-guidelines?language=en_US NOTE: H.264 Main Profile is recommended, which is the HELO Plus factory default (parameter located under Advanced Settings). UStream UStream is a commercial streaming service. Encoder Information Log in to your UStream account, select the channel you want to broadcast to, select Broadcast Settings, and then click View on Encoder Settings: •...

  • Page 88: Vmix

    Additional information is available at: https://www.vmix.com. Wirecast TeleStream's Wirecast application lets you capture, produce, and stream to integrated streaming services & CDNs. HELO Plus can be used as an input source via RTSP stream. Wirecast Configuration Summary 1. Add web stream 2.

  • Page 89: Wowza

    Initiate HELO Plus Streaming Output To initiate the HELO Plus streaming output, press the Stream button from your HELO Plus unit's front panel, or click the Stream button from the HELO Plus web user interface. HELO Plus H.264 Streaming and Recording Encoder v2.1...

  • Page 90: Youtube Live

    <Server URL> RTMP Stream Name <Stream name/key> Link to YouTube Recommended Settings https://support.google.com/youtube/answer/2853702 NOTE: H.264 Main Profile is recommended, which is the HELO Plus factory default (parameter located under Advanced Settings). HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 91: Chapter 5 - Emini-Setup

    USB cable may be removed and eMini-Setup app closed. Running eMini-Setup If not connected, connect your HELO Plus device to the PC or Mac via the supplied USB cable, and also connect the external power supply (supplied) to the HELO Plus.

  • Page 92: Macos Startup

    • Version - The version of firmware installed in the AJA device is displayed below the graphic. • Sn - This is the factory set unique serial number of your AJA device. If you ever call AJA Support for service, you may be asked for this number.

  • Page 93: Network Tab Screen

    The Help drop-down menu has a link to the AJA device’s manual. Network Tab Screen Figure 46. HELO Plus Network Tab Screen This tab lets you change the network setup on the connected AJA device. You Apply must click the button to initiate any IP address changes.

  • Page 94: Mac Address

    If your HELO Plus needs to communicate to servers on another LAN or WAN, you have to enter the address of the computer/router that is making that external connection. If all of your devices, and the systems they need to talk to, are on a single LAN, then you can enter any unused LAN address as the Gateway here.

  • Page 95: Firmware Update Procedure

    AJA Support for service or technical support. System Name This field allows you to give your AJA device a unique name. This can be useful if you have several attached to a Mac/PC via USB so you can distinguish between them easily.
  • Page 96 NOTE: International characters are fully supported in the system name. Type This is the factory set model name of the AJA device. Authentication If Authentication has been Enabled on the web browser Access tab, you can disable the security feature by clicking on the Disable button.

  • Page 97: Appendix A - Specifications

    • HDMI v1.4a, RGB or YCbCr Audio Input Digital • 2-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous • 2-channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 98 • Embedded web server for Configuration and Control User Interface • Stream Button • Record Button • Web UI • Simple Web Configuration via AJA eMini-Setup (macOS and Windows) • Integrated calendar Control and Automation • Integrated calendar scheduler • Support remote ICS calendars •...

  • Page 99: Appendix B - Safety And Compliance

    AUSTRIA, BELGIUM, BULGARIA, CROATIA, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, ICELAND, IRELAND, ITALY, LATVIA, LIECHTENSTEIN, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, NORWAY, POLAND, PORTUGAL, REPUBLIC OF CYPRUS, ROMANIA, SLOVAK REPUBLIC, SLOVENIA, SPAIN, SWEDEN, SWITZERLAND, UNITED KINGDOM HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 100: Declaration Of Conformity

    For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 101: Korea Kcc Compliance Statement

    Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Taiwan R0HS HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 102 Aviso! Não utilize este dispositivo perto da água e limpe-o somente com um pano seco. Avviso! Non utilizzare questo dispositivo vicino all'acqua e pulirlo soltanto con un panno asciutto. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 103 Aviso! Desconecte este dispositivo da tomada durante trovoadas ou quando não é utilizado durante longos períodos de tempo. Avviso! Utilizzare soltanto i collegamenti e gli accessori specificati e/o venduti dal produttore, quali il treppiedi e l'esoscheletro. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 104 Advertência! Não abra o chassi. Não há internamente nenhuma peça que permita manutenção pelo usuário. Abrir o chassi anula a garantia, a menos que a abertura seja realizada por uma central de serviços da AJA ou por um local autorizado. Avvertenza! Non aprire lo chassis. All’interno non ci sono parti riparabili dall’utente.
  • Page 105 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 106 Aviso! Dado que a ficha principal é utilizada como a desconexão para o dispositivo, esta deve manter-se prontamente acessível e funcional. Avviso! Poiché il cavo di alimentazione viene usato come dispositivo di sconnessione, deve rimane prontamente accessibile e operabile. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 107 CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

  • Page 108: Year Warranty And Liability Information

    AJA Video shall pay to return the product to Customer, but only if to a location within the country in which the AJA Video service center is located. SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR LIMITATIONS ON APPLICABLE STATUTORY RIGHTS OF A CONSUMER, SO SOME OR ALL OF THE TERMS OF THIS PARAGRAPH MAY NOT APPLY TO YOU.

  • Page 109: Aja Software License Agreement

    Agreement. You own the media on which the AJA Software is recorded but AJA and/or AJA's licensor(s) retain ownership of the AJA Software itself. You may not use the AJA Software for any illegal purpose.
  • Page 110 REGARDING NON-INFRINGEMENT OF THIRD PARTY RIGHTS. SUBJECT ONLY TO THE LIMITED WARRANTY SET FORTH IN SECTION 7, YOU EXPRESSLY ACKNOWLEDGE AND AGREE THAT USE OF THE AJA SOFTWARE IS AT YOUR SOLE RISK. AJA DOES NOT WARRANT AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE AJA SOFTWARE,...
  • Page 111 No amendment to or modification of this Agreement will be binding unless in writing and signed by AJA. Any translation of this Agreement is intended for convenience and to meet local requirements and in the event of a dispute between the English and any non-English versions, the English version of this Agreement will govern.

  • Page 112: Index

    Dual Streaming Outputs Plus Record CAT 5 Cable 21 Hardware Streaming & Recording 9 CDNs and Clients 80 HDMI In Status LED 16 Dynamic Controls 25 Center Layer 62 HDMI Monitor Overlay 29 HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 113 Playlist Missing File Behavior 33 HDMI In Status 16 Soft 12 PlayToStream Screen 42 Power Status 15 Reset Button (Hardware) 12 Port Number Requirements Record Status 13 REST API HLS 40 SDI In Status 16 HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...
  • Page 114 Stream 1/2 Output Page Required Settings 90 Stream 1 Enable 37 Web Browser Stream 1 Encoder 37 Accessing Unit Via IP Address 91 Stream Button 12, 25 Web Browser Client 21 HELO Plus H.264 Streaming and Recording Encoder v2.1 www.aja.com...

Table of Contents
