- Page 1 Mini-Converter V2Analog Installation & Operation Guide Version 1.0 Published: October 28, 2013...
-
Page 2: Table Of Contents
USB Control and Setup—Using AJA MiniConfig ........ -
Page 3: Notices
Copyright Copyright © 2013 AJA Video, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of the document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Inc. -
Page 4: Chapter 1: Introduction

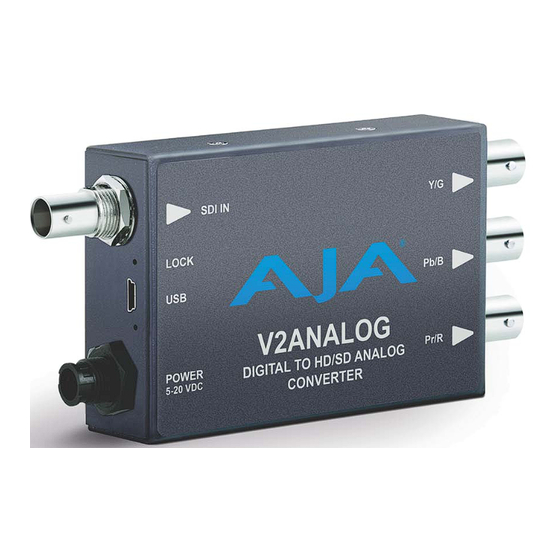

V2Analog performs high-quality SDI digital to component or composite analog conversion at either SD or HD resolutions with a full 10-bit data path. V2Analog takes incoming SDI signals and converts to YPbPr (SMPTE/EBU N10 or Betacam levels) or RGB component outputs (HD only) or to NTSC/PAL and Y/C (S-Video) composite outputs (SD only) for complete integration into any workflow. -
Page 5: Block Diagram
Block Diagram Figure 1. V2Analog Converter, Simplified Block Diagram Switch User Interface Feature Selection USB Bus for MiniConfig (connect to PC or Mac) Control Analog Component/Composite Outputs Composite HD-SDI Cable EQ De-serializer Input Conversion I/O Connections Figure 2. V2Analog I/O Connectors... -
Page 6: User Controls
Remote, and will use the MiniConfig settings. MiniConfig settings are non-volatile and are retained through power cycles. External DIP The V2Analog has a 4-switch DIP accessible through a cut-out in the bottom of the unit. For specific DIP switch setting information, see “DIP Switch Settings” on page... - Page 7 • Component/Composite (SD only) • Format SD only (YPbPr/YC) • Format HD only (YPbPr/YC or RGB) • Pedestal Present (on/off) (SD only) Physical 5.1” x 2.4” x 1” (130 x 61 x 25 mm) Power +5-20 VDC, 3 watts V2Analog v1.0 www.aja.com...
-
Page 8: Chapter 2: Operation
Chapter 2: Operation Default Operational Settings The V2Analog converter ships from the factory with the following configuration: • Local (DIP switch) control • Component video output • YPbPr format • Pedestal Off If these settings apply to your requirements, you can simply connect the video input and output signal cables and power up the unit. -
Page 9: Dip Switch Settings Summary
Note: X = don't care USB Control and Setup—Using AJA MiniConfig The V2Analog can usually be used right out of the box for most applications since it is designed to recognize video input formats and perform standard actions automatically by default. However you can also manually configure the V2Analog using a supplied software application for PCs and Macs called “MiniConfig. -
Page 10: Installing Miniconfig On A Pc
If you do, press Cancel—this alert can be ignored. Figure 5. Mac Network Message (ignore) PC Startup: To run MiniConfig on a PC, find the AJA MiniConfig in the program list and locate the AJA MiniConfig application. Figure 6. PC MiniConfig Startup V2Analog v1.0... -
Page 11: Operating Miniconfig
Open menu item. A Revert to Factory Settings menu item similarly allows you to change the settings back to AJA’s factory defaults. An Edit menu allows you to cut and paste values to/from fields, just as in other applications. -
Page 12: Tabbed Screens
Each of these screens are described on the following pages. The color “LED” near the SDI input connector indicates by color the detected signal type. • Off indicates no input • Green is SD-SDI • Red is HD-SDI V2Analog v1.0 www.aja.com... -
Page 13: Output Tab Screen
Output Tab Screen Click on the Output tab to view and make changes to the V2Analog Output settings. Figure 8. MiniConfig, Output Tab Screen Format: Selects the desired output video format. Only applies if in SD mode. Choose from the following: •... -
Page 14: Update Tab Screen
This indicator bar shows the progress of software being installed. Software Update 1. Check the AJA website for new MiniConfig software for your Mini-Converter. If new Procedure software is found, download it and uncompress the file archive (zip). Here is the URL to use when checking: http://www.aja.com/en/products/mini-converters/mini-config-software/... -
Page 15: Info Tab Screen
This is the factory set model name of the Mini-Converter. Assembly: This is the factory assembly number. Serial Number: This is the factory set unique serial number of your unit. If you ever call AJA Support for service, you may be asked for this number. V2Analog v1.0 www.aja.com... -
Page 16: Miniconfig Settings Summary
720p * Component YPbPr SMPTE/ YPbPr (SMPTE) X EBU-N10 720p * Component RGB 1080i/p/psf * Component YPbPr SMPTE/ YPbPr (SMPTE) X EBU-N10 1080i/p/psf * Component RGB * = all supported frame rates Note: X = don't care V2Analog v1.0 www.aja.com... -
Page 17: Appendix A: Safety And Compliance
Cet appareil numérique respecte les limites de bruits radioélectriques visant les appareils numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique du ministère des Communications du Canada. Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada. V2Analog v1.0 www.aja.com... -
Page 18: European Union And European Free Trade Association (Efta)
Benutzer für entsprechende Gegenmaßnahmen verantwortlich ist. Attention! Ceci est un produit de Classe B. Dans un environnement domestique, ce produit risque de créer des interférences radioélectriques, il appartiendra alors à l?utilisateur de prendre les mesures spécifiques appropriées. V2Analog v1.0 www.aja.com... -
Page 19: Korea Kcc Compliance Statement
Install and use the equipment according to the instruction manual. Translated Warning and Caution Messages The following caution statements, warning conventions, and warning messages apply to this product and manual. V2Analog v1.0 www.aja.com... -
Page 20: Before Operation Please Read These Instructions
Aviso! Não obstrua nenhuma das aberturas de ventilação. Instale de acordo com as instruções do fabricante. Avviso! Non ostruire le aperture di ventilazione. Installare in conformità con le istruzioni del fornitore. V2Analog v1.0 www.aja.com... - Page 21 Aviso! Não instale perto de nenhuma fonte de calor tal como radiadores, saídas de calor, fogões ou outros aparelhos (incluindo amplificadores) que produzam calor. Avviso! Non installare vicino a fonti di calore come termosifoni, diffusori di aria calda, stufe o altri apparecchi (amplificatori compresi) che emettono calore. V2Analog v1.0 www.aja.com...
- Page 22 Lo spinotto largo o il terzo polo sono forniti per motivi di sicurezza. Se la spina fornita non si inserisce nella presa di corrente, contattare un elettricista per la sostituzione della presa obsoleta. V2Analog v1.0 www.aja.com...
- Page 23 Avviso! Proteggere il cavo di alimentazione in modo che nessuno ci cammini sopra e che non venga schiacciato soprattutto in corrispondenza delle spine e del punto in cui esce dal dispositivo. V2Analog v1.0 www.aja.com...
- Page 24 è stato rovesciato del liquido è stato rovesciato o qualche oggetto è caduto nel dispositivo, il dispositivo è stato esposto a pioggia o umidità, non funziona correttamente o è caduto. V2Analog v1.0 www.aja.com...
- Page 25 Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility. Avertissement! Ne pas ouvrir le châssis. Aucun élément à l’intérieur du châssis ne peut être réparé...
- Page 26 ¡Advertencia! Cuando mueva la unidad desenchufe de la red eléctrica el/los cable(s) de la fuente de alimentación CA tipo brick. Advertência! Remova os cabos CA de alimentação brick da rede elétrica ao mover a unidade. Avvertenza! Scollegare il cavo dell’alimentatore quando si sposta l’unità. V2Analog v1.0 www.aja.com...
-
Page 27: Warranty Information
AJA Video, with shipping charges prepaid. AJA Video shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the AJA Video service center is located.
