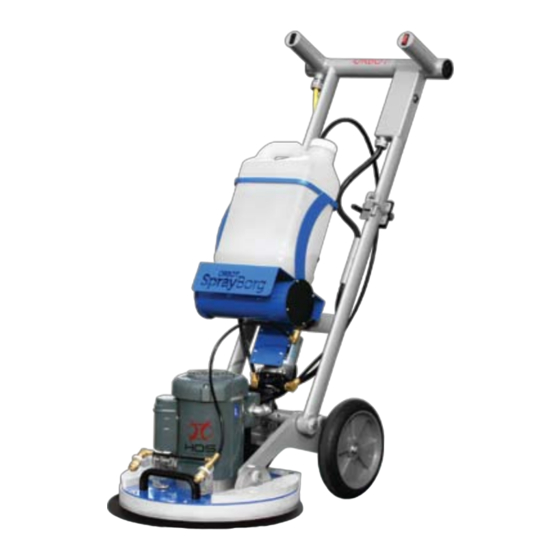

Summary of Contents for HOS Orbot
- Page 1 OPERATION MANUAL...
-
Page 2: Table Of Contents
Safety Instructions …………………………………………………………………………………… 1 Work Area ……………………………………………………………………………………… 1 Electrical Safety ………………………………………………………………………………… 1 Personal Safety ………………………………………………………………………………… 1 Further Important Instructions …………………………………………………………………… 1 Technical Details ORBOT SprayBorg ………………………………………………………………… 2 Usage ……………………………………………………………………………………………… 2 General Advices ………………………………………………………………………………… 2 Unpacking and Initial Operation ………………………………………………………………… 2 Stromversorgung …………………………………………………………………………………... - Page 3 Grinding and Polishing Stone Floors ………………………………………………………… 16 Maintenance ………………………………………………………………………………………… 16 Cleaning the ORBOT Machine …………………………………………………………………… 16 Cleaning the Spray System ……………………………………………………………………… 16 Changing the HOS ORBOT SprayBorg Velcro Driver Discs ……………………………………… 16 Changing the Filters ……………………………………………………………………………… 16 Important Notes and Contact Information ……………………………………………………… 17...
-
Page 4: Safety Instructions
Inspect the power cord periodically for damage such as cracking and aging. Replace the cable if damaged, before you take the machine back into operation. • If the cord is damaged, it must be replaced by a special cable. You can get this cable at your HOS manufacturer or a qualified distributor. •... -
Page 5: Technical Details Orbot Sprayborg
Compact size for transport and storage: 30” (76 cm) Wheels: 10”/25 cm Diameter, resistant to chemicals UsAGE NOTE: The Orbot SprayBorg is not suitable for use or storage in wet conditions. General Advices • Everyone who uses the machine should have read these instructions carefully. All persons who operate the machine or stay close should take appropriate safety precautions. - Page 6 • Lift the star-shaped screw knobs up and over the top latch bracket and turn clockwise to lock properly (Fig. 3, 4) Fig. 3 Fig. 4 • Fill the water bottle with water. You can add a cleaning solution of your choice in the prescribed mixing ratio.
- Page 7 For more information about our pads see page 13. For the attachment of the HOS brush see page 9. • To place the driver plate on the pad, position the handle in a lower position (Fig. 10). Lift the machine until the wheels slightly come off the ground and push slowly forward until the machine base tilts towards the ground.
- Page 8 Fig. 18 • NOTE: A detailed description of the ORBOT Weight Kit for maintaining hard floors can be found on page 9. • To turn the machine on, press the red power button (power button may also be black in color) on...
-
Page 9: Stromversorgung
Process of Cleaning • For effective floor cleaning with the ORBOT SprayBorg, move the machine forward and backwards. We recommend you to wet the floor as you move the machine forward, releasing the spray button when you move the machine backwards. -
Page 10: Storage
• Remove the pad from the driver plate by pulling it down firmly. To remove the HOS brush, see p.9. • Put the machine frame in an upright position by pulling the black knob with the left hand and move the handle frame upwards with the right hand. -
Page 11: Lifting And Carrying
• To eliminate the ORBOT from rolling or sliding during transport, lower the frame as far down as possible until it touches the wheels (Fig. 26). The frame acts as a brake, preventing uncontrolled movements. This form of transportation requires sufficient space in a vehicle. -
Page 12: Additional Instructions
SuperZorb Pads. • Mount the HOS brush with the same countersink screws used for mounting the driver plates. • IMPORTANT SAFETY INSTRUCTION: Tighten the screws sufficiently to avoid disengagement of the brush from the machine during operation. -
Page 13: Opening And Closing The Spray System, Pump Priming
Fig. 29 Fig. 30 Fig. 31 • To remove the cap and spray hose from the water bottle, turn the bottle clockwise and secure the cap with the other hand until the cap comes off the bottle (fig. 32). Remove the hose and the filter from the water bottle. -
Page 14: Changing The Pads
Damaged screws can cause further damage. • Attach a HOS driver plate to the machine base by lining up the holes of the driver plate with the appropriate threads of the bearing retainer ring. It is recommended to align the threads of the bearing horizontally to the ground (fig.33, page 12). -
Page 15: Accessories And Applications
HOS Standard Driver Plate • The HOS standard driver plate (15” in diameter/38 cm) is supplied as a standard with the ORBOT SprayBorg. It is suitable for the use with all HOS pads for textile and hard floor applications. •... -
Page 16: Hos Pads
The SuperZorb pads can be washed and reused, if cared for appropriately, up to 100 times. HOS Glider • The HOS Gliders reduce the friction on textile surfaces. They are used to clean sensitive and long- fiber carpets gently or to facilitate the handling of the machine on very rough carpets. •... -
Page 17: Hos Akwastrip Pads
HOS Multi-Purpose Brush • The bristles of the HOS brush are made of high quality nylon. This unique brush design works exclusively for the ORBOT and is ideal for cleaning tile and grout, concrete, rubber flooring and micro-porous surfaces such as porcelain and safety tiles, but can also be used for any other hard surfaces. -
Page 18: Hos Environ Hp Encapsulation Cleaning Solution
The mixing ratio of Environ HP is 1-4 oz/gal. (10-40 ml a liter), depending on the level of soil. • Enter the appropriate solution quantity in a HOS water bottle and store it in the provided holder as described on page 9. -
Page 19: Cleaning The Orbot Machine
Clean the machine with a soft cloth and a neutral pH cleaner. Cleaning the spray system: • Rinse the ORBOT spray system after each application to prevent clogging of the hoses, filters and the pump system. • To rinse the spray system, install a bottle filled with clear water and place a SuperZorb pad in front of the spray jets. - Page 20 The use of inappropriate driver plates, pads, brushes or weights can damage the machine and the floor. If you decide to use other than what HOS recommends for use with the ORBOT, the warranty will be voided. If you have further questions about the ORBOT and all other HOS products, please contact the manufacturer or the appropriate distributor from whom you purchased your products.
