1.7.2 4-SLOT BATTERY CHARGER

Below is the 4-Slot Battery Charger.
1) The Battery Charger can be mounted on table or wall. Drill two holes (centers spaced
160 millimeters apart), secure the two supplied screws, and mount the Battery
Charger by sliding over screws.
2) Slide the battery pack into the compartment at a proper angle (30°~45°) so that the
metal contacts on the battery are met with the charging contacts inside the
compartment.
3) Connect the power supply cord to the power receptacle on the charger. Connect the
other end of the power supply cord to a suitable power outlet.
4) Press the power switch on, and the Battery Charger's LED will be red.
5) While charging, the LED of the battery compartment will be red. When fully charged,
the LED will be green.

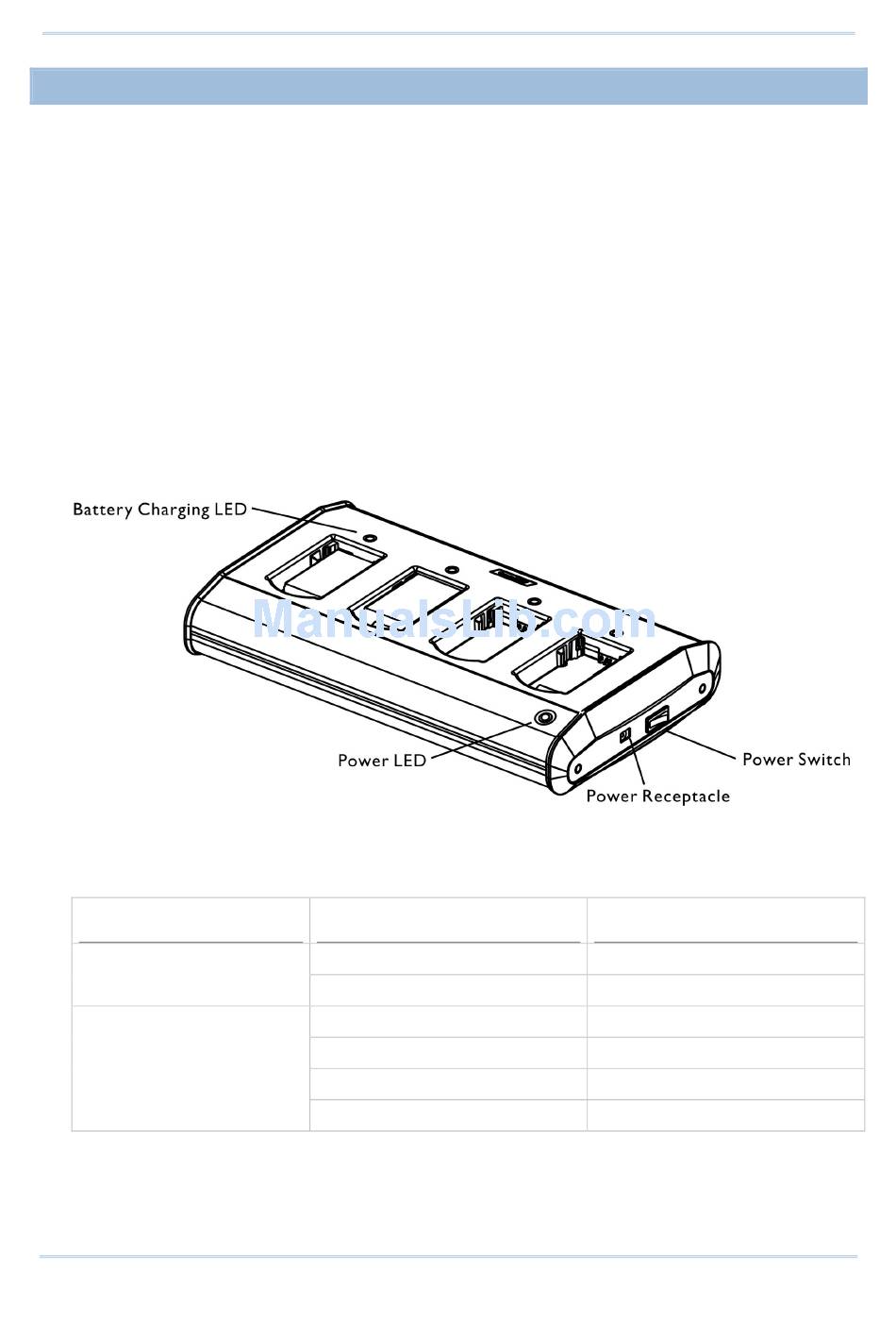

Figure 5: 4-Slot Battery Charger
Indicator
Power
Battery Charging
22
Reference Manual
Status
Off
Red, solid
Off
Red, solid
Green, solid
Red/green, flashing
Description
Power off
Power on
Battery not ready
Charging
Charging done
Error occurs
