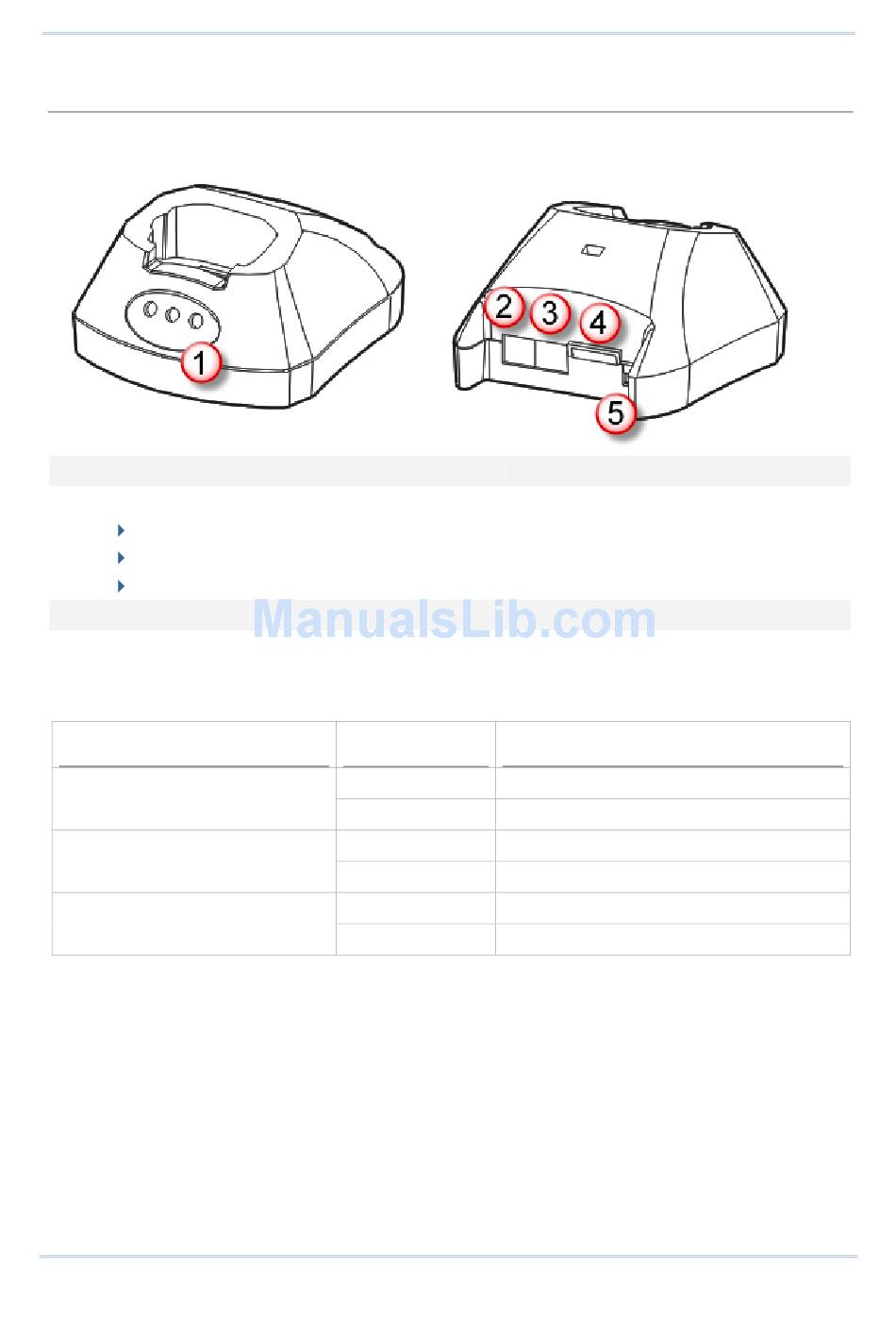

Modem Cradle
Delivering flexibility in making a connection, the Modem Cradle integrates the modem
functionality (56 kbps) into the cradle.
No. Description
1 LED Indicators (from left to right):
MR
TD
RD
3 Line Jack
5 Power Jack
The cradle provides three LED indicators on the front panel to indicate connection status.
Indicator
MR (Modem Ready)
TD (Transmit Data)
RD (Receive Data)
Chapter 1
No. Description
2 Phone Jack
4 Cable Connector (RS-232)
Status Description
Off Power off
Red, solid Power on
Off No activity
Red, flashing Transmitting data to the remote device
Off No activity
Red, flashing Receiving data from the remote device
Using 8000 Mobile Computer
