Carl Zeiss

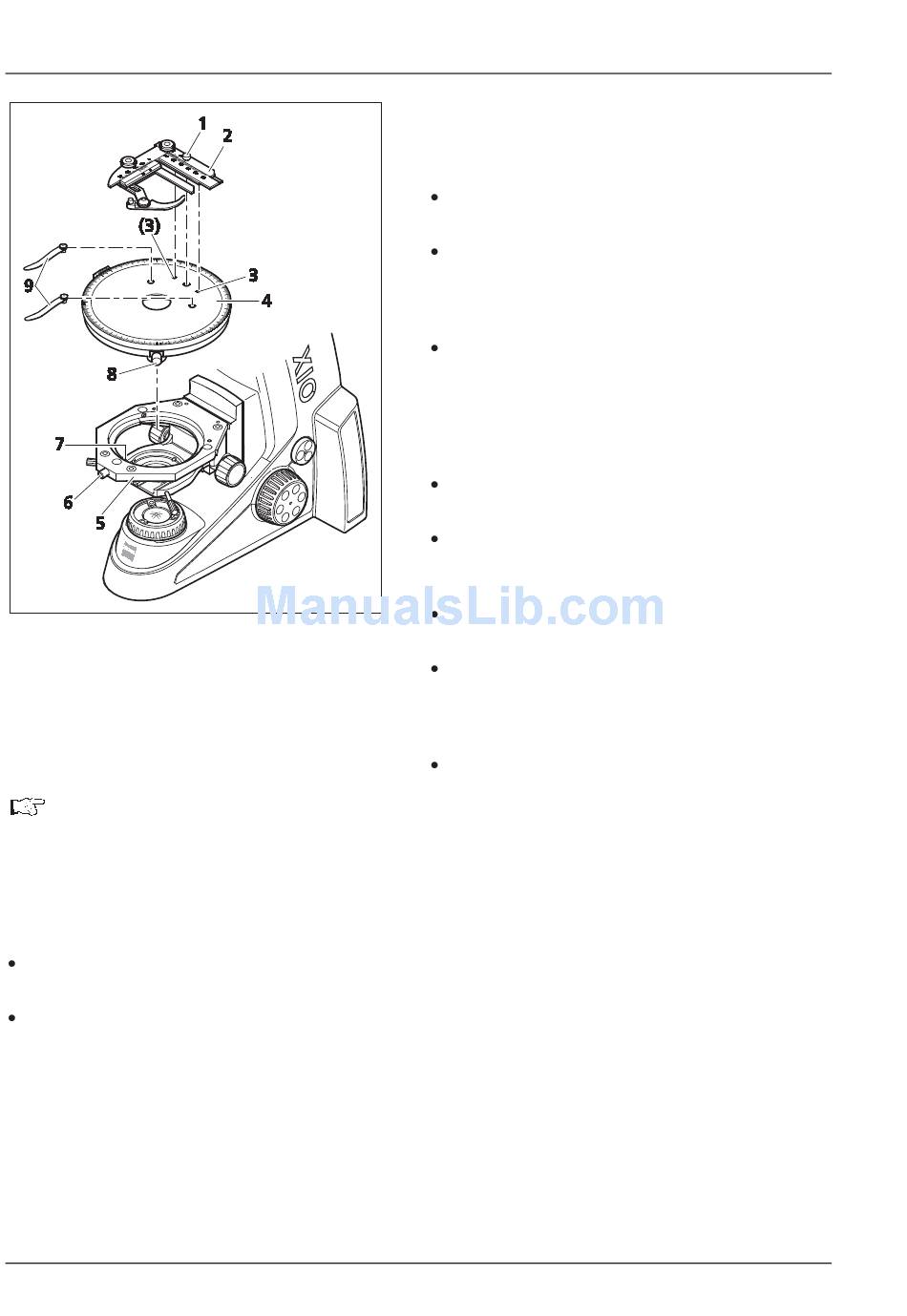

Fig. 3-12

Replacing snap-in rotary stage Pol,

detachable specimen guide Pol and

stage clips

The rotary stage must be mounted so that the vernier scale is on the left side and clamp is on

the right side.

3.1.8.3

Dismantling the detachable specimen guide and mounting stage clips

Loosen the knurled screw (Fig. 3-12/1) on the specimen guide Pol. Withdraw the specimen guide Pol

(Fig. 3-12/2) upwards.

Insert the stage clips (Fig. 3-12/9) into the holes provided.

START-UP

Installing standard components

3.1.8

3.1.8.1

Loosen screw cap (Fig. 3-12/6) from the spring

housing (about three rotations).

Press rotary stage Pol (Fig. 3-12/4) to the front

against spring-loaded pin (Fig. 3-12/7), lift it off

the stage carrier (Fig. 3-12/5) from the back and

remove it upwards.

Re-tighten screw cap (Fig. 3-12/6).

3.1.8.2

Where necessary, loosen screw cap (Fig. 3-12/6)

of spring housing with approx. three rotations.

Place rotary stage Pol with the groove of the

dovetail (stage bottom) on spring-loaded pin

(Fig. 3-12/7).

Attach the rotary stage with the clamp screw

(Fig. 3-12/8) pointing to the front right.

Press the rotary stage Pol to the front against

the spring-loaded pin and lower it towards the

back into the stage carrier (Fig. 3-12/5), then

release it.

Re-tighten screw cap (Fig. 3-12/6).

430037-7144-001
