Manual Ryeco RSZ-45 / RSZ-45-T
Instruction Manual
RSZ-45/T
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ryeco RSZ-45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ryf Ryeco RSZ-45

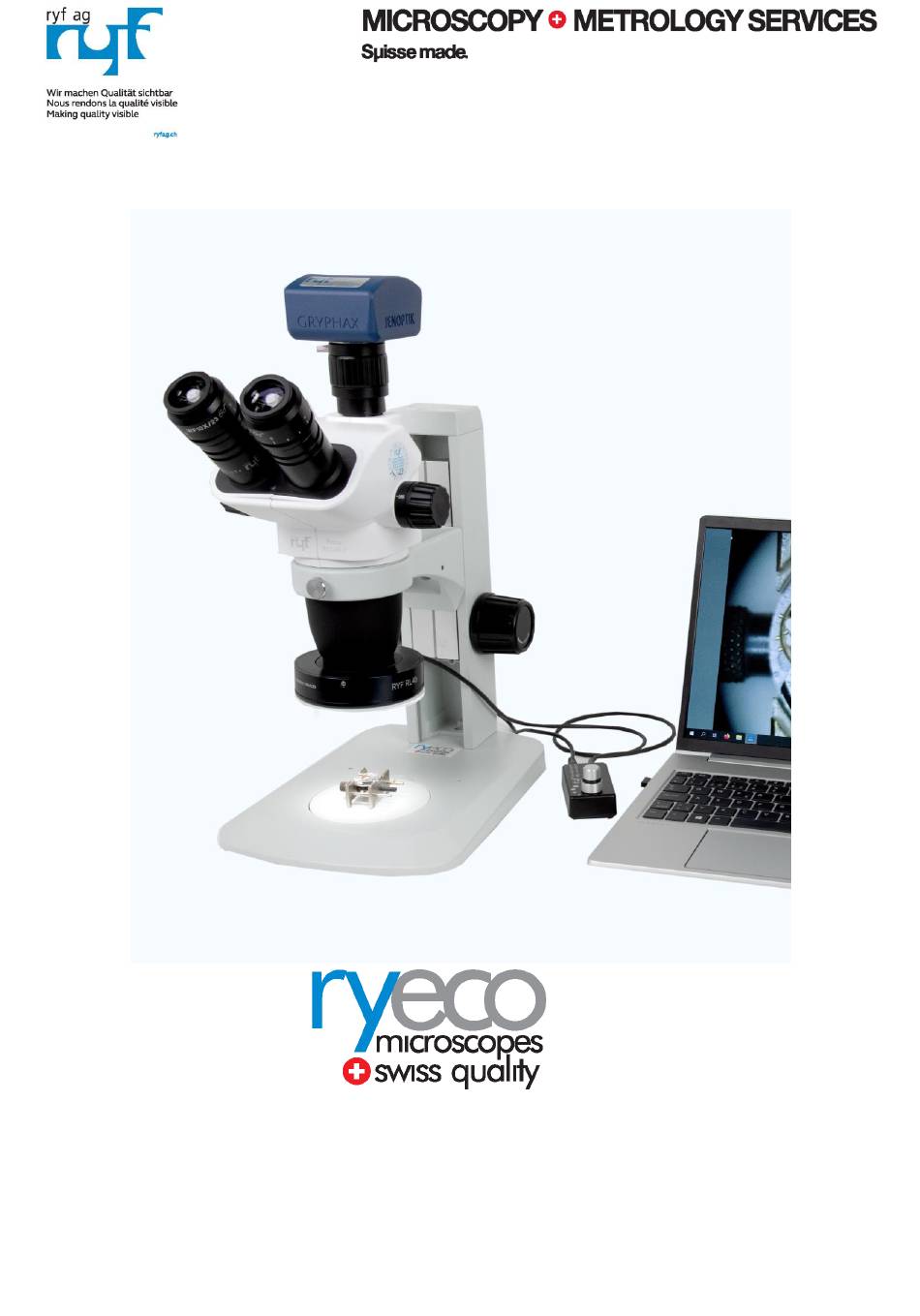

  • Page 1 Manual Ryeco RSZ-45 / RSZ-45-T Instruction Manual RSZ-45/T...
  • Page 2 All the above versions may be fitted with a low cost overhanging universal Ryeco boom stand (Base Ø250mm/ stand height 480mm) or with the professional Ryf RUS-1 or RUS-2 Ryf Universal Stand (table clamp or 25 kg cast base plate (Swiss made), or a...
  • Page 3 Manual Ryeco RSZ-45 / RSZ-45-T 2. Unboxing and Assembling of the Ryeco Microscope Unboxing the Microscope The components for the Ryeco RSZM series stereo microscopes are shipped detached for protection. Open the Styrofoam packing with care and do not leave any components attached to the packing being removed. Do not discard any of the packing materials until all components have been located.
  • Page 4 Manual Ryeco RSZ-45 / RSZ-45-T 3. Alignment and Operation of the RSZ-45 Stereomicroscope Interpupillary Distance:  Move the two eyepiece tubes until only one circular field may be seen through the two eyepieces. If two circles appear, the interpupillary distance is too big, and if 2 overlapped circles appear, the interpupillary distance is too small.
  • Page 5 With this accessory fitting onto the trinocular head, Digital cameras may be screwed to the trinocular tube for observation c-mount should be used depending on the CCD or CMOS camera from Jenoptik or Nikon (ask Ryf AG or your local Dealer for more...
  • Page 6 Manual Ryeco RSZ-45 / RSZ-45-T...
  • Page 7 Cleaning lf dust is found on the optical surface, try to remove by air blower or better with canned air (Ryf cleaning Set). For fingerprint, grease stain or dust which cannot be removed by the air blower possible methods are recommended: ...
  • Page 8 Manual Ryeco RSZ-45 / RSZ-45-T Ryf AG, CH-2540 Grenchen 032 654 21 00 // Commugny/VD: 022 776 82 28 // Egg-Uster/ZH: 043 277 59 99 www.ryfag.ch...
