Axio Lab.A1

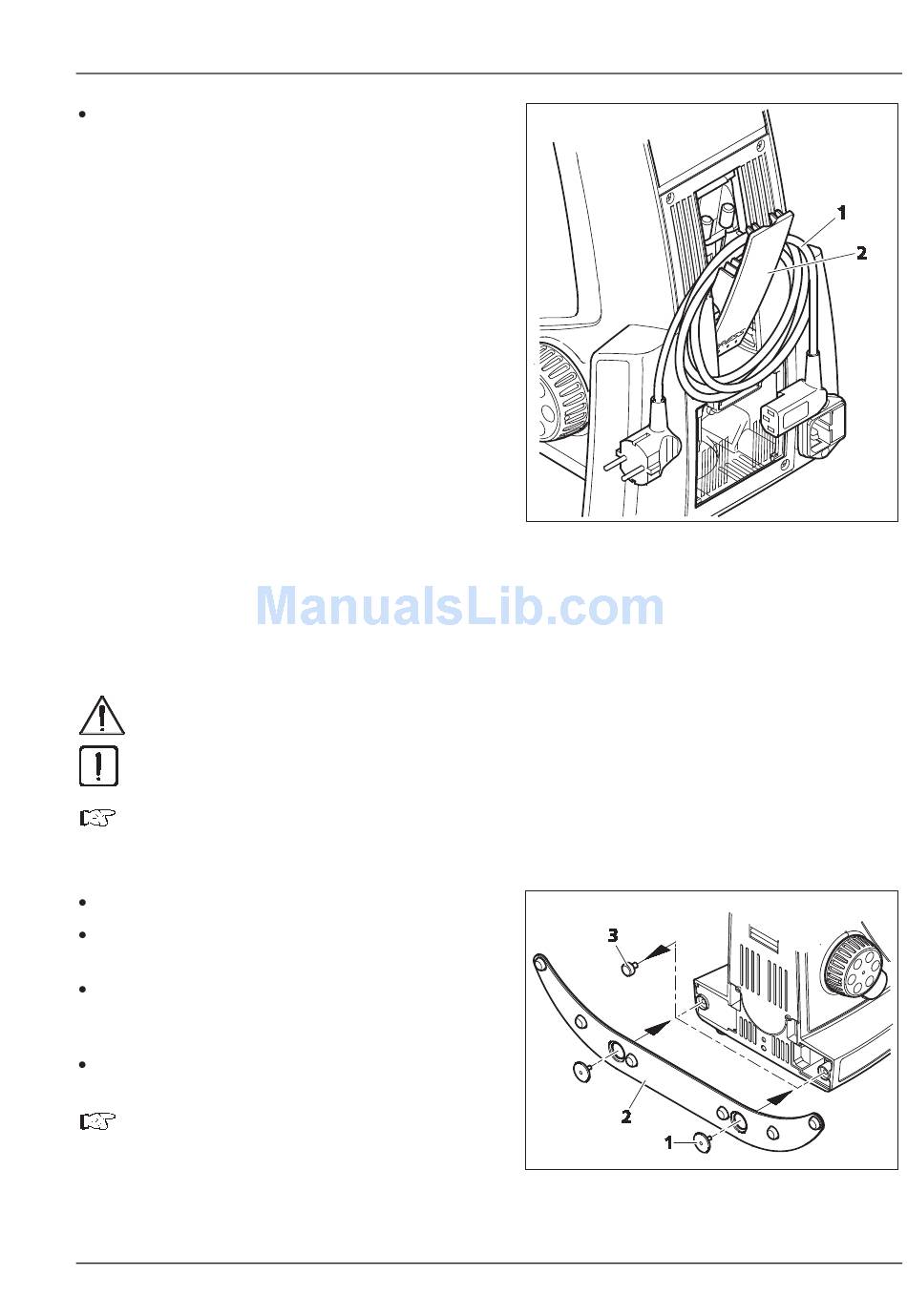

For shipping the power cord (Fig. 3-3/1) can be
rolled up and stowed in the open cover flap
(Fig. 3-3/2).
3.1.2

Mounting base plate for use of larger tubes

The base plate must be mounted on Axio Lab.A1 stands in order to increase stability during
operation for the majority of tubes/photo tubes/ergo tubes, or this is at least recommended.
Please refer to the corresponding notes in the system overview, Section2.2.
The base plate is not required for binocular tube or photo tube 30°/20 (425522-9000-000 and
425522-9010-000) or binocular tubes 20°/23 and 30°/23 (425520-9090-000 and 425520-
9000-000).
Lay the stand on its rear side.
Unscrew or pull the rear rubber feet (Fig. 3-4/3)
out of the holes in the stand.
Set the base plate (Fig. 3-4/2) on the underside
of the stand and secure with two screws.
(Fig. 3-4/1).
Set the stand in an upright position.
Save the rubber feet of the microscope
stand for use at a later date.
04/2013
START-UP
Installing standard components
Fig. 3-3
Fig. 3-4
430037-7144-001
Stowing power cord in cover flap
for shipping
Mounting the base plate
Carl Zeiss
47
