WARNING: If the information in this manual is
not followed exactly, fire or explosion may result
causing property damage, personal injury or loss
of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use
any phone in your building.
* Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
* If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
Installer: Please leave this manual with the appliance owner for future reference
45
45
SN 5170 AND UP
SN 5170 AND UP
For use with Natural Gas or Propane*
U
SERS'
O
PERATION and
M
AINTENANCE
This appliance may be installed in an after-market,
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases, unless a
certified kit is used.
*Conversion Kit Required for Propane Use
7116 Beatty Dr
Mission, BC V2V 6B4
Canada
-

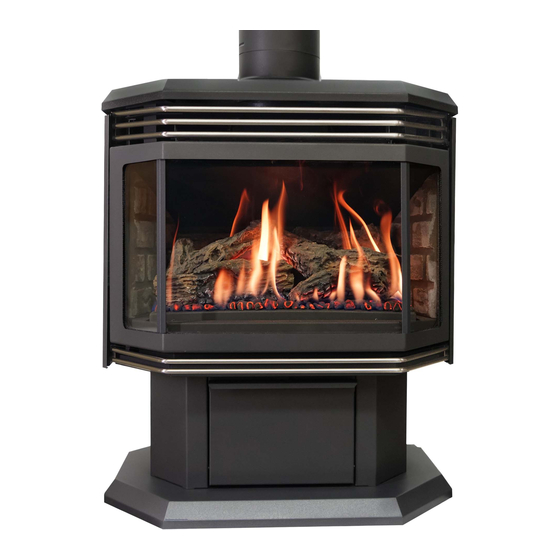

DVFS28N
-
DVFS28N
Optima 45
Optima 45
I
NSTALLATION
-
2
-
2
M
ANUAL
200-0185
September 2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45-DVFS28N-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Archgard 45-DVFS28N-2

Summary of Contents for Archgard 45-DVFS28N-2

  • Page 1 DVFS28N DVFS28N Optima 45 Optima 45 SN 5170 AND UP SN 5170 AND UP For use with Natural Gas or Propane* SERS’ NSTALLATION PERATION and AINTENANCE ANUAL WARNING: If the information in this manual is not followed exactly, fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 2 STATE OF MASSACHUSETTS REQUIREMENTS 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall ex- haust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: 1.
  • Page 3 INTRODUCTION Congratulations on choosing an Archgard fireplace! The Optima 45 is one of the most advanced direct vent fireplace heaters available. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service.

  • Page 4: Table Of Contents

    Venting Chart Venting - Vertical Termination using Simpson DuraVent Pipe Venting - Horizontally using Archgard Vent Kit (45-TVKFS) Venting - Below Grade using Archgard Snorkel Kit (999-DV-STC) Venting - Horizontally using Simpson DuraVent Direct Vent Systems Log Placement Optional Wall Switch or Thermostat / Valve Connection...
  • Page 5 45-DVFS28N-2 CAUTION FOR YOUR SAFETY - Do not install or operate your Archgard Optima 45 Direct Vent Gas Fireplace without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous.

  • Page 6: Appliance Certification / Installation Codes / Specifications / High Altitude Installation

    - ANSI Z21.88b-2003 / CSA 2.33b-2003, Vented Gas Fireplace Heaters - CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. INSTALLATION CODES This appliance must be installed by a qualified gas appliance installer. The installation must conform with the local codes or, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or Installation Code, CAN/CGA-B149, in Canada.

  • Page 7: Gas Connections

    45-DVFS28N-2 GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve.

  • Page 8: Appliance Dimensions / Description

    45-DVFS28N-2 APPLIANCE DIMENSIONS DIMENSIONS HEIGHT 30” (762 mm) WIDTH 27” (685 mm) DEPTH 17 ½” (444 mm) APPLIANCE DESCRIPTION UPPER LOUVERS GLASS DOOR LOWER LOUVERS MAIN CONTROL PANEL...

  • Page 9: Alcove Installation

    45-DVFS28N-2 DIMENSIONS AND CLEARANCES TOP VIEW 4” (101 mm) BACKWALL 4” (101 mm) 11” (280 mm) 11” (280 mm) 4” (101 mm) SIDEWALL STRAIGHT INSTALLATION CORNER INSTALLATION ALCOVE INSTALLATION SIDE VIEW 2” (50 mm) to top, 1” (25 mm) to bottom and side surfaces of the vent 1”...

  • Page 10: Locating Gas Heater / Vent Termination Locations

    5. Vent terminations located below 7ft (2.13 M) from grade level or anywhere that it can be a burn hazard to the public, such as patios and balconies, must be protected with an approved termination cage. If using Archgard Venting System order (Part # 999-DV-SC).

  • Page 11: Allowable Termination Locations

    45-DVFS28N-2 ALLOWABLE TERMINATION LOCATIONS...

  • Page 12: Approved Vent Components / Venting Connection

    DESCRIPTION 45-TVKFS Archgard Top Vent Kit. Kit includes 9 ft (2.74 M) of 4” (101 mm) gas flex liner, 36” (914 mm) of 7” (178 mm) black stove pipe, 24” (610 mm) of 7” (914 mm) black stove pipe, 90 deg.

  • Page 13: Venting Chart

    45-DVFS28N-2 VENTING CHART The appliance will not function without being connected to a proper venting system. This appliance may only use direct vent system supplied by Archgard, or Simpson Dura-Vent direct vent systems with Archgard SDA-U adapter. 7.93 M 7.32 M 6.71 M...

  • Page 14: Venting - Vertical Termination Using Simpson Duravent Pipe

    The Optima 45 can be vented vertically using Simpson Dura-Vent Direct Vent System. To vent using Simpson Dura-Vent exclusively, you must use the Archgard 999-DV-SDA Adaptor and con- nect the adaptor to the top of flue outlet on the Optima 45 gas fireplace.
  • Page 15 45-DVFS28N-2 VENTING - VERTICAL TERMINATION USING SIMPSON DURA-VENT PIPE Typical Vertical venting NOTE: configuration using Simpson  Galvanized pipe is desirable above the roofline Dura-Vent Direct Vent System due to its higher corrosion resistance. Continue to add pipe sections throughout the flashing until...
  • Page 16 45-DVFS28N-2 VENTING - HORIZONTALLY USING ARCHGARD TVK-FSU VENT KIT NOTES: This Vent Kit must be installed directly onto the flue outlet of the heater. Maintain a minimum of 1” (25mm) sides and bottom, and 2” (50 mm) from the top surfaces of the horizontal vent.
  • Page 17 INSTALLATION PROCEDURES FOR ARCHGARD SNORKEL KIT (999-DV-STC) NOTE: The Archgard Snorkel kit is designed for 4” x 7” (101 mm x 178 mm) flexible gas liners that are NOT supplied with the Snorkel Termination Head and MUST be ordered separately.

  • Page 18: Venting - Horizontally Using Simpson Duravent Direct Vent Systems

    The Optima 45 can be vented horizontally using Simpson Dura-Vent Direct Vent System. To vent using Simpson Dura-Vent exclusively, you must use the Archgard 999-DV-SDA Adaptor and connect the adaptor to the top of the Optima 45 as shown in Fig. 1.
  • Page 19 You may want to adjust the location of the unit to compensate. 2. Simpson Dura-Vent Venting System is designed with special twist-lock connections to connect to the appliance. An Archgard adaptor (999-DV-SDA) is required. The adaptor will allow...
  • Page 20 45-DVFS28N-2 VENTING - HORIZONTALLY USING SIMPSON DURA-VENT DIRECT VENT SYSTEMS INSTALLATION PROCEDURES FOR SIMPSON DURA-VENT DIRECT VENT SYSTEM 5. Mark the wall with an 11” (279 mm) x 10” (254 mm) hole. See termination framing on page 22. The center of the hole should line up with the centerline of the horizontal pipe.
  • Page 21 45-DVFS28N-2 VENTING - BELOW GRADE USING SIMPSON DURA-VENT DIRECT VENT SYSTEMS INSTALLATION PROCEDURES FOR SIMPSON DURA-VENT DIRECT VENT SYSTEM SNORKEL TERMINATIONS: For installations requiring a vertical rise on the exterior of the building, 14” (355mm) and a 36” (914mm) tall Snorkel Termination Caps are available.

  • Page 22: Log Placement

    LOG PLACEMENT Archgard chooses ceramic fiber logs for use in the Optima 45. The logs are designed to give a re- alistic fire package, and are created for long life, to give you the same beautiful look as the day they were originally installed.
  • Page 23 45-DVFS28N-2 LOG PLACEMENT - Continued REAR LOG RESTS The rear logs must be placed on top of the log rests shown above. Make sure they are placed on the back left and right behind the burner so the log pins come up through the notches as shown below.
  • Page 24 45-DVFS28N-2 LOG PLACEMENT - Continued LOG #1 Place log number 1 on top of the left rear log rest with the two pins aligned with the holes in the bottom of the log. LOG #2 Place log #3 on top of the right rear log rest with the two pins aligned with...
  • Page 25 45-DVFS28N-2 LOG PLACEMENT - Continued LOG #3 Place log number 3 on the two right pins so they align with the holes in the bottom of the log as shown. The top of the log should rest against log number 2.
  • Page 26 45-DVFS28N-2 LOG PLACEMENT - Continued LOG #5 Place log number 5 so the bottom left of the log sits on the burner directly behind log number 4. Pull the log forward so it just touches log 4. Make sure the log is set far enough to the right so as not to block any of the burner ports.
  • Page 27 45-DVFS28N-2 OPTIONAL CERAMIC BRICK PANELS The Optima 45 has optional Ceramic Brick Panels or Reflective Glass Panels available. They can be purchased through your local authorized Archgard Dealer.

  • Page 28: Optional Wall Switch Or Thermostat / Valve Connection

    If a wall-mounted switch or a wall-mounted thermostat is desired, Archgard recommends that the device be wired as shown in Fig 1. Note: Archgard Industries does not manufacture or sell any wall switch or wall thermostat and will not extend warranty to them.

  • Page 29: Final Installation Check / Initial Operation

    45-DVFS28N-2 FINAL INSTALLATION CHECK Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly, and that the electrical system is in working order.

  • Page 30: First Fire / Lighting Instructions

    45-DVFS28N-2 FIRST FIRE When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporating the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated as smoke alarm may sound.

  • Page 31: Lighting Instructions On Rating Plate

    45-DVFS28N-2 LIGHTING INSTRUCTIONS ON RATING PLATE FOR YOUR SAFETY READ BEFORE WARNING: If you do not follow these instructions exactly, a fire of explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by a spark •...

  • Page 32: Glass Door Removal / If Your Glass Breaks

    Replacing the Glass Door Reverse the above procedure. IF YOUR GLASS BREAKS In the event that your glass cracks or breaks, Archgard recommends that a new door assembly be ordered to replace the original door.  Remove door as per the instructions above.

  • Page 33: Troubleshooting

    45-DVFS28N-2 TROUBLESHOOTING Please check to make sure the instructions are followed exactly before attempting troubleshooting of the appliance. WARNING: Troubleshooting and servicing of gas and electrical devices of the appliance should only be conducted by a qualified service technician. SYMPTOM...
  • Page 34 45-DVFS28N-2 TROUBLESHOOTING Continued SYMPTOM ACTION The main burner does not 3. Check to make sure the thermostat is set high enough to turn turn on with the pilot lit. on the appliance. Cont... 4. Check that the remote switch or the thermostat is turned on.

  • Page 35: Maintenance / Cleaning The Appliance

    Regularly:  Frequent cleaning of the ceramic glass is required. Archgard recommends using a good quality “gas fireplace” glass cleaner that is available at any hearth retail location. DO NOT CLEAN WHILE HOT.

  • Page 36: Servicing Under Warranty / Adjusting Primary Air

    45-DVFS28N-2 SERVICING UNDER WARRANTY Before servicing, read the Terms and Conditions of the Archgard Warranty at the back of the manual. Contact the Authorized Archgard dealer where you purchased the appliance and provide them with details of the problem together with the initial installation information (from the back of this manual).

  • Page 37: Changing Main Burner Orifice

    Do not over-tighten. 8. Reverse steps 1 through 6. THIS APPLIANCE IS EQUIPPED FOR NATURAL GAS. An additional Conversion Kit is required to convert for Propane use. To order the Conversion Kit , please contact your Authorized Archgard Dealer.
  • Page 38 7/16” (11 mm) wrench and turn ¼ (HERE) open - then push the small metal tab across to the other side of the body and retighten. Call your local Authorized Archgard Dealer to purchase the correct fuel conversion kit for your gas appliance.

  • Page 39: Replacing Convection Blower / Wiring Diagram

    45-DVFS28N-2 REPLACING CONVECTION BLOWER Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1.

  • Page 40: Valve Tray Assembly / Parts List

    45-DVFS28N-2 VALVE TRAY ASSEMBLY Item # Item Description Unit 308-0013 Valve NOVA SIT 820 (0.820.652) Natural Gas 301-0000 Straight ⅜” (9.5 mm) compression ⅜” (9.5 mm) MNPT 301-0009 Tubing ⅜” (9.5 mm) Dia. Aluminum (Main Supply Tube) 14.5 301-0001 Elbow ⅜” (9.5 mm) compression 90 deg. ⅛” (3 mm) MNPT...
  • Page 41 45-DVFS28N-2 PARTS LIST - Ceramic Logs and Burner Pan LOG #1 LOG #2 LOG #5 LOG #3 LOG #4 EMBERS Item # Item Description Unit 310-6450-1 FiberFlame Log #1 310-6450-2 FiberFlame Log #74 310-6450-3 FiberFlame Log #13 310-6450-4 FiberFlame Log #142...

  • Page 42: Replacement Parts List

    45-DVFS28N-2 REPLACEMENT PARTS LIST ARCHGARD OPTIMA 45-3 Item # Item Description Unit 200-0185 Owner’s Manual 300-0055 Door Latch “J” Hook Threaded 308-0005 Piezo Igniter Only 722-0228 Upper Pilot Shield 305-0019 ON / OFF Rocker Switch 308-0046 Knob Extension - ON / OFF 1 ½” (62 mm) 308-0047 Knob Extension - HI / LOW 1 ½”...

  • Page 43: Archgard Warranty

    This Limited Warranty is made by ARCHGARD INDUSTRIES LTD., hereinafter referred to as “Archgard”. Archgard warrants to the original purchaser of an Archgard gas burning fireplace (s) that the product will be free of defects in materials and workmanship under normal use and service, for a “lifetime”.

  • Page 44: Frequently Asked Questions

    Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not unusual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the set- ting that your fan speed control is set at.

  • Page 45: Notes

    45-DVFS28N-2 NOTES...

  • Page 46: Warranty Registration

    POSTAG WARRANTY REGISTRATION RCHGARD NDUSTRIES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED 45-DVFS28N Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &...
  • Page 48 Archgard Industries Ltd. 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
