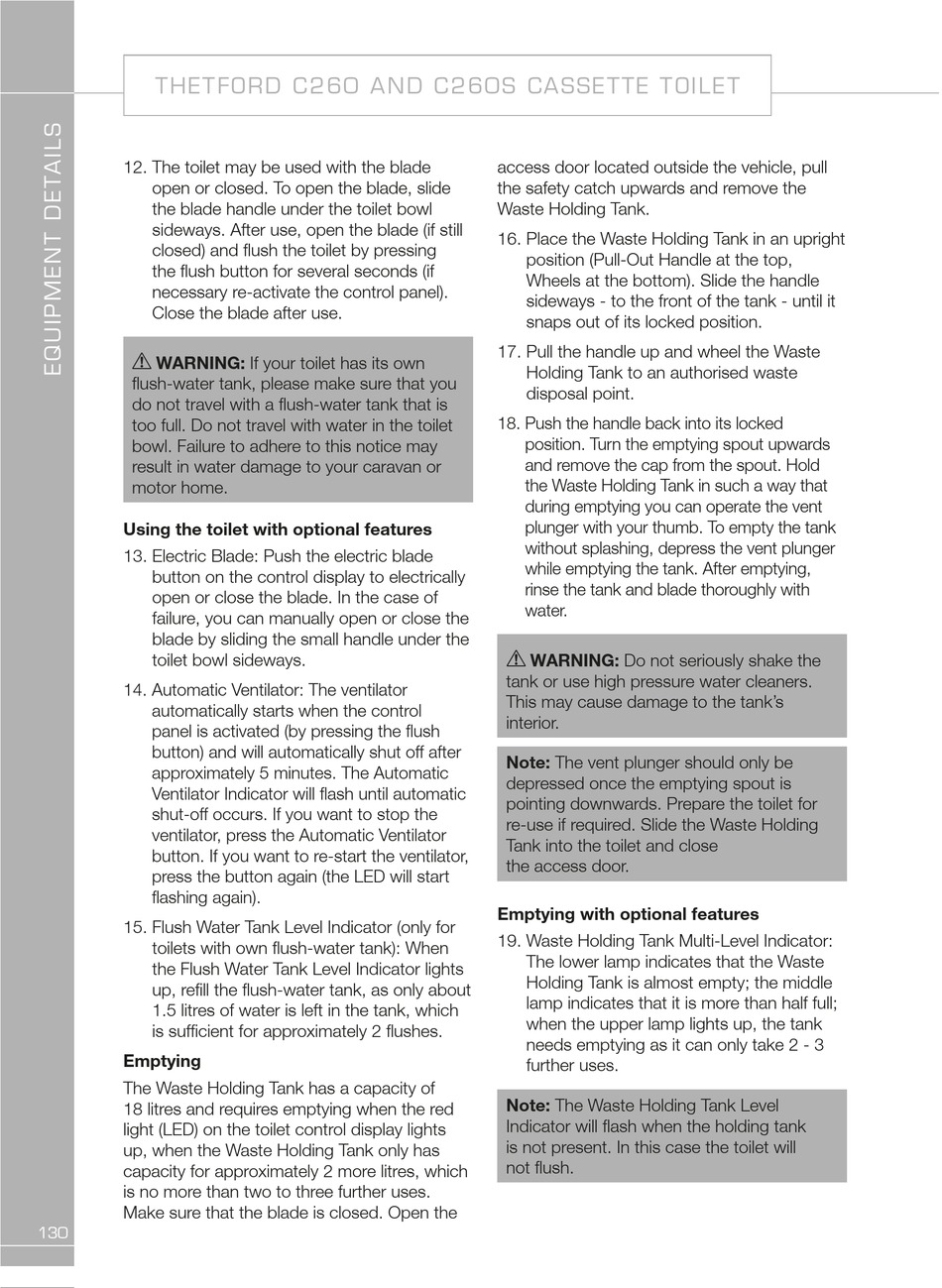

TH ET FO R D C2 60 AN D C 260S C A SS E T T E T OILE T
12. The toilet may be used with the blade
open or closed. To open the blade, slide
the blade handle under the toilet bowl
sideways. After use, open the blade (if still
closed) and flush the toilet by pressing
the flush button for several seconds (if
necessary re-activate the control panel).
Close the blade after use.
!
WARNING: If your toilet has its own
flush-water tank, please make sure that you
do not travel with a flush-water tank that is
too full. Do not travel with water in the toilet
bowl. Failure to adhere to this notice may
result in water damage to your caravan or
motor home.
Using the toilet with optional features
13. Electric Blade: Push the electric blade
button on the control display to electrically
open or close the blade. In the case of
failure, you can manually open or close the
blade by sliding the small handle under the
toilet bowl sideways.
14. Automatic Ventilator: The ventilator
automatically starts when the control
panel is activated (by pressing the flush
button) and will automatically shut off after
approximately 5 minutes. The Automatic
Ventilator Indicator will flash until automatic
shut-off occurs. If you want to stop the
ventilator, press the Automatic Ventilator
button. If you want to re-start the ventilator,
press the button again (the LED will start
flashing again).
15. Flush Water Tank Level Indicator (only for
toilets with own flush-water tank): When
the Flush Water Tank Level Indicator lights
up, refill the flush-water tank, as only about
1.5 litres of water is left in the tank, which
is sufficient for approximately 2 flushes.
Emptying
The Waste Holding Tank has a capacity of
18 litres and requires emptying when the red
light (LED) on the toilet control display lights
up, when the Waste Holding Tank only has
capacity for approximately 2 more litres, which
is no more than two to three further uses.
Make sure that the blade is closed. Open the
130
access door located outside the vehicle, pull
the safety catch upwards and remove the
Waste Holding Tank.
16. Place the Waste Holding Tank in an upright
position (Pull-Out Handle at the top,
Wheels at the bottom). Slide the handle
sideways - to the front of the tank - until it
snaps out of its locked position.
17. Pull the handle up and wheel the Waste
Holding Tank to an authorised waste
disposal point.
18. Push the handle back into its locked
position. Turn the emptying spout upwards
and remove the cap from the spout. Hold
the Waste Holding Tank in such a way that
during emptying you can operate the vent
plunger with your thumb. To empty the tank
without splashing, depress the vent plunger
while emptying the tank. After emptying,
rinse the tank and blade thoroughly with
water.
!
WARNING: Do not seriously shake the
tank or use high pressure water cleaners.
This may cause damage to the tank's
interior.
Note: The vent plunger should only be
depressed once the emptying spout is
pointing downwards. Prepare the toilet for
re-use if required. Slide the Waste Holding
Tank into the toilet and close
the access door.
Emptying with optional features
19. Waste Holding Tank Multi-Level Indicator:
The lower lamp indicates that the Waste
Holding Tank is almost empty; the middle
lamp indicates that it is more than half full;
when the upper lamp lights up, the tank
needs emptying as it can only take 2 - 3
further uses.
Note: The Waste Holding Tank Level
Indicator will flash when the holding tank
is not present. In this case the toilet will
not flush.
