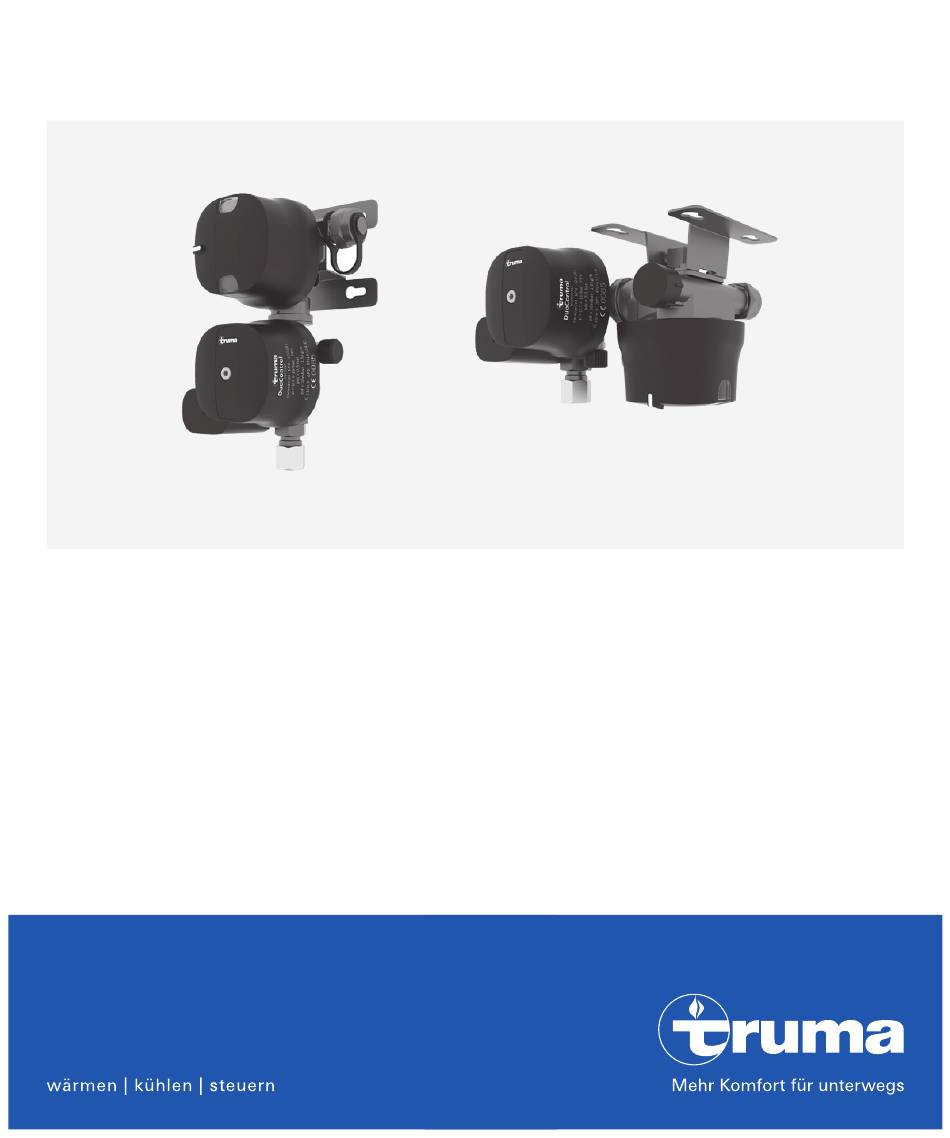

- Page 1 DuoControl DuoControl vertikal DuoControl horizontal Operating instructions To be kept in the vehicle Page...
-
Page 2: Table Of Contents
DuoControl Table of Contents Symbols used ..................3 Intended use ................... 3 Safety instructions ................ 4 Operating instructions Reset button ................... 7 Start-up .................... 8 Changeover ..................8 Removal status ................9 Changing the gas cylinder ............9 Hose change ................. 10 Using only one gas cylinder ............ -
Page 3: Symbols Used
Symbols used Symbol indicates possible hazards. Note containing information and tips. Intended use – The DuoControl is a safety gas pressure regulator with automatic changeover for connecting to two gas cylinders for caravans and mo- tor homes. The gas pressure regulator ensures a uniform output pres- sure of 30 mbar with a permissible inlet pressure range of 0.7 –... -
Page 4: Safety Instructions
– High-pressure hoses are mandatory for connecting the gas cyl- inders to the gas pressure regulator or gas filter. For this, Truma provides the necessary high-pressure hoses with the most com- monly used connection variants for European gas cylinders (see www.truma.com). - Page 5 – In normal conditions of use, in order to ensure correct operation of the installation it is recommended that this device is changed with- in 10 years of the date of manufacture. National regulations must be observed. The operator is responsible for this. –...
-
Page 6: Operating Instructions

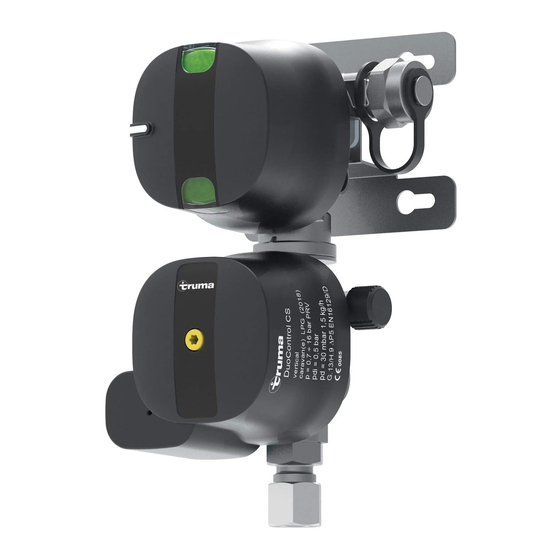

Operating instructions Figure 1a: DuoControl vertical Figure 1b: DuoControl horizontal Figure 1c... -
Page 7: Reset Button
1 = Cylinder valve 2 = Gas cylinder 3 = High-pressure hose 4 = Gas filter 5 = DuoControl 6 = Reset button 7 = Steel / copper tube 8 = Screw cap (test connection) 9 = Screw aid a/f 23 / KF 10 = Torx T20 (on the screw aid) 11 = Control knob for operating cylinder / reserve cylinder 12 = Status display –... -
Page 8: Start-Up
Start-up – Open the gas remote switch if present. – Connect the gas cylinders (2) and make sure all hose connections are in good condition. – Open the valves on both gas cylinders (1). – The status display (12) changes to green. –... -
Page 9: Removal Status
cylinders simultaneously). We recommend that you do not operate the cylinder if the control knob is in the intermediate position. Removal status In the normal position (operating cylinder on the left, reserve cylinder on the right), the following display will be seen: –... -
Page 10: Hose Change
– Open the full gas cylinder’s valve (1). After any intervention, check the hose connection to the cylin- der valve for leaks (see “Checking for leaks in the high-pressure section”). Hose change Use the included screw aid (9) to attach and remove the high-pres- sure hoses (3). -
Page 11: Using Only One Gas Cylinder
– Open the gas cylinder valve (1). – Check the hose connection on the cylinder valve and on the gas fil- ter / DuoControl inlet for leaks after every intervention (see “Check- ing for leaks in the high-pressure section”). Using only one gas cylinder You can also use the DuoControl with only one gas cylinder. - Page 12 Figure 3a Figure 3b DuoControl vertical DuoControl horizontal – Check for leaks (e.g in Germany in accordance with G 607). – If there is a gas system leak, close the cylinder valves, have the gas system repaired by an expert immediately and do not open the valves in the meantime.
-
Page 13: Maintenance
– It is essential to reattach the screw cap (8) every time after it has been removed. – Reset the reset button. To reset, press the reset button (6) firmly and turn it slightly anticlock- wise. Ensure that the reset button (6) remains in the position “ready for operation”... -
Page 14: Accessories
Accessories High-pressure hoses (part no. list – see www.truma.com) With country-specific connections Flat gasket G.13 (part no. 50020-76300) for high-pressure connection, M20 x 1.5 (G.13) Plug-fit EisEx 12 V (part no. 53101-01) Additional kit DuoC (part no. 50020-61100) required when gas cylinders are separated by more than 100 cm. -
Page 15: Technical Data
Technical data (determined in accordance with EN 16129:2013 or Truma test conditions) Gas type Liquefied gas (propane / butane) Admission pressure 0.7 – 16 bar Output pressure 30 mbar Regulator capacity 1.5 kg/h Regulator inlet Male thread M20 x 1.5 (G.13) Regulator outlet Olive screw connection 8 mm or 10 mm (H.9) -
Page 16: Manufacturer's Warranty (European Union)
Manufacturer’s Warranty (European Union) 1. Scope of Manufacturer’s Warranty As the Manufacturer of the appliance, Truma undertakes a warranty towards the Consumer that covers any material and/or manufacturing defects of the appliance. This Warranty is applicable in EU member states as well as in Iceland, Norway, Switzerland and Turkey. - Page 17 In individual countries there may be warranties that can be issued by the relevant dealer (official distributor, Truma Partner). In such cases the warranty can be implemented directly through the dealer from whom the Consumer bought the appliance.
- Page 18 Truma or if the Truma control unit (e.g. Truma CP plus or Truma iNet Box) has not been exclusive- ly used for controlling Truma appliances or appliances approved by Truma.
- Page 19 3. Making a warranty claim The warranty must be claimed with an authorised service partner or at the Truma Service Centre. All the relevant addresses and phone numbers can be found at www.truma.com, in the “Service” section. The Manufacturer‘s address is: Truma Gerätetechnik GmbH &...
- Page 20 Should problems occur, please contact the Truma Service Centre or one of our authorised service partners (see www.truma.com). In order to avoid delays, please have the unit model and serial number ready (see type plate). Service Truma Gerätetechnik GmbH & Co. KG...
