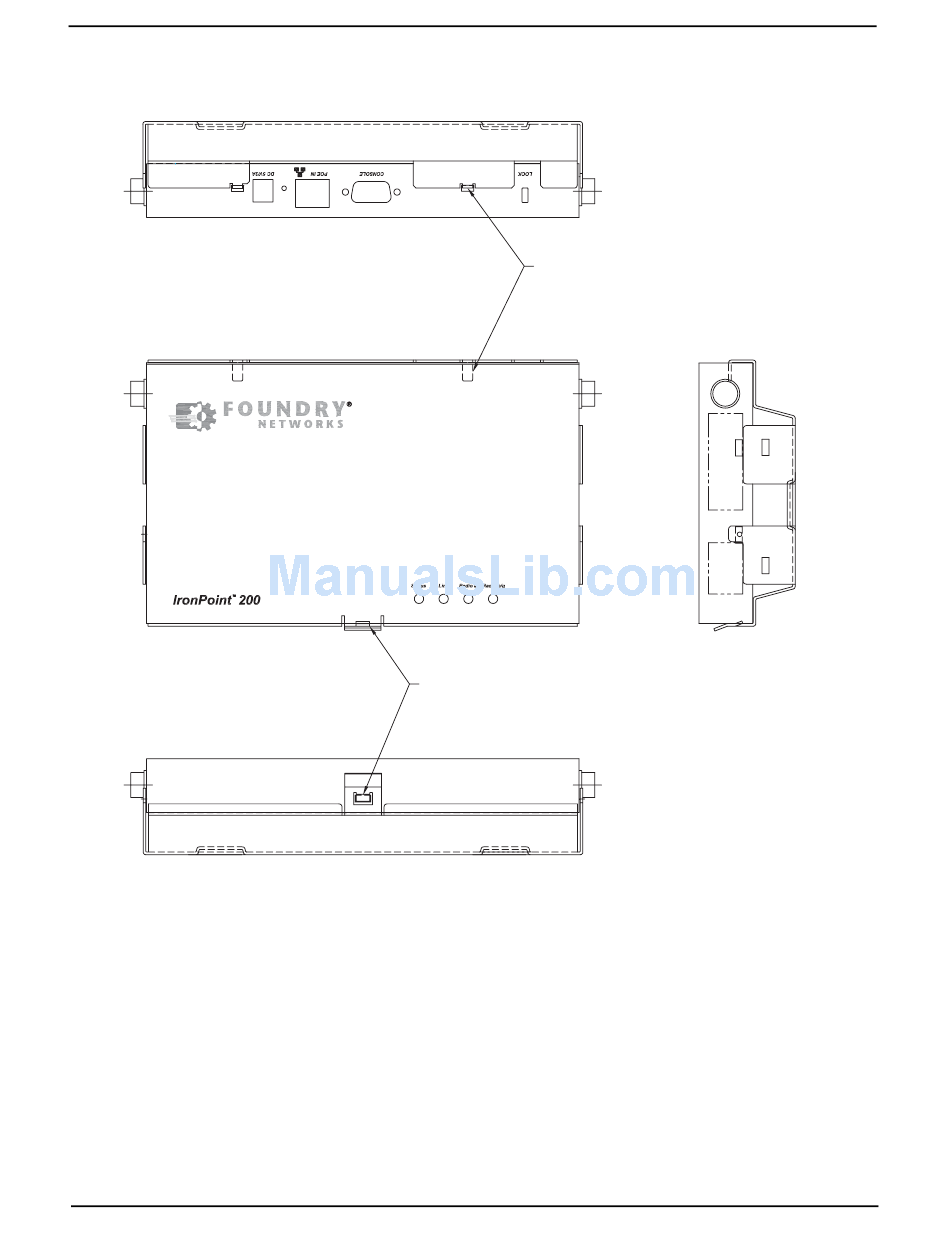

Figure 4-4. Installing the Access Point in the Mounting Bracket

Attaching the Access Point to a Suspended Ceiling

To mount the access point to a suspended ceiling (Figure 4-5), do the following:
1. Obtain the two fasteners and remove the their lock nuts.
2. Choose a location on the ceiling where the access point will be installed and position the
fasteners around the suspended ceiling T-rail.
3. Align the ceiling mounting holes on the mounting bracket with the fasteners.
4. Install the two lock nuts on the mounting bracket to fasten the mounting bracket to the T-rail.
5. Install the access point into the mounting bracket by aligning the two rear tabs on the mounting
brackets with the two rear rectangular holes on the access point (Figure 4-4).
4-6
Allign tabs to
rectangular openings
and slide unit back.
AP unit will snap-into
rectangular opening and
lock in place.
