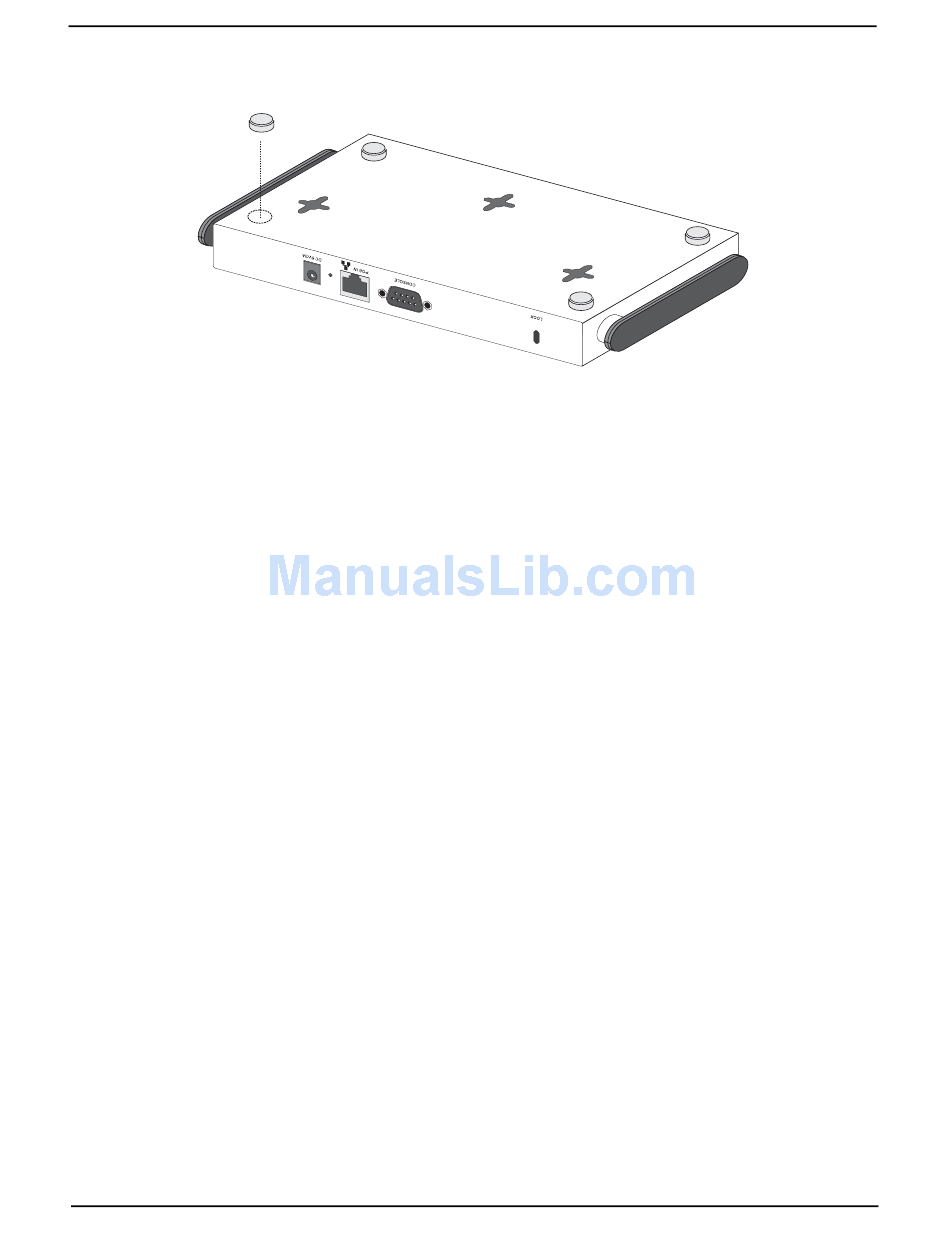

Figure 4-1. Attaching Feet to the Access Point
2. Set the access point on its four rubber feet on the desktop, shelf, or flat surface, making sure
there is enough clearance around the ventilation holes for proper air flow. For safety reasons,
make sure ventilation holes on the access point are positioned horizontally, not vertically.
3. For best coverage, position the antennas along different axes, such as 45 to 90 degrees apart
from each other.

Attaching the Access Point to a Wall without the Mounting Bracket

Do the following if you want to mount the access point on a wall without the mounting bracket:
1. Use the template in Figure 4-2 to mark the holes for the two slotted key mounting screws on the
wall.
2. Install the two screws for the slotted key mounting holes on the wall.
3. Position the slotted mounting holes on the back of the access point over the screws.
4. Slide the access point across the screws so the screws move into the narrow part of the slotted
mounting holes. For safety reasons, make sure ventilation holes on the access point are
positioned horizontally, not vertically.
5. For best coverage, position the antennas along different axes, such as 45 to 90 degrees apart
from each other.
4-2 © 2007 Foundry Networks, Inc. September 2007
