Status LEDs

The access point includes four status LED indicators, as described in the following figure and table.

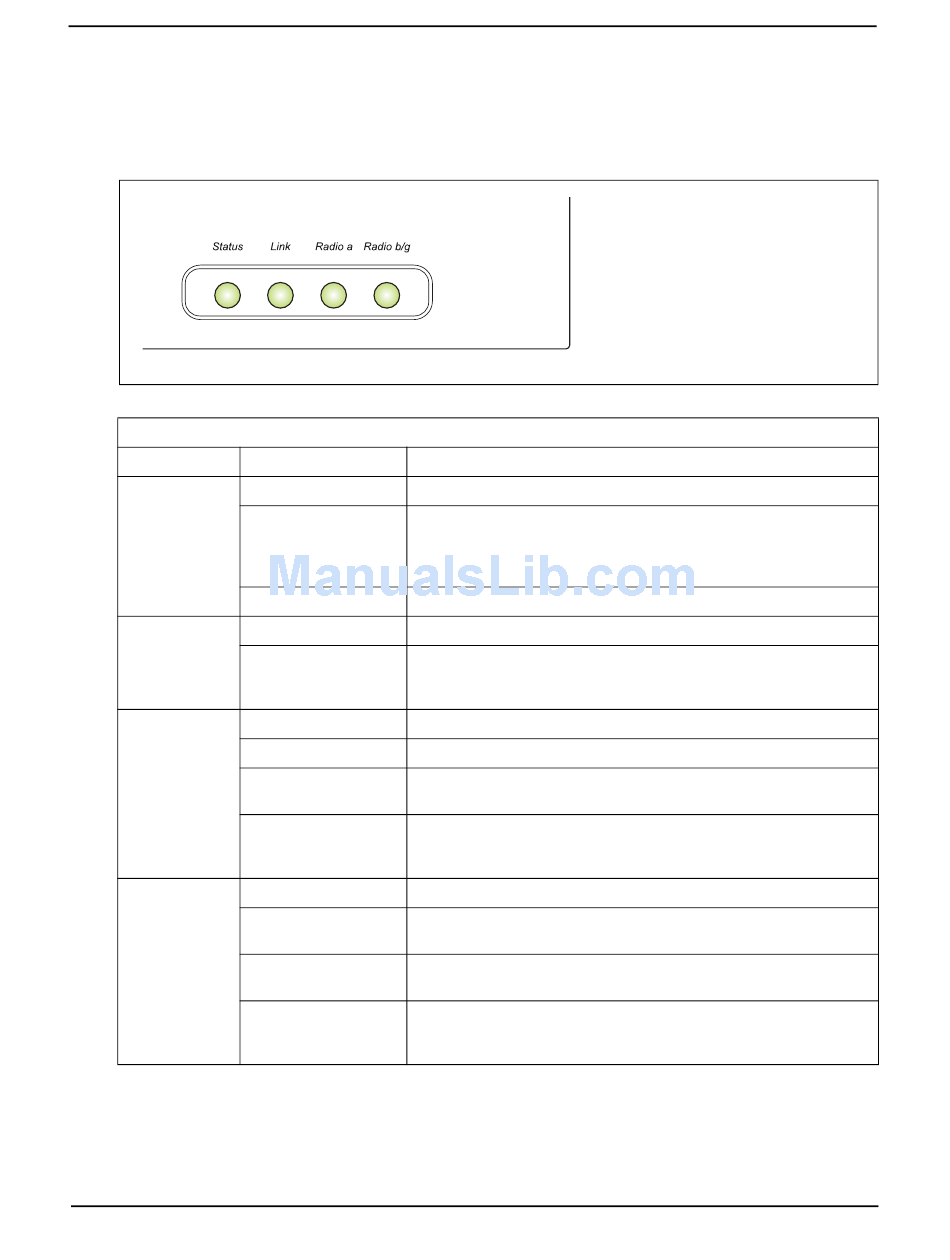

Figure 2-3. Status LEDs
Status LEDs
LED
Status
Link
Radio a
Radio b/g
2-4
Status Description
On Indicates that power is being supplied to the access point.
Flashing Indicates -
• the access point is running its self-test
• the access point is loading its software program
Flashing (Prolonged) Indicates a system error.
On Indicates a valid 10/100 Mbps Ethernet cable link.
Flashing Indicates that the access point is transmitting or receiving data on
the attached 10/100 Mbps Ethernet LAN. The flashing rate is
proportional to network activity.
On Indicates a valid 802.11a wireless link.
Very Slow Flashing The access point is searching for 802.11a network association.
Slow Flashing Indicates that one or more 802.11a wireless clients are associated
with the access point, but there is no activity.
Fast Flashing Indicates that the access point is transmitting or receiving data
through 802.11a wireless links. The flashing rate is proportional to
network activity.
On Indicates a valid 802.11g or 802.11b wireless link.
Very Slow Flashing The access point is searching for 802.11b or 802.11g network
association.
Slow Flashing Indicates that one or more 802.11b or 802.11g wireless clients are
associated with the access point, but there is no activity.
Fast Flashing Indicates that the access point is transmitting or receiving data
through 802.11g or 802.11b wireless links. The flashing rate is
proportional to network activity.
