Eclipse Fan
- Installation instructions
Should you have any questions or difficulty installing your new fan,
please contact Modern Fan Co. customer service immediately.
Note: Power supply must be turned off prior to any contact with electrical wires.
It is recommended that a licensed electrician be hired to install your ceiling fan.

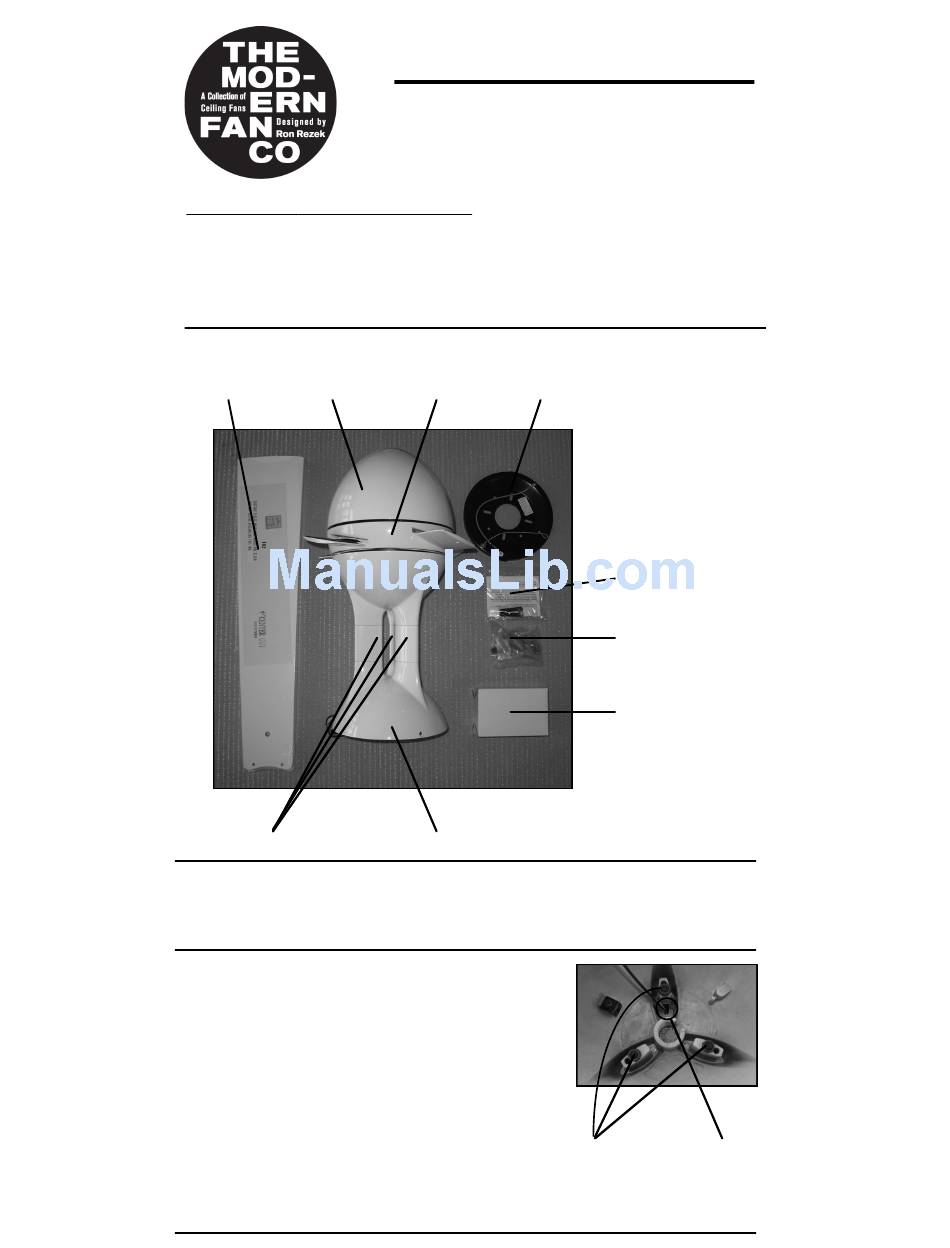

(1) Remove and identify contents of carton.
blades
bottom dome
down rods
(2) The Eclipse fan requires a slope ceiling adapter if installed on a sloped, or
pitched, ceiling (Part # SAE-GW or #SAE-BA). Please refer to instructions
packaged with "Eclipse Slope Ceiling Adapter".
(3) If using optional, longer down rods,
dismantle standard down rod assembly:
(a) loosen three nuts from threaded rods
(b) remove and set aside nuts and washers
(c) remove canopy and outer down rods
(d) remove (unscrew) threaded rods from
fan body
(e) install replacement down rods by
following steps (a) through (d) in reverse
- Lead wires will need to be run through
down rod and wire chase accordingy.
Eclipse
MODERN FAN COMPANY
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
rotor
mounting plate
canopy
nuts, washers &
threaded rods
balancing kit
hardware
package
optional control
wire
chase
