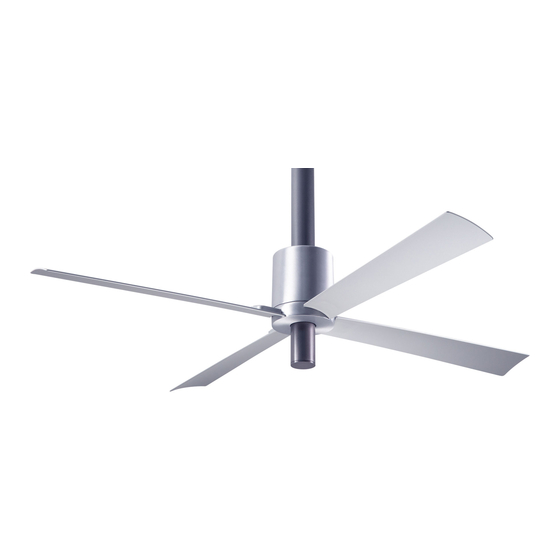

Pensi Fan- Installation instructions
Should you have any questions or difficulty installing your new fan,
please contact Modern Fan Co. customer service immediately.
Note: Power supply must be turned off prior to any contact with electrical wires. It
is recommended that a licensed electrician be hired to install your ceiling fan.
(1) Remove and identify contents of carton.
blades
hardware
package
(2) Using machine screws from hardware package or
existing screws in junction box, securely attach mounting
plate to ceiling junction box.
bottom tube
mounting plate
balancing
bottom
kit
cap
Pensi
THE MODERN FAN COMPANY
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
fan body
optional
control
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Modern Fan Co Pensi
Summary of Contents for Modern Fan Co Pensi
- Page 1 Pensi Fan- Installation instructions Should you have any questions or difficulty installing your new fan, please contact Modern Fan Co. customer service immediately. Note: Power supply must be turned off prior to any contact with electrical wires. It is recommended that a licensed electrician be hired to install your ceiling fan.
- Page 2 (3) If using an optional, longer down rod, dismantle standard down rod assembly: (a) loosen set screw inside top of fan (b) remove large nut and washers (c) remove canopy and outer down rod (d) remove cotter pin, washer and stopper pin from inner down rod (e) remove inner down rod/pipe (f) install replacement down rod by following steps...
- Page 3 (10) To install optional light kit, begin by hardware identifying all parts. Then follow steps (a) through (d): socket LED lamp/bulb (a) Connect wire leads (b) Attach socket to fan from socket to wire leads with three screws. from fan. (c) Insert GU10 base.
