Cloud Fan- Installation instructions
Should you have any questions or difficulty installing your new fan, please contact
Modern Fan Co. customer service immediately.
Note: Power supply must be turned off prior to any contact with electrical wires. It is
recommended that a licensed electrician be hired to install your ceiling fan.

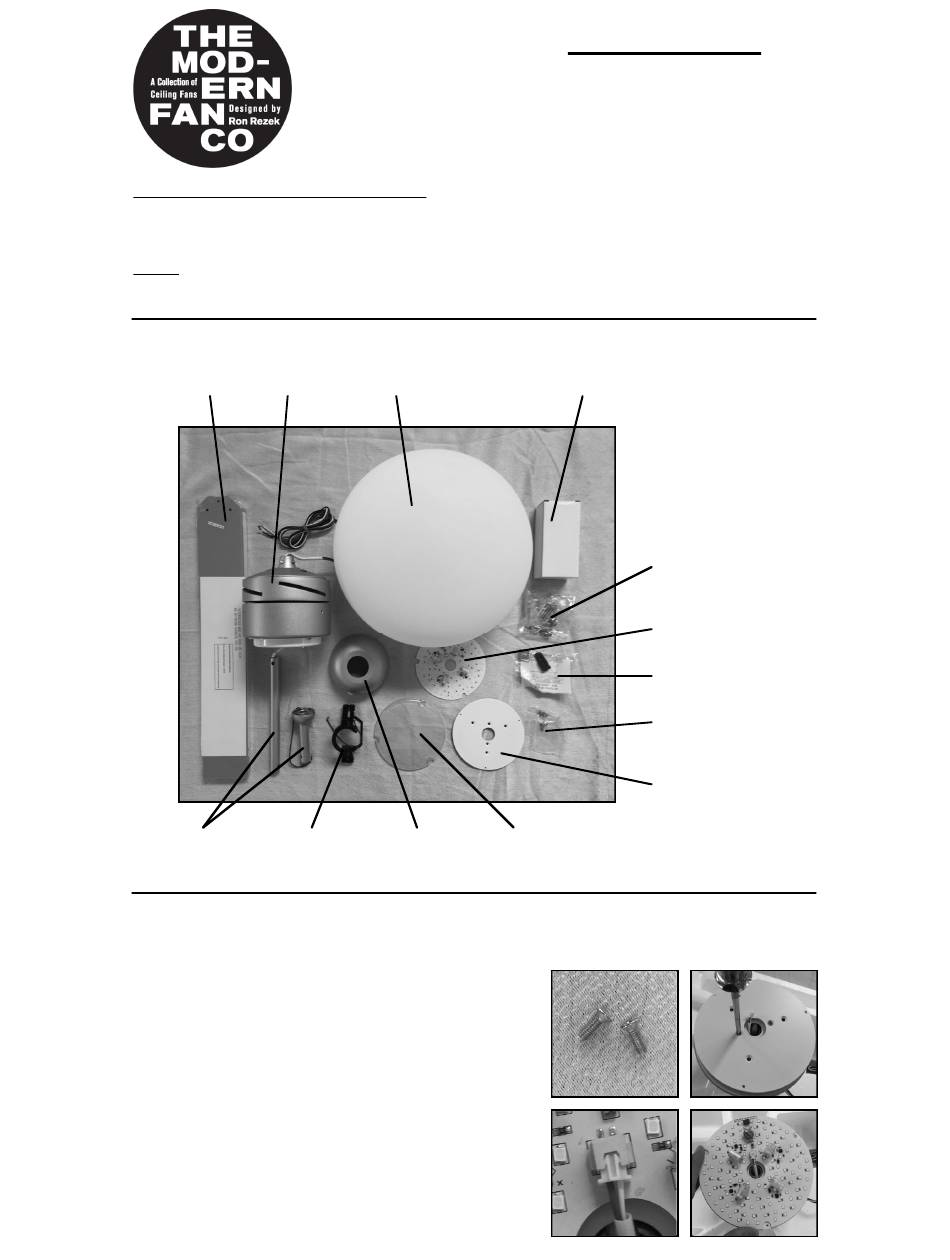

(1) Remove and identify contents of carton.
blades
fan body
down rods
hanging
& half-ball
bracket
(2) Place fan body on either piece of packing foam, with wire bundle facing down and
bottom of fan facing up. Follow these steps (a) through (c) to attach LED
components to your fan:
(a) Align holes on adapter plate with holes on
switch housing. Using countersink screws
included with LED pack, secure adapter plate to
switch housing.
(b) Position and insert 2-pin connector into
terminal near center hole of LED board.
Position LED board flat on adapter plate so that
three cutouts are positioned over attachment
holes. Feed any excess wire back into switch
housing.
glass diffuser
control(s)
canopy
LED cover
Cloud
THE MODERN FAN COMPANY
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
hardware
package
LED board
balancing kit
LED screws
LED adapter
plate
Advertisement
Table of Contents
Related Manuals for Modern Fan Co Cloud
Summary of Contents for Modern Fan Co Cloud
- Page 1 Cloud Fan- Installation instructions Should you have any questions or difficulty installing your new fan, please contact Modern Fan Co. customer service immediately. Note: Power supply must be turned off prior to any contact with electrical wires. It is recommended that a licensed electrician be hired to install your ceiling fan.
- Page 2 (c) Position LED cover over LED board so that attachment holes are aligned with cutouts and holes in adapter plate. Using three additional, small pan head screws included with hardware pack, secure LED cover and LED board to adapter plate. (3) Using packing foam to position fan body in an upright and stable position, remove the rotor cover by loosening the three cover screws.
- Page 3 (10) Reinstall half ball from step (3) on end of down rod. Be sure that stopper pin is inserted through down rod and seated in half ball. Tighten set screw against down rod. stopper pin set screw (11) Lift fan to ceiling and set half ball in the hanging bracket so that the ridge on the edge of the hanging bracket is seated in the slotted channel in the half ball.
- Page 4 (18) The rotor and motor of your fan have been dynamically balanced at the factory. In addition, the blades have been matched to the nearest gram to ensure a well balanced ceiling fan. Furthermore, a blade balancing kit has been included with your fan.
