Stella Fan- Installation instructions
Should you have any questions or difficulty installing your new fan,
please contact Modern Fan Co. customer service immediately.
Note: Power supply must be turned off prior to any contact with electrical
wires. It is recommended that a licensed electrician be hired to install your
ceiling fan.

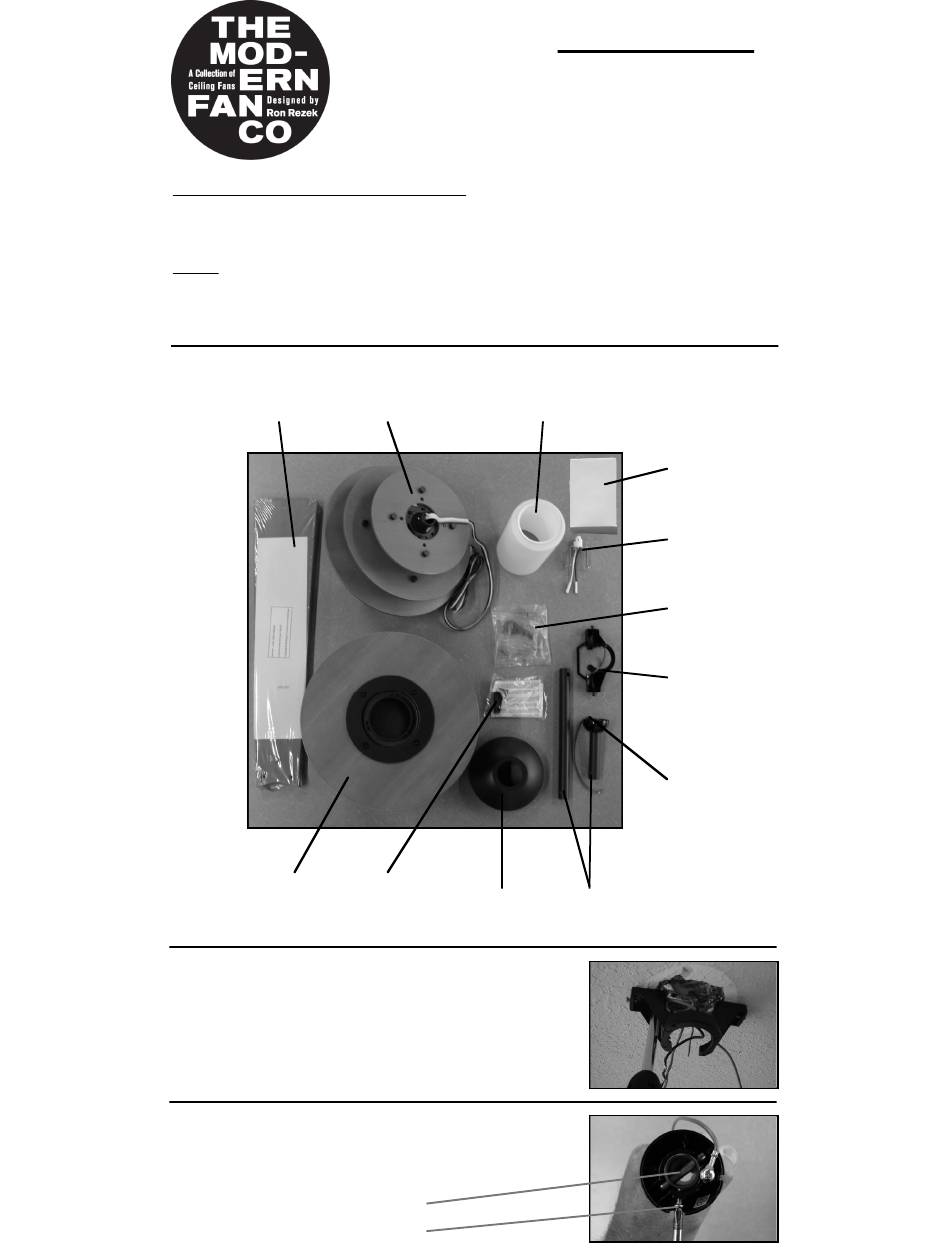

(1) Remove and identify contents of carton.
blades
upper assembly
lower
balancing
assembly
(2) Using machine screws and washers from
hardware package or existing screws and washers
in junction box, securely attach hanging bracket to
ceiling junction box.
(3) Remove stopper pin and half ball from small
down rod by loosening set screw on half ball. Set
parts aside for reinstallation in step (7).
stopper pin
set screw
diffuser
kit
canopy
down rods
Stella
MODERN FAN COMPANY
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
optional
control
socket
hardware
package
hanging
bracket
half ball
