DC Slim Fan- Installation instructions
Should you have any questions or difficulty installing your new fan,
please contact Modern Fan Co. customer service immediately.
Note: Power supply must be turned off prior to any contact with electrical
wires. It is recommended that a licensed electrician be hired to install your
ceiling fan.
Important: The DC Slim can only be controlled with the #DCR remote
control (included with the fan) in combination with an on/off switch at a
wall location. Dimmers, rheostats, fan speed or other controls are not
compatible and may not be used with this fan.

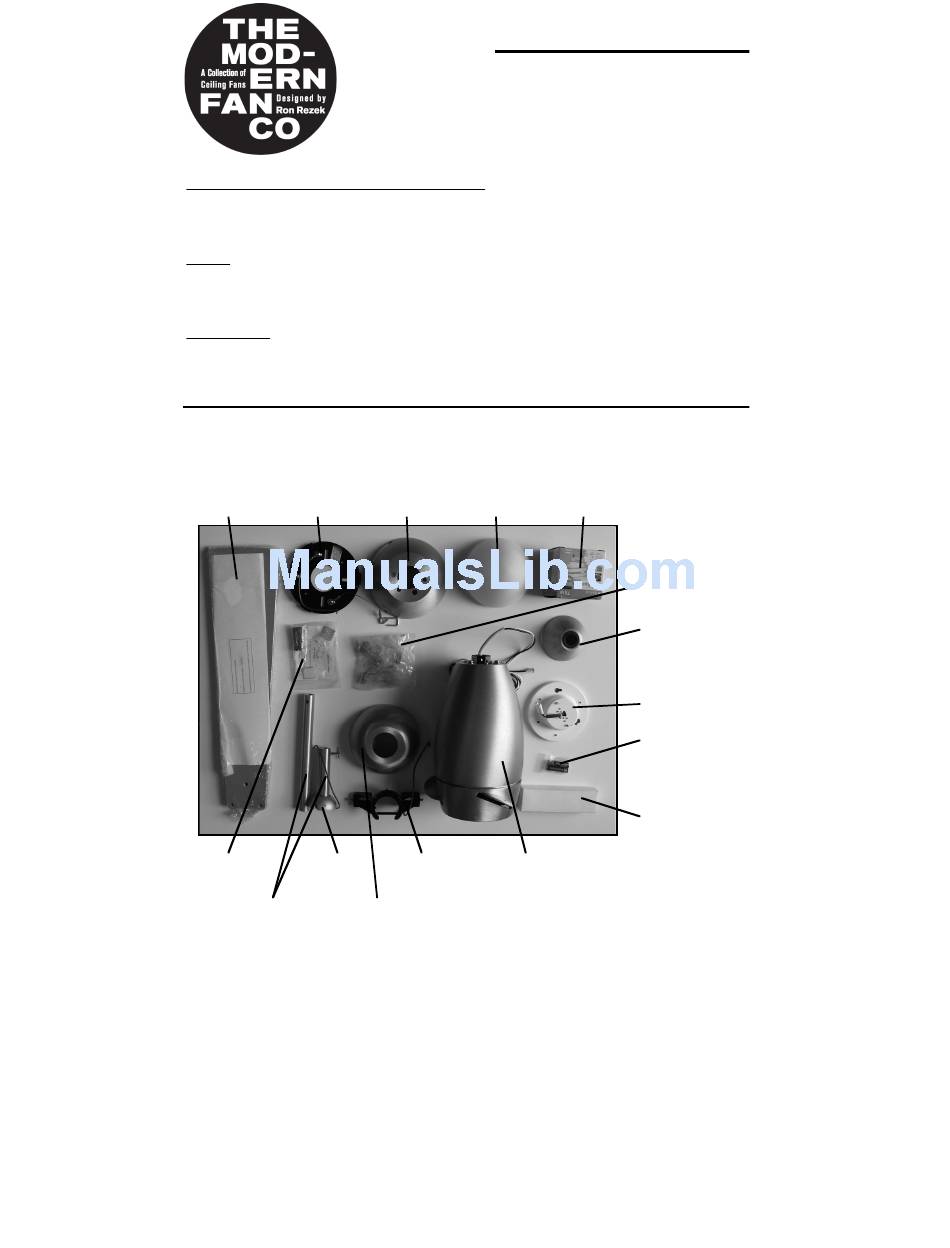

(1) Remove and identify contents of carton.
hugger
mounting
blades
plate
balancing
half
kit
ball
down
canopy
rods
Determine if you will suspend your fan using a down rod or the hugger kit,
both of which are included with your fan. The hugger kit is recommended
for 8' (eight foot) ceilings, while a down rod is usually better suited for higher
ceilings. While building codes require fan blades to be 7' (seven feet) or
higher above the floor, a longer down rod will generally improve airflow and
efficiency when ceiling heights allow. For hugger installation, proceed to
step (2) below. For down rod installation, skip to step (10).
DC Slim
MODERN FAN COMPANY
Customer Service
M-F 8am - 4pm (PST)
(ph) 888.588.3267
www.modernfan.com
hugger
light
canopy
diffuser
hanging
fan body-
bracket
motor housing
lamp
hardware
kit
coupling
cover
socket
plate
batteries
remote
handset
