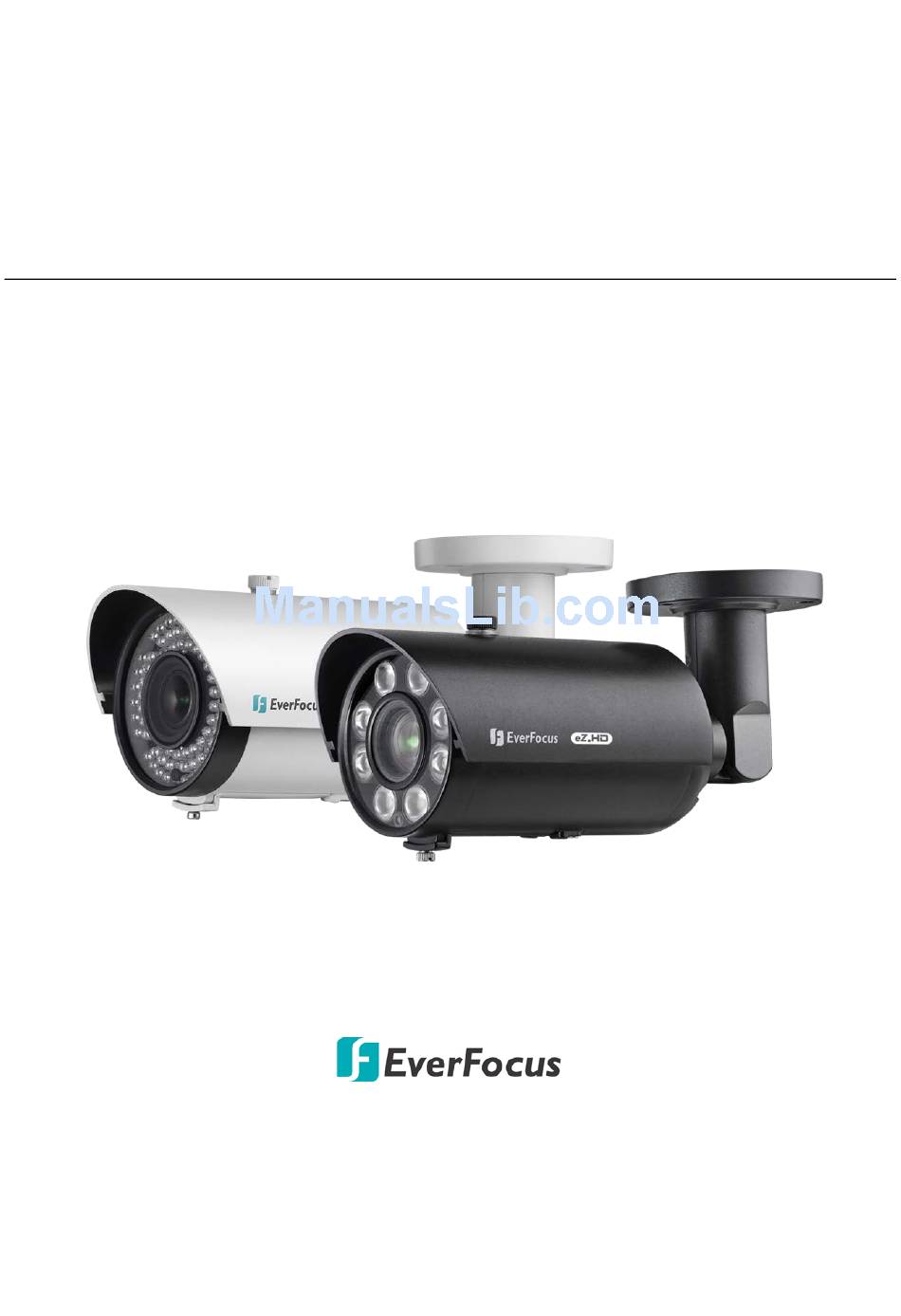

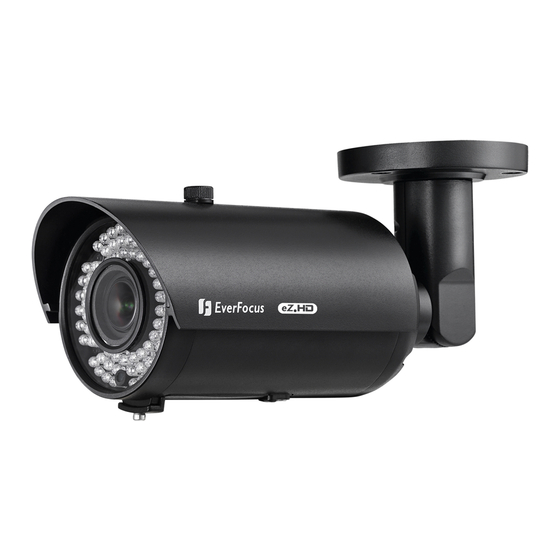

- Page 1 Series EZ930F/950F 1080p Full High Definition True Day/Night Outdoor IR Bullet Camera User’s Manual Copyright © EverFocus Electronics Corp. Release Date: February 2016...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. Introduction........................5 Packing List ........................5 Features .......................... 6 2. Cable Description ......................7 3. Installation ........................8 Installation And Adjustment ................... 8 4. Configuration In The Osd Menu ..................12 5. Specifications ........................16... -
Page 5: Introduction
CCTV systems that produce astounding image clarity in a wide range of outdoor applications at the widest range of light levels. The EZ930F/950F support both NTSC and PAL scanning systems, which can be switched via OSD. -
Page 6: Features
1/2.9” Sony 2.24M pixels CMOS sensor, delivering amazing high sensitivity Vari-focal 2.8~12mm(EZ930F)/ 5~50mm(EZ950F) DC iris lens to captures the desired field of view Extended IR range of up to 35m/115ft. with 80 LEDs (depending on scene IR reflectivity) ... -
Page 7: Cable Description
EZ930F/950F eZ.HD Outdoor IR Bullet Camera 2. Cable Description Name Descriptions Power Cable Connect to a 12VDC or 24VAC power source. 1080p, 720p and 960H output, using a 75 Ohm BNC-type coaxial Video Output cable. Test Lead Connect to a monitor for setting image aim and focus. -
Page 8: Installation
EZ930F/950F eZ.HD Outdoor IR Bullet Camera 3. Installation 3.1 Installation and Adjustment Overview for EZ930F Overview for EZ950F For Ceiling Mount / Wall Mount users: Stick the Template Plate on the position where you want to attach the camera. - Page 9 EZ930F/950F eZ.HD Outdoor IR Bullet Camera Drill three holes and insert the supplied Plastic Anchors into the holes, then screw the camera to the ceiling or wall by using the supplied Screws. Loosen the screw on the bracket with Hexagon Wrench, and adjust camera angles by tilting or rotating the camera.
- Page 10 EZ930F/950F eZ.HD Outdoor IR Bullet Camera Connect the camera to the 12VDC or 24VAC power source. (For 12VDC power source, you can optionally use the supplied DC Power Pigtail Cable. Loosen the screws on the bottom of housing, then pull out the OSD panel to configure camera settings using the OSD Menu Joystick, connect one end of the Test lead to the Test-out connector on the camera module and the other end to the portable monitor.
- Page 11 EZ930F/950F eZ.HD Outdoor IR Bullet Camera Note: The function button is using to control direction, and also to switch video format and video output. Please follow the detailed instruction as below to switch the camera to: Switch between 1080p and 720p (Default, 1080p): Press Upward for 5 Seconds ...
-
Page 12: Configuration In The Osd Menu
EZ930F/950F eZ.HD Outdoor IR Bullet Camera 4. Configuration in the OSD Menu You can use the Joystick on the bottom housing of the camera to configure camera settings in the OSD menu. The OSD menu structure is as below: No. Main... - Page 13 EZ930F/950F eZ.HD Outdoor IR Bullet Camera Area Position, Size,↑,↓,→,← Default Select Area1, Area2, Area3, Area4 Display Position, Size,↑,↓,→,← Black Mask On/Off HSBLC Level 0-100 All Day Model Night AGC Level 0-255 Default AWC→SET Indoor White Outdoor Balance Blue 1-500 Manual 0-100 D→N(Delay)
- Page 14 EZ930F/950F eZ.HD Outdoor IR Bullet Camera Neg. Image Off/On Select Area1,Area2,Area3,Area4 Position, Size,↑,↓,→,← Display Sensitiv 0-100 Color Green, Blue, White, Red Motion 1.00,0.75,0.50, Trans 0.25 View Type Off, Block, Outline, All OSD View On/Off Alarm Alarm Out On/Off Time 1-15...
- Page 15 EZ930F/950F eZ.HD Outdoor IR Bullet Camera x25, x30 Pos/Siz Position, Size,↑,↓,→,← Black DPC Start Press Enter DPC View Off/On Level 0-255 CAM ID 0-255 RS485 ID Display Off/On Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10 Sharpness Auto Start AGC 0-255 End AGC...
-
Page 16: Specifications
EZ930F/950F eZ.HD Outdoor IR Bullet Camera 5. Specifications EZ930F EZ950F Pickup Device 1/2.9" SONY 2.24M pixels CMOS Video Format NTSC and PAL( can be switched via OSD) Effective Pixels 1920 (H)*1080 (V) Scanning System Progressive Scan Sensitivity 0 lux with IR on... - Page 17 EZ930F/950F eZ.HD Outdoor IR Bullet Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F-1, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, New Taipei City, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940...
