1

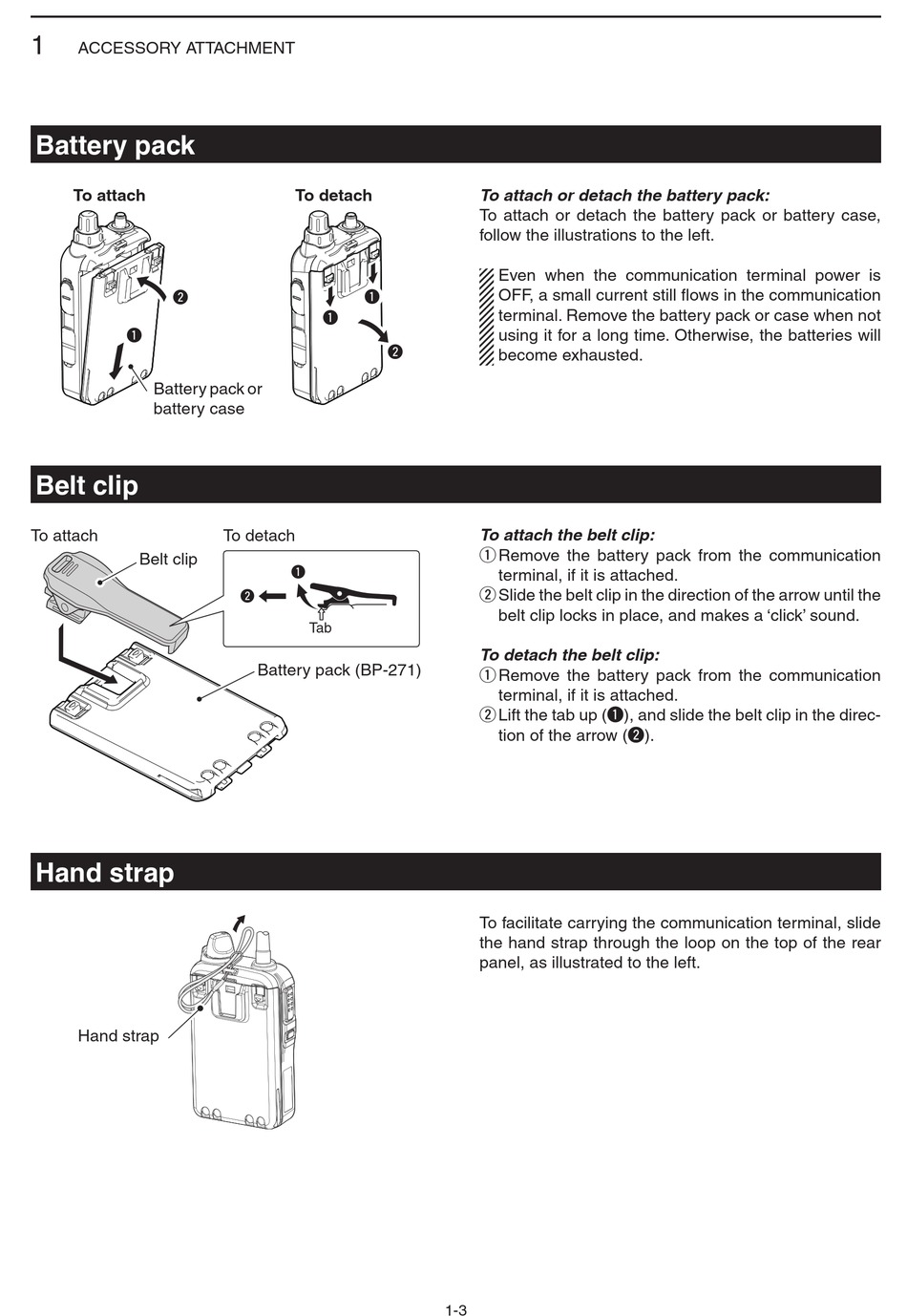

ACCESSORY ATTACHMENT

Battery pack

To attach
w
q
Battery pack or
battery case

Belt clip

To attach
Belt clip

Hand strap

Hand strap
To detach
q
q
w
To detach
q
w
Tab
Battery pack (BP-271)
To attach or detach the battery pack:
To attach or detach the battery pack or battery case,
follow the illustrations to the left.
Even when the communication terminal power is
OFF, a small current still flows in the communication
terminal. Remove the battery pack or case when not
using it for a long time. Otherwise, the batteries will
become exhausted.
To attach the belt clip:
Remove the battery pack from the communication
q
terminal, if it is attached.
Slide the belt clip in the direction of the arrow until the
w
belt clip locks in place, and makes a 'click' sound.
To detach the belt clip:
Remove the battery pack from the communication
q
terminal, if it is attached.
Lift the tab up ( q), and slide the belt clip in the direc-
w
tion of the arrow (w).
To facilitate carrying the communication terminal, slide
the hand strap through the loop on the top of the rear
panel, as illustrated to the left.
1-3
