5.

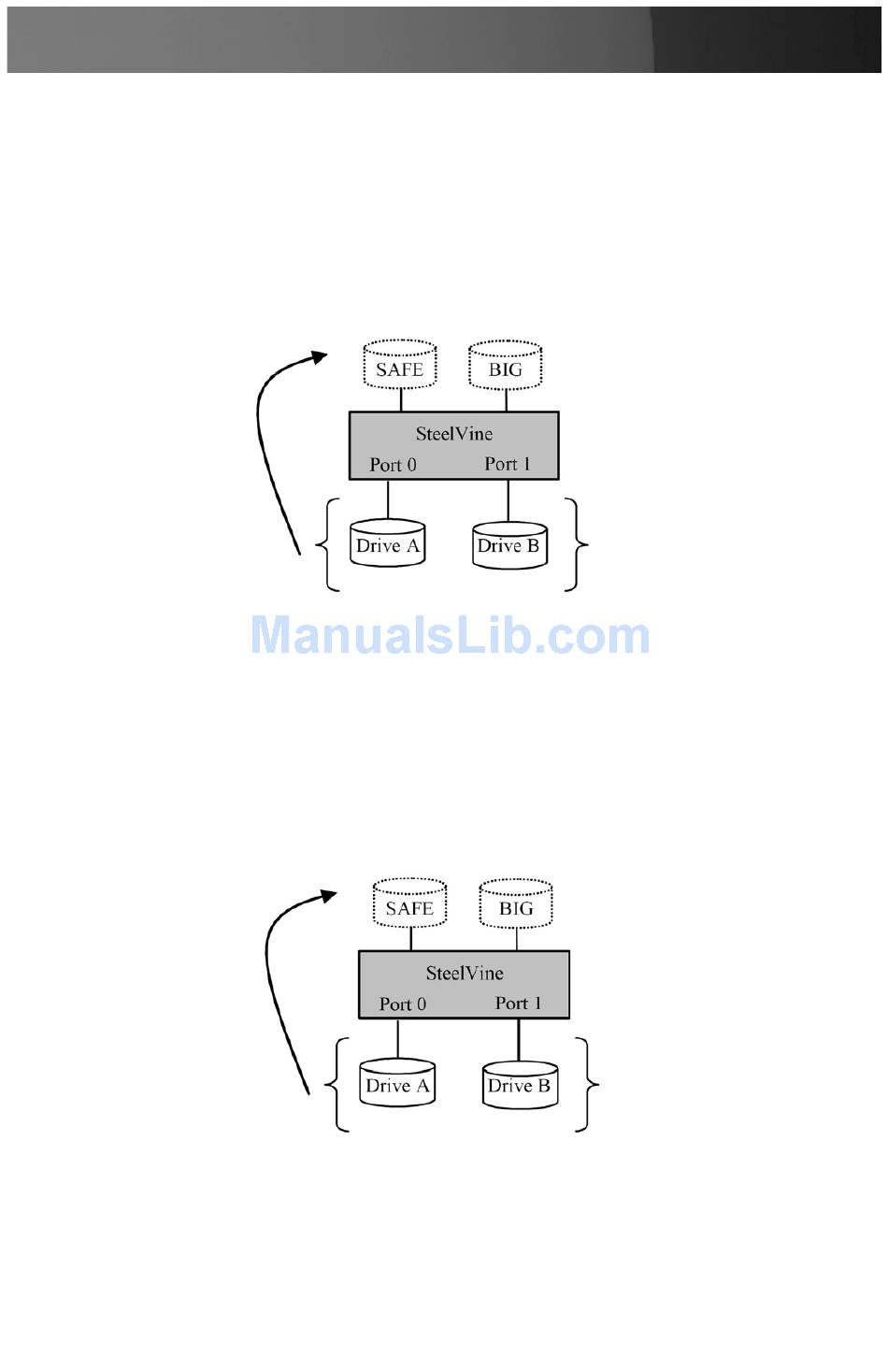

SAFE33 Mode
DIP SW-1: OFF, SW-2: OFF, SW-4: ON
The RAID Mode is SAFE33, wherein 30% of each HDD is used to build
a SAFE(mirror) RAID and also use the rest of the capacity to
build a second BIG(Span) HDD. In this mode, two physical drives will
be recognized, one is SAFE(mirror) and the other is BIG(Span).
6.
SAFE50 Mode
DIP SW-1: ON, SW-2: OFF, SW-4: ON,
This configuration takes 50% of both drives to build a SAFE(mirror)
RAID; the remaining drive capacity is used to build a BIG(span)
RAID. In this mode, the system recognizes two physical drives - one
SAFE(mirror) and the other, BIG(span).
7.
Reserved Mode
DIP SW-1: OFF, SW-2: ON, SW-4: ON
No RAID function set.
Instruction Manual
13
