Summary of Contents for StarTech.com SAT2510BU2E

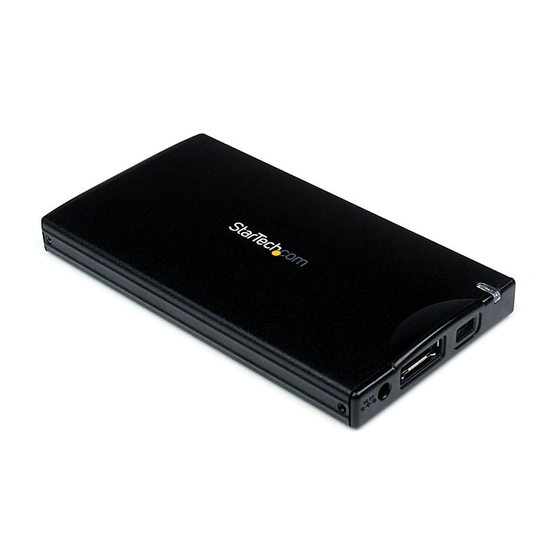

- Page 1 Serial ATA Hard Drive Enclosure SAT2510BU2E Instruction Manual 2.5” eSATA/USB External Hard Drive Enclosure for Serial ATA Hard Drives...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ... 1 Packaging Contents...1 System Requirements ...1 Installation ... 2 Hardware Installation ...3 Driver Installation ...4 Verifying Installation ...5 How to Use ... 5 Specifications ... 7 Technical Support ... 8 Warranty Information ... 8... -
Page 4: Introduction
USB 2.0 or eSATA with support for data transfer rates of up to 3Gbps (using eSATA) or 480Mbps (through USB 2.0). Packaging Contents • 1 x SAT2510U2E or SAT2510BU2E enclosure • 1 x eSATA cable • 1 x USB cable •... -
Page 5: Installation
Be sure that you are properly grounded before opening your computer case or touching any components. StarTech.com recommends that you wear an anti-static strap when installing any computer equipment. If an antistatic strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. -
Page 6: Hardware Installation
Hardware Installation Remove the screws from the enclosure, and remove the rear panel cover. Pull the front panel out of the enclosure: Attach the 2.5” SATA hard drive to the connector provided: Insert the front panel (with drive attached) into the rear panel (enclosure). -
Page 7: Driver Installation
Fasten the front panel (with drive attached) to the rear panel (enclosure), using the screws removed in step #1. To connect the hard drive enclosure to a host computer using USB, simply insert the included USB cable into the USB type Mini B slot provided by the enclosure, and the remaining end into an available USB type A slot on the host computer. -
Page 8: Verifying Installation
Verifying Installation Windows 2000/XP/Server 2003/Vista From the main desktop, right-click on “My Computer” (“Computer” in Vista), then select Manage. In the new Computer Management window, select Device Manager from the left window panel. Double-click on the “Disk Drives” option. A new disk drive should be listed under this category. - Page 9 Right-click on the Unallocated block, and select New Partition. This will launch the New Partition Wizard. Please follow the instruction provided by the Wizard, to partition the drive for use. Once the partition has been created, the drive installed within the hard drive enclosure will be recognized as a New Volume in Disk Management, as well as in My Computer:...
-
Page 10: Specifications
Specifications USB 2.0 Bus Interface SATA 3Gb/s 1 x USB mini B External Connectors 1 x eSATA port 1 x DC power connector Chipset JMircon JM20316 LEDs 1 x Power/Activity USB: 480 Mb/s Maximum Data Transfer Rate eSATA: 3 Gb/s 2.5”... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or... - Page 12 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Server...
