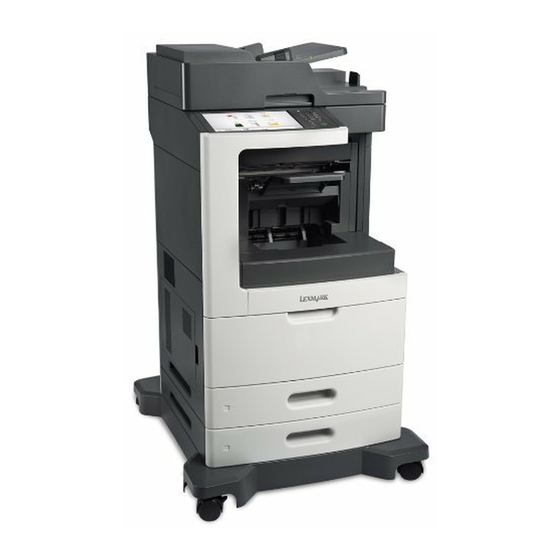

Lexmark MX810 Series User Manual
  1. Manuals
  2. Brands
  3. Lexmark Manuals
  4. All in One Printer
  5. MX810 Series
  6. User manual

Lexmark MX810 Series User Manual

Mx810 series
Hide thumbs Also See for MX810 Series:
1
Table Of Contents
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
Table of Contents

Advertisement

Quick Links

Download this manual See also: Driver Manual, User Manual
MX810 Series
User's Guide
August 2014
www.lexmark.com
Machine type(s):
7463
Model(s):
436, 636, 836

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX810 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Lexmark MX810 Series

Summary of Contents for Lexmark MX810 Series

  • Page 1 MX810 Series User's Guide August 2014 www.lexmark.com Machine type(s): 7463 Model(s): 436, 636, 836...

  • Page 2: Table Of Contents

    Contents Contents Safety information..................7 Learning about the printer................9 Finding information about the printer......................9 Selecting a location for the printer......................10 Printer configurations..........................12 Understanding the basic functions of the scanner..................13 Using the ADF and scanner glass......................14 Understanding the printer control panel............15 Using the printer control panel.......................15 Understanding the colors of the Sleep button and indicator lights............15 Understanding the home screen......................16 Using the touch-screen buttons......................18...
  • Page 3 Contents Networking..............................52 Verifying printer setup..........................56 Loading paper and specialty media............58 Setting the paper size and type.......................58 Configuring Universal paper settings......................58 Loading the 550‑sheet tray........................58 Loading the 2100‑sheet tray........................68 Loading the multipurpose feeder......................75 Linking and unlinking trays........................81 Paper and specialty media guide..............83 Using specialty media..........................83 Paper guidelines............................85 Supported paper sizes, types, and weights.....................88...
  • Page 4 Contents Canceling an e-mail..........................116 Understanding the e-mail options......................116 Faxing......................119 Setting up the printer to fax........................119 Sending a fax............................135 Creating shortcuts..........................137 Customizing fax settings........................138 Canceling an outgoing fax........................140 Holding and forwarding faxes.......................140 Understanding the fax options......................141 Scanning....................144 Using Scan to Network..........................144 Scanning to an FTP address........................144 Scanning to a computer or flash drive....................146 Understanding the scan options......................148...
  • Page 5 Contents Finding printer security information.....................246 Maintaining the printer................247 Cleaning printer parts..........................247 Checking the status of parts and supplies.....................251 Estimated number of remaining pages....................252 Ordering supplies..........................252 Storing supplies.............................255 Replacing supplies..........................256 Moving the printer..........................264 Managing the printer................266 Finding advanced networking and administrator information.............266 Checking the virtual display........................266 Setting up e‑mail alerts.........................266 Viewing reports.............................266...
  • Page 6 Contents Solving print problems..........................324 Solving copy problems..........................350 Solving fax problems..........................353 Solving scanner problems........................359 Solving home screen application problems...................364 Embedded Web Server does not open....................364 Contacting customer support........................365 Notices.....................366 Product information..........................366 Edition notice............................366 Power consumption..........................371 Index......................384...

  • Page 7: Safety Information

    Safety information Safety information Connect the power cord directly to an appropriately rated and properly grounded electrical outlet that is near the product and easily accessible. CAUTION—POTENTIAL INJURY: Do not use this product with extension cords, multioutlet power strips, multioutlet extenders, or other types of surge or UPS devices. The power rating capacity of these types of accessories can be easily overloaded by a laser printer and may result in poor printer performance, property damage, or potential fire.
  • Page 8 If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters. CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all other trays closed until needed.

  • Page 9: Learning About The Printer

    Caring for and maintaining the printer • Troubleshooting and solving problems Information on setting up and configuring the accessibility Lexmark Accessibility Guide—This guide is available at features of your printer http://support.lexmark.com. Help using the printer software Windows or Mac Help—Open a printer software program or application, and then click Help.

  • Page 10: Selecting A Location For The Printer

    Learning about the printer What are you looking for? Find it here The latest supplemental information, updates, and customer Lexmark support Web site— support: http://support.lexmark.com • Documentation Note: Select your country or region, and then select your product to view the appropriate support site.
  • Page 11 Learning about the printer Right side 152 mm (6 in.) Front 394 mm (15.5 in.) Left side 152 mm (6 in.) Rear 152 mm (6 in.) 152 mm (6 in.)

  • Page 12: Printer Configurations

    Learning about the printer Printer configurations Basic model Automatic document feeder (ADF) ADF tray ADF bin 4‑bin mailbox Standard bin Multipurpose feeder Standard 550-sheet tray 2100-sheet tray Caster base Printer control panel...

  • Page 13: Understanding The Basic Functions Of The Scanner

    If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters. Hardware option Alternative hardware option Staple finisher •...

  • Page 14: Using The Adf And Scanner Glass

    Learning about the printer • Send a fax to multiple fax destinations at the same time. • Scan documents and send them to your computer, an e-mail address, a flash drive, or an FTP destination. • Scan documents and send them to another printer (PDF through an FTP). Using the ADF and scanner glass Automatic document feeder (ADF) Scanner glass...

  • Page 15: Understanding The Printer Control Panel

    Understanding the printer control panel Understanding the printer control panel Using the printer control panel @ ! . A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Use the Display...

  • Page 16: Understanding The Home Screen

    Understanding the printer control panel Indicator light Printer status Blinking red The printer requires user intervention. Sleep button light Printer status The printer is off, idle or in Ready state. Solid amber The printer is in Sleep mode. Blinking amber The printer is entering or waking from Hibernate mode.
  • Page 17 Understanding the printer control panel Touch Bookmarks Create, organize, and save a set of bookmarks (URL) into a tree view of folders and file links. Note: The tree view supports only bookmarks created from this function, and not from any other application.

  • Page 18: Using The Touch-Screen Buttons

    Understanding the printer control panel Feature Description Printer IP address The IP address of your network printer is located at the upper left corner of the home screen and appears as four sets of numbers separated by periods. You can Example: use the IP address when accessing the Embedded Web Server so you can view and 123.123.123.123...
  • Page 19 Understanding the printer control panel Touch Cancel • Cancel an action or a selection. • Exit a screen and return to the previous screen without saving changes. Reset Reset values on the screen.

  • Page 20: Setting Up And Using The Home Screen Applications

    • There may be additional solutions and applications available for purchase. For more information, go to www.lexmark.com or contact the place where you purchased the printer. Finding the IP address of the printer Note: Make sure your printer is connected to a network or to a print server.

  • Page 21: Customizing The Home Screen

    Setting up and using the home screen applications Press Enter. Note: If you are using a proxy server, then temporarily disable it to load the Web page correctly. Customizing the home screen Open a Web browser, and then type the printer IP address in the address field. Note: View the printer IP address on the printer home screen.

  • Page 22: Activating The Home Screen Applications

    Note: A later version of this User's Guide may contain a direct link to the Administrator’s Guide of this application. To check for updates of this User’s Guide, go to http://support.lexmark.com. Streamline work processes by letting you quickly find and print frequently used online forms directly from the printer home screen.

  • Page 23: Setting Up Card Copy

    Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To check for updates of this User's Guide, go to http://support.lexmark.com. Quickly and easily copy insurance, identification, and other wallet‑size cards.

  • Page 24: Setting Up Multi Send

    Note: A later version of this User's Guide may contain a direct link to the Administrator's Guide of this application. To check for updates of this User's Guide, go to http://support.lexmark.com. Scan a document, and then send the scanned document to multiple destinations.

  • Page 25: Setting Up Remote Operator Panel

    Setting up and using the home screen applications Scan a document and send it to a shared network folder. You can define up to 30 unique folder destinations. Notes: • The printer must have permission to write to the destinations. From the computer where the destination is specified, use sharing, security, and firewall settings to allow the printer at least a write access.

  • Page 26: Exporting And Importing A Configuration

    Setting up and using the home screen applications Exporting and importing a configuration You can export configuration settings into a text file, and then import the file to apply the settings to other printers. Open a Web browser, and then type the printer IP address in the address field. Note: View the printer IP address on the printer home screen.

  • Page 27: Additional Printer Setup

    • Firmware cards – Forms barcode – PRESCRIBE – IPDS – Printcryption • Lexmark Internal Solutions Ports (ISP) – Parallel 1284-B interface – MarkNet N8350 802.11 b/g/n wireless printer server – MarkNet N8130 10/100 fiber interface – RS-232-C serial interface Accessing the controller board Note: This task requires a flat‑head screwdriver.
  • Page 28 Additional printer setup CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn them off as well, and unplug any cables going into the printer.
  • Page 29 Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors. Lexmark Internal Solutions Port or printer hard disk connector Option card connector Memory card connector...
  • Page 30 Additional printer setup Reattach the shield, and then align the screws with the holes. Tighten the screws on the shield.

  • Page 31: Installing A Memory Card

    Additional printer setup Close the access cover. Installing a memory card CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing.

  • Page 32: Installing An Optional Card

    Additional printer setup Align the notch (1) on the memory card with the ridge (2) on the connector. Push the memory card straight into the connector, and then push the card toward the controller board wall until it clicks into place. Reattach the controller board shield, and then the controller board access cover.
  • Page 33 Additional printer setup Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity. Touch a metal surface on the printer before touching any controller board electronic components or connectors. Access the controller board. For more information, see “Accessing the controller board” on page Unpack the optional card.

  • Page 34: Installing An Internal Solutions Port

    Installing an Internal Solutions Port The controller board supports one optional Lexmark Internal Solutions Port (ISP). Note: This task requires a flat‑head screwdriver. CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing.
  • Page 35 Additional printer setup ISP solution Screw for attaching the plastic bracket to the ISP Screws for attaching the ISP mounting bracket to the controller board shield Plastic bracket Remove the metal cover from the ISP opening. Loosen the screw. Lift the metal cover, and then pull it out completely.
  • Page 36 Additional printer setup Align the posts of the plastic bracket to the holes on the controller board cage, and then press the plastic bracket on the controller board cage until it clicks into place. Note: Make sure that the plastic bracket has latched completely, and that the plastic bracket is seated firmly on the cage.
  • Page 37 Additional printer setup Lower the ISP toward the plastic bracket until the ISP is seated between the guides of the plastic bracket. Use the provided thumbscrew for the ISP to attach the plastic bracket to the ISP. Note: Turn the screw clockwise, enough to hold the ISP in place, but do not tighten it yet.
  • Page 38 Additional printer setup Attach the two provided screws to secure the ISP mounting bracket to the controller board shield. Tighten the thumbscrew that is attached to the ISP. Warning—Potential Damage: Do not screw it on too tightly.

  • Page 39: Installing A Printer Hard Disk

    Additional printer setup Connect the ISP solution interface cable into the receptacle of the controller board. Note: The plugs and receptacles are color-coded. Installing a printer hard disk Note: This task requires a flat‑head screwdriver. CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing.
  • Page 40 Additional printer setup Locate the appropriate connector on the controller board cage. Note: If an optional ISP is currently installed, then the printer hard disk must be installed onto the ISP.
  • Page 41 Additional printer setup To install a printer hard disk onto the ISP: Remove the screws attached to the printer hard disk mounting bracket, and then remove the bracket. Align the standoffs of the printer hard disk to the holes in the ISP, and then press the printer hard disk down until the standoffs are in place.
  • Page 42 Additional printer setup To install a printer hard disk directly on the controller board cage: Align the standoffs of the printer hard disk to the holes in the controller board cage, and then press the printer hard disk down until the standoffs are in place. Installation warning: Hold only the edges of the printed circuit board assembly.
  • Page 43 Additional printer setup Use the two provided screws to attach the printer hard disk mounting bracket. Insert the plug of the printer hard disk interface cable into the receptacle of the controller board. Note: The plugs and receptacles are color‑coded.

  • Page 44: Removing A Printer Hard Disk

    Additional printer setup Removing a printer hard disk Note: This task requires a flat‑head screwdriver. CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing.
  • Page 45 Additional printer setup Remove the screws holding the printer hard disk in place. Remove the printer hard disk. Set aside the printer hard disk.

  • Page 46: Installing Hardware Options

    If you purchased a multifunction printer (MFP) that scans, copies, and faxes, then you may need additional furniture. For more information, see www.lexmark.com/multifunctionprinters. CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord from the electrical outlet before continuing.
  • Page 47 Additional printer setup Unpack the optional tray, and then remove all packing material. Pull out the tray completely from the base. Remove any packing material from inside the tray. Insert the tray into the base. Place the tray near the printer. Align the optional tray with the caster base.
  • Page 48 Additional printer setup Align the printer with the tray, and then slowly lower the printer into place. Note: Optional trays lock together when stacked. Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.

  • Page 49: Attaching Cables

    Additional printer setup Note: When the printer software and any optional trays are installed, you may need to manually add the options in the printer driver to make them available for print jobs. For more information, see “Adding available options in the print driver” on page To uninstall the optional trays, slide the latch on the right side of the printer toward the front of the printer until it clicks into place, and then remove stacked trays one at a time from the top to the bottom.
  • Page 50 Additional printer setup Use the EXT port Connect additional devices (telephone or answering machine) to the printer and the telephone line. Use this port if you do not have a dedicated fax line for the printer and if this connection method is supported in your country or region. Note: Remove the plug to access the port.

  • Page 51: Setting Up The Printer Software

    Additional printer setup Organizing cables Attach the Ethernet cable and power cord, and then neatly tuck the cables in the channels at the back of the printer. Setting up the printer software Installing the printer Obtain a copy of the software installer package. Run the installer, and then follow the instructions on the computer screen.

  • Page 52: Networking

    Additional printer setup In Windows 7 or earlier Click , or click Start and then click Run. Type control printers. Press Enter, or click OK. Select the printer you want to update, and then do either of the following: • For Windows 7 or later, select Printer properties.

  • Page 53: Preparing To Set Up The Printer On A Wireless Network

    Additional printer setup Preparing to set up the printer on a wireless network Notes: • Make sure your wireless network adapter is installed in your printer and working properly. For more information, see the instruction sheet that came with the wireless network adapter. •...

  • Page 54: Connecting The Printer Using The Wireless Setup Wizard

    Additional printer setup Connecting the printer using the Wireless Setup Wizard Before you begin, make sure that: • A wireless network adapter is installed in the printer and is working properly. For more information, see the instruction sheet that came with the wireless network adapter. •...

  • Page 55: Connecting The Printer To A Wireless Network Using The Embedded Web Server

    Additional printer setup Open a Web browser, and then type the IP address of your access point in the address field. Notes: • The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123. • If you are using a proxy server, then temporarily disable it to load the Web page correctly. Access the WPS settings.

  • Page 56: Verifying Printer Setup

    Additional printer setup Configure the port from the list. Update the IP address. Apply the changes. For Macintosh users From System Preferences in the Apple menu, navigate to the list of printers, and then select + > IP. Type the IP address in the address field. Apply the changes.

  • Page 57: Printing A Network Setup Page

    Additional printer setup Printing a network setup page If the printer is attached to a network, then print a network setup page to verify the network connection. This page also provides important information that aids network printing configuration. From the home screen, navigate to: >...

  • Page 58: Loading Paper And Specialty Media

    Loading paper and specialty media Loading paper and specialty media The selection and handling of paper and specialty media can affect how reliably documents print. For more information, “Avoiding jams” on page 269 “Storing paper” on page Setting the paper size and type From the home screen navigate to: >...
  • Page 59 Loading paper and specialty media...
  • Page 60 Loading paper and specialty media Squeeze and slide the width guide to the correct position for the size of the paper being loaded until it clicks into place. Note: Use the paper size indicators on the bottom of the tray to help position the guides.
  • Page 61 Loading paper and specialty media...
  • Page 62 Loading paper and specialty media Unlock the length guide, and then squeeze and slide the guide to the correct position for the size of the paper being loaded. Notes: • Lock the length guide for all paper sizes. • Use the paper size indicators on the bottom of the tray to help position the guides.
  • Page 63 Loading paper and specialty media Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface. Load the paper stack with the printable side facedown. Note: Make sure the paper or envelope is loaded properly.
  • Page 64 Loading paper and specialty media Without an optional staple finisher With an optional staple finisher Two‑sided printing Two‑sided printing • If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge of the paper are on the right side of the tray.
  • Page 65 Loading paper and specialty media • Do not slide the paper into the tray. Load paper as shown in the illustration. • If you are loading envelopes, then make sure that the flap side is facing up and the envelopes are on the left side of the tray.
  • Page 66 Loading paper and specialty media • Make sure the paper is below the solid line, which is the maximum paper fill indicator. Warning—Potential Damage: Overfilling the tray can cause paper jams.
  • Page 67 Loading paper and specialty media • When using card stock, labels, or other types of specialty media, make sure the paper is below the dashed line, which is the alternate paper fill indicator. For custom‑ or Universal‑size paper, adjust the paper guides to lightly touch the sides of the stack, and then lock the length guide.

  • Page 68: Loading The 2100-Sheet Tray

    Loading paper and specialty media Insert the tray. From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in the tray. Note: Set the correct paper size and type to avoid paper jams and print quality problems. Loading the 2100‑sheet tray CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately.
  • Page 69 Loading paper and specialty media Loading A5‑size paper Pull up and slide the width guide to the position for A5. Squeeze and slide the length guide to the position for A5 until it clicks into place.
  • Page 70 Loading paper and specialty media Remove the A5 length guide from its holder. Insert the A5 length guide into its designated slot. Note: Press the A5 length guide until it clicks into place. Loading A4‑, letter‑, legal‑, oficio‑, and folio‑size paper Pull up and slide the width guide to the correct position for the size of the paper being loaded.
  • Page 71 Loading paper and specialty media If the A5 length guide is still attached to the length guide, then remove it from its place. If the A5 length guide is not attached, then proceed to step d. Put the A5 length guide in its holder.
  • Page 72 Loading paper and specialty media Squeeze the length guide and slide it to the correct position for the size of the paper being loaded until it clicks into place. Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface.
  • Page 73 Loading paper and specialty media Without an optional staple finisher With an optional staple finisher One‑sided printing One‑sided printing Two‑sided printing Two‑sided printing • If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge of the paper are on the right side of the tray.
  • Page 74 Loading paper and specialty media • Make sure the paper is below the maximum paper fill indicator. Warning—Potential Damage: Overfilling the tray can cause paper jams. Insert the tray. Note: Press the paper stack down while inserting the tray.

  • Page 75: Loading The Multipurpose Feeder

    Loading paper and specialty media From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded. Note: Set the correct paper size and type to avoid paper jams and print quality problems. Loading the multipurpose feeder Pull down the multipurpose feeder door.
  • Page 76 Loading paper and specialty media Using the handle, pull the multipurpose feeder extender.
  • Page 77 Loading paper and specialty media Note: Guide the extender gently so that the multipurpose feeder is fully extended and open. Slide the width guide to the correct position for the size of the paper being loaded. Note: Use the paper size indicators on the bottom of tray to help position the guides.
  • Page 78 Loading paper and specialty media Prepare the paper or specialty media for loading. • Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface. •...
  • Page 79 Loading paper and specialty media Without an optional staple finisher With an optional staple finisher Two‑sided printing Two‑sided printing • If you are loading prepunched paper for use with the staple finisher, then make sure the holes on the long edge of the paper are on the right side of the tray.
  • Page 80 Loading paper and specialty media • Load envelopes with the flap side down and on the left of the multipurpose feeder. Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self‑stick adhesives. These envelopes may severely damage the printer. •...

  • Page 81: Linking And Unlinking Trays

    Loading paper and specialty media Warning—Potential Damage: Overfilling the feeder can cause paper jams. For custom- or universal-size paper, adjust the width guides to lightly touch the sides of the stack. From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the tray.

  • Page 82: Assigning A Custom Paper Type

    Loading paper and specialty media Click Submit. Click Custom Types, and then verify if the new custom paper type name has replaced the custom name. Using the printer control panel From the home screen, navigate to: > Paper Menu > Custom Names Select a custom name, and then type a custom paper type name.

  • Page 83: Paper And Specialty Media Guide

    The printer may print at a reduced speed to prevent damage to the fuser. • For more information on card stock and labels, see the Card Stock & Label Guide on the Lexmark support Web site at http://support.lexmark.com. Using specialty media Tips on using card stock Card stock is heavy, single‑ply specialty media.

  • Page 84: Tips On Using Labels

    Print samples on labels being considered for use before buying large quantities. • For more information on label printing, characteristics, and design, see the Card Stock & Label Guide at http://support.lexmark.com. • Use labels designed specifically for laser printers. •...

  • Page 85: Paper Guidelines

    Paper and specialty media guide Tips on using transparencies • From the printer control panel, set the paper size, type, texture, and weight in the Paper menu to match the transparencies loaded in the tray. • Print a test page on the transparencies being considered for use before buying large quantities. •...

  • Page 86: Grain Direction

    (electrophotographic) printers. While no blanket statement can be made that all recycled paper will feed well, Lexmark consistently tests papers that represent recycled cut size copier papers available on the global market. This scientific testing is conducted with rigor and discipline.
  • Page 87 Lexmark concerns itself with the responsible use of paper in general based on life cycle assessments of its products. To gain a better understanding of the impact of printers on the environment, the company commissioned a number of life cycle assessments and found that paper was identified as the primary contributor (up to 80%) of carbon emissions caused throughout the entire life of a device (from design to end-of-life).

  • Page 88: Supported Paper Sizes, Types, And Weights

    Paper and specialty media guide For more information about Lexmark, visit www.lexmark.com. General sustainability-related information can be found at the Environmental Sustainability link. Storing paper Use these paper storage guidelines to help avoid jams and uneven print quality: • For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity...
  • Page 89 Paper and specialty media guide Dimensions 550‑sheet tray 2100‑sheet tray Multipurpose Duplex Scanner Paper size feeder glass Legal 216 x 356 mm (8.5 x 14 in.) Executive 184 x 267 mm (7.3 x 10.5 in.) Oficio (México) 216 x 340 mm (8.5 x 13.4 in.) Folio 216 x 330 mm...

  • Page 90: Paper Types And Weights Supported By The Printer

    Paper and specialty media guide Paper types and weights supported by the printer The printer engine supports 60–176‑g/m (16–47‑lb) paper weights. Note: Labels, transparencies, envelopes, and card stock always print at reduced speed. Paper type 550‑sheet tray 2100‑sheet Multipurpose Duplex Scanner glass tray feeder...
  • Page 91 Paper and specialty media guide Paper size 4‑bin mailbox Offset stacker Staple finisher Staple, hole punch finisher Statement Universal The finisher staples the paper if it is loaded long edge first. The finisher stacks the paper but does not staple or punch holes in it. The finisher stacks and staples the paper but does not punch holes in it.
  • Page 92 Paper and specialty media guide Paper type Paper weight 4‑bin mailbox Offset stacker Staple finisher Staple, hole punch finisher Envelope 105 g/m (28 Ib bond) Rough Envelope 105 g/m (28 Ib bond) Letterhead 90–176 g/m (24–47 lb bond) 60–90 g/m (16–24 lb bond) Preprinted 90–176 g/m...

  • Page 93: Printing

    Printing Printing Printing forms and a document Printing forms Use Forms and Favorites to quickly and easily access frequently used forms or other information that is regularly printed. Before you can use this application, first set it up on the printer. For more information, see “Setting up Forms and Favorites”...

  • Page 94: Printing From A Flash Drive Or Mobile Device

    Printing Notes: • View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123. • If you are using a proxy server, then temporarily disable it to load the Web page correctly. Click Settings >...

  • Page 95: Supported Flash Drives And File Types

    Printing • If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the printer ignores the flash drive. • If you insert the flash drive while the printer is processing other print jobs, then Busy appears on the printer display.

  • Page 96: Printing Confidential And Other Held Jobs

    • .fls Printing from a mobile device To download a compatible mobile printing application, visit www.lexmark.com/mobile. Note: Mobile printing applications may also be available from your mobile device manufacturer. Printing confidential and other held jobs Storing print jobs in the printer From the printer control panel, navigate to: >...
  • Page 97 Printing Notes: • Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to process additional held jobs. • You can set the printer to store print jobs in the printer memory until you start the print job from the printer control panel.

  • Page 98: Printing Information Pages

    Printing Modifying confidential print settings Open a Web browser, and then type the printer IP address in the address field. Notes: • View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
  • Page 99 Printing Canceling a print job from the computer For Windows users Open the printers folder, and then select your printer. From the print queue, select the print job you want to cancel, and then delete it. For Macintosh users From System Preferences in the Apple menu, navigate to your printer. From the print queue, select the print job you want to cancel, and then delete it.

  • Page 100: Copying

    Copying Copying Automatic document feeder (ADF) Scanner glass Use the ADF for multiple‑page documents. Use the scanner glass for single pages, small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings). Making copies Making a quick copy Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

  • Page 101: Copying Photos

    Copying From the home screen, navigate to: Copy > specify the copy settings > Copy It Copying using the scanner glass Place an original document facedown on the scanner glass in the upper left corner. From the home screen, navigate to: Copy >...

  • Page 102: Creating A Copy Shortcut Using The Printer Control Panel

    Copying Navigate to: Copy to > select the tray that contains transparencies > Copy It If there are no trays that contain transparencies, then navigate to: Manual Feeder > > select the size of the transparencies > > Transparency > Load transparencies into the multipurpose feeder, and then touch Copy It.

  • Page 103: Customizing Copy Settings

    Copying Customizing copy settings Copying to a different size Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass. Notes: • Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray.
  • Page 104 Copying Notes: • Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray. Place these items on the scanner glass. • The ADF indicator light comes on when the paper is loaded properly. If you are loading a document into the ADF tray, then adjust the paper guides.

  • Page 105: Reducing Or Enlarging Copies

    Copying From the home screen, navigate to: Copy > Sides (Duplex) > select the preferred duplexing method Note: For the preferred duplexing method, the first number represents sides of the original documents while the second number represents sides of the copy. For example, select “2 sided to 2 sided” if you have two-sided original documents and you want two‑sided copies.

  • Page 106: Collating Copies

    Copying Touch Touch the button that best represents the content source of the document you are copying. • Color Laser—The original document was printed using a color laser printer. • Inkjet—The original document was printed using an inkjet printer. • Magazine—The original document is from a magazine.

  • Page 107: Copying Multiple Pages Onto A Single Sheet

    Copying From the home screen, navigate to: Copy > Advanced Options > Separator Sheets Note: Set Collate to “1,2,3 ‑ 1,2,3” to place separator sheets between copies. If Collate is set to “1,1,1 ‑ 2,2,2,” then the separator sheets are added to the end of the copy job. For more information, see “Collating copies”...

  • Page 108: Placing Information On Copies

    Copying For example: Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass. Notes: • Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray. Place these items on the scanner glass. •...

  • Page 109: Canceling A Copy Job

    Copying Notes: • Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray. Place these items on the scanner glass. • The ADF indicator light comes on when the paper is loaded properly. If you are loading a document into the ADF tray, then adjust the paper guides.
  • Page 110 Copying • If the paper type or size that you want to copy onto is not loaded in one of the trays, then touch Manual Feeder, and manually load the paper in the multipurpose feeder. • When “Copy to” is set to Auto Size Match, each copy matches the paper size of the original document. If a matching paper size is not in one of the trays, then Paper size not found appears and prompts to load a paper in a tray or multipurpose feeder.

  • Page 111: Save As Shortcut

    Copying • Newspaper—The original document is from a newspaper. • Other—The original document was printed using an alternate or unknown printer. • Photo/Film—The original document is a photo from film. • Press—The original document was printed using a printing press. Save As Shortcut This option lets you save the current settings by assigning a shortcut name.

  • Page 112: E-Mailing

    E-mailing E-mailing Automatic document feeder (ADF) Scanner glass Use the ADF for multiple‑page documents. Use the scanner glass for single pages, small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings). Setting up the printer to e-mail Setting up the e-mail function Open a Web browser, and then type the printer IP address in the address field.

  • Page 113: Creating An E-Mail Shortcut

    E-mailing Creating an e-mail shortcut Creating an e-mail shortcut using the Embedded Web Server Open a Web browser, and then type the printer IP address in the address field. Notes: • View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

  • Page 114: E-Mailing A Document

    E-mailing E-mailing a document You can use the printer to e‑mail scanned documents to one or more recipients in a number of ways. You can type the e‑mail address, use a shortcut number, or use the address book. You can also use the Multi Send or MyShortcut application from the printer home screen.

  • Page 115: Customizing E-Mail Settings

    E-mailing Sending an e‑mail using the address book Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass. Notes: • Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray.

  • Page 116: Canceling An E-Mail

    E-mailing Select the file type you want to send. Note: If you select Secure PDF, then you will be prompted to enter your password twice. Touch > Send It. Canceling an e-mail • When using the ADF, touch Cancel Job while Scanning appears. •...
  • Page 117 E-mailing Select from the following content types: • Graphics—The original document is mostly business‑type graphics, such as pie charts, bar charts, and animations. • Photo—The original document is mostly a photo or an image. • Text—The content of the original document is mostly text or line art. •...

  • Page 118: Page Setup

    E-mailing Page Setup This option lets you change the following settings: • Sides (Duplex)—This specifies if the original document is printed on only one side or on both sides of the paper. This also identifies what needs to be scanned for inclusion in the e-mail. •...

  • Page 119: Faxing

    Faxing Faxing Note: Fax capabilities are available only in some printer models. Automatic document feeder (ADF) Scanner glass Use the ADF for multiple‑page documents. Use the scanner glass for single pages, small items (such as postcards or photos), transparencies, photo paper, or thin media (such as magazine clippings).

  • Page 120: Initial Fax Setup

    Faxing Initial fax setup Many countries and regions require outgoing faxes to contain the following information in a margin at the top or bottom of each transmitted page, or on the first page of the transmission: fax name (identification of the business, other entity, or individual sending the message) and fax number (telephone number of the sending fax machine, business, other entity, or individual).
  • Page 121 Faxing Choosing a fax connection Scenario 1: Standard telephone line Setup 1: Printer is connected to a dedicated fax line...
  • Page 122 Faxing To connect: Connect one end of the telephone cable that came with the printer to the port of the printer. Connect the other end of the telephone cable to an active analog wall jack. Tips for this setup: • You can set the printer to receive faxes automatically (Auto Answer On) or manually (Auto Answer Off).
  • Page 123 Faxing Connected to different wall jacks PHONE LINE To connect: Connect one end of the telephone cable that came with the printer to the port of the printer. Connect the other end of the telephone cable to an active analog wall jack. Tips for this setup: •...
  • Page 124 Faxing • If you subscribe to a distinctive ring service provided by your telephone company, then make sure that you set the correct ring pattern for the printer. Otherwise, the printer does not receive faxes even if you have set it to receive faxes automatically.
  • Page 125 Faxing Tips for this setup: • This setup works best if you subscribe to a distinctive ring service. If you have distinctive ring service, then make sure that you set the correct ring pattern for the printer. Otherwise, the printer does not receive faxes even if you have set it to receive faxes automatically.
  • Page 126 Faxing To minimize interference between the two channels and ensure a quality connection, you need to install a DSL filter for the analog devices (fax machine, telephone, answering machine) in your network. Interference causes noise and static on the telephone, failed and poor quality faxes for the printer, and slow Internet connection on your computer. To install a filter for the printer: Connect the line port of the DSL filter to the wall jack.
  • Page 127 Faxing To connect: Connect one end of the telephone cable that came with the printer to the port of the printer. Connect the other end of the cable to the port labeled Phone Line 1 or Phone Port on the VoIP adapter. Note: The port labeled Phone Line 2 or Fax Port is not always active.
  • Page 128 Faxing Scenario 4: Digital telephone service through a cable provider Setup 1: Printer is connected directly to a cable modem Connect one end of the telephone cable that came with your printer to the port of the printer. Connect the other end of the cable to the port labeled Phone Line 1 or Phone Port on the cable modem. Note: The port labeled Phone Line 2 or Fax Port is not always active.
  • Page 129 Faxing • If you need two telephone ports for your devices, but do not want to pay additional cost, then do not plug the printer into the second telephone port. You can use a phone splitter. Plug the phone splitter into the Phone Line 1 or Phone Port, and then plug the printer and telephone into the splitter.
  • Page 130 If you are using a telephone adapter or a facility that has a cascaded or serial wiring scheme, then do not remove the adapter plug from the port of the printer. Part name Part number Lexmark adapter plug 40X8519...
  • Page 131 Faxing Connecting the printer to a non‑RJ‑11 wall jack Connect one end of the telephone cable that came with printer to the port of the printer. Connect the other end of the cable to the RJ‑11 adapter, and then connect the adapter to the wall jack. If you want to connect another device (telephone or answering machine) to the same wall jack, and if the device has a non‑RJ‑11 connector, then connect it directly to the telephone adapter.
  • Page 132 Faxing Connecting the printer to a wall jack in Germany The German wall jack has two kinds of ports. The N ports are for fax machines, modems, and answering machines. The F port is for telephones. N F N...
  • Page 133 Faxing Connect the printer to any of the N ports. N F N PHONE LINE Connect one end of the telephone cable that came the printer to the port of the printer. Connect the other end of the telephone cable to the RJ‑11 adapter, and then connect the adapter to an N port. If you want to connect a telephone and answering machine to the same wall jack, then connect the devices as shown.

  • Page 134: Connecting To A Distinctive Ring Service

    Faxing Connecting to a distinctive ring service A distinctive ring service may be available from your telephone company. This service lets you have multiple telephone numbers on one telephone line, with each telephone number having a different ring pattern. This may be useful for distinguishing between fax and voice calls.

  • Page 135: Sending A Fax

    Faxing Setting the date and time You can set the date and time so that they are printed on every fax you send. Open a Web browser, and then type the printer IP address in the address field. Notes: • View the printer IP address on the printer home screen.

  • Page 136: Sending A Fax Using The Computer

    • The fax option is available only with the PostScript driver or the Universal Fax Driver. For more information, go to http://support.lexmark.com. • To use the fax option with the PostScript driver, configure and enable it in the Configuration tab.

  • Page 137: Creating Shortcuts

    Faxing Sending a fax using the address book The address book lets you search for bookmarks and network directory servers. For more information on enabling the address book feature, contact your system support person. Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass. Notes: •...

  • Page 138: Customizing Fax Settings

    Faxing Notes: • View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123. • If you are using a proxy server, then temporarily disable it to load the Web page correctly. Click Settings >...

  • Page 139: Making A Fax Lighter Or Darker

    Faxing From the Resolution area, touch the arrows to select the resolution you want. Note: Select a resolution from Standard (fastest speed) to Ultra Fine (best quality at a reduced speed). Touch Fax It. Making a fax lighter or darker Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.

  • Page 140: Canceling An Outgoing Fax

    Faxing Canceling an outgoing fax Canceling a fax while the original documents are still scanning • When using the ADF, touch Cancel Job on the printer control panel while Scanning appears. • When using the scanner glass, touch Cancel Job on the printer control panel while Scanning appears or while Scan the Next Page and Finish the Job appear.

  • Page 141: Understanding The Fax Options

    Faxing From the Time menu, select the time you want the held faxes released. From the Day(s) menu, select the day you want the held faxes released. Click Add. Forwarding a fax This option lets you print and forward received faxes to a fax number, e‑mail address, FTP site, or LDSS. Open a Web browser, and then type the printer IP address in the address field.

  • Page 142: Delayed Send

    Faxing Page Setup This option lets you change the following settings: • Sides (Duplex)—This specifies if the original document is printed on one side or on both sides of the page (duplex). This also identifies what needs to be scanned for inclusion in the fax. •...
  • Page 143 Faxing Using the advanced options Select from the following settings: • Advanced Imaging—This adjusts the Background Removal, Color Balance, Color Dropout, Contrast, Mirror Image, Negative Image, Scan Edge to Edge, Shadow Detail, Sharpness, and Temperature settings before you fax the document.

  • Page 144: Scanning

    Scanning Scanning Using Scan to Network Scan to Network lets you scan your documents to network destinations specified by your system support person. After the destinations (shared network folders) have been established on the network, the setup process for the application involves installing and configuring the application on the appropriate printer using its Embedded Web Server.
  • Page 145 Scanning • If you are using a proxy server, then temporarily disable it to load the Web page correctly. Navigate to: Settings > Other Settings area > Manage Shortcuts > FTP Shortcut Setup Enter the appropriate information. Note: A password may be required. If you do not have an ID and password, then contact your system support person.

  • Page 146: Scanning To A Computer Or Flash Drive

    Scanning Notes: • Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray. Place these items on the scanner glass. • The ADF indicator light comes on when the paper is loaded properly. If you are loading a document into the ADF tray, then adjust the paper guides.
  • Page 147 Scanning The scanner lets you scan documents directly to a computer or a flash drive. The computer does not have to be directly connected to the printer for you to receive scan to computer images. You can scan the document back to the computer over the network by creating a scan profile on the computer and then downloading the profile to the printer.

  • Page 148: Understanding The Scan Options

    Scanning Open the printers folder, and then select your printer. Note: If your printer is not in the list, then add your printer. Open the printer properties, and then adjust the settings as necessary. From the control panel, touch Scan to Computer > select the appropriate scan setting > Send It. Scanning to a flash drive Load an original document faceup, short edge first into the ADF tray or facedown on the scanner glass.
  • Page 149 Scanning Darkness This option lets you adjust how light or dark the scanned documents are in relation to the original document. Resolution This option lets you adjust the output quality of your file. Increasing the image resolution increases the file size and the time needed to scan your original document.
  • Page 150 Scanning Page Setup This option lets you change the following settings: • Sides (Duplex)—This specifies if the original document is printed on only one side or on both sides of the paper. • Orientation—This specifies the orientation of the original document, and then changes the Sides (Duplex) and Binding settings to match the orientation.

  • Page 151: Understanding The Printer Menus

    Understanding the printer menus Understanding the printer menus Menus list Paper Menu Reports Network/Ports Security Default Source Menu Settings Page Active NIC Edit Security Setups Paper Size/Type Device Statistics Miscellaneous Security Settings Standard Network Configure MP Stapler Test Confidential Print Standard USB Substitute Size Network Setup Page...

  • Page 152: Paper Menu

    Understanding the printer menus Paper menu Default Source menu Default Source Set a default paper source for all print jobs. Tray [x] Notes: Multipurpose Feeder • Tray 1 (standard tray) is the factory default setting. Manual Paper • From the Paper menu, set Configure MP to "Cassette" for Multipurpose Manual Envelope Feeder to appear as a menu setting.

  • Page 153: Paper Size/Type Menu

    Understanding the printer menus Paper Size/Type menu Tray [x] Size Specify the paper size loaded in each tray. Notes: • Letter is the U.S. factory default setting. A4 is the international factory default setting. JIS‑B5 • If two trays contain paper of the same size and type, and the trays have Letter the same settings, then the trays are automatically linked.
  • Page 154 Understanding the printer menus MP Feeder Size Specify the paper size loaded in the multipurpose feeder. Notes: • Letter is the U.S. factory default setting. A4 is the international factory default setting. JIS B5 • From the Paper menu, set Configure MP to “Cassette” for MP Feeder Letter Size to appear as a menu.
  • Page 155 Understanding the printer menus Manual Paper Size Specify the size of the paper being manually loaded. Note: Letter is the U.S. factory default setting. A4 is the international factory default setting. JIS B5 Letter Legal Executive Oficio (Mexico) Folio Statement Universal Manual Paper Type Specify the paper type being manually loaded.

  • Page 156: Substitute Size Menu

    Understanding the printer menus Default ADF Media Type Specify the media type being loaded in the ADF. Plain Paper Note: Plain Paper is the factory default setting. Card Stock Transparency Recycled Labels Vinyl Labels Bond Envelope Rough Envelope Letterhead Preprinted Colored Paper Light Paper Heavy Paper...
  • Page 157 Understanding the printer menus Transparency Texture Specify the relative texture of the transparencies loaded in a specific tray. Smooth Note: Normal is the factory default setting. Normal Rough Recycled Texture Specify the relative texture of the recycled paper loaded in a specific tray. Smooth Note: Normal is the factory default setting.

  • Page 158: Paper Weight Menu

    Understanding the printer menus Heavy Texture Specify the relative texture of the heavy paper loaded in a specific tray. Smooth Note: Normal is the factory default setting. Normal Rough Rough/Cotton Texture Specify the relative texture of the rough or cotton paper loaded in a specific tray. Rough Note: Rough is the factory default setting.
  • Page 159 Understanding the printer menus Envelope Weight Specify the relative weight of the envelope loaded. Light Note: Normal is the factory default setting. Normal Heavy Rough Envelope Weight Specify the relative weight of the rough envelope loaded. Light Note: Normal is the factory default setting. Normal Heavy Letterhead Weight...

  • Page 160: Paper Loading Menu

    Understanding the printer menus Paper Loading menu Card Stock Loading Determine and set two-sided printing for all print jobs with Card Stock as the paper type. Duplex Recycled Loading Determine and set two-sided printing for all print jobs with Recycled as the paper type.

  • Page 161: Custom Types Menu

    Understanding the printer menus Custom [x] Loading Determine and set two-sided printing for all print jobs with Custom [x] as the paper type. Duplex Note: Custom [x] Loading is available only when the custom type is supported. Notes: • Off is the factory default setting for all Paper Loading menu selections. •...

  • Page 162: Custom Scan Sizes Menu

    Understanding the printer menus Custom Scan Sizes menu Custom Scan Size [x] Specify a custom scan size name, sizes, and orientation. The custom scan size name replaces Custom Scan Size [x] in the printer menus. Scan Size Name Media Type Notes: ADF Media Type •...

  • Page 163: Universal Setup Menu

    Understanding the printer menus Universal Setup menu Units of Measure Identify the units of measure. Inches Notes: Millimeters • Inches is the US factory default setting. • Millimeters is the international factory default setting. Portrait Width Set the portrait width. 3–8.5 inches Notes: 76–216 mm...
  • Page 164 Understanding the printer menus Configure Bins Specify configuration options for bins. Mailbox Notes: Link • Mailbox is the factory default setting. This treats each Mail Overflow bin as a separate mailbox. Link Optional • Link configures all available bins as one large bin. Type Assignment •...

  • Page 165: Reports Menu

    Understanding the printer menus Reports menu Reports menu Menu Settings Page Print a report on the current printer menu settings. The report also contains information about the status of the supplies and a list of hardware options that are successfully installed. Device Statistics Print a report containing printer statistics, such as supply information and the number of printed pages.

  • Page 166: Network/Ports Menu

    Understanding the printer menus Print Directory Print a list of all the resources stored in an optional flash memory card or hard disk. Notes: • Job Buffer Size must be set to 100%. • Make sure that the memory card or hard disk is installed and working correctly.
  • Page 167 Understanding the printer menus PS SmartSwitch Set the printer to automatically switch to PS emulation when a print job requires it, regardless of the default printer language. Notes: • On is the factory default setting. • If PS SmartSwitch is disabled, then the printer does not examine incoming data and it uses the default printer language specified in the Setup menu.

  • Page 168: Network Card Menu

    Understanding the printer menus Reports menu To access the menu, navigate to either of the following: • Network/Ports > Standard Network > Standard Network Setup > Reports • Network/Ports > Network [x] > Network [x] Setup > Reports Print Setup Page Print a report containing information about the network printer settings, such as the TCP/IP address. Network Card menu To access the menu, navigate to either of the following: •...
  • Page 169 Understanding the printer menus IP Address View or change the current TCP/IP address. Note: Manually setting the IP address sets the Enable DHCP and Enable Auto IP settings to Off. It also sets Enable BOOTP and Enable RARP to Off on systems that support BOOTP and RARP.

  • Page 170: Ipv6 Menu

    Understanding the printer menus IPv6 menu To access the menu, navigate to any of the following: • Network/Ports menu > Standard Network > Standard Network Setup >IPv6 • Network/Ports menu > Network [x] > Network [x] Setup > IPv6 Note: This menu is available only in network printers or printers that are attached to print servers. Enable IPv6 Enable IPv6 in the printer.

  • Page 171: Appletalk Menu

    Understanding the printer menus Network Mode Specify the network mode. BSS Type Notes: Infrastructure • Infrastructure is the factory default setting. This lets the printer Ad hoc access a network using an access point. • Ad hoc configures wireless connection directly between the printer and a computer.

  • Page 172: Standard Usb Menu

    Understanding the printer menus Standard USB menu PCL SmartSwitch Set the printer to automatically switch to PCL emulation when a print job received through a USB port requires it, regardless of the default printer language. Notes: • On is the factory default setting. •...
  • Page 173 Understanding the printer menus Job Buffering Temporarily store print jobs in the printer hard disk before printing. Notes: • Off is the factory default setting. Auto • On buffers jobs on the printer hard disk. • Auto buffers print jobs only if the printer is busy processing data from another input port.
  • Page 174 Understanding the printer menus PS SmartSwitch Set the printer to automatically switch to PS emulation when a print job received through a serial port requires it, regardless of the default printer language. Notes: • On is the factory default setting. •...
  • Page 175 Understanding the printer menus Protocol Specify the parallel port protocol. Standard Notes: Fastbytes • Fastbytes is the factory default setting. It provides compatibility with most existing parallel ports and is the recommended setting. • Standard tries to resolve parallel port communication problems. Honor Init Determine if the printer honors printer hardware initialization requests from the computer.
  • Page 176 Understanding the printer menus PCL SmartSwitch Set the printer to automatically switch to PCL emulation when a print job received through a serial port requires it, regardless of the default printer language. Notes: • On is the factory default setting. •...
  • Page 177 Understanding the printer menus Job Buffering Temporarily store print jobs on the printer hard disk before printing. Notes: • Off is the factory default setting. The printer does not buffer print jobs on the Auto printer hard disk. • On buffers print jobs on the printer hard disk. •...

  • Page 178: Smtp Setup Menu

    Understanding the printer menus Parity Set the parity for serial input and output data frames. Even Note: None is the factory default setting. None Ignore Honor DSR Determine whether the printer uses the DSR Signal. Notes: • Off is the factory default setting. •...

  • Page 179: Security Menu

    Understanding the printer menus Device‑Initiated E‑mail Specify what credentials will be used when communicating to the SMTP server. Some SMTP servers require credentials to send an e-mail. None Use Device SMTP Credentials Notes: User‑Initiated E‑mail • None is the factory default setting for Device‑Initiated E‑mail and None User‑Initiated E‑mail.

  • Page 180: Miscellaneous Security Settings Menu

    Understanding the printer menus Edit Access Controls Control access to printer menus, firmware updates, held jobs, and other access points. Administrative Menus Function Access Management Solutions Cancel jobs at the Device Miscellaneous Security Settings menu Login Restrictions Limit the number and time frames of failed login attempts from the printer control panel before all users are locked out.

  • Page 181: Confidential Print Menu

    Understanding the printer menus LDAP Certificate Verification Allow the user to request a server certificate. Demand Notes: • “Demand” is the factory default setting. This means a server certificate is Allow requested. If a bad certificate is provided or if no certificate is provided, then Never the session is terminated immediately.

  • Page 182: Erase Temporary Data Files Menu

    Understanding the printer menus Verify Job Expiration Set a limit on how long the printer stores print jobs needing verification. 1 hour 4 hours 24 hours 1 week Reserve Job Expiration Set a limit on how long the printer stores print jobs for printing at a later time. 1 hour 4 hours 24 hours...
  • Page 183 Understanding the printer menus Delete Log Specify whether audit logs are deleted. Configure Log Specify how audit logs are configured. Enable Audit Notes: • Enable Audit determines if events are recorded in the secure audit log and remote syslog. No is the factory default setting. Enable Remote Syslog •...
  • Page 184 Understanding the printer menus Configure Log (continued) Specify how audit logs are configured. Admin’s e-mail address Notes: [256 character string] • “Admin’s e‑mail address” determines if administrators are automatically Digitally sign exports notified of certain log events. This setting can have one or more e‑mail addresses (separated by commas).
  • Page 185 Understanding the printer menus Automatically Observe DST Set the printer to use the applicable daylight saving time (DST) start and end times associated with the printer Time Zone setting. Note: On is the factory default setting and uses the applicable Daylight Saving Time associated with the Time Zone setting.

  • Page 186: Settings Menu

    Understanding the printer menus Settings menu General Settings menu Display Language Set the language of the text appearing on the display. English Note: Not all languages are available for all models. You may Francais need to install a special hardware for some languages. Deutsch Italiano Espanol...
  • Page 187 Understanding the printer menus Run Initial setup Run the setup wizard. Keyboard Specify a language and custom key information for the display keyboard. Keyboard Type English Francais Francais Canadien Deutsch Italiano Espanol Greek Dansk Norsk Nederlands Svenska Suomi Portugues Russian Polski Swiss German Swiss French...
  • Page 188 Understanding the printer menus Displayed Information Specify what is displayed on the upper corners of the home screen. Left side For Left side and Right side, select from the following options: Right side None Custom Text [x] IP Address Hostname Contact Name Location Date/Time...
  • Page 189 Understanding the printer menus Home screen customization Change the icons that appear on the home screen. Change Language For each icon, select from the following options: Copy Display Copy Shortcuts Do Not display Fax Shortcuts E‑mail E‑mail Shortcuts FTP Shortcuts Search Held Jobs Held Jobs USB Drive...
  • Page 190 Understanding the printer menus Audio Feedback Specify the audio volume for the buttons. Button Feedback Notes: • On is the factory default setting for Button Feedback. • 5 is the factory default setting for Volume. Volume 1–10 Tactile Touchscreen Feedback Enable touch‑screen sensation feedback.
  • Page 191 Understanding the printer menus Alarms Set an alarm when the printer requires user intervention. Alarm Control For each alarm type, select from the following options: Cartridge Alarm Staple Alarm Single Hole Punch Alarm Continuous Notes: • Single is the factory default setting for Alarm Control. This setting sounds several quick beeps.
  • Page 192 Understanding the printer menus Timeouts Set the amount of time in seconds the printer waits before returning the display to a Ready state. Screen Timeout 15–300 Note: 30 is the factory default setting. Timeouts Continue a specified job without returning to the home screen when the screen timeout timer expires.

  • Page 193: Copy Settings Menu

    Understanding the printer menus Print Recovery Specify whether the printer reprints jammed pages. Jam Recovery Note: Auto is the factory default setting. The printer reprints jammed pages unless the memory required to hold the pages is needed for other printer tasks. Auto Print Recovery Set the printer to automatically check for jammed paper.
  • Page 194 Understanding the printer menus Content Source Specify how the original document was produced. Black/White Laser Note: Black/White Laser is the factory default setting. Color Laser Inkjet Photo/Film Magazine Newspaper Press Other Sides (Duplex) Specify whether an original document is two‑sided (duplex) or one‑sided, and then to specify whether the copy should be two‑sided or one‑sided.
  • Page 195 Understanding the printer menus Original Size Specify the paper size of the original document. Letter Notes: Legal • Letter is the U.S. factory default setting. Executive • A4 is the international factory default setting. Folio Statement Oficio (Mexico) Universal Auto Size Sense Mixed Sizes JIS B5 Difficult Media Letter...
  • Page 196 Understanding the printer menus Output Bin Specify the bin to be used for the copy job. Standard Bin Notes: Bin [x] • Standard Bin is the factory default setting. • Bin [x] appears only when at least one optional bin is installed. Number of Copies Specify the number of copies for the copy job.
  • Page 197 Understanding the printer menus Auto Center Automatically center the content on the page. Note: Off is the factory default setting. Color Dropout Specify which color to drop during scanning and to adjust the dropout setting for each color threshold. Color Dropout None Notes: •...

  • Page 198: Fax Settings Menu

    Understanding the printer menus Fax Settings menu Fax Mode (Analog Fax Setup) menu Analog Fax Setup mode sends the fax job through a telephone line. General Fax Settings Restore Factory Defaults Restore the factory defaults of all fax settings. Optimize Fax Compatibility Optimize fax compatibility with other fax machines.
  • Page 199 Understanding the printer menus Fax Cover Page Configure the fax cover page. Fax Cover Page Notes: Off by default • Off by default is the factory default setting for Fax Cover Page. On by default • Off is the factory default setting for all other menu items. Never use Always use Include to Field...
  • Page 200 Understanding the printer menus Original Size Specify the size of the original document. Letter Note: Mixed Sizes is the U.S. factory default setting. A4 is the international factory Legal default setting. Executive Folio Statement Oficio (Mexico) Universal Auto Size Sense Mixed Sizes JIS B5 Custom Scan Size [x]...
  • Page 201 Understanding the printer menus Automatic Redial Specify the number of times the printer tries to send the fax to a specified number. 0–9 Note: 5 is the factory default setting. Redial frequency Specify the number of minutes between redials. 1–200 Note: 3 is the factory default setting.
  • Page 202 Understanding the printer menus Color Balance Enable an equal balance of colors in the scanned image. Cyan - Red Magenta - Green Yellow - Blue Color Dropout Specify which color to drop and to adjust the dropout setting for each color threshold. Color Dropout Notes: None...
  • Page 203 Understanding the printer menus Enable Color Fax Scans Enable color faxing. Off by default Note: Off by default is the factory default setting. On by default Never use Always use Auto Convert Color Faxes to Mono Convert all outgoing faxes to black and white. Faxes Note: On is the factory default setting.
  • Page 204 Understanding the printer menus Separator Sheets Enable the printer to include separator sheets for incoming fax jobs. Note: Off is the factory default setting. Before Job After Job Separator Sheet Source Specify the paper source for the separator sheet. Tray [x] Note: Tray 1 is the factory default setting.
  • Page 205 Understanding the printer menus Punch Specify whether prints are punched. Note: Off is the factory default setting. Staple Specify whether prints are stapled. Note: Off is the factory default setting. 1 staple Enable Color Fax Receive Enable the printer to receive fax in color and print it in grayscale. Note: On is the factory default setting.
  • Page 206 Understanding the printer menus Speaker Settings Speaker Mode Specify the mode of the speaker. Always Off Note: On until Connected is the factory default setting. A sound is issued until the On until Connected fax connection is made. Always On Speaker Volume Set the speaker volume to high or low.
  • Page 207 Understanding the printer menus Content Type Specify the content of the original document. Text Note: Text/Photo is the factory default setting. Graphics Text/Photo Photo Content Source Specify how the content was originally produced. Black/White Laser Note: Black/White Laser is the factory default setting. Color Laser Inkjet Photo/Film...

  • Page 208: E‑Mail Settings Menu

    Understanding the printer menus Original Size Specify the size of the original document. Letter Note: Mixed Sizes is the U.S. factory default setting. A4 is the international factory Legal default setting. Executive Folio Statement Oficio (Mexico) Universal Auto Size Sense Mixed Sizes JIS B5 Difficult Media Letter...
  • Page 209 Understanding the printer menus E‑mail Server Setup Specify the maximum e-mail size. Max E‑mail size Note: E-mails bigger than the specified maximum size are not sent. 0–65535 KB E‑mail Server Setup Send a message when an e-mail is greater than the configured size limit. Size Error Message E‑mail Server Setup Specify a domain name, such as a company domain name, and then limit e‑mail...
  • Page 210 Understanding the printer menus Content Type Specify the content of the original document. Text Note: Text/Photo is the factory default setting. Graphics Text/Photo Photo Content Source Specify how the original document was produced. Black/White Laser Note: Black/White Laser is the factory default setting. Color Laser Inkjet Photo/Film...
  • Page 211 Understanding the printer menus Original Size Specify the size of the original document. Letter Note: Letter is the U.S. factory default setting. A4 is the international factory Legal default setting. Executive Folio Statement Oficio (Mexico) Universal Auto Size Sense Mixed Sizes JIS B5 Difficult Media Letter Difficult Media A5...
  • Page 212 Understanding the printer menus Use Multi‑Page TIFF Provide a choice between single-page TIFF files and multiple‑page TIFF files. For a multiple-page scan‑to‑e-mail job, either one TIFF file is created containing all the pages, or multiple TIFF files are created with one file for each page of the job. Note: On is the factory default setting.
  • Page 213 Understanding the printer menus Color Balance Enable an equal balance of colors in the output. Cyan - Red Magenta - Green Yellow - Blue Color Dropout Specify which color to drop and to adjust the dropout setting for each color threshold. Color Dropout Notes: None...

  • Page 214: Ftp Settings Menu

    Understanding the printer menus FTP Settings menu Format Specify the file format. PDF (.pdf) Note: PDF (.pdf) is the factory default setting. TIFF (.tif) JPEG (.jpg) XPS (.xps) RTF (.rtf) TXT (.txt) PDF Settings Configure the PDF settings. PDF Version Notes: 1.2–1.7 •...
  • Page 215 Understanding the printer menus Resolution Specify the quality of the scan in dots per inch (dpi). 75 dpi Note: 150 dpi is the factory default setting. 150 dpi 200 dpi 300 dpi 400 dpi 600 dpi Darkness Lighten or darken the output. 1–9 Note: 5 is the factory default setting.
  • Page 216 Understanding the printer menus JPEG Quality Set the quality of a JPEG photo image in relation to the file size and quality of the image. Best for content 5–90 Notes: • Best for content is the factory default setting. • 5 reduces the file size, but the quality of the image is lessened.
  • Page 217 Understanding the printer menus Custom Job Scanning Copy a document that contains mixed paper sizes. Notes: • Off is the factory default setting. • This menu item appears only when a formatted, working printer hard disk is installed. Scan Preview Specify whether a preview appears on the display for scan jobs.

  • Page 218: Flash Drive Menu

    Understanding the printer menus Shadow Detail Adjust the amount of shadow detail visible on a scanned image. ‑4 to 4 Note: 0 is the factory default setting. ADF Multi–feed Sensor Detect when the ADF picks more than one sheet of paper at once. Note: On is the factory default setting.
  • Page 219 Understanding the printer menus Content Type Specify the content of the original document. Text Note: Text/Photo is the factory default setting. Graphics Text/Photo Photo Content Source Specify how the original document was produced. Black/White Laser Note: Black/White Laser is the factory default setting. Color Laser Inkjet Photo/Film...
  • Page 220 Understanding the printer menus Original Size Specify the size of the original document. Letter Note: Letter is the U.S. factory default setting. A4 is the international factory Legal default setting. Executive Folio Statement Oficio (Mexico) Universal Auto Size Sense Mixed Sizes JIS B5 Difficult Media Letter Difficult Media A5...
  • Page 221 Understanding the printer menus File Name Enter a base file name. Custom Job Scanning Copy a document that contains mixed paper sizes. Notes: • Off is the factory default setting. • This menu item appears only when a formatted, working hard disk is installed. Scan Preview Specify whether a preview appears on the display for scan jobs.

  • Page 222: Print Settings

    Understanding the printer menus Scan edge to edge Specify whether the original document is scanned edge-to-edge. Note: Off is the factory default setting. Sharpness Adjust the amount of sharpness on a scanned image. 1–5 Note: 3 is the factory default setting. Temperature Specify warm or cool outputs.
  • Page 223 Understanding the printer menus Duplex Binding Define binding for two‑sided pages in relation to page orientation. Long Edge Notes: Short Edge • Long Edge is the factory default setting. It assumes binding along the long edge of the page (left edge for portrait and top edge for landscape). •...
  • Page 224 Understanding the printer menus Blank Pages Specify whether blank pages are inserted in a print job. Do Not Print Note: Do Not Print is the factory default setting. Print OCR Settings menu Auto Rotate Automatically rotate scanned documents for proper orientation. Note: On is the factory default setting.

  • Page 225: Setup Menu

    Understanding the printer menus Print Settings Setup menu Printer Language Set the default printer language. PCL Emulation Notes: PS Emulation • PS Emulation is the factory default printer language. • Setting a printer language as the default does not prevent a software program from sending print jobs that use another printer language.

  • Page 226: Finishing Menu

    Understanding the printer menus Resource Save Specify how the printer handles temporary downloads, such as fonts and macros stored in the RAM, when the printer receives a job that requires more memory than is available. Notes: • Off is the factory default setting. This sets the printer to retain the downloads only until memory is needed.
  • Page 227 Understanding the printer menus Separator Sheets Specify whether blank separator sheets are inserted. Notes: Between Copies • Off is the factory default setting. Between Jobs • Between Copies inserts a blank sheet between each copy of a print job if Between Pages Collate is set to “(1,2,3) (1,2,3).”...

  • Page 228: Quality Menu

    Understanding the printer menus Run Stapler Test Print a report that confirms that the staple finisher is functioning properly. Note: This menu item appears only when a supported staple finisher is installed. Hole Punch Specify whether holes will be created on printed outputs for the purpose of collecting the sheets in a binder or folder.
  • Page 229 Understanding the printer menus Toner Darkness Lighten or darken the printed output. 1–10 Notes: • 8 is the factory default setting. • Selecting a smaller number can help conserve toner. Enhance Fine Lines Enable a print mode preferable for files such as architectural drawings, maps, electrical circuit diagrams, and flow charts.

  • Page 230: Utilities Menu

    Understanding the printer menus Log Action at Near Full Determine and set how the printer responds when the hard disk is nearly full. None Notes: E‑mail Current Log • None is the factory default setting. E‑mail & Delete Current Log •...
  • Page 231 Understanding the printer menus Format Flash Format the flash memory. Warning—Potential Damage: Do not turn off the printer while the flash memory is being formatted. Notes: • Yes deletes all data stored in flash memory. • No cancels the format request. •...

  • Page 232: Postscript Menu

    Understanding the printer menus Annotations Print annotations in a PDF. Do Not Print Note: Do Not Print is the factory default setting. Print PostScript menu Print PS Error Print a page containing the PostScript error. Note: Off is the factory default setting. Lock PS Startup Mode Disable the SysStart file.
  • Page 233 Understanding the printer menus Symbol Set Specify the symbol set for each font name. 10U PC‑8 Notes: 12U PC‑850 • 10U PC‑8 is the US factory default setting. 12U PC‑850 is the international factory default setting. • A symbol set is a set of alphabetical and numeric characters, punctuation, and special symbols.
  • Page 234 Understanding the printer menus PCL Emulation Settings Specify whether the printer automatically performs a carriage return (CR) after a line feed (LF) control command. Auto CR after LF Note: Off is the factory default setting. PCL Emulation Settings Specify whether the printer automatically performs a line feed (LF) after a carriage return (CR) control command.

  • Page 235: Html Menu

    Understanding the printer menus HTML menu Font Name Joanna MT Set the default font for HTML documents. Albertus MT Letter Gothic Note: The Times font is used in HTML documents that do not Antique Olive Lubalin Graph specify a font. Apple Chancery Marigold Arial MT...

  • Page 236: Help Menu

    Understanding the printer menus Margin Size Set the page margin for HTML documents. 8–255 mm Notes: • 19 mm is the factory default setting. • Margin size can be increased in 1‑mm increments. Backgrounds Specify whether to print backgrounds on HTML documents. Do Not Print Note: Print is the factory default setting.
  • Page 237 Understanding the printer menus Menu item Description Print Defects Guide Provides a template for determining the cause of repeating print quality defects, and lists settings that can be used to adjust print quality Information Guide Provides help in locating additional information Supplies Guide Provides information about ordering supplies...

  • Page 238: Saving Money And The Environment

    Saving money and the environment Saving money and the environment Lexmark is committed to environmental sustainability and is continually improving its printers to reduce their impact on the environment. We design with the environment in mind, engineer our packaging to reduce materials, and provide collection and recycling programs.

  • Page 239: Saving Energy

    Saving money and the environment Check your first draft for accuracy Before printing or making multiple copies of a document: • Use the preview feature to see how the document looks like before you print it. • Print one copy of the document to check its content and format for accuracy. Avoid paper jams Correctly set the paper type and size to avoid paper jams.

  • Page 240: Adjusting Sleep Mode

    Saving money and the environment Reduce printer noise. Notes: • Print jobs are processed at a reduced speed. • Printer engine motors do not start until a document is ready to print. There will be a short delay before the first page is printed. Use factory default settings.

  • Page 241: Recycling

    The foam used in Lexmark packaging is recyclable where foam recycling facilities exist. Facilities may not exist in your area. When you return a cartridge to Lexmark, you can reuse the box that the cartridge came in. Lexmark will recycle the box.
  • Page 242 Saving money and the environment To return Lexmark cartridges for reuse or recycling, follow the instructions that came with your printer or cartridge and use the prepaid shipping label. You can also do the following: Go to www.lexmark.com/recycle. From the Toner Cartridges section, select your country or region.

  • Page 243: Securing The Printer

    Securing the printer Securing the printer Statement of Volatility Your printer contains various types of memory that can store device and network settings, and user data. Type of memory Description Volatile memory Your printer uses standard random access memory (RAM) to temporarily buffer user data during simple print jobs.

  • Page 244: Erasing Non-Volatile Memory

    Securing the printer Erasing non‑volatile memory Erase individual settings, device and network settings, security settings, and embedded solutions by following these steps: Turn off the printer. Hold down 2 and 6 while turning the printer on. Release the buttons only when the screen with the progress bar appears.

  • Page 245: Configuring Printer Hard Disk Encryption

    Securing the printer The printer will perform a power‑on reset, and then return to normal operating mode. Configuring printer hard disk encryption Enable hard disk encryption to prevent loss of sensitive data in the event the printer or its hard disk is stolen. Note: Some printer models may not have a printer hard disk installed.

  • Page 246: Finding Printer Security Information

    In high-security environments, it may be necessary to take additional steps to make sure that confidential data stored in the printer cannot be accessed by unauthorized persons. For more information, go to the Lexmark security Web page or see the Embedded Web Server—Security: Administrator’s Guide at http://support.lexmark.com.

  • Page 247: Maintaining The Printer

    Maintaining the printer Maintaining the printer Warning—Potential Damage: Failure to maintain optimum printer performance, or to replace parts and supplies, may cause damage to your printer. Cleaning printer parts Cleaning the printer Note: You may need to perform this task after every few months. Warning—Potential Damage: Damage to the printer caused by improper handling is not covered by the printer warranty.

  • Page 248: Cleaning The Scanner Glass

    Maintaining the printer Cleaning the scanner glass Clean the scanner glass if you encounter print quality problems, such as streaks on copied or scanned images. Slightly dampen a soft, lint-free cloth or paper towel with water. Open the scanner cover. Remove the white underside of the scanner cover.
  • Page 249 Maintaining the printer Open the bottom ADF door. Wipe the ADF scanner glass under the ADF door. Close the bottom ADF door. Place the white underside of the scanner cover on the scanner glass, and then close the scanner cover.

  • Page 250: Emptying The Hole Punch Box

    Maintaining the printer Wipe the areas shown, and then let them dry. White underside of the scanner cover Scanner glass ADF glass White underside of the ADF cover Close the scanner cover. Emptying the hole punch box Pull out the hole punch box.

  • Page 251: Checking The Status Of Parts And Supplies

    Maintaining the printer Empty the container. Insert the emptied hole punch box back into the finisher until it clicks into place. Checking the status of parts and supplies A message appears on the display when a replacement supply item is needed or when maintenance is required. Checking the status of parts and supplies on the printer control panel From the home screen, touch Status/Supplies >...

  • Page 252: Estimated Number Of Remaining Pages

    Using genuine Lexmark parts and supplies Your Lexmark printer is designed to function best with genuine Lexmark supplies and parts. Use of third-party supplies or parts may affect the performance, reliability, or life of the printer and its imaging components. Use of third-party supplies or parts can affect warranty coverage.

  • Page 253: Ordering A Maintenance Kit

    Africa, Middle East, Central Eastern Europe (non‑EU), and Commonwealth of Independent States (CIS) Toner Cartridge High Yield Toner Cartridge 625H Extra High Yield Toner Cartridge 625X For more information on countries located in each region, visit www.lexmark.com/regions. Item Regular cartridge Worldwide Extra High Yield Toner Cartridge 620XA Ordering a maintenance kit To identify the supported fuser type, view the label on the fuser.

  • Page 254: Ordering An Imaging Unit

    Maintaining the printer Lexmark Return Program fuser maintenance kit type Type Part number MX810 Series Return Program fuser maintenance kit Type 00 40X8420 MX810 Series Return Program fuser maintenance kit Type 01 40X8421 MX810 Series Return Program fuser maintenance kit Type 02...

  • Page 255: Storing Supplies

    Maintaining the printer Storing supplies Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you are ready to use them. Do not expose supplies to: • Direct sunlight • Temperatures above 35°C (95°F) •...

  • Page 256: Replacing Supplies

    Maintaining the printer Replacing supplies Replacing the toner cartridge Lift the front cover, and then pull down the multipurpose feeder door.
  • Page 257 Maintaining the printer Pull the cartridge out of the printer using the handle. Unpack the new toner cartridge, then remove the packing material, and then shake the cartridge to redistribute the toner. Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails inside the printer.
  • Page 258 Maintaining the printer Warning—Potential Damage: When replacing a toner cartridge, do not leave the imaging unit exposed to direct light for an extended period of time. Extended exposure to light may cause print quality problems. Close the multipurpose feeder door and the front cover.
  • Page 259 Maintaining the printer Replacing the imaging unit Lift the front cover, and then pull down the multipurpose feeder door.
  • Page 260 Maintaining the printer Pull out the toner cartridge from the printer using the handle. Lift the green handle, and then pull out the imaging unit from the printer.
  • Page 261 Maintaining the printer Unpack the new imaging unit, and then shake it. Remove all packing material from the imaging unit. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems. Warning—Potential Damage: Do not touch the photoconductor drum.
  • Page 262 Maintaining the printer Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails inside the printer. Close the multipurpose feeder door and the front cover.
  • Page 263 Maintaining the printer Replacing a staple cartridge Open the stapler door. Pull down the latch of the staple cartridge holder, and then pull the holder out of the finisher. Squeeze both sides of the empty staple case with your fingers, and then remove the staple case from the cartridge.

  • Page 264: Moving The Printer

    Maintaining the printer Insert the front side of the new staple case into the staple cartridge, and then push the rear side into the cartridge. Push the staple cartridge into the finisher until it clicks into place. Close the stapler door. Moving the printer CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more trained personnel to lift it safely.

  • Page 265: Moving The Printer To Another Location

    Maintaining the printer • If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the right side of the tray toward the front of the tray until it clicks into place. •...

  • Page 266: Managing The Printer

    This chapter covers basic administrative support tasks using the Embedded Web Server. For more advanced system support tasks, see the Networking Guide on the Software and Documentation CD or the Embedded Web Server — Security: Administrator's Guide on the Lexmark support Web site at http://support.lexmark.com. Checking the virtual display Open a Web browser, and then type the printer IP address in the address field.

  • Page 267: Configuring Supply Notifications From The Embedded Web Server

    Managing the printer Notes: • View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123. • If you are using a proxy server, then temporarily disable it to load the Web page correctly. Click Reports, and then click the type of report you want to view.

  • Page 268: Restoring Factory Default Settings

    Managing the printer Restoring factory default settings If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring the factory default settings. For more information, see “Printing a menu settings page” on page If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All Settings option.

  • Page 269: Clearing Jams

    Clearing jams Clearing jams By carefully selecting paper and specialty media and loading it properly, you should be able to avoid most jams. If jams occur, then follow the steps outlined in this chapter. Warning—Potential Damage: Never use any tool to remove a jam. Doing so could permanently damage the fuser. Avoiding jams Load paper properly •...
  • Page 270 Clearing jams • Do not slide the paper into the tray. Load paper as shown in the illustration. • Make sure the guides in the tray or the multipurpose feeder are properly positioned and are not pressing tightly against the paper or envelopes. •...
  • Page 271 Clearing jams Allow the paper to enter the optional mailbox bins properly • Make sure to adjust the bin extender so that the paper size indicators match the size of the paper used. Notes: – If the bin extender is shorter than the size of the paper you are printing on, then the paper causes a jam in the mailbox bin.

  • Page 272: Understanding Jam Messages And Locations

    Clearing jams • If paper needs to be returned to the mailbox bin, then insert the paper under the bin arm, and then push the paper all the way back. Note: If the paper is not under the bin arm, then a jam occurs due to an overfilled bin. Use recommended paper •...
  • Page 273 Clearing jams Notes: • When Jam Assist is set to On, the printer flushes blank pages or pages with partial prints to the standard bin after a jammed page has been cleared. Check your printed output for blank pages. • When Jam Recovery is set to On or Auto, the printer reprints jammed pages.

  • Page 274: [X]-Page Jam, Lift Front Cover To Remove Cartridge. [200-201]

    Clearing jams Area name Printer control panel message What to do Multipurpose feeder [x]‑page jam, clear manual Remove all paper from the multipurpose feeder, and feeder. [250] then remove the jammed paper. Inside the printer [x]‑page jam, lift front cover to Open the front cover and the multipurpose feeder, remove cartridge.
  • Page 275 Clearing jams Lift the green handle, and then pull out the toner cartridge from the printer. Place the toner cartridge aside. Lift the green handle, and then pull out the imaging unit from the printer. Place the imaging unit aside on a flat, smooth surface. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
  • Page 276 Clearing jams Pull the jammed paper gently to the right, and then remove it from the printer. Note: Make sure all paper fragments are removed. Warning—Potential Damage: The jammed paper may be covered with toner, which can stain garments and skin.
  • Page 277 Clearing jams Insert the toner cartridge into the printer, and then push the green handle back into place. Notes: • Align the arrows on the guides of the toner cartridge with the arrows in the printer. • Make sure the cartridge is fully pushed in.

  • Page 278: [X]-Page Jam, Open Upper Rear Door. [202]

    Clearing jams Close the multipurpose feeder door and the front cover. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, open upper rear door. [202] CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.
  • Page 279 Clearing jams Pull down the rear door. Firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.

  • Page 280: [X]-Page Jam, Open Upper And Lower Rear Door. [231-234]

    Clearing jams Close the rear door. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, open upper and lower rear door. [231–234] CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot component, allow the surface to cool before touching.
  • Page 281 Clearing jams Pull down the rear door. Firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.
  • Page 282 Clearing jams Close the rear door.
  • Page 283 Clearing jams Open the rear door of the duplex area, and then push the back of the standard tray. Press down the rear duplex flap, then firmly grasp the jammed paper, and then gently pull the paper out. Note: Make sure all paper fragments are removed.

  • Page 284: [X]-Page Jam, Remove Standard Bin Jam. [203]

    Clearing jams Insert the standard tray. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, remove standard bin jam. [203] Firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.

  • Page 285: [X]-Page Jam, Remove Tray 1 To Clear Duplex. [235-239]

    Clearing jams From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, remove tray 1 to clear duplex. [235–239] Pull out the tray completely. Note: Lift the tray slightly, and then pull it out. Push down the front duplex flap, then firmly grasp the jammed paper, and then gently pull the paper to the right and out of the printer.

  • Page 286: [X]-Page Jam, Open Tray [X]. [24X]

    Clearing jams Insert the tray. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, open tray [x]. [24x] Check which tray is indicated on the printer display, and then pull the tray. Firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.

  • Page 287: [X]-Page Jam, Clear Manual Feeder. [250]

    Clearing jams Insert the tray. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, clear manual feeder. [250] From the multipurpose feeder, firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.

  • Page 288: [X]-Page Jam, Open Mailbox Rear Door. Leave Paper In Bin. [4Yy.xx]

    Clearing jams Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the edges on a level surface. Reload paper into the multipurpose feeder. Slide the paper guide until it rests lightly against the edge of the paper. From the printer control panel, touch Done to clear the message and continue printing.
  • Page 289 Clearing jams Close the rear mailbox door. If the jam is in the mailbox bin, then firmly grasp the jammed paper, and then gently pull it out. Note: Make sure all paper fragments are removed.
  • Page 290 Clearing jams From the printer control panel, touch Done to clear the message and continue printing.

  • Page 291: [X]-Page Jam, Open Automatic Feeder Top Cover. [28Y.xx]

    Clearing jams [x]‑page jam, open automatic feeder top cover. [28y.xx] Remove all original documents from the ADF tray. Note: The message is cleared when the pages are removed from the ADF tray. Open the ADF cover. Firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.

  • Page 292: [X]-Page Jam, Remove Paper, Open Finisher Rear Door. Leave Paper In Bin. [451]

    Clearing jams Close the bottom ADF door. Straighten the edges of the original documents, then load the documents into the ADF, and then adjust the paper guide. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, remove paper, open finisher rear door.

  • Page 293: [X]-Page Jam, Remove Paper, Open Stapler Door. Leave Paper In Bin. [455-457]

    Clearing jams Close the staple finisher door. From the printer control panel, touch Done to clear the message and continue printing. [x]‑page jam, remove paper, open stapler door. Leave paper in bin. [455–457] From the stapler bin, firmly grasp the jammed paper on each side, and then gently pull it out. Note: Make sure all paper fragments are removed.
  • Page 294 Clearing jams Open the stapler outer and inner doors. Pull down the latch of the staple cartridge holder, and then pull the holder out of the printer.
  • Page 295 Clearing jams Use the metal tab to lift the staple guard, and then remove any loose staples. Press down the staple guard until it clicks into place.
  • Page 296 Clearing jams Slide the staples toward the metal bracket. Note: If the staples are at the rear of the cartridge, then shake the cartridge downward to bring the staples near the metal bracket. Warning—Potential Damage: Do not tap the cartridge on a hard surface. This could damage the cartridge. Push the cartridge holder firmly back into the stapler unit until the cartridge holder clicks into place.

  • Page 297: Troubleshooting

    Troubleshooting Troubleshooting Understanding the printer messages Cartridge low [88.xy] You may need to order a replacement toner cartridge. If necessary, touch Continue on the printer control panel to clear the message and continue printing. Cartridge nearly low [88.xy] If necessary, touch Continue on the printer control panel to clear the message and continue printing. Cartridge very low, [x] estimated pages remain [88.xy] You may need to replace the toner cartridge very soon.

  • Page 298: Close Door Or Insert Cartridge

    Troubleshooting Change [paper source] to [paper size] load [orientation] Try one or more of the following: • Load the correct size and type of paper in the tray or feeder, specify the size and type of paper in the Paper menu on the control panel, and then touch Finished changing paper.

  • Page 299: Close Top Access Cover

    Troubleshooting Close finisher rear door Close the rear door of the finisher. Close flatbed cover and load originals if restarting job [2yy.xx] Try one or more of the following: • Touch Scan from automatic feeder to continue scanning from the ADF immediately after the last successful scan job.

  • Page 300: Empty The Hole Punch Box

    Troubleshooting Defective flash detected [51] Try one or more of the following: • Replace the defective flash memory card. • From the printer control panel, touch Continue to ignore the message and continue printing. • Cancel the current print job. Disk full [62] Try one or more of the following: •...

  • Page 301: Fax Memory Full

    Troubleshooting Error reading USB hub. Remove hub. An unsupported USB hub has been inserted. Remove the USB hub, and then install a supported one. Fax memory full From the printer control panel, touch Continue to clear the message. Fax partition inoperative. Contact system administrator. Try one or more of the following: •...

  • Page 302: Insert Staple Cartridge

    Troubleshooting Imaging unit very low, [x] estimated pages remain [84.xy] You may need to replace the imaging unit very soon. For more information, see the “Replacing supplies” section of the User’s Guide. If necessary, touch Continue on the printer control panel to clear the message and continue printing. Incompatible output bin [x] [59] Try one or more of the following: •...
  • Page 303 Troubleshooting Insert Tray [x] Try one or more of the following: • Insert the specified tray into the printer. • Cancel the print job. • Reset the active bin for a linked set of bins by selecting Reset active bin on the printer control panel. Install bin [x] Try one or more of the following: •...
  • Page 304 Troubleshooting • Reset the active bin. Insufficient memory for Flash Memory Defragment operation [37] Try one or more of the following: • From the printer control panel, touch Continue to stop the defragmentation and continue printing. • Delete fonts, macros, and other data in the printer memory. •...
  • Page 305 Troubleshooting • Cancel the print job. Load [paper source] with [paper size] [paper orientation] Try one or more of the following: • Load the tray or feeder with the correct size of paper, and then touch Finished loading paper on the control panel. •...

  • Page 306: Load Staples

    If necessary, touch Continue to clear the message and continue printing. Maintenance kit very low, [x] estimated pages remain [80.xy] You may need to replace the maintenance kit very soon. For more information, visit the Lexmark support Web site at http://support.lexmark.com or contact customer support, and then report the message.
  • Page 307 Turn off the printer, wait for about 10 seconds, and then turn the printer back on. • Update the network firmware in the printer or print server. For more information, visit the Lexmark support Web site at http://support.lexmark.com. Non‑Lexmark [supply type], see User’s Guide [33.xy] Note: The supply type can be a toner cartridge or the imaging unit.
  • Page 308 If you do not want to accept these risks, then remove the third-party supply or part from your printer, and then install a genuine Lexmark supply or part. Note: For the list of supported supplies, see the “Ordering supplies” section of the User's Guide or visit www.lexmark.com.
  • Page 309 Unplug the power cord from the electrical outlet. Remove the indicated bin. Contact customer support at http://support.lexmark.com or your service representative. • From the printer control panel, touch Continue to clear the message and print without using the specified bin.

  • Page 310: Remove Paper From All Bins

    Troubleshooting Reinstall missing or unresponsive imaging unit [31.xy] Try one or more of the following: • Check if the imaging unit is missing. If missing, install the imaging unit. For information on installing the imaging unit, see the “Replacing supplies” section of the User’s Guide. •...
  • Page 311 “Replacing supplies” section of the User’s Guide. Note: If you do not have a replacement cartridge, then see the “Ordering supplies” section of the User’s Guide or visit www.lexmark.com. Replace cartridge, printer region mismatch [42.xy] Install a toner cartridge that matches the region number of the printer.
  • Page 312 Touch Restart job to restart the scan job with the same settings from the previous scan job. Replace maintenance kit, 0 estimated pages remain [80.xy] The printer is scheduled for maintenance. For more information, visit the Lexmark support Web site at http://support.lexmark.com or contact your service representative, and then report the message.

  • Page 313: Restore Held Jobs

    “Replacing supplies” section of the User’s Guide. Note: If you do not have a replacement imaging unit, then see the “Ordering supplies” section of the User’s Guide or visit www.lexmark.com. Replace wiper Try one or more of the following: •...

  • Page 314: Some Held Jobs Were Not Restored

    Troubleshooting Scanner jam, open and close automatic feeder top cover [2yy.xx] Remove the jammed paper from the ADF cover. Scanner jam, remove all originals from the scanner [2yy.xx] Remove the jammed paper from the scanner. Scanner jam, remove jammed originals from the scanner [2yy.xx] Remove the jammed paper from the scanner.

  • Page 315: Supply Needed To Complete Job

    Troubleshooting • Update the network firmware in the printer or print server. For more information, visit the Lexmark support Web site at http://support.lexmark.com or contact customer support, and then report the message. Standard USB port disabled [56] Try one or more of the following: •...

  • Page 316: Unsupported Disk

    Troubleshooting Too many trays attached [58] Turn off the printer. Unplug the power cord from the electrical outlet. Remove the extra trays. Connect the power cord to a properly grounded electrical outlet. Turn the printer back on. Tray [x] paper size unsupported Replace with a supported paper size.

  • Page 317: Solving Printer Problems

    Troubleshooting • Make sure the USB Buffer menu is not set to Disabled. Weblink server not set up. Contact system administrator. From the printer control panel, touch Continue to clear the message. Note: If the message appears again, then contact your system support person. Solving printer problems •...
  • Page 318 Troubleshooting Action Step 5 Go to step 6. Make sure to match the following: Check if the cables connecting the printer and the computer are inserted in the correct ports. • The USB symbol on the cable with the USB symbol on the Are the cables inserted in the correct ports? printer •...

  • Page 319: Hardware And Internal Option Problems

    Troubleshooting Printer display is blank Action Step 1 The problem is solved. Go to step 2. Press the Sleep button on the printer control panel. Does Ready appear on the printer display? Step 2 The problem is solved. Turn off the printer, and then contact Turn off the printer, then wait for about 10 seconds, and then turn the customer...

  • Page 320: Internal Print Server Does Not Operate Correctly

    Troubleshooting Action Step 4 The problem is solved. Contact customer support. Check if the internal option is selected. It may be necessary to manually add the internal option in the printer driver to make it available for print jobs. For more information, see “Adding available options in the print driver”...

  • Page 321: Tray Problems

    Troubleshooting Action Step 2 The problem is solved. Contact customer support. Check the cable and the ISP connection. Use the correct cable, and then make sure it is securely connected to the ISP. Check if the ISP solution interface cable is securely connected into the receptacle of the controller board.

  • Page 322: Paper Feed Problems

    Troubleshooting Action Step 4 The problem is solved. Contact customer support. Check if the tray is available in the printer driver. Note: If necessary, manually add the tray in the printer driver to make it available for print jobs. For more information, see “Adding available options in the print driver”...

  • Page 323: Paper Frequently Jams

    Troubleshooting Paper frequently jams Action Step 1 Go to step 2. The problem is solved. Pull out the tray, and then do one or more of the following: • Make sure paper lies flat in the tray. • Check if the paper size indicators on the paper guides are aligned with the paper size indicators on the tray.

  • Page 324: Solving Print Problems

    Troubleshooting Solving print problems Printing problems Confidential and other held jobs do not print Note: Confidential, Verify, Reserve, and Repeat print jobs may be deleted if the printer requires extra memory to process additional held jobs. Action Step 1 Go to step 2. Select one of the Print and Hold options, and Open the held jobs folder on the printer display, and then verify that your...
  • Page 325 Troubleshooting Envelope seals when printing Action Contact customer The problem is solved. Use envelopes that have been stored in a dry environment. support. Note: Printing on envelopes with high moisture content can seal the flaps. Resend the print job. Does the envelope seal when printing? Error message about reading the flash drive appears Action Step 1...

  • Page 326: Incorrect Characters Print

    Troubleshooting Incorrect characters print Action Step 1 Deactivate Hex Trace Go to step 2. mode. Make sure the printer is not in Hex Trace mode. Note: If Ready Hex appears on the printer display, then turn off the printer, and then turn it back on to deactivate Hex Trace mode. Is the printer in Hex Trace mode? Step 2 Contact...
  • Page 327 Troubleshooting Large jobs do not collate Action Step 1 The problem is solved. Go to step 2. From the Finishing menu on the printer control panel, set Collate to (1,2,3) (1,2,3). Resend the print job. Did the job print and collate correctly? Step 2 The problem is solved.

  • Page 328: Print Jobs Do Not Print

    Troubleshooting Action Step 1 The problem is solved. Go to step 2. Make sure the size of the paper loaded in the tray matches the fuser type. Note: Use a 110-volt fuser for printing on letter-size paper and a 220-volt fuser for printing on A4‑size paper. Resend the print job.

  • Page 329: Print Job Takes Longer Than Expected

    Remove, and then reinstall the printer software. For more information, see “Installing the printer” on page Note: The printer software is available at http://support.lexmark.com. Resend the print job. Do the jobs print? Print job takes longer than expected Action Step 1 The problem is solved.

  • Page 330: Tray Linking Does Not Work

    Troubleshooting Action Step 3 The problem is solved. Go to step 4. Remove held jobs stored in the printer memory. Resend the print job. Did the job print? Step 4 The problem is solved. Go to step 5. Disable the Page Protect feature. From the printer control panel, navigate to: Settings >...

  • Page 331: Unexpected Page Breaks Occur

    Troubleshooting Action Step 2 The problem is solved. Contact customer support. From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the trays to be linked. Note: The paper size and type must match for trays to be linked. Resend the print job.
  • Page 332 Troubleshooting Action Step 1 Go to step 2. The problem is solved. Print a font sample list to check if the fonts you are using are supported by the printer. From the printer control panel, navigate to: > Reports > Print Fonts Touch PCL Fonts or PostScript Fonts.
  • Page 333 Troubleshooting Action Step 2 Go to step 3. Do one or more of the following: From the printer control panel, set the paper size and type in the Paper menu to match the paper loaded in the tray. • Specify the paper size from the tray settings to match Do the paper size and type match the paper loaded in the tray?

  • Page 334: Gray Background On Prints

    Troubleshooting Action Step 2 The problem is solved. Contact customer support. Replace the fuser. For more information on installing the fuser, see the instruction sheet that came with the part. Resend the print job. Do compressed images still appear? Gray background on prints Leading edge ABCDE ABCDE...
  • Page 335 Troubleshooting Horizontal voids appear on prints Leading edge Trailing edge Action Step 1 Go to step 2. The problem is solved. Make sure your software program is using a correct fill pattern. Resend the print job. Do horizontal voids appear on prints? Step 2 Go to step 3.
  • Page 336 Troubleshooting Incorrect margins on prints A B C D A B C D A B C D Action Step 1 The problem is solved. Go to step 2. Move the width and length guides in the tray to the correct positions for the paper size loaded.

  • Page 337: Paper Curl

    Troubleshooting Paper curl Action Step 1 Go to step 2. Adjust the width and length guides. Move the width and length guides in the tray to the correct positions for the size of the paper loaded. Are the width and length guides positioned correctly? Step 2 Go to step 3.

  • Page 338: Printer Is Printing Solid Black Pages

    Troubleshooting Action Step 1 Go to step 2. The problem is solved. Check if there is packing material left on the imaging unit. Remove the toner cartridge, and then the imaging unit. Check if the packing material is properly removed from the imaging unit.

  • Page 339: Print Irregularities

    Troubleshooting Action Step 1 Go to step 2. The problem is solved. Reinstall the imaging unit. Remove the toner cartridge, and then the imaging unit. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems.

  • Page 340: Print Is Too Dark

    Troubleshooting Action Step 4 From the printer Go to step 5. control panel, set the Check if the paper loaded in the tray has texture or rough finishes. paper texture in the Paper menu to match Are you printing on textured or rough paper? the paper loaded in the tray.
  • Page 341 Troubleshooting Action Step 2 Go to step 3. Do one or more of the following: From the printer control panel, set the paper type, texture and weight in the Paper menu to match the paper loaded in the tray. • Specify the paper type, texture, and Resend the print job.

  • Page 342: Print Is Too Light

    Troubleshooting Print is too light Action Step 1 Go to step 2. The problem is solved. From the Quality menu on the printer control panel, increase the toner darkness. Note: 8 is the factory default setting. Resend the print job. Is the print still too light? Step 2 Go to step 3.

  • Page 343: Repeating Defects Appear On Prints

    Troubleshooting Action Step 6 Go to step 7. The problem is solved. Redistribute the toner in the imaging unit. Remove the toner cartridge, and then the imaging unit. Firmly shake the imaging unit. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.

  • Page 344: Shadow Images Appear On Prints

    Troubleshooting Shadow images appear on prints Leading edge A B C D A B C D A B C D A B C D Trailing edge Action Step 1 Go to step 2. Load paper with the correct paper type and Load paper with the correct paper type and weight in the tray.

  • Page 345: Streaked Horizontal Lines Appear On Prints

    Troubleshooting Action Step 1 Go to step 2. The problem is solved. Move the width and length guides in the tray to the correct positions for the size of the paper loaded. Resend the print job. Is the print still skewed? Step 2 Contact customer...

  • Page 346: Streaked Vertical Lines Appear On Prints

    Troubleshooting Action Step 4 Go to step 5. The problem is solved. Reinstall the imaging unit. Remove the toner cartridge, and then the imaging unit. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems.
  • Page 347 Troubleshooting Action Step 3 Go to step 4. The problem is solved. Load paper from a fresh package. Note: Paper absorbs moisture due to high humidity. Store paper in its original wrapper until you use it. Resend the print job. Do streaked vertical lines appear on prints? Step 4 Go to step 5.

  • Page 348: Toner Rubs Off

    Troubleshooting Action Step 2 The problem is solved. Contact customer support. Replace the imaging unit, and then resend the print job. Did the toner fog or background shading disappear from the prints? Toner rubs off Leading edge Trailing edge Action Step 1 Go to step 2.

  • Page 349: Transparency Print Quality Is Poor

    Troubleshooting Transparency print quality is poor Action Step 1 Go to step 2. Set the paper type to Transparency. From the printer control panel, set the paper type in the Paper menu to match the paper loaded in the tray. Is the paper type for the tray set to Transparency? Step 2 Contact...

  • Page 350: Solving Copy Problems

    Troubleshooting Action Step 2 Go to step 3. The problem is solved. From the printer control panel, set the paper type and weight in the Paper menu to match the paper loaded in the tray. Resend the print job. Do vertical voids appear on prints? Step 3 Go to step 4.

  • Page 351: Copier Does Not Respond

    Troubleshooting Copier does not respond Action Step 1 Clear the error or status Go to step 2. message. Check if an error or status message appears on the display. Does an error or status message appear? Step 2 Go to step 3. Connect the power cord to the printer and Check if the power cord is plugged into the printer and a properly...

  • Page 352: Poor Copy Quality

    Troubleshooting Poor copy quality Action Step 1 Clear the error or status Go to step 2. message. Check if an error or status message appears on the display. Does an error or status message appear? Step 2 Go to step 3. Increase the scan resolution setting for a Check the quality of the original document.

  • Page 353: Solving Fax Problems

    Troubleshooting Action Step 8 Go to step 9. The problem is solved. Check for missing or faded text on prints. From the Copy screen, navigate to: Advanced Options > Advanced Imaging Adjust the settings: • Sharpness—Increase the current setting. • Contrast—Increase the current setting.

  • Page 354: Caller Id Is Not Shown

    Troubleshooting Caller ID is not shown Action Contact your telephone company to check if your telephone line is The problem is solved. Contact customer subscribed to the caller ID service. support. Notes: • If your region supports multiple caller ID patterns, then you may have to change the default setting.
  • Page 355 Troubleshooting Action Step 5 The problem is solved. Go to step 6. Check the telephone wall jack. Plug the telephone cable into the wall jack. Listen for a dial tone. If you do not hear a dial tone, then plug a different telephone cable into the wall jack.

  • Page 356: Can Receive But Not Send Faxes

    Troubleshooting Action Step 8 The problem is solved. Go to step 9. Temporarily disconnect other equipment (such as answering machines, computers with modems, or telephone line splitters) between the printer and the telephone line, and then try sending or receiving a fax. Can you send or receive a fax? Step 9 The problem is solved.

  • Page 357: Can Send But Not Receive Faxes

    Troubleshooting Action Step 2 The problem is solved. Go to step 3. Load the original document properly. Load the original document faceup, short edge first into the ADF tray or facedown on the scanner glass in the upper left corner. Note: Do not load postcards, photos, small items, transparencies, photo paper, or thin media (such as magazine clippings) into the ADF tray.

  • Page 358: Received Fax Has Poor Print Quality

    Troubleshooting Action Step 3 The problem is solved. Contact customer support. Replace the toner cartridge. For more information, see the instruction sheet that came with the supply. Can you receive faxes? Fax and e-mail functions are not set up Notes: •...

  • Page 359: Solving Scanner Problems

    Troubleshooting Action Step 2 The problem is solved. Go to step 3. Decrease the incoming fax transmission speed. Open a Web browser, and then type the printer IP address in the address field. Notes: • View the printer IP address on the printer home screen. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.

  • Page 360: Cannot Scan From A Computer

    Troubleshooting Cannot scan from a computer Action Step 1 Go to step 3. Go to step 2. Make sure the printer is turned on and that Ready appears on the printer display before scanning a job. Does Ready appear before scanning the job? Step 2 Clear the error Go to step 3.
  • Page 361 Troubleshooting Action Step 3 Go to step 4. “Cleaning the scanner glass” on Clean the scanner glass and the ADF glass using a clean, lint‑free cloth page 248. dampened with water. Is the scanner glass clean? Step 4 Go to step 5. Place the document or photo facedown on the Check the placement of the document or photo.

  • Page 362: Scanning Takes Too Long Or Freezes The Computer

    Troubleshooting Action Step 3 Close the file you are Go to step 4. scanning. Check if the document or photo you want to scan is open in another application or being used by another user. Is the file you want to scan open by another application or user? Step 4 Contact customer...
  • Page 363 Troubleshooting The scanner does not respond Action Step 1 Go to step 2. Turn on the printer. Check if the printer is turned on. Is the printer turned on? Step 2 Go to step 3. Connect the printer cable securely to the Check if the printer cable is securely attached to the printer and the printer and the computer, print server, option, or other network device.

  • Page 364: Solving Home Screen Application Problems

    Troubleshooting Solving home screen application problems An application error has occurred Action Step 1 Go to step 2. Contact customer support. Check the system log for relevant details. Open a Web browser, and then type the printer IP address in the address field.

  • Page 365: Contacting Customer Support

    You need to know your printer model type and serial number. For more information, see the label at the back of the printer. The serial number is also listed on the menu settings page. Lexmark has various ways to help you solve your printing problem. Visit the Lexmark Web site at http://support.lexmark.com, and then select one of the following: Tech Library You can browse our library of manuals, support documentation, drivers, and other downloads to help you solve common problems.

  • Page 366: Notices

    The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL, INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 367 Notices Trademarks Lexmark, Lexmark with diamond design, MarkNet, and MarkVision are trademarks of Lexmark International, Inc., registered in the United States and/or other countries. ScanBack is a trademark of Lexmark International, Inc. Mac and the Mac logo are trademarks of Apple Inc., registered in the U.S. and other countries.

  • Page 368: Noise Emission Levels

    Note: To assure compliance with FCC regulations on electromagnetic interference for a Class A computing device, use a properly shielded and grounded cable such as Lexmark part number 1021231 for parallel attach or 1021294 for USB attach. Use of a substitute cable not properly shielded and grounded may result in a violation of FCC regulations.
  • Page 369 The WEEE logo signifies specific recycling programs and procedures for electronic products in countries of the European Union. We encourage the recycling of our products. If you have further questions about recycling options, visit the Lexmark Web site at www.lexmark.com for your local sales office phone number.

  • Page 370: Energy Star

    Notices ENERGY STAR Any Lexmark product bearing the ENERGY STAR emblem on the product or on a start-up screen is certified to comply with Environmental Protection Agency (EPA) ENERGY STAR requirements as configured when shipped by Lexmark. Temperature information Ambient operating temperature 15.6 to 32.2°C (60 to 90°F)

  • Page 371: Power Consumption

    The product is plugged into an electrical outlet, but the power switch is turned off. The power consumption levels listed in the previous table represent time-averaged measurements. Instantaneous power draws may be substantially higher than the average. Values are subject to change. See www.lexmark.com for current values.

  • Page 372: Industry Canada Compliance Statement

    Notices Sleep Mode This product is designed with an energy-saving mode called Sleep Mode. The Sleep Mode saves energy by lowering power consumption during extended periods of inactivity. The Sleep Mode is automatically engaged after this product is not used for a specified period of time, called the Sleep Mode Timeout. Factory default Sleep Mode Timeout for this product (in minutes): By using the configuration menus, the Sleep Mode Timeout can be modified between 1 minute and 120 minutes.
  • Page 373 The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA. The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.

  • Page 374: Notice To Users Of The Canadian Telephone Network

    If this happens, the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If you experience trouble with this equipment, for repair or warranty information, contact Lexmark International, Inc. www.lexmark.com or your Lexmark representative.

  • Page 375: Notice To Users Of The New Zealand Telephone Network

    Notices an interface may consist of any combination of devices, subject only to the requirement that the sum of the RENs of all the devices does not exceed five. The modem REN is located on the rear of the equipment on the product labeling. Telephone companies report that electrical surges, typically lightning transients, are very destructive to customer terminal equipment connected to AC power sources.

  • Page 376: Using This Product In Switzerland

    Using this product in Switzerland This product requires a Swiss billing tone filter (Lexmark part number 80D1877) to be installed on any line which receives metering pulses in Switzerland. The filter must be used, as metering pulses are present on all analog telephone lines in Switzerland.

  • Page 377: Regulatory Notices For Wireless Products

    Compliance is indicated by the CE marking. The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA. The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium Tower III, 1095 Budapest HUNGARY.
  • Page 378 Compliance is indicated by the CE marking. The manufacturer of this product is: Lexmark International, Inc., 740 West New Circle Road, Lexington, KY, 40550 USA. The authorized representative is: Lexmark International Technology Hungária Kft., 8 Lechner Ödön fasor, Millennium Tower III, 1095 Budapest HUNGARY, A declaration of conformity to the requirements of the Directives is available upon request from the Authorized Representative.
  • Page 379 Alulírott, Lexmark International, Inc. nyilatkozom, hogy a termék megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér með lýsir Lexmark International, Inc. yfir því að þessi vara er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC. Italiano Con la presente Lexmark International, Inc.
  • Page 380 —Is manufactured from new parts, or new and serviceable used parts, which perform like new parts —Is, during normal use, free from defects in material and workmanship If this product does not function as warranted during the warranty period, contact a Remarketer or Lexmark for repair or replacement (at Lexmark's option).
  • Page 381 Remarketer or Lexmark, or ship it prepaid and suitably packaged to a Lexmark designated location. You are responsible for loss of, or damage to, a product in transit to the Remarketer or the Lexmark designated location.

  • Page 382: Limitation Of Liability

    ANY LOST PROFITS, LOST SAVINGS, INCIDENTAL DAMAGE, OR OTHER ECONOMIC OR CONSEQUENTIAL DAMAGES. This is true even if you advise Lexmark or a Remarketer of the possibility of such damages. Lexmark is not liable for any claim by you based on a third party claim.
  • Page 383 Notices The use of this product or service is subject to the reasonable, non-discriminatory terms in the Intellectual Property Rights (IPR) Disclosure of Certicom Corp. at the IETF for Algorithms for Internet Key Exchange version 1 (IKEv1) implemented in the product or service.

  • Page 384: Index

    Index Index administrator settings Change [paper source] to [paper Numerics Embedded Web Server 266 size] load [orientation] 298 2100‑sheet tray advanced options Change [paper source] to [paper loading 68 copy options 111 type] [paper size] load 550‑sheet tray e‑mail options 118 [orientation] 298 installing 46 fax options 143...
  • Page 385 Index Configuration change, some held copy options copying on transparencies 101 jobs were not restored [57] 299 advanced options 111 creating a fax destination shortcut configuration information collate 110 using the Embedded Web wireless network 53 copies 110 Server 137 Configure MP menu 152 darkness 110 creating an FTP shortcut...
  • Page 386 Index disposing of printer hard disk 243 printer display brightness, using the address book 115 distinctive ring service, fax adjusting 240 e‑mailing connecting to 134 Quiet Mode 239 adding message line 115 documents, printing Sleep Mode 240 adding subject line 115 from Macintosh 93 Erase Temporary Data Files configuring e‑mail settings 112...
  • Page 387 Index standard telephone line flash drive finding information 22 connection 121 printing from 94 home screen buttons and icons VoIP 126 Flash Drive menu 218 description 16 Fax Station Name not set up. flash drives HTML menu 235 Contact system administrator. 301 supported file types 95 Fax Station Number not set up.
  • Page 388 Index Insufficient memory, some held Load [paper source] with [custom menu settings page jobs will not be restored [37] 304 type name] [paper orientation] 304 printing 56 internal options 27 Load [paper source] with [paper menus internal print server size] [paper orientation] 305 Active NIC 166 troubleshooting 320 Load [paper source] with [paper...
  • Page 389 Parallel [x] menu 173 modem, fax is disabled. 307 Parallel port [x] disabled [56] 308 noise emission levels 368 parts Non‑Lexmark [supply type], see page setup checking status 251 User’s Guide [33.xy] 307 e‑mail options 118 checking, from printer control non‑volatile memory 243...
  • Page 390 Index photos incorrect margins on prints 336 [x]‑page jam, lift front cover to copying 101 jammed pages are not remove cartridge. [200– placing separator sheets between reprinted 322 201] 274 copies 106 job prints from wrong tray 326 [x]‑page jam, open automatic port settings job prints on wrong paper 326 feeder top cover.
  • Page 391 Scanner automatic feeder cover Install bin [x] 303 to modem, fax is disabled. 307 open 313 Install duplex 303 Non‑Lexmark [supply type], see Scanner disabled by admin Install Tray [x] 303 User’s Guide [33.xy] 307 [840.01] 313 Insufficient memory for Flash Not enough free space in flash Scanner disabled.
  • Page 392 86, 238 internal option is not Replace wiper 313 recycling detected 319 replacing a staple cartridge 263 Lexmark packaging 241 internal print server 320 replacing supplies Lexmark products 241 Internal Solutions Port 320 staple cartridge 263 toner cartridges 241...
  • Page 393 Index Restore held jobs? 313 Scanner disabled by admin sending a fax using the restoring factory default [840.01] 313 computer 136 settings 268 Scanner disabled. Contact system sending a fax using the printer RJ‑11 adapter 129 administrator if problem persists. control panel 135 [840.02] 313 sending an e‑mail using the printer...
  • Page 394 Tray [x] paper size conserving 238 print 327 unsupported 316 storing 255 paper curl 337 trays using genuine Lexmark 252 paper frequently jams 323 linking 81, 82 using recycled paper 238 print job takes longer than unlinking 81, 82 supplies, ordering...
  • Page 395 Index clipped pages or images 332 Universal paper size compressed images appear on setting 58 Weblink server not set up. Contact prints 333 Universal Setup menu 163 system administrator. 317 gray background on prints 334 unlinking trays 81, 82 wiping the printer hard disk 244 horizontal voids appear on Unsupported camera mode, unplug Wireless menu 170...
