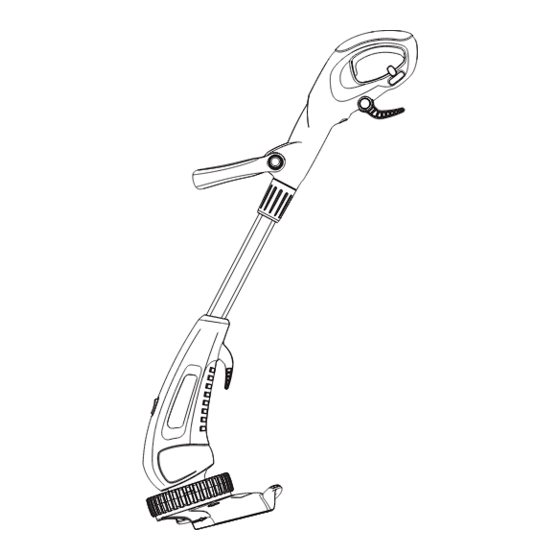

Flymo Contour PowerPlus Original Instructions Manual
Electric lawn trimmer
Hide thumbs
Also See for Contour PowerPlus:
- Manual (80 pages) ,
- Original instructions manual (8 pages) ,
- Original instructions manual (10 pages)
Related Manuals for Flymo Contour PowerPlus
Summary of Contents for Flymo Contour PowerPlus
- Page 1 Original Instructions For all customer enquiries or for replacement parts, contact:- ¤ 01325 300303 www.flymo.com customer.services@husqvarna.co.uk...
-
Page 2: Carton Contents
Electric Cable with Guard moulded on plug Wheel IMPORTANT ! Please check the contents of the carton are correct BEFORE assembling your new Flymo product. IF ANY PARTS ARE MISSING CONTACT:- Husqvarna UK Ltd. Customer Service Department direct Telephone : 01325 300303... - Page 3 Do not repair a damaged before clearing a blockage; cable, replace it with a new one. Use only Flymo before checking, cleaning or working on the appliance; replacement cable.
-
Page 4: Assembly Instructions
Assembly Instructions Assembly of Switch Handle to Tube (A1) • Ensure that the internal cable is not twisted. 1. Insert the tube into the switch handle. 2. Push until it clicks into position. • ENSURE THAT THE TUBE IS FULLY LOCATED BY ATTEMPTING TO REMOVE IT. - Page 5 Double Auto Feed System How the automatic line feed works (G) 1. When initially switching on the trimmer, a small length of line is fed out. 2. A ʻclatteringʼ noise will be heard when the two nylon lines hit the line cutter. DO NOT BE ALARMED this is quite normal.
-
Page 6: Cutting Head
7. Refit the cap. To fit nylon line only: • Remember ! Your Flymo Trimmer is designed to use only nylon line with a maximum diameter of 1.5mm. Cleat Use only genuine Flymo nylon line. -
Page 7: Maintenance
Keep fingers and hands clear of the line cutter on leading edge of guard. Caring for your Contour Power Plus After you have finished using your Flymo Contour Power Plus follow the procedure below: AVOID ACCIDENTAL STARTING. REMOVE PLUG... -
Page 8: Fault Finding Chart
Fault Finding Chart WARNING Disconnect from the mains electricity supply before attempting any maintenance or adjustment. FAULT CHECK ACTION Is the automatic line feed work- Manually feed out line. LINE NOT FEEDING ing? SEE “MANUAL LINE FEED” Is the line fed out and visible? Remove cap and spool, free line LINE TOO SHORT Has line been removed from... -
Page 9: Ec Declaration Of Conformity
EC Declaration of Conformity Husqvarna UK Ltd., Aycliffe Industrial Park Newton Aycliffe, Co. Durham, DL5 6UP, England Declare under our sole responsibility that the product(s); Category......Electric Lawn Trimmer Type(s) ......EIT250, EIT300 Identification of Series..See Product Rating Label Year of Construction..See Product Rating Label Conforms to the essential requirements &...
