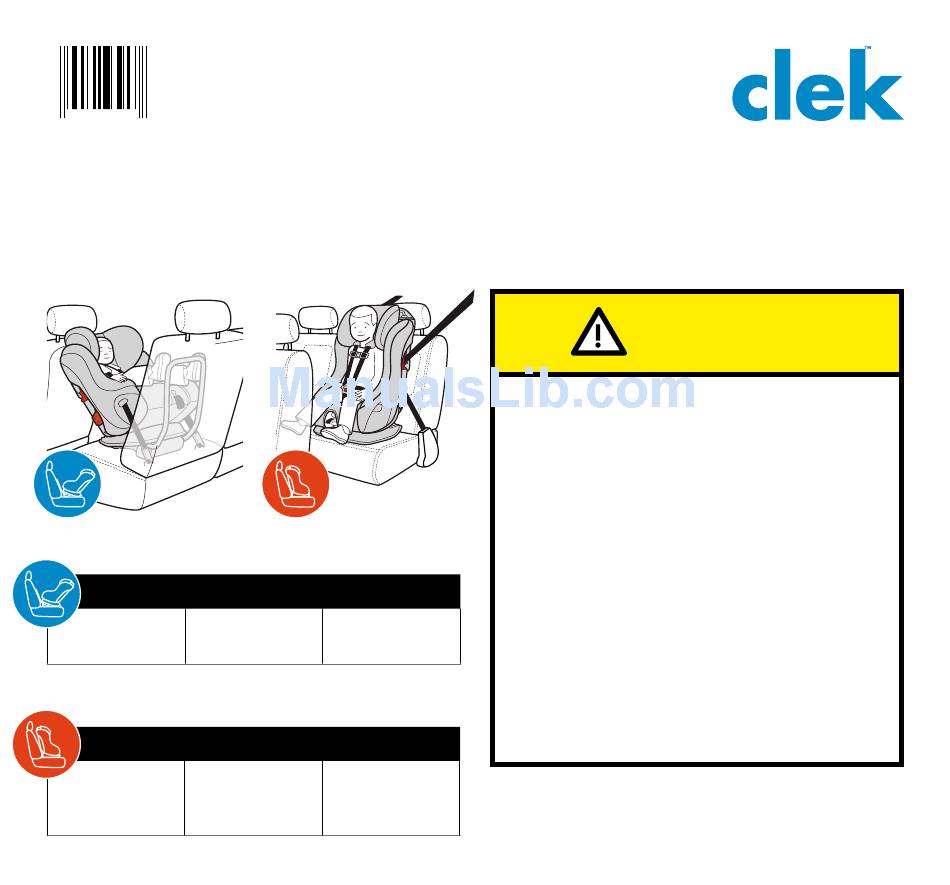

Fllo Instruction Manual
This car seat is designed for use either Rear-Facing or Forward-Facing by children who meet
all of the following requirements:
HEIGHT
25 – 43 in.
14 – 50 lb
64 – 110 cm
6.4 – 22.7 kg
HEIGHT
WEIGHT
30 – 49 in.
22 – 65 lb
76 – 124 cm
10 – 29.5 kg
C03-1422-B1-US
WEIGHT
AGE
Able to sit
upright alone
AGE
2+ years
recommended
(min. 1 year)
WARNING
• Read and understand product
labels and all instructions in
this manual and in your vehicle
owner's manual before installing
or using this car seat.
• Failure to properly install or
use this car seat or follow these
warnings and those on this car
seat's labels can result in serious
injury or death to the child
in a sharp turn, sudden stop
or crash.
November 2014
